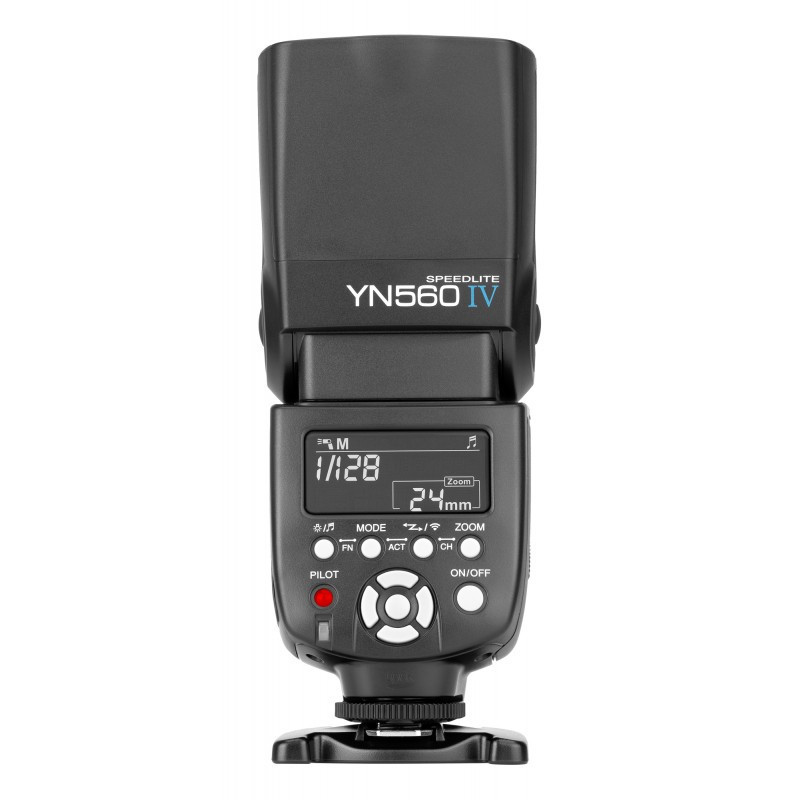

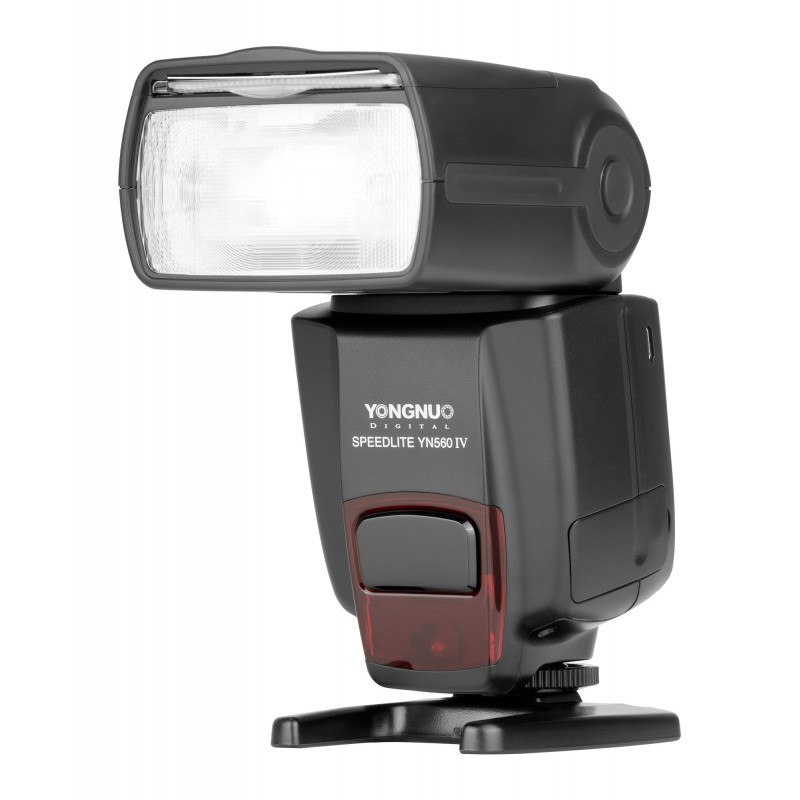

Flash Yongnuo YN560 IV Flash Negative Display

Flash Yongnuo YN560 IV flash Negative Display

The Yongnuo YN560 IV flash is the next iteration of one of our best-selling handheld flashes. The Speedlight with built-in RF receiver is a great choice for strobing enthusiasts. The Negative Display version features a new, easy-to-read LCD screen. It is compatible with the RF603, RF602 and YN560 TX wireless systems.

Specification

•


  Model: Yongnuo YN560 IV Negative Display





•


  number of guides (GN): 58 (ISO 100, 105 mm)





•


  flash color temperature: 5600 K





•


  Operating modes:





  •


    manual (M)





  •


    stroboscopic (plural)





  •


    S1 / S2





  •


    Slave (RX)





  •


    Home (TX)









•


  flash duration: 1/200 - 1/20000 s





•


  flash power adjustment: 1/128 - 1/1 with 1/3 EV or 1/2 EV steps





•


  charging time: approx. 3 s at full power





•


  flash zoom: 24-105 mm




•


  Confirmation:





  •


    Hot Shoe





  •


    1/4 inch tripod mount









•


  Additional ports:





  •


    micro USB (for software updates)





  •


    Computer synchronization (for activation via cable)





  •


    external charging (for additional battery)









•


  Dimensions: 6.0 x 19.0 x 7.8 cm





•


  weight: 360 g (without accessories)





•


  Other product features:





  •


    large LCD display with backlight





  •


    built-in reflector and diffuser





  •


    first or second curtain synchronization





  •


    micro USB port for software updates





  •


    speaker (can be turned off)





  •


    energy saving mode





  •


    overheating protection





  •


    automatic saving of last used settings





  •


    built-in radio controller








Compatibility

•


  cameras "Nikon", "Canon", "Sony", "Olympus", "Fuji", "Pentax", etc. with ISO standard "hot shoe"





•


  photos with a computer socket (using a computer sync cable)





•


  Compatible with most flashes and cameras on the market in S1 and S2 modes





•


  Yongnuo RF603 and RF602 wireless flash control system





  •


    as Slave (RX), compatible with: Yongnuo YN720, YN660, YN560 IV flashes and YN560 TX, RF602, RF603, RF-605 triggers





  •


    master (TX) is compatible with: Yongnuo YN720, YN685, YN660, YN560 IV, YN560 III lamps








Kit contents

•


  Yongnuo YN560 IV Negative Display





•


  flash stand with 1/4" thread





•


  flash cover
