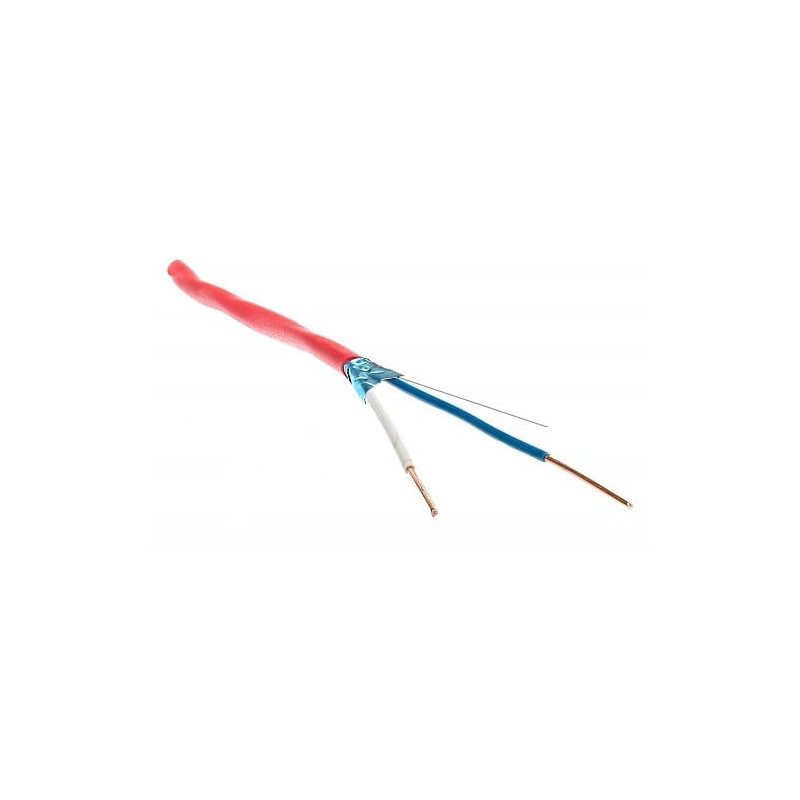

Fire-resistant shielded non-combustible cable Bitner HTKSHekw FE180 / Ph90 E90 1x2x1.4mm
Product reference:
26-KGMK1x2x1.4
- Fire cable 1x2x1.4mm
- Shielded
- Price per 100m.
- Flammability class: Cca
Fire-resistant shielded non-combustible cable Bitner HTKSHekw FE180 / Ph90 E90 1x2x1.4mm
Product reference:
26-KGMK1x2x1.4
- Fire cable 1x2x1.4mm
- Shielded
- Price per 100m.
- Flammability class: Cca
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 6
business days
- Temperature range:
- Fixed installation: -30°C up to 80°C
- During installation: -5°C up to 50°C
- Operating voltage: 225V
- Test voltage: AC 1500 V DC 2250 V
- Insulation resistance (minimum): 500 MΩ*km
- Loop resistance at 20°C (maximum):
- 0.8 mm - 75 Ω/km
- 1.0 mm - 48 Ω/km
- 1.4 mm - 26.6 Ω/km
- 1.8 mm - 14.96 Ω/km
- 2.3 mm - 9.6 Ω/km
- 2.8 mm - 6.4 Ω/km
- Mutual pair capacitance at 1kHz (maximum):
- Unscreened cable: 120 nF/km
- Screened cable: 150 nF/km
- Inductance: 0.7 mH/km
- Min. bending radius: 10 x Ø
| Weight | 8.545 kg |
