TP-LINK Omada 1000Base-BX WDM Bi-Directional SFP Module
Product reference:
18-SM321B
TP-LINK Omada 1000Base-BX WDM Bi-Directional SFP Module
TP-LINK Omada 1000Base-BX WDM Bi-Directional SFP Module
Product reference:
18-SM321B
TP-LINK Omada 1000Base-BX WDM Bi-Directional SFP Module
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 4
business days
Not available

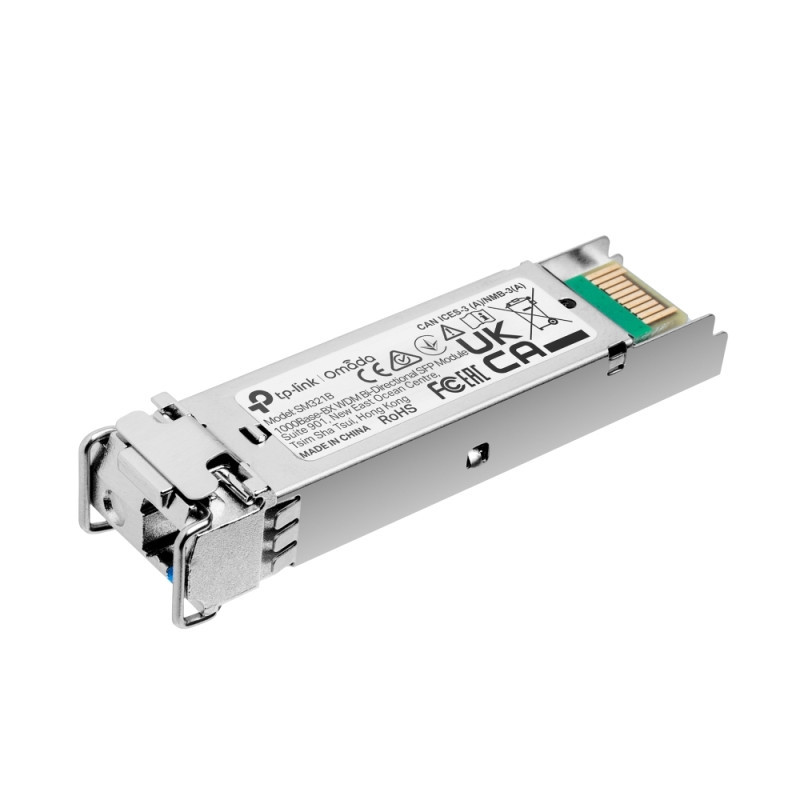

TP-Link's SM321B (TL-SM321B) adopts the latest standard 1000Base-BX, transmitting over a single strand of fiber with one different wavelength going in each direction. You can extend the network distance up to 20Km with TP-Link's routers, switches and media converters to provide high speed and stability.
- WDM Bi-Directional SFP Module
- Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
| MEDIA CONVERTER MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3z, TCP/IP |
| Wavelength | • TX: 1310 nm • RX: 1550 nm |
| Dimensions (W*D*H) | 2.2*0.6*0.5in (55.4*14.6*12.9mm) |
| Power Supply | 3.3V |
| Safety Emissions | FCC, CE |
| Cable | Single-Mode Fiber |
| Fiber Type | 9/125 μm Single-Mode |
| Max. Cable Length | 20 KM |
| Date Rate | 1.25 Gbps |
| Port Type | LC Simplex |
| Hardware Features | • DDM • SFP-MSA • Hot Swappable |
| Package Contents | • SM321B • Installation Guide |
| Environment | • Operating Temperature: 0-70 °C (32-158 °F) • Storage Temperature: -40-85 °C ( -40-185 °F) • Operating Humidity: 10-90% RH, Non-Condensing • Storage Humidity: 5-90% RH, Non-Condensing |
