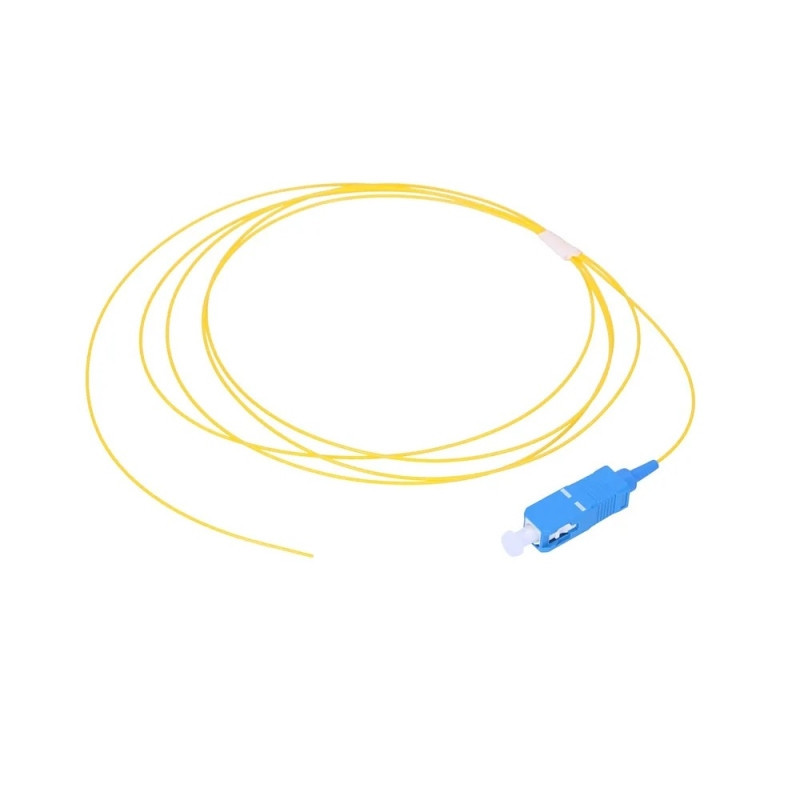

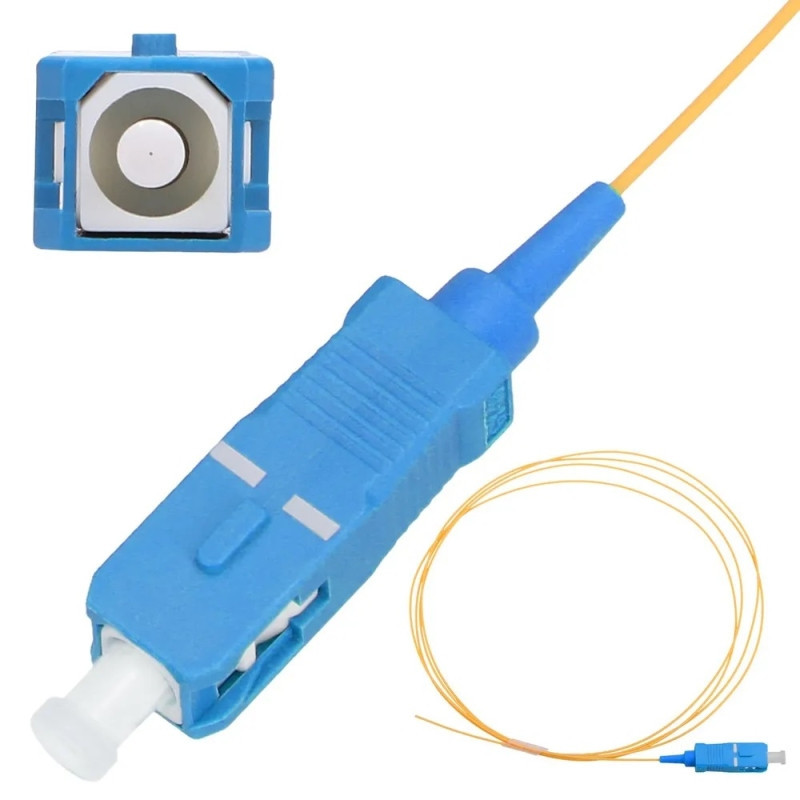

EXTRALINK SC / UPC Single Mode Pigtail 900UM G.657A, 1m
Product reference:
18-EL-SCUPC-SM-PGTL-1
EXTRALINK SC/UPC Single Mode Pigtail 900UM G.657A, 1m
EXTRALINK SC / UPC Single Mode Pigtail 900UM G.657A, 1m
Product reference:
18-EL-SCUPC-SM-PGTL-1
EXTRALINK SC/UPC Single Mode Pigtail 900UM G.657A, 1m
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 3
business days
Not available
PigtailExtralink withSC/UPCconnector is made on asingle-mode G.657Afiber, which is dedicated forFTTxtechnology. This fiber is characterized byreduced bending radius, without increasing attenuation. This is a very important feature during the construction of FTTx networks due to the large number of changes of optical line direction and because of the small size of cabinets and distribution boxes. Pigtail is used mainly inclient cable terminationsin the customer's sockets and inend switchgear.
| Minimum bending radius | 10 mm |
| Random average IL attenuation | 0.15 dB |
| Reflectance RL APC | > 50 dB |
| Fiber strength | > 9 N |
| Operating temperature | -40 ~ +85 °C |
| Fiber diameter | 0.9mm |
| Coating | PVC |
