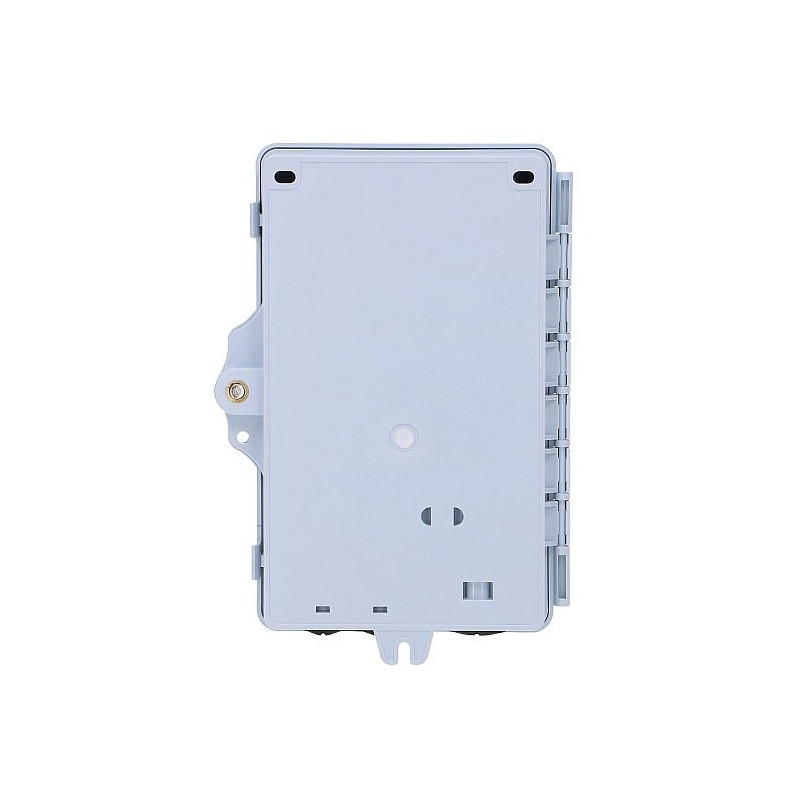

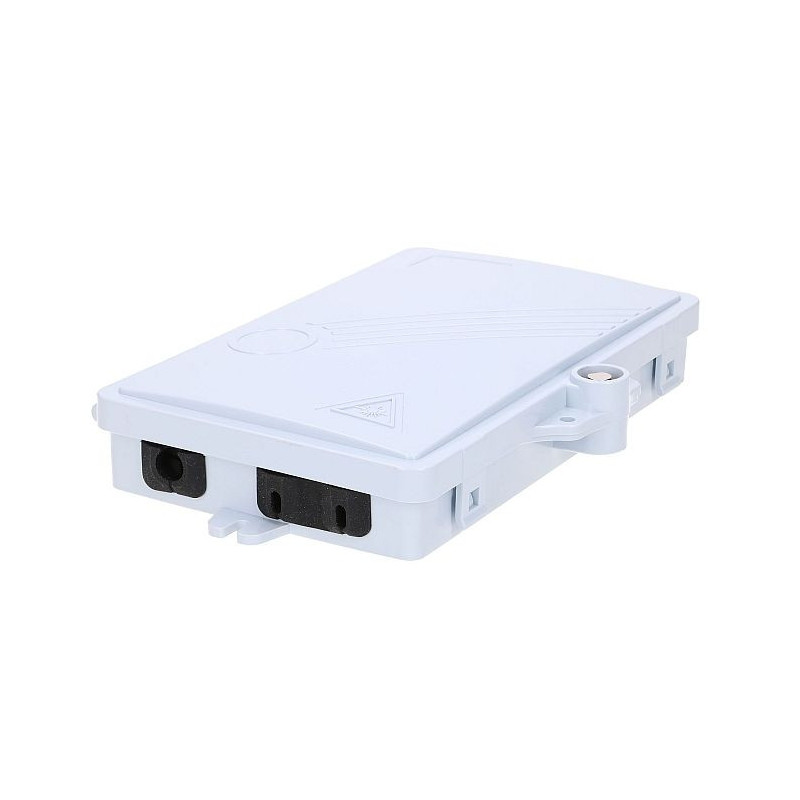

EXTRALINK Alice 2 Core Fiber Optic Distribution Box

• Total enclosed structure, in nice shape.


• Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.


• Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

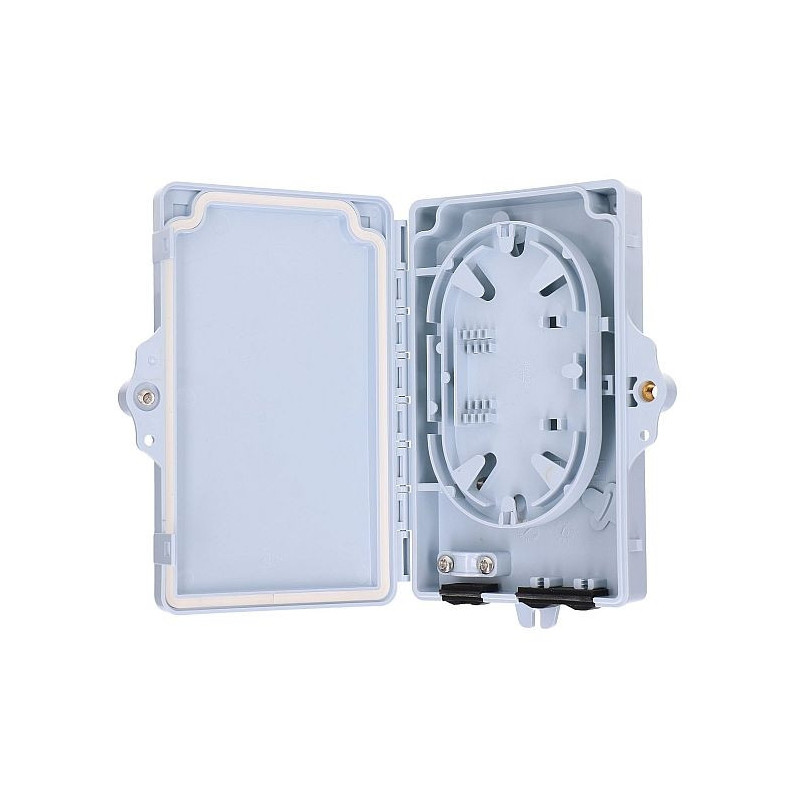

• Cable, pigtails, patch cords are running through their own path without disturbing each other, cassette type SC adapter installation, easy maintenance.


• Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.

Working temperature: -40°C to +85°C

Relative humidity : ≤85% (+30°C)

Atmospheric pressure: 70KPa to 106Kpa

Insertion loss: ≤0.2dB

UPC return loss: ≥50dB

APC return loss: ≥60dB

Life of insertion and extraction : > 1000 times

Dimensions: 167*102*31
