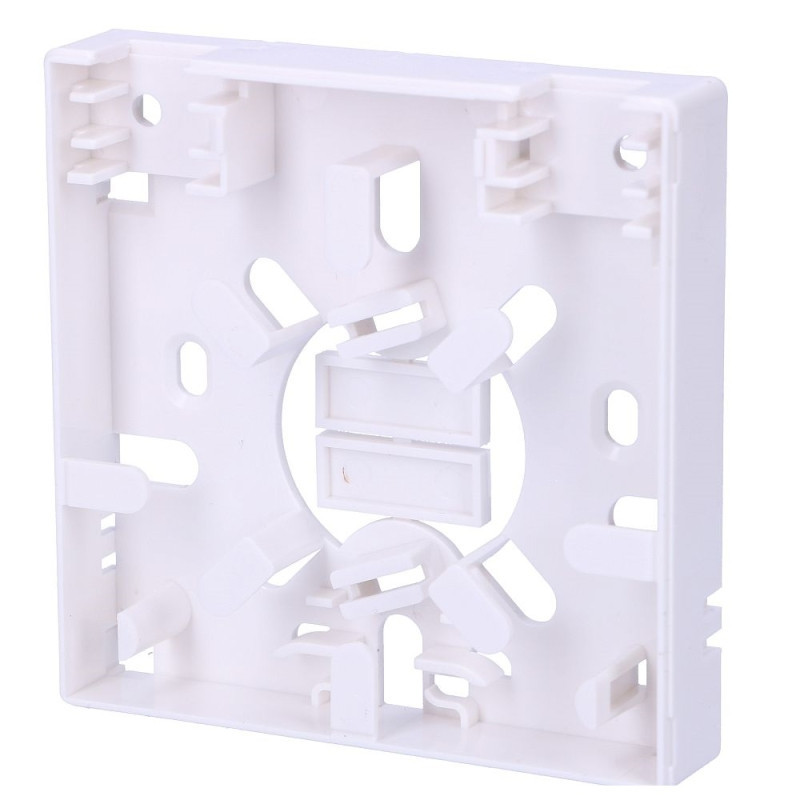

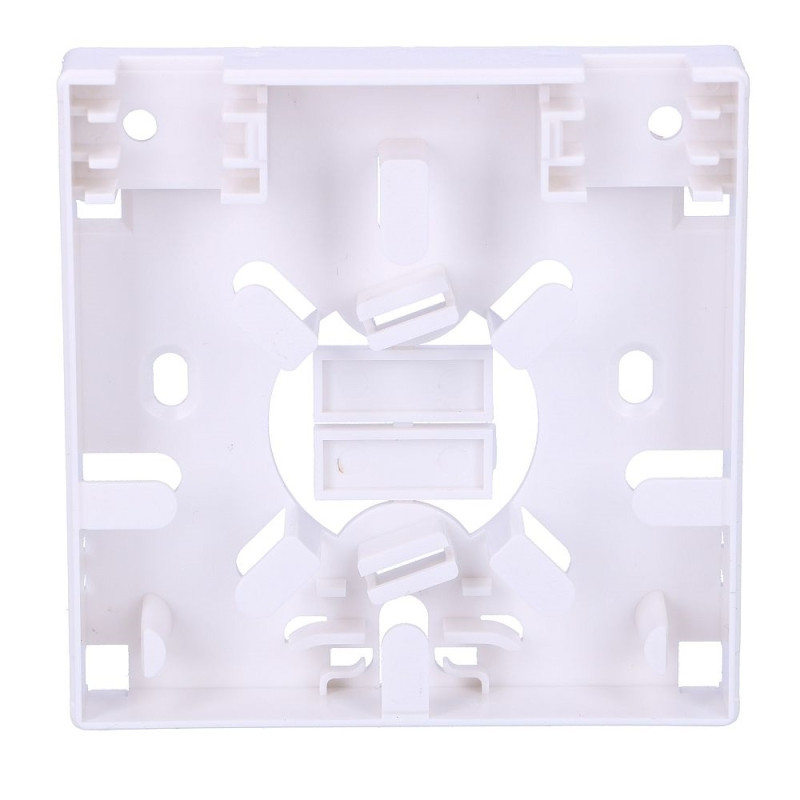

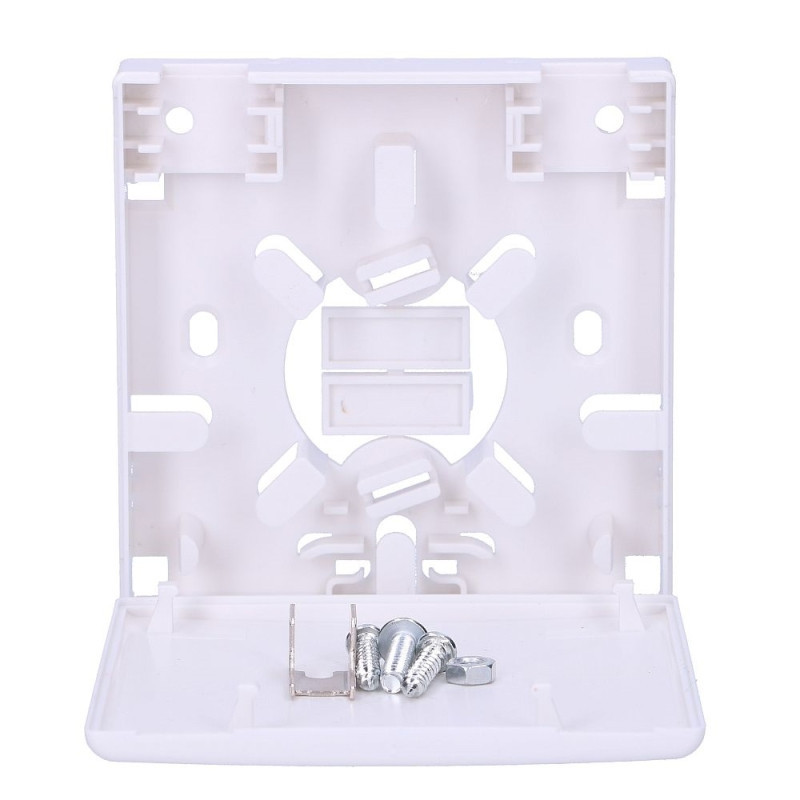

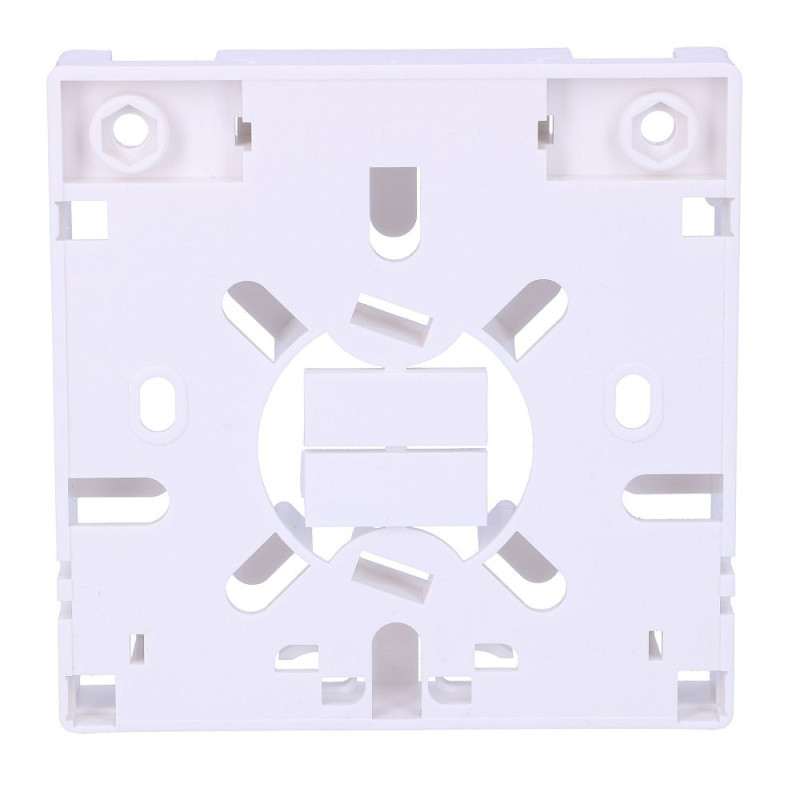

EXTRALINK Agnes 2 Core Fiber Optic Termination Box, White

• Light weight, small size and easy installation;
• Made of high class engineering plastic ABS;
• Special fiber routing designs to ensure the bending radius greater than 40mm;
• Adopting the splice trays for easy operations.

• Applicable for: φ8-φ10.5mm outdoor cable;
• Optical fiber diameter: 125μm (652 657);
• Tight buffer diameter: 250μm 900μm;
• Fiber mode: Single multi mode;
• Adapter: SC FC;
• Insertion loss: ≤ 0.2dB(1310nm 1550nm);
• Inputs: 2.

• Working temperature: -20°C ~ 70°C;
• Relative humidity: ≤85% (+30°C);
• Atmospheric pressure: 70kPa ~106kPa;
• Dielectric strength: ≥3000V DC 1min, no spark-over and no flying arc;
• Insulation resistance: ≥1000MΩ/500V DC.
