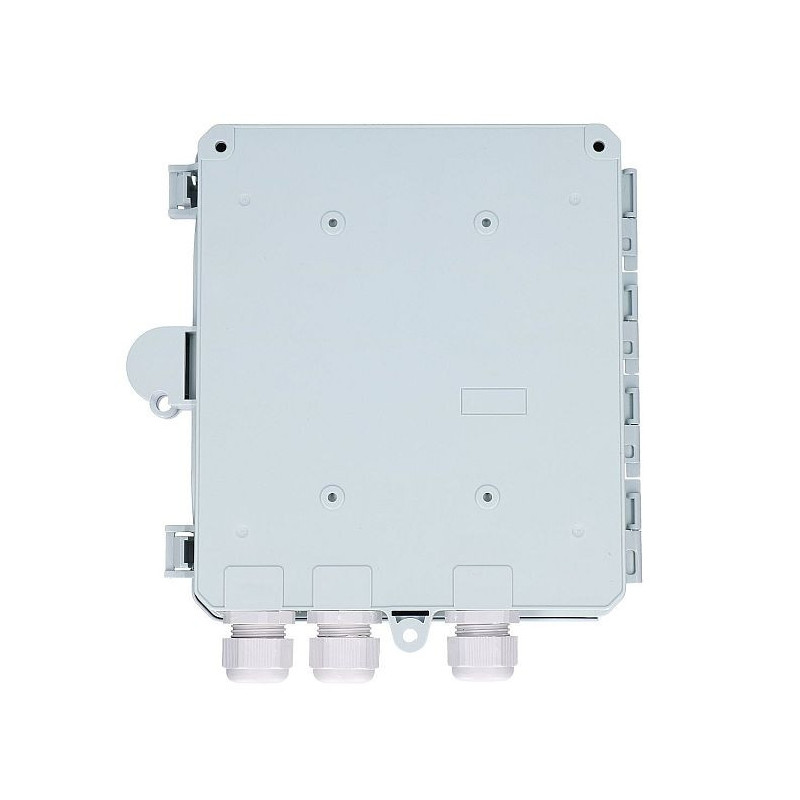

EXTRALINK 12 Core Fiber Optic Distribution Box DIANA

The equipment is used as a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

• Total enclosed structure, in nice shape.


• Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.

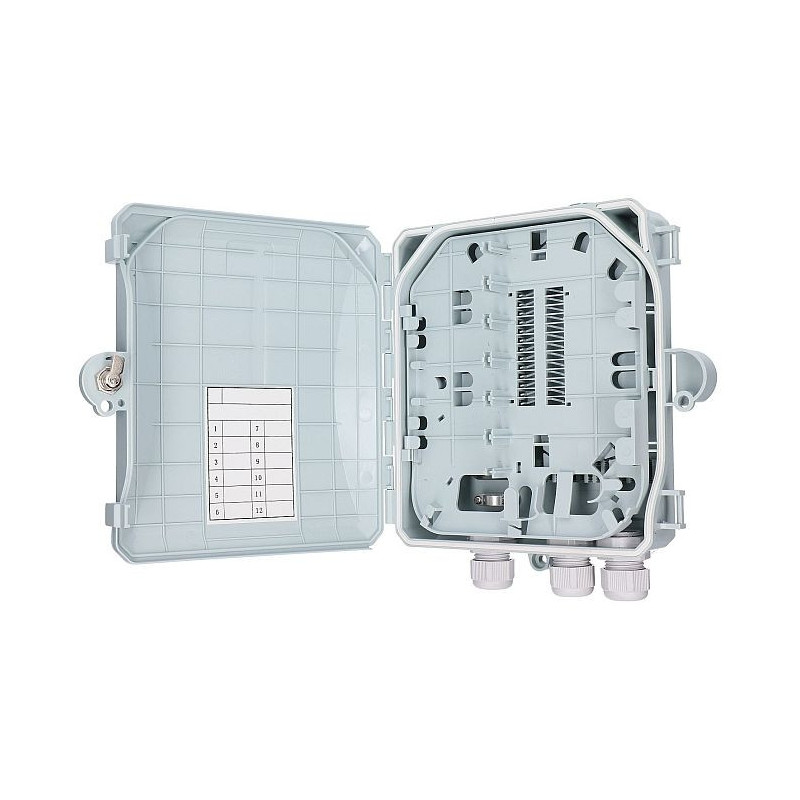

• Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution, etc... all in one.


• Cable, pigtails, patch cords are running through their own path without disturbing each other, cassette type SC adapter installation, easy maintenance.


• Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.


• Cabinet can be installed by way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses SC adapter installation, easy maintenance.


• Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.


• Cabinet can be installed by way of wall-mounted or pole-mounted, suitable for both indoor and outdoor uses.

• Working temperature: -40°C～+85°C; • Relative humidity: ≤85% (+30°C); • Atmospheric pressure: 70kPa～106kPa; • Insertion loss: ≤0.2dB; • UPC return loss: ≥50dB; • APC return loss: ≥60dB; • Life of insertion and extraction: > 1000 times; • The grounding device is isolated with the cabinet, isolation resistance is no less than 1000MΩ/500V （DC; IR≥1000MΩ/500V; • The withstand voltage between grounding device and cabinet is no less than 3000V（DC）/min, no puncture，no flashover; U≥3000V.
