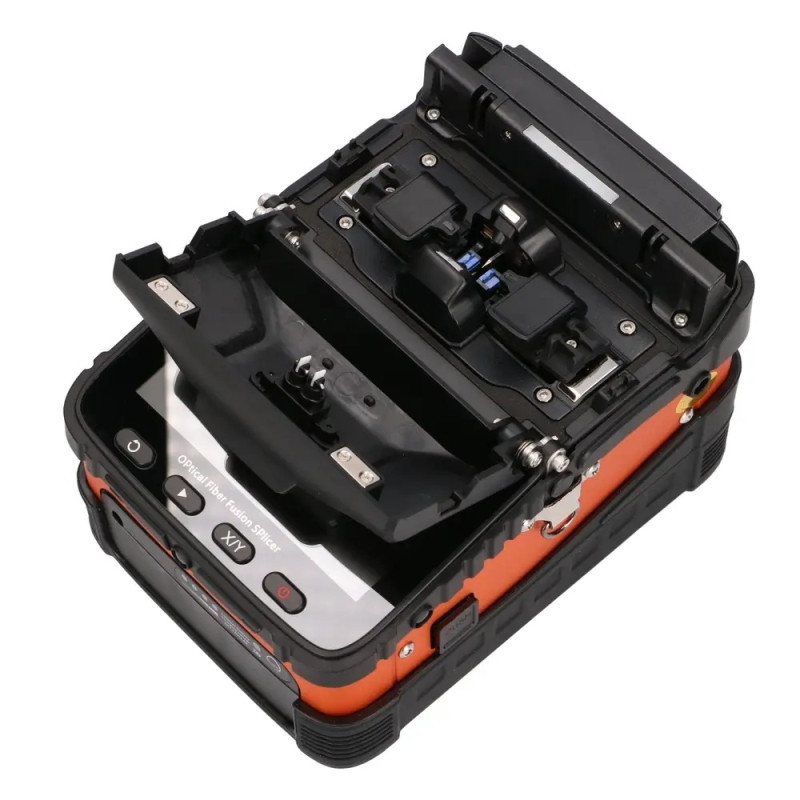

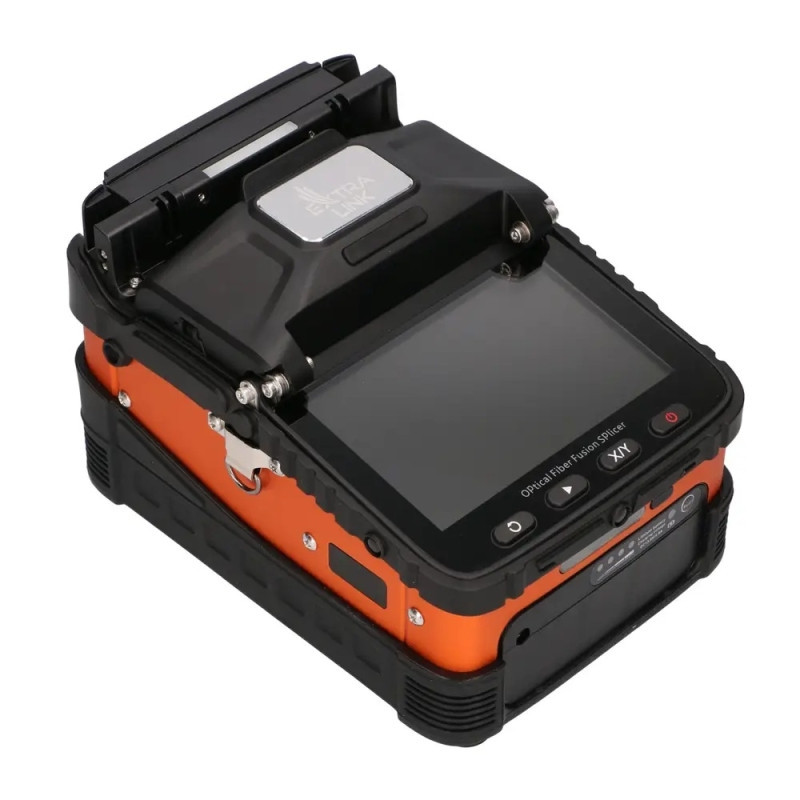

EXTRALINK Optical fiber fusion splicer AI-5 Pro
Product reference:
18-EL-SPLICER-AI-5-PRO
EXTRALINK Optical fiber fusion splicer AI-5 Pro
EXTRALINK Optical fiber fusion splicer AI-5 Pro
Product reference:
18-EL-SPLICER-AI-5-PRO
EXTRALINK Optical fiber fusion splicer AI-5 Pro
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 3
business days
AI-5Pro is mainly suitable for security monitoring and other engineering projects.
- Six motors,
- C ore alignment,
- Adopting a 5-inch color screen, the operation graphics are simple and intuitive,
- Up to 320x focusing magnification,
- 8 seconds high-speed splicing,
- 18 seconds heating, with a 50% increase in work efficiency compared to ordinary fusion machines.

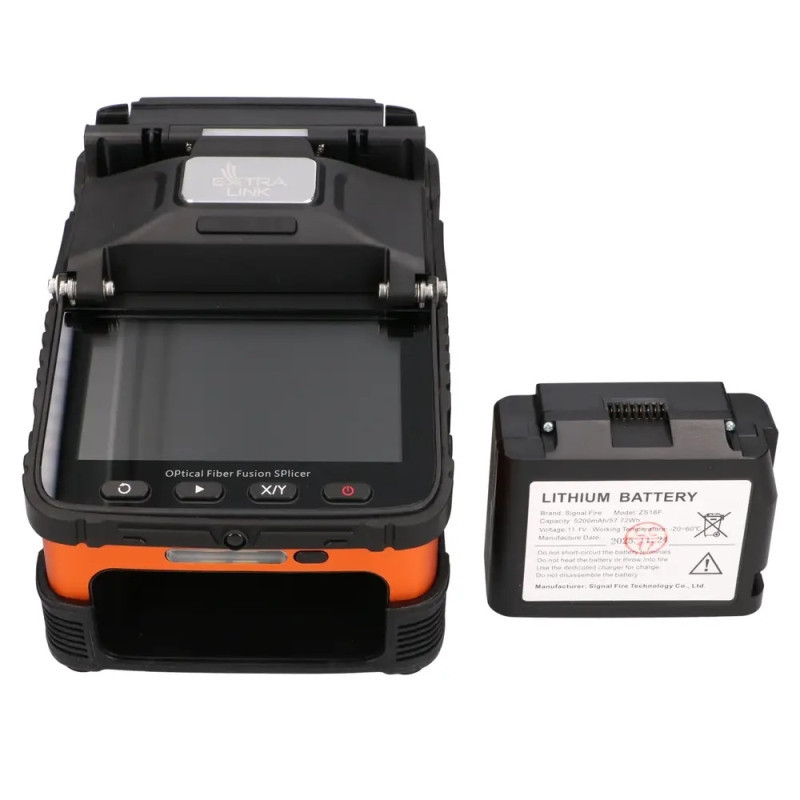

The 5200mAh lithium battery can fuse and heat about 160 cells when fully charged. It's unique lighting design makes it convenient for night construction or emergency repairs.
| Fiber alignment | Core/cladding |
|---|---|
| Motor number | Six motors |
| Splicing time | 8s |
| Heating mode | 18s， can be customized according to the external environment |
| Fiber type | Single-mode fiber (SMF/G.652), multimode fiber (MMF/G.651), dispersion-shifted fiber (DSF/G.653), G.654 fiber, non-zero dispersion-shifted fiber (NZ-DSF/G.655), and bend-insensitive fiber (BIF/G.657); suitable for splicing bare fiber, pigtail, drop fiber, patch cord, and invisible fiber. |
| The cladding diameter | 80-150μm |
| Splicing loss | 0.02dB（SM）、0.01dB（MM）0.04dB（DS/NZDS） |
| Splicing mode | Automatic focusing core alignment, conventional/high precision welding |
| Splicing way | Automatic, semi-automatic |
| Fiber holder | Three in one fixture, no need to change, suitable for single/multi-mode, multi-core cable/bare fiber, tail fiber, jumper fiber,drop cable |
| Battery capacity | 5200mAh large capacity lithium battery charging time ≤3.5; It can continuously weld and heat about 160 cores |
| Magnification | 300x (X or Y axis single display) 150x (x and Y axis dual display) |
| Fiber diameter | Coating diameter: 80-150μm/Coating diameter: 100-1000μm |
| Cutting length | Coating layer 250μm below: 8-16mm/coating layer 250-1000μm: 16mm |
| Heat shrink tube | 60mm、50mm、40mm、25mm |
| Tensile testing | standard 2N |
| Display | 5 inch TFT color display screen |
| External lighting | USB port can be connected with EXTERNAL LED light, convenient for night construction |
| Charge mobile device | The USB port can charge mobile devices such as mobile phones |
| Boot time | 1s, boot can enter the working mode |
| Data is stored | Unlimited, machine storage 1000 groups, the excess part can be stored in the server, can export data. |
| Wireless communication | Based on bluetooth 4.2 protocol standard, the working band is 2.4GHz, the maximum transmission range is 60m |
| Software upgrade | Mobile phone APP Internet update, enable Bluetooth synchronization upgrade machine software |
| Management function | The equipment owner can be bound as the highest authority, and can remotely view the welding records,welding time, loss, etc. through the mobile phone APP. The number of welding times or working time of the equipment can be set. The manager can effectively manage a single or multiple equipment. |
| Interface | USB2.0 (Type A) can be used to connect external LED lights and charge mobile devices |
| Return loss | Better than 60 db |
| Product protection | Waterproof, dustproof and fall proof |
| Power supply | Input AC100-240V 50/60Hz, output DC13.5V/4.8A, the current power mode can be identified, real-time monitoring of the current battery level |
| The work environment | Temperature: -15 ~ +50 , humidity: < 95%RH (no condensation), working altitude: 0 ~ 5000m, maximum wind speed: ≤15m/s |
