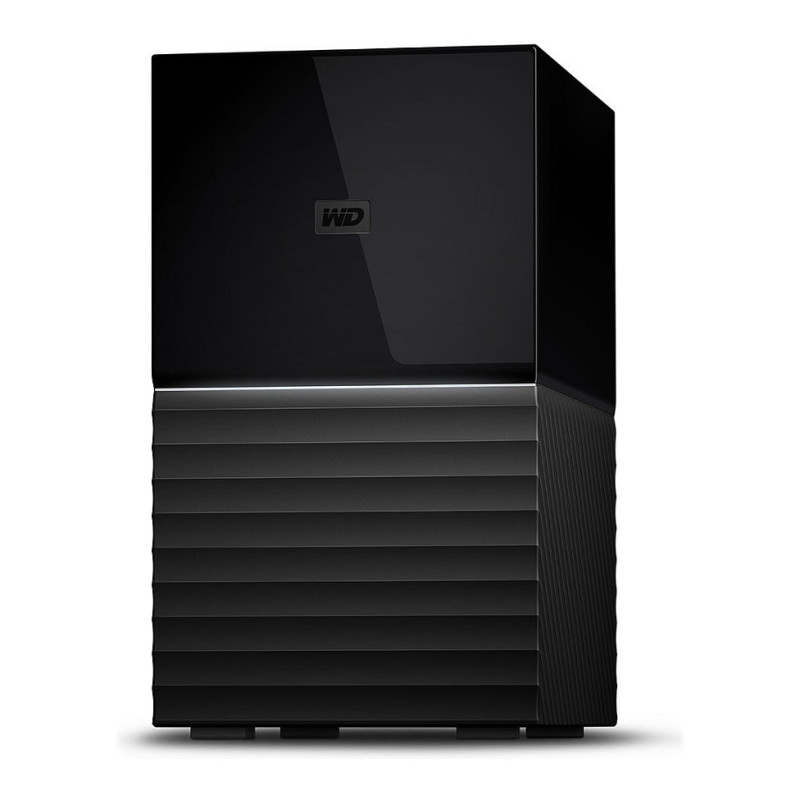

Western Digital My Book Duo disk array

Western Digital My Book Duo. Total installed storage capacity: 16 TB, Installed storage drive type: HDD, Storage drive size: 3.5". Chassis type: Desktop, Device class: Home & Home Office. Number of storage drives supported: 2, Supported storage drive types: HDD. Width: 100 mm, Depth: 160 mm, Height: 180 mm, Weight: 2.36 kg. Product colour: Black

The My Book™ Duo drive has massive capacity for storing photos, videos, documents and music. RAID-0 mode provides super-fast performance with up to 360MB/s sequential read speeds (using the USB Type-C™ port). Switch to RAID-1 configuration for redundancy and to mirror data on the WD Red™ drives inside. A USB Type-C port with all cables included makes it universally compatible (supports USB 3.1 Gen 1/3.0/2.0). Two USB 3.0 Type-A hub ports deliver flexibility for additional accessories.

Massive Capacity

The My Book™ Duo drive has up to 20TB capacity with a single cable. Free up valuable space on all your computers. Store and back up your photo, video and music collections, and important documents in one reliable place.

RAID-0 Ready Out of the Box

Ready to perform at maximum speed and capacity in default mode, RAID-0. Reconfigure the drive to RAID-1 for redundancy (data mirroring), or use it as two independent drives (JBOD) with the included WD Drive Utilities™ software.

RAID-Optimized WD Red™ Drives

The My Book™ Duo drive comes with RAID-optimized WD Red™ drives inside to deliver high-speed, quality storage to rely on. RAID-optimized firmware is perfect for two-disk array systems with auto management of drive operations to help ensure read/write cycle data integrity.

Storage

Feature: Storage drives installed
Installed storage drive type: HDD
Number of storage drives installed: 2
Total installed storage capacity: 16 TB
Supported storage drive types: HDD
Number of storage drives supported: 2
Maximum supported storage capacity: 20 TB
Storage drive size: 3.5"
RAID levels: 0, 1

Ports & interfaces

Feature: USB connectivity
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

Design

Device class: Home & Home Office
Chassis type: Desktop
Product colour: Black

System requirements

Mac operating systems supported: Yes
Windows operating systems supported: Yes

Weight & dimensions

Width: 100 mm
Depth: 160 mm
Height: 180 mm
Weight: 2.36 kg

Packaging data

Package width: 293 mm
Package depth: 163 mm
Package height: 228 mm
Package weight: 3.36 kg

Packaging content

Cables included: USB

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -20 - 60 °C

Logistics data

Harmonized System (HS) code: 84717020
