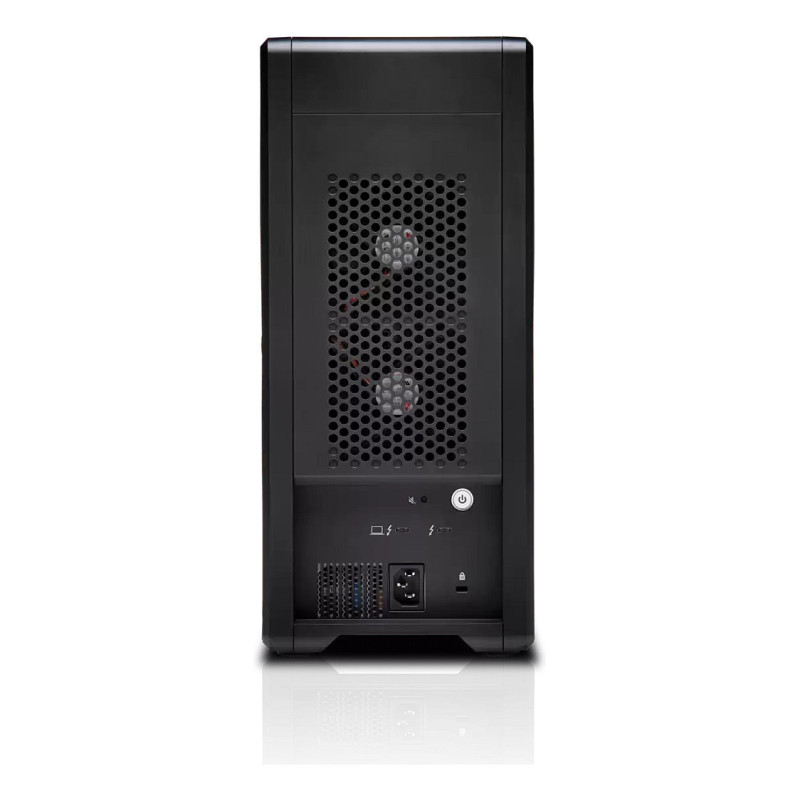

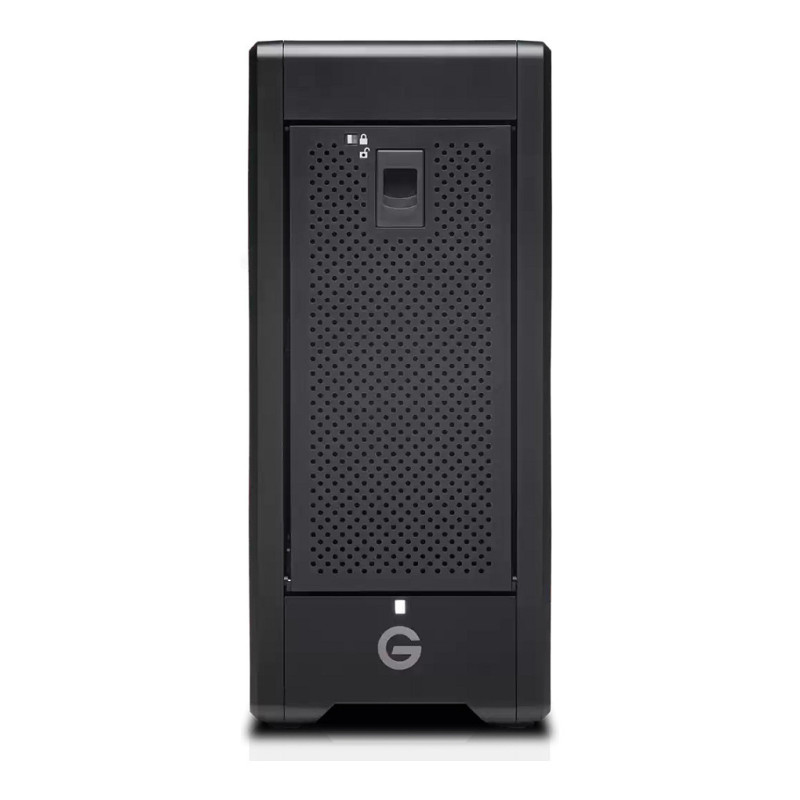

SanDisk G-RAID SHUTTLE 8 disk array

SanDisk G-RAID SHUTTLE 8. Total installed storage capacity: 208 TB, Installed storage drive type: HDD. Chassis type: Desktop, Device class: Large Enterprise Business. Number of storage drives supported: 8, Supported storage drive types: HDD. Width: 175 mm, Depth: 245.1 mm, Height: 385.1 mm, Weight: 12.3 kg. Product colour: Black
Rely on a SanDisk G-RAID SHUTTLE 8 with Thunderbolt 3 from Location to Studio and Back
A transportable 8-bay hardware RAID solution with Thunderbolt™ 3 (40Gbps) and USB-C™ (10Gbps) compatibility offering content professionals up to 208TB1 of colossal capacity and high-powered performance for consolidated backup, super-fast access, and real-time video editing. Supports multi-stream 4K, 8K, and VR workflows, RAID 0, 1, 5, 6, 10, 50, and 60 configurations, and provides transfer rates up to 1700MB/s read and 1500MB/s write2 in default RAID 5 (208TB model only). Along with Ultrastar enterprise-class hard drives inside for enhanced reliability and a trusted 5-year limited warranty, the G-RAID SHUTTLE 8 is the ultimate storage solution for demanding video workflows on location and in the studio.
Colossal capacity in transportable design
With up to 208TB1 of high-powered RAID storage in an easy-to-transport design, content creators get a premium solution for their demanding workflows on location or in the studio with the G-RAID SHUTTLE 8.
High-speed data transfers
With up to 1700MB/s read and 1500MB/s write2 speeds in default RAID 5 (208TB model only), and support for multi-stream 4K, 8K and VR workflows, you can quickly move or copy all your media so you can spend less time waiting and more time creating with high-speed data transfers using the Thunderbolt™ 3 (40Gbps) port.
Built-in hardware RAID
For balanced performance, G-RAID SHUTTLE 8 comes ready to go in RAID 5. Or, select RAID 0, 1, 6, 10, 50, 60 or JBOD for ultimate flexibility.
Removable, Enterprise-class Ultrastar® hard drives
For all your demanding workloads and mission-critical footage, you can depend on the power and enhanced reliability of eight (8) removable Enterprise-class Ultrastar hard drives inside.
Daisy-chaining for up to 5 additional devices
With dual Thunderbolt 3 ports, you can conveniently daisy chain up to 5 additional devices, keeping you connected to multiple drives, 4K displays, and more, through a single connection to your computer.
5-Year limited warranty
Backed by a 5-year limited warranty, you can be confident in the reliable storage of the G-RAID SHUTTLE 8 for years to come.

Storage

Storage drives installed: Yes
Installed storage drive type: HDD
Total installed storage capacity: 208 TB
Supported storage drive types: HDD
Number of storage drives supported: 8
RAID levels: 0, 1, 5, 6, 10, 50, 60
Data transfer rate: 40 Gbit/s

Ports interfaces

USB connectivity: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Thunderbolt technology: Yes
Thunderbolt ports quantity: 1
Thunderbolt version: 3

Design

Device class: Large Enterprise Business
Chassis type: Desktop
Internal: No
Product colour: Black
Cable lock slot: Yes
Cooling: Yes
Number of fans: 2 fan(s)
Certification: FCC-ICES, CE, RCM, BIS, VCCI, KC, EAC, SABER, LoA, BSMI, UAE, UKCA

System requirements

Mac compatibility: Yes
Mac operating systems supported: Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma
Windows operating systems supported: Windows 10, Windows 11

Weight dimensions

Width: 175 mm
Depth: 245.1 mm
Height: 385.1 mm
Weight: 12.3 kg

Packaging content

Cables included: AC, Thunderbolt
Power cables quantity: 1

Other features

Warranty period: 5 year(s)
