Axagon RHD-125B Mounting frame for 1x 2.5" in 3.5" slot - grey

Axagon RHD-125S bracket for 1x 2.5" HDD/SSD into 3.5" bay, metal, grey. Material: Metal, Product colour: Grey

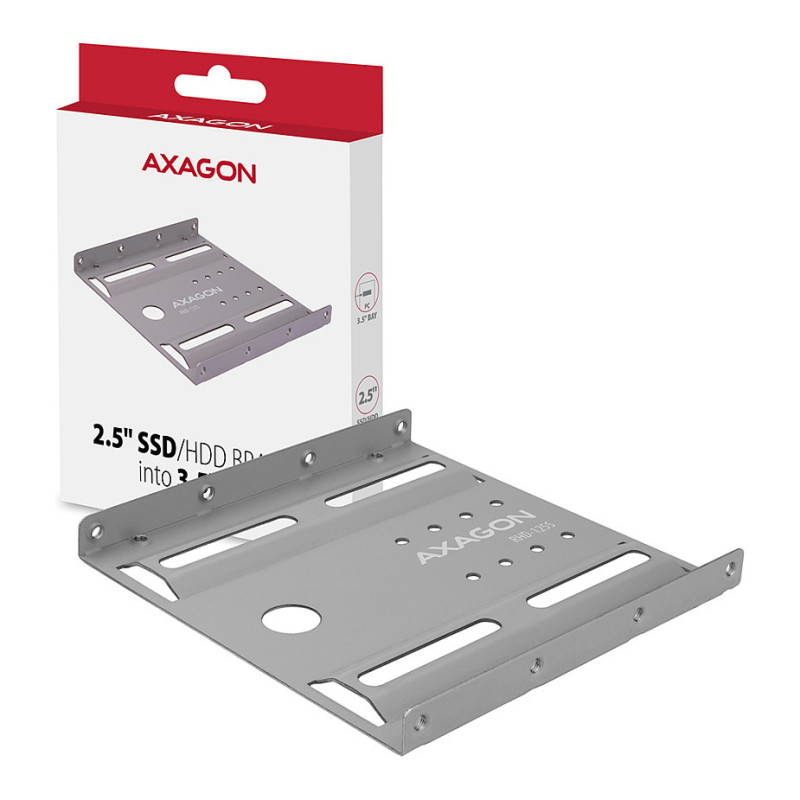

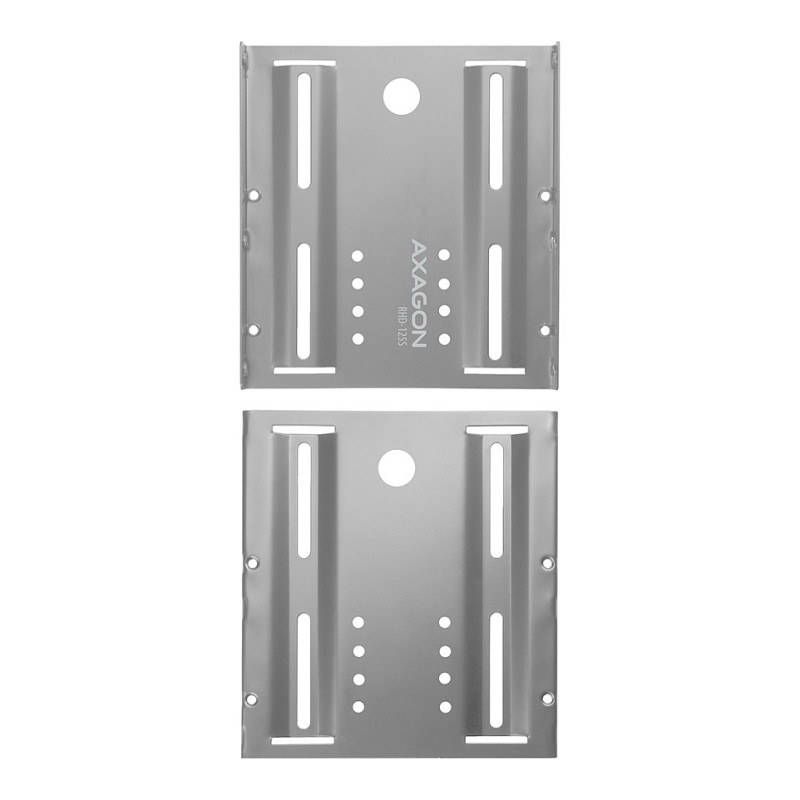

The AXAGON RHD-125S metal frame for mounting 2.5" HDD or SSD drive into one 3.5" position of the PC case.

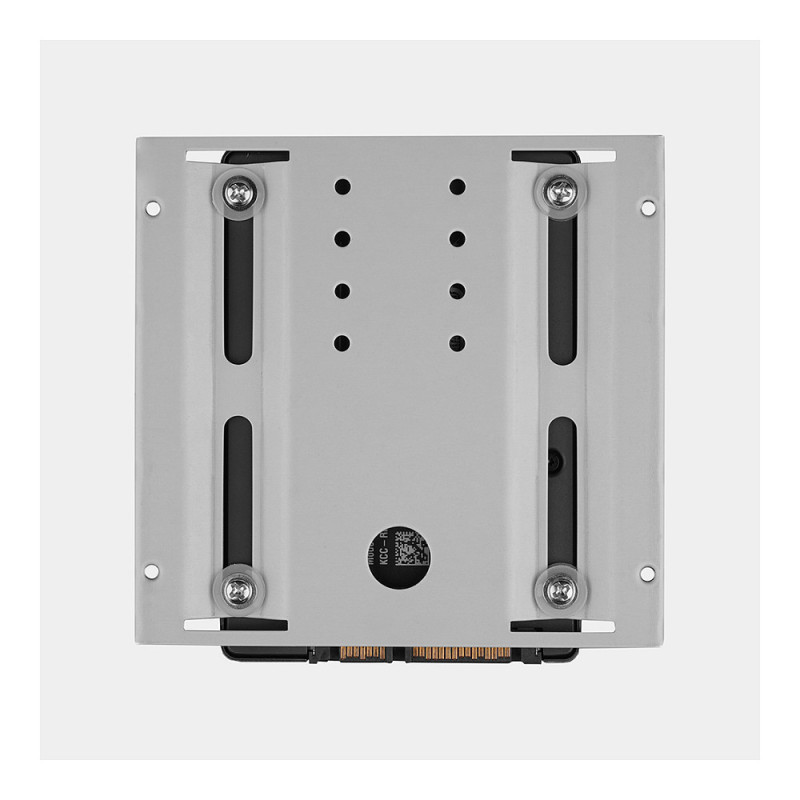

This simple adapter easily solve 2.5" HDD or SSD disk mounting into standard computer case. The drive height is not limited, thus SSD and hard disk drives of any sizes can be used.

Precise holes and supplied screws ensure easy and trouble-free frame installation into the computer case.
The metal structure and frame profile help dissipate the heat from the disk.

Features:

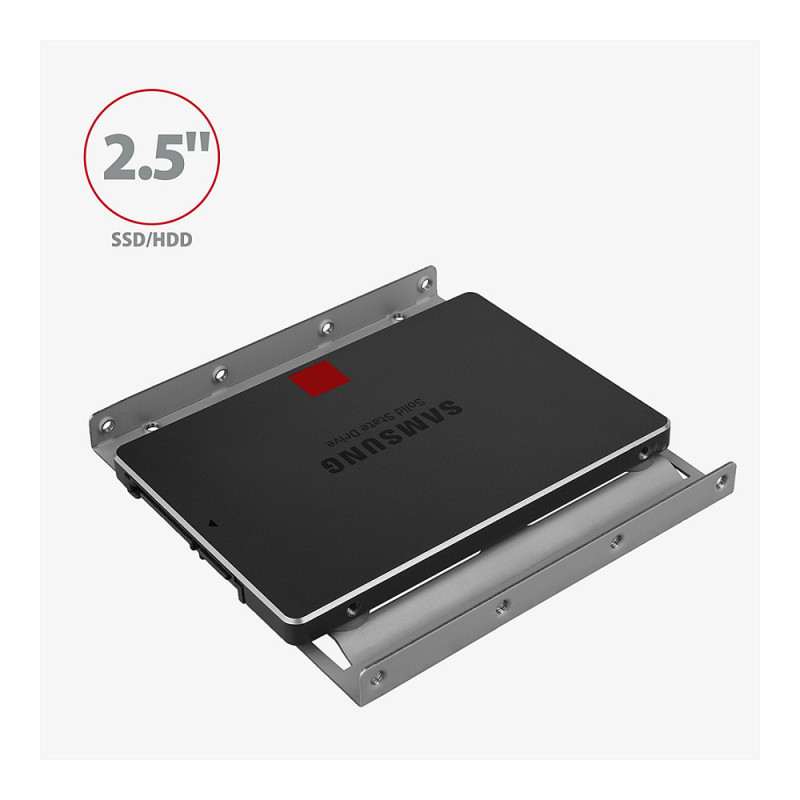

• Supports 2.5" SSD or HDD with no height limitation - 7 mm, 9.5 mm, 12.5 mm, 15 mm etc.

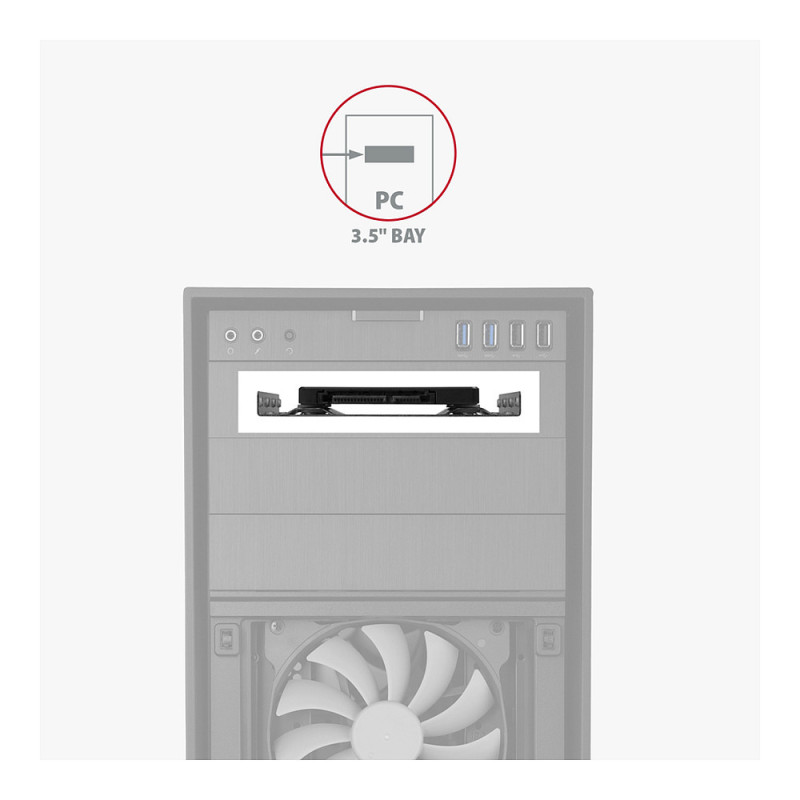

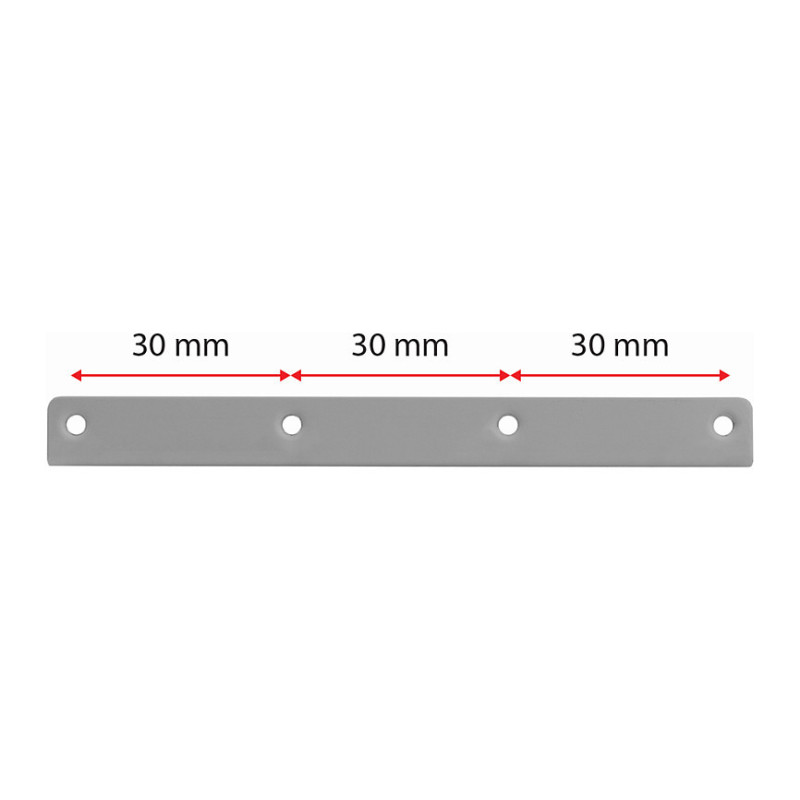

• The frame dimensions and mounting holes correspond to the standard 3.5" position of the PC case.
• The frame is made from a steel sheet and painted grey.
• Outside dimensions of the frame 102 x 98 x 10 mm, weight 68 g.

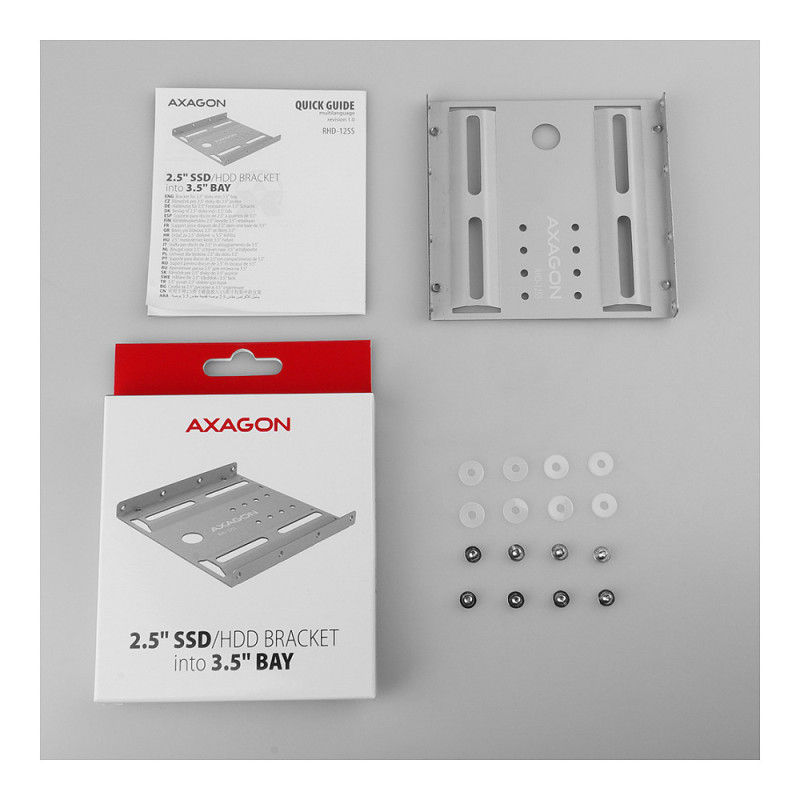

Package contains:
• Frame for 2.5" disk,
• screws and mounting material for mounting the disk and frame,
• printed installation manual in CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,
• packed in a cardboard box with a hanging hole.

Technical details

Product colour: Grey
Material: Metal
Certification: RoHS
Country of origin: China
Warranty period: 3 year(s)
Compliance certificates: RoHS

Weight & dimensions

Weight: 68 g
Width: 102 mm
Depth: 98 mm
Height: 10 mm

Packaging data

Feature: Screws included
Quantity per pack: 1 pc(s)
Package width: 143 mm
Package depth: 107 mm
Package height: 15 mm
Package weight: 89 g
