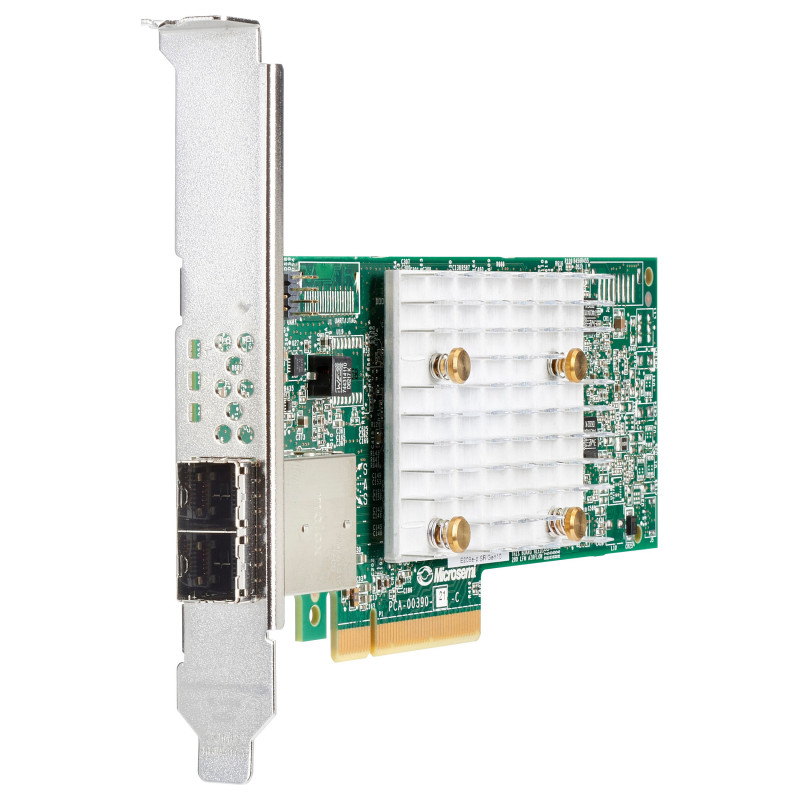

HPE Smart Array E208e-p SR Gen10 (8 External Lanes / No Cache) 12G SAS PCIe Plug-in Controller RAID controller

HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller. Host interface: PCI Express 3.0 x8. RAID levels: 0, 1, 5, 10, Data transfer rate: 12 Gbit/s, Compatible products: HPE ProLiant DL360 Gen10 HPE ProLiant DL380 Gen10 HPE ProLiant DL560 Gen10 HPE ProLiant DL580.... Chassis type: Standard PCIe plug-in controller, External ports: External: 8 SAS lanes across 2 x4 Mini-SAS HD ports, Additional features: HPE Smart Array SR Secure Encryption (optional license)

Are you looking for a cost effective, enterprise-class controller to connect to externally attached drives? The HPE Smart Array E208e-p SR Gen10 Controller, supporting 12 Gb/s SAS and PCIe 3.0, provides a cost-effective storage solution with enterprise-class reliability supporting RAID 0, 1, 5, and 10 and software-defined storage (SDS). This controller has eight external SAS lanes, allowing connection to SAS or SATA drives in an external disk enclosure, supports Mixed Mode operations of RAID and HBA simultaneously, and offers encryption for data-at-rest on any drive. This controller occupies a PCIe expansion slot.

Ports & interfaces

Host interface: PCI Express 3.0 x8
Internal mini-SAS HD ports: 8

Performance

RAID levels: 0, 1, 5, 10
Data transfer rate: 12 Gbit/s

Other features

Chassis type: Standard PCIe plug-in controller
Ports quantity: 2
External ports: External: 8 SAS lanes across 2 x4 Mini-SAS HD ports
Additional features: HPE Smart Array SR Secure Encryption (optional license)
