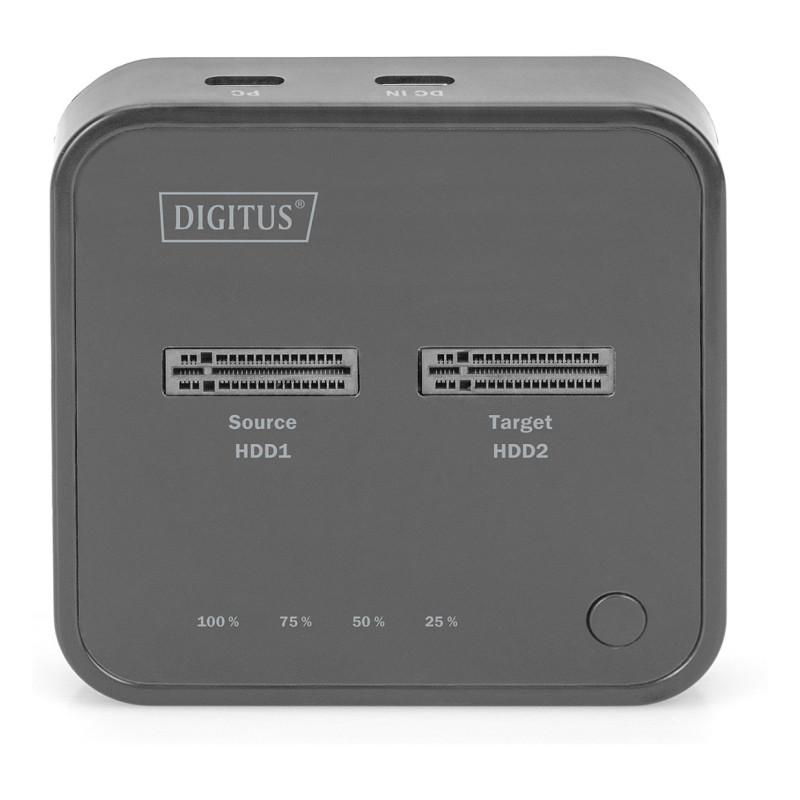

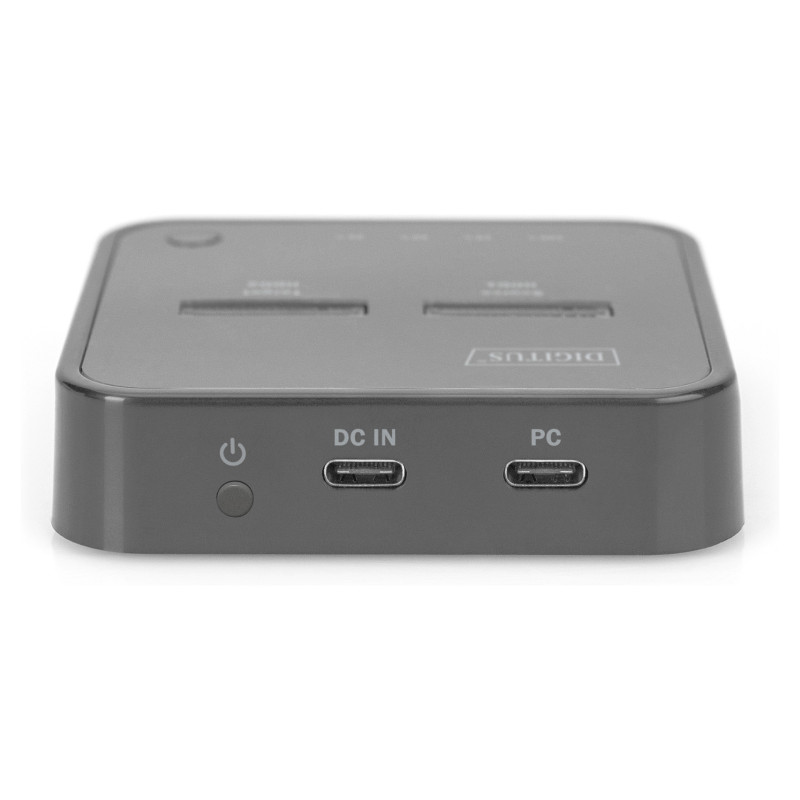

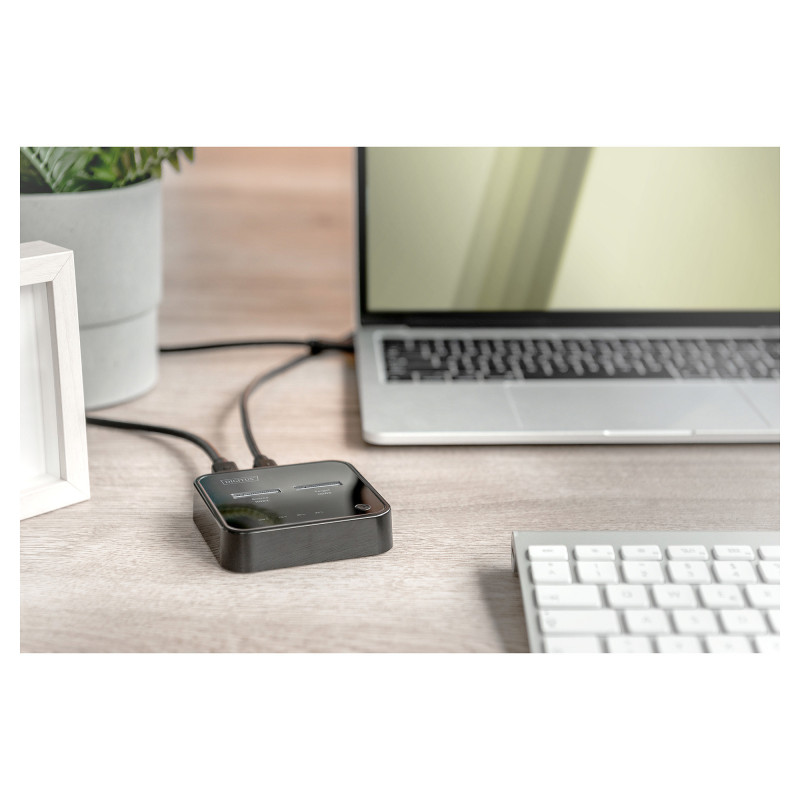

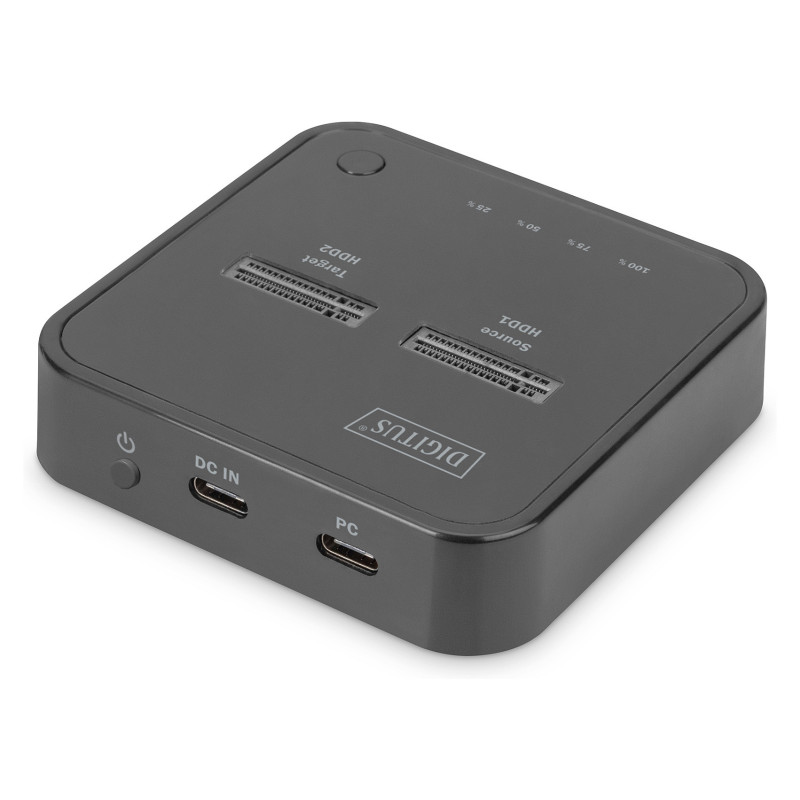

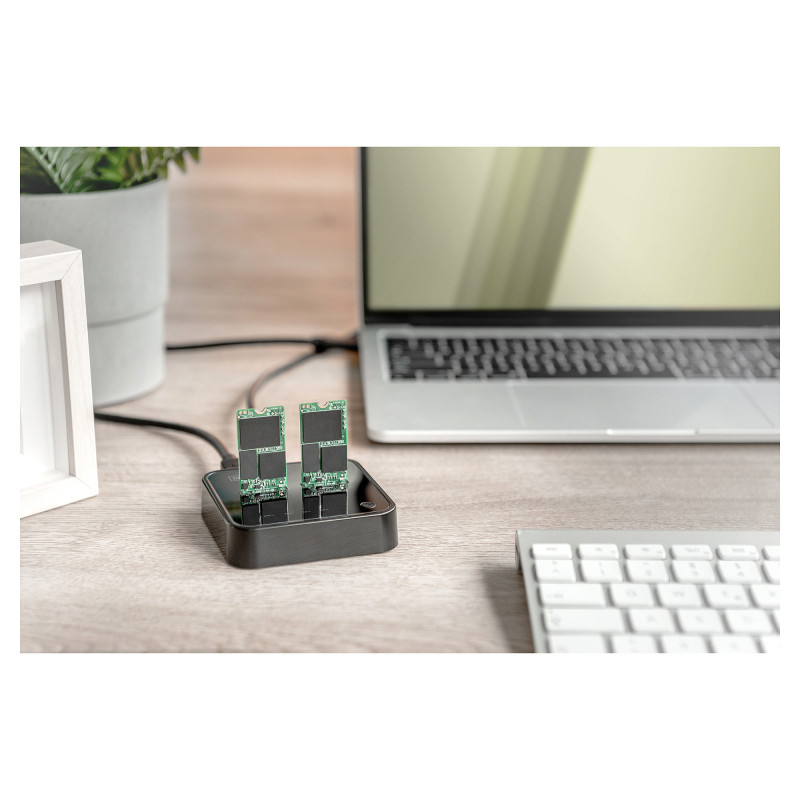

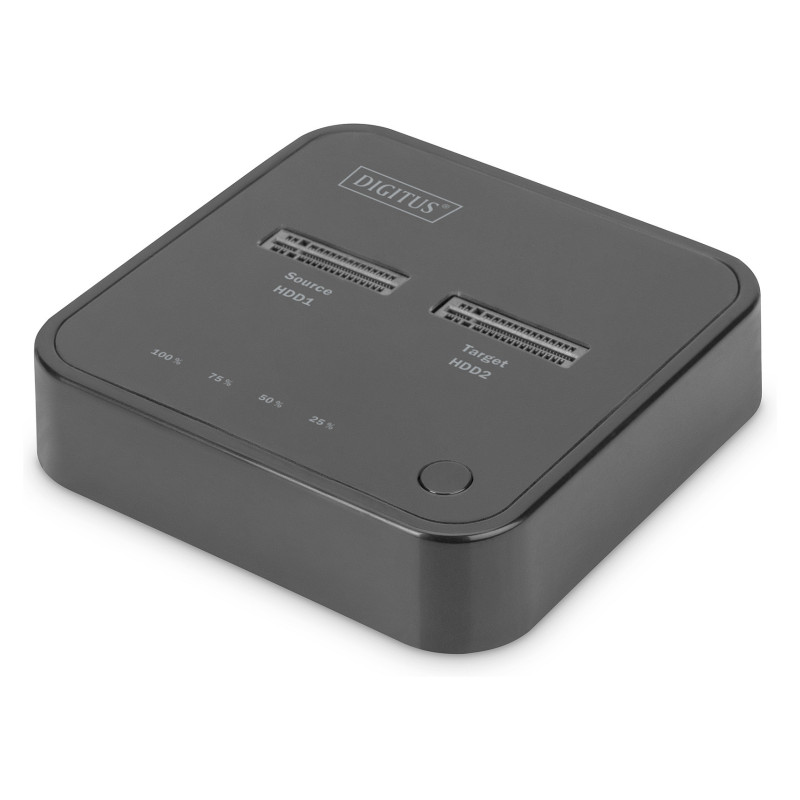

Digitus DA-71545 laptop dock / port replicator

Digitus Dual M.2 NVMe SSD Docking Station with Offline Clone Function, USB-CTM. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C. Product colour: Black, Compatible memory cards: SD, Maximum memory card size: 2 TB. Power source type: USB, Power connector: USB Type-C, AC input voltage: 100 - 240 V. Windows operating systems supported: Windows 10, Windows 8, Windows 7, Windows XP, Windows 8.1, Mac operating systems supported: Mac OS X 10.13 High Sierra, Mac OS X 10.4 Tiger, Mac OS X 11.0 Big Sur, Mac OS X 10.0 Cheetah, Mac.... Width: 79 mm, Depth: 77 mm, Height: 18 mm

Manage 2 M.2 NVMe SSDs using a USB-CTM connection - also clone M.2 SSDs offline by pressing a button

- 2 x M.2 Slots for NVMe SSDs, each up to 4 TB
- Offline clone function by pressing a button (possible without PC)
- High data transfer rate of up to 10 Gbps
- LED indicators show copying progress
- Can be used as a storage medium for up to 8 TB in total
- Supported formats: 2242, 2260, 2280 & 22110 / M-Key, B & M-Key SSDs (NVMe)
- USB-CTM connection: USB 3.2 Gen2
- Ideal storage extension for notebooks, PCs, gaming consoles, TVs, NAS or routers (USB-CTM)
- Plug and Play, no driver installation required

The Dual NVMe Docking Station from DIGITUS® can accommodate M.2 SSDs of up to 4 TB per box. Manage a total of 2 SSDs in various formats with a total storage of up to 8 TB. The integrated offline clone function even makes it possible to duplicate storage media by pressing a button without a connected end device. The copying progress is displayed by LED indicators on the device. Supports M-Key and B+M Key NVMe SSDs in the common formats 2242, 2260, 2280 & 22110. Easily extend the storage capacity of numerous USB-CTM devices such as PCs, notebooks, TVs, gaming consoles or routers.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2

Performance

Feature: Card reader integrated
Compatible memory cards: SD
Maximum memory card size: 2 TB
Data transfer rate: 10 Gbit/s
Feature: Hot-Plug support
Product colour: Black
LED indicators: Yes
Feature: Plug and Play
Feature: UASP support
Housing material: Acrylonitrile butadiene styrene (ABS)
Country of origin: China

Power

Power source type: USB
Power connector: USB Type-C
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 0.6 A
Output voltage: 5 V
Output current: 3 A
Power plug type: Type C

Software

Windows operating systems supported: Windows 10, Windows 8, Windows 7, Windows XP, Windows 8.1

Weight & dimensions

Width: 79 mm
Depth: 77 mm
Height: 18 mm
Weight: 146 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 137 mm
Package depth: 126 mm
Package height: 57 mm
Package weight: 400 g

Packaging content

Cables included: USB Type-C, USB Type-C to USB Type-A
Feature: AC adapter included
Feature: Quick start guide

Logistics data

Harmonized System (HS) code: 84733020
