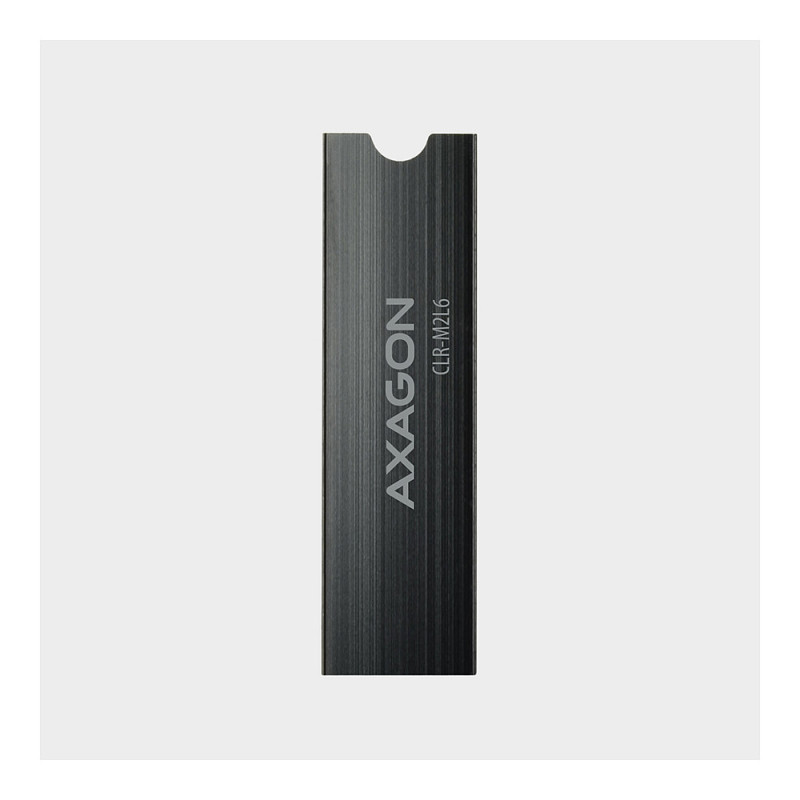

Axagon CLR-M2L6 computer cooling system

Axagon CLR-M2L6 Passive aluminum heatsink for all M.2 SSDs, size 2280, high 6 mm. Type: Heatsink/Radiator. Width: 22 mm, Depth: 6 mm, Height: 77 mm. Product colour: Black

AXAGON CLR-M2L6 ALU passive heatsink for ideal cooling of high performance M.2 SSDs, especially NVMe.

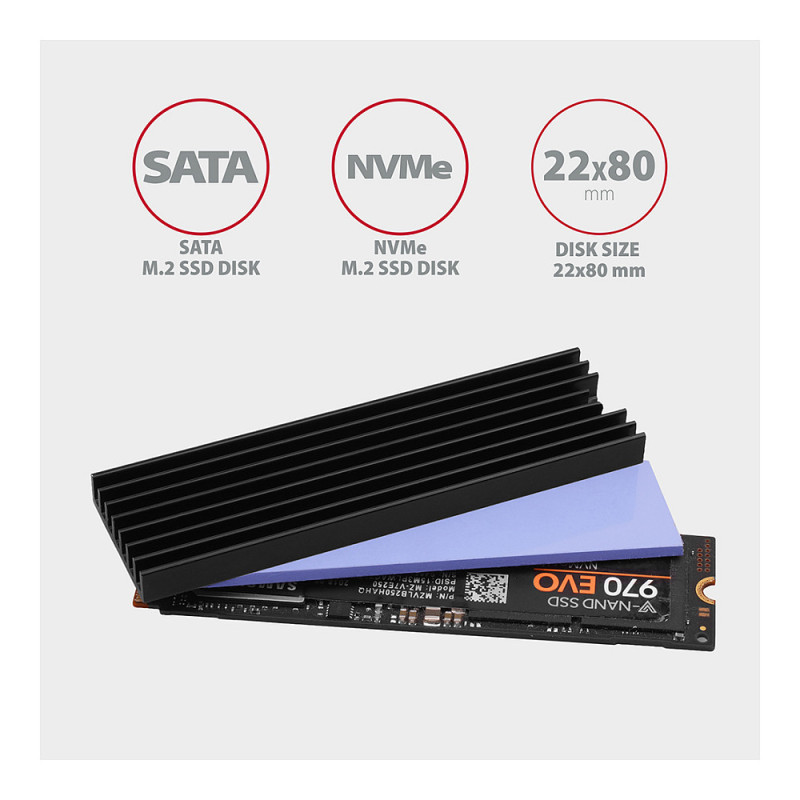

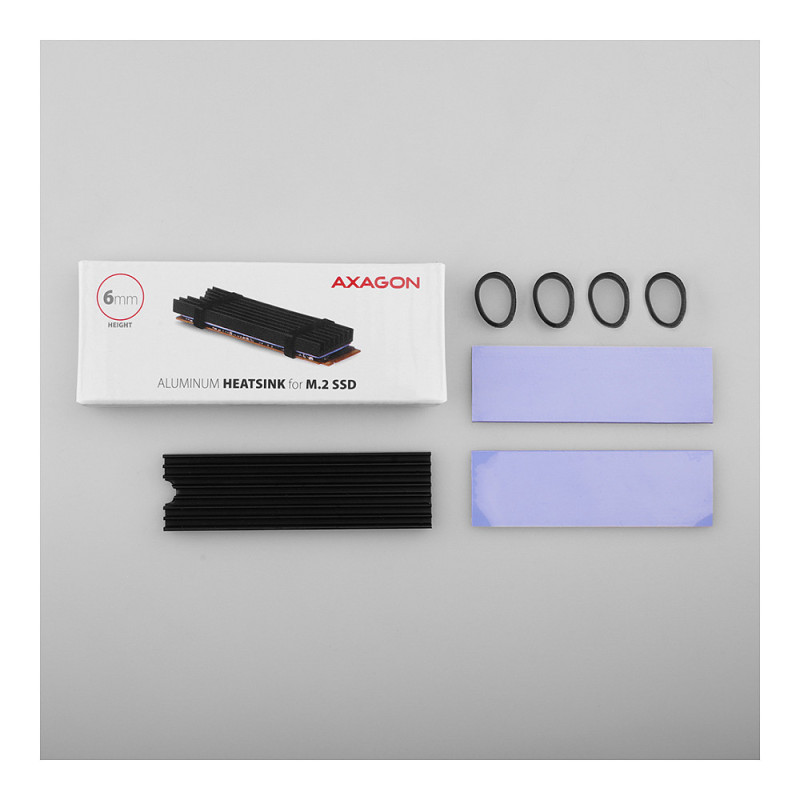

The universal passive heatsink can be used for M.2 cards, size 22 x 80 mm. Two supplied thermally conductive pads allow cooler installation for all one-sided as well as double-sided M.2 SSD disks.

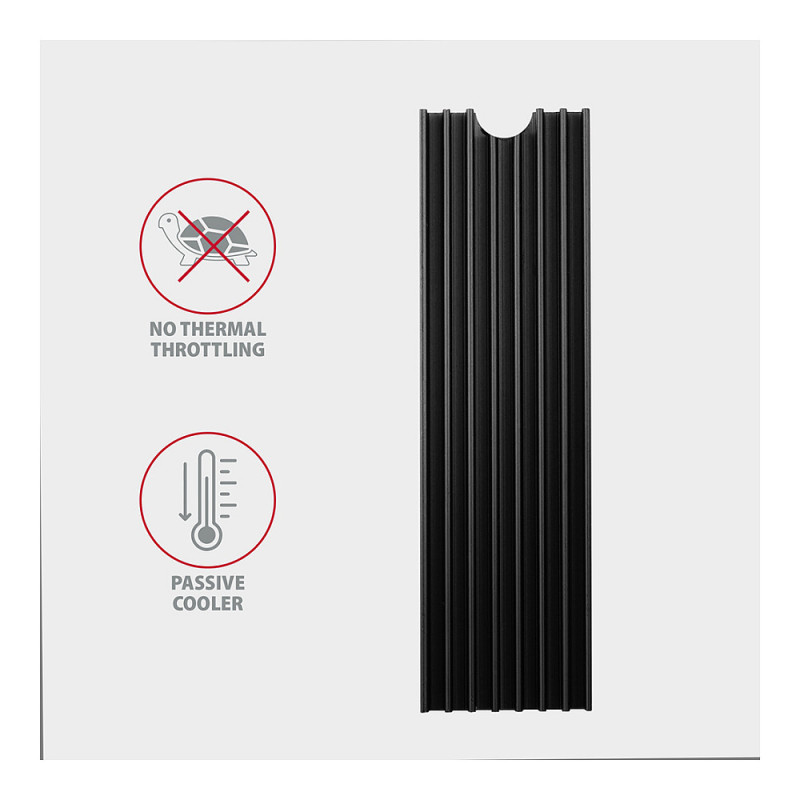

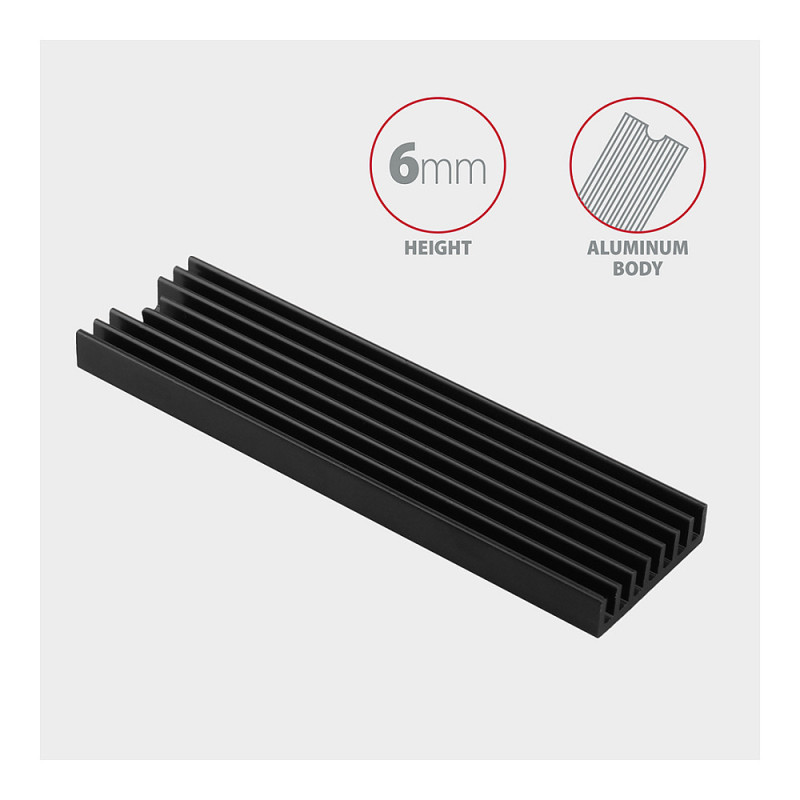

6mm high ribbed aluminum heatsink assists in a better dissipation of heat generated during the M.2 SSD operation. It also reduces the drive temperature by up to 20°C. This prolongs the M.2 SSD life and prevents disk slow down, so-called "Thermal Throttling".

Thanks to its easy installation and compact dimensions, the heatsink can be used not only with M.2 AXAGON adapters, but also with M.2 (NGFF) slots on motherboards, etc. The heatsink has the ideal profile height / cooling efficiency ratio.

Performance

Suitable location: M.2 NVMe SSD, Solid-state drive
Type: Heatsink/Radiator
Quantity per pack: 1 pc(s)
Compatible products: M.2 SSD 2280

Design

Product colour: Black
Material: Aluminium
Radiator material: Aluminum
Certification: CE, RoHS

Weight & dimensions

Width: 22 mm
Depth: 6 mm
Height: 77 mm
Weight: 13 g
Package width: 40 mm
Package depth: 20 mm
Package height: 100 mm
Package weight: 32 g

Technical details

Warranty period: 3 year(s)
Compliance certificates: RoHS, CE

Packaging content

Package type: Box
Feature: Thermal pad included
