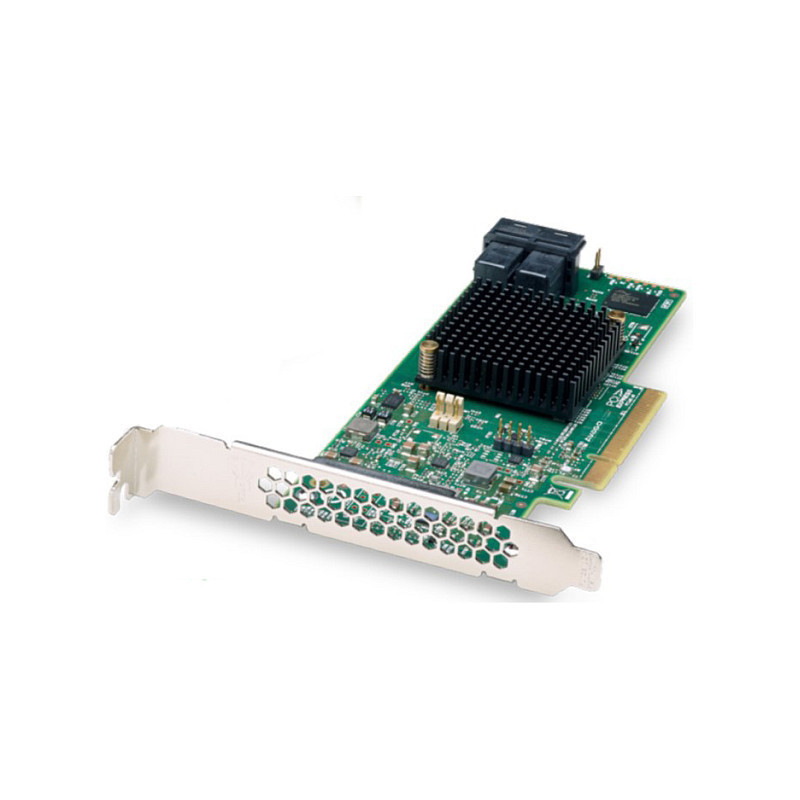

Broadcom HBA 9500-16i interface cards / adapter

Broadcom HBA 9500-16i. Host interface: PCIe, Output interface: SAS, Expansion card form factor: Low-profile. Product colour: Black, Grey, Mean time between failures (MTBF): 5000000 h, Certification: Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024),.... Power consumption (typical): 8.9 W. Width: 155.6 mm, Depth: 68.9 mm. Quantity per box: 1 pc(s)

The high-port 9500-16i Tri-Mode, PCIe Gen 4.0 HBA is ideal for increased connectivity and maximum performance for enterprise data center flexibility.

With increased bandwidth and IOPS performance compared to previous generations, the 9500-16i adapter delivers the performance and scalability needed by critical applications.

Ports & interfaces

Host interface: PCIe
Output interface: SAS
Expansion card form factor: Low-profile
Internal mini-SAS ports: 2

Design

Product colour: Black, Grey
Mean time between failures (MTBF): 5000000 h

Features

Feature: Full duplex
Feature: Plug and Play

Power

Power consumption (typical): 8.9 W

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -45 - 105 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 5 - 95%

System requirements

Windows operating systems supported: Yes
Linux operating systems supported: Yes

Weight & dimensions

Width: 155.6 mm
Depth: 68.9 mm

Packaging data

Quantity: 1
Feature: Manual
Feature: User guide

Logistics data

Harmonized System (HS) code: 84733020

Other features

Quantity per box: 1 pc(s)
