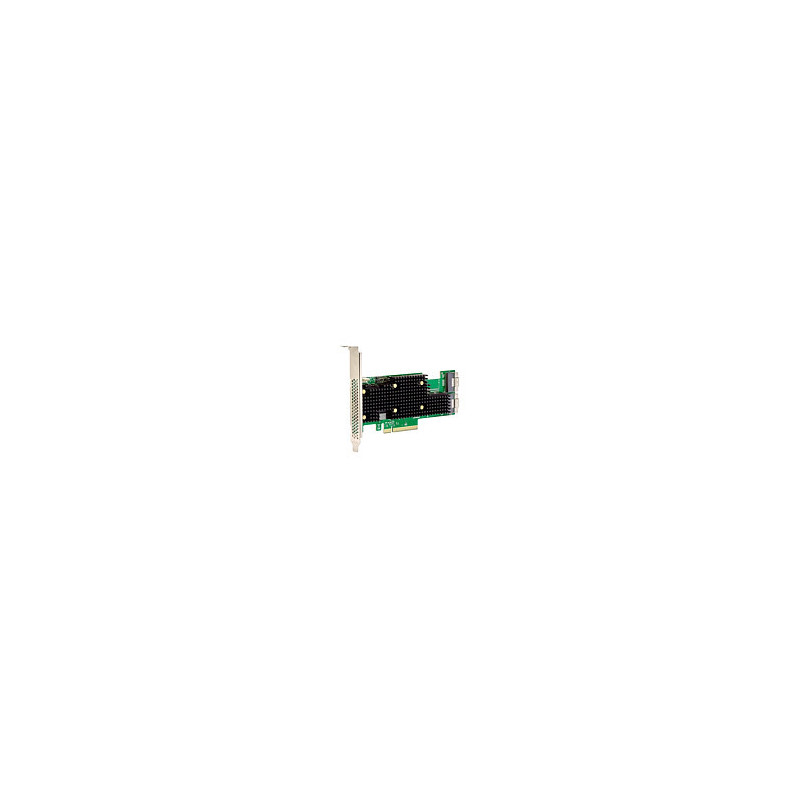

Broadcom eHBA 9620-16i interface cards / adapter

Broadcom eHBA 9620-16i. Host interface: PCIe, Output interface: SAS, SATA, Expansion card form factor: Full-height / Low-profile. Product colour: Black, Green, Silver, Mean time between failures (MTBF): 5000000 h, Certification: Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class.... Data transfer rate (max): 22.5 Gbit/s, RAID levels: 0, 1, 10. Power consumption (typical): 17 W. Server operating systems supported: SUSE Linux Enterprise Server, Other operating systems supported: VMware vSphere ESXi
The 9620-16i Tri-Mode, PCIe Gen 4.0 enhanced HBA (eHBA) is ideal for increased connectivity and maximum performance for enterprise data center flexibility.
With increased bandwidth and IOPS performance compared to previous generations, the 9620-16i eHBA delivers the performance and scalability needed by critical applications.

Ports interfaces

Host interface: PCIe
Output interface: SAS, SATA
Expansion card form factor: Full-height / Low-profile
Expansion card standard: PCIe 4.0
Feature: NVMe
Internal mini-SAS ports: 2

Design

Feature: Internal
Product colour: Black, Green, Silver
Mean time between failures (MTBF): 5000000 h

Features

Data transfer rate (max): 22.5 Gbit/s
Feature: S.M.A.R.T. support
RAID levels: 0, 1, 10

Power

Power consumption (typical): 17 W

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Operating relative humidity (H-H): 5 - 90%

System requirements

Windows operating systems supported: Yes
Linux operating systems supported: Yes
Server operating systems supported: SUSE Linux Enterprise Server
Other operating systems supported: VMware vSphere ESXi

Technical details

Feature: Sustainability compliance
Warranty period: 3 year(s)
Compliance certificates: RoHS, WEEE

Weight dimensions

Width: 155.6 mm
Depth: 68.8 mm

Packaging data

Quantity per pack: 1 pc(s)
Feature: Mounting brackets included
