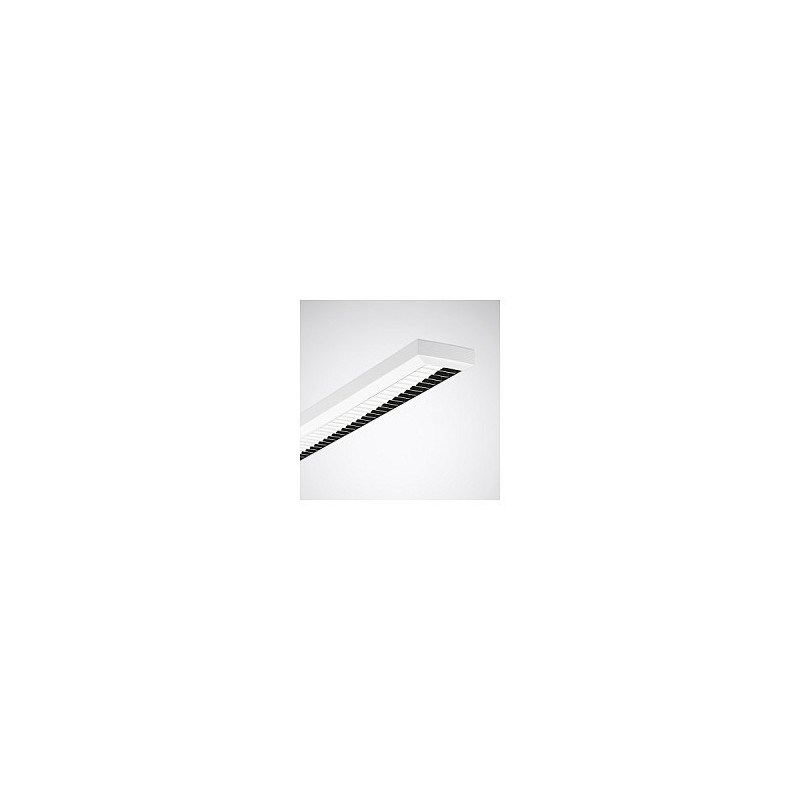

Trilux 6484240 ceiling lighting

Trilux 6484240. Product colour: White, Suitable location: Universal, Shape: Rectangle. Bulb type: LED, Total power: 38 W, Light colour: Neutral white. Power source type: AC, Input voltage: 220 - 240 V, AC input frequency: 50 - 60 Hz. Width: 1548 mm, Depth: 197 mm, Height: 75 mm. Operating temperature (T-T): -20 - 25 °C

Luminaire type
Surface-mounted LED luminaire for single use or trunking applications.

Applications
Offices, Sales rooms, Recreation rooms, Exhibition rooms.

Mounting methods
For mounting to ceilings and overhangs indoors.

Optical system
With parabolic specular louvre, highly specular, anodised. Louvre mounting and self-actuating electrical earthing via sliding contact catches. Louvre can be hinged downwards and unhooked on both sides without tools. Glare evaluation (EN 12464-1) according to UGR < 19. Suitable for VDU workstations according to EN 12464-1 via limited luminance L ≤ 1500 cd/m² for beam angle above 65° all-round.

LED system
Luminaire luminous flux 4400 lm, connected load 38,00 W, Leistungsfaktor λ > 0,95, luminous efficiency of luminaire 115 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, Colour locus tolerance (initial MacAdam) ≤ 3 SDCM, general colour rendering index (CRI) Ra > 80. Mean rated service life L80(tq 25 °C) = 35,000 h, mean rated service life L70(tq 25 °C) = 50,000 h.

Luminaire body
Luminaire body sheet steel. Surface coated white (RAL 9016). Flat profile design, underside angled at 55%. Dimensions (L x W): 1548 mm x 197 mm, luminaire height 75 mm. Weight: 4,3 kg. Please order end caps for individual luminaires or continuous lines separately. Luminaire body with integral coupling profiles for precise alignment of continuous lines with non-interrupted louvres. Permissible ambient temperature (ta): -20 °C - +25 °C.

Electrical version
With electronic transformer, switchable. The luminaire complies with fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.

Counter weight:
The use of a counterweight may be necessary with suspended mounting. Further information can be found in the installation instructions.

Design

Feature: Suitable for indoor use
Suitable location: Universal
Shape: Rectangle
Mounting type: Surfaced
Housing material: Steel
Product colour: White
International Protection (IP) code: IP20
Protection class: I
Mechanical impact protection code: IK02
Certification: CE

Lamps

Feature: Bulb(s) included
Bulb type: LED
Total power: 38 W
Light colour: Neutral white
Colour temperature: 4000 K
Luminous flux: 4400 lm
Color Rendering Index (CRI): 80
Luminous efficacy: 115 lm/W

Power

Power source type: AC
Input voltage: 220 - 240 V
AC input frequency: 50 - 60 Hz
AC input voltage: 220 - 240 V

Weight & dimensions

Width: 1548 mm
Depth: 197 mm
Height: 75 mm
Weight: 4.3 kg

Other features

Operating temperature (T-T): -20 - 25 °C
