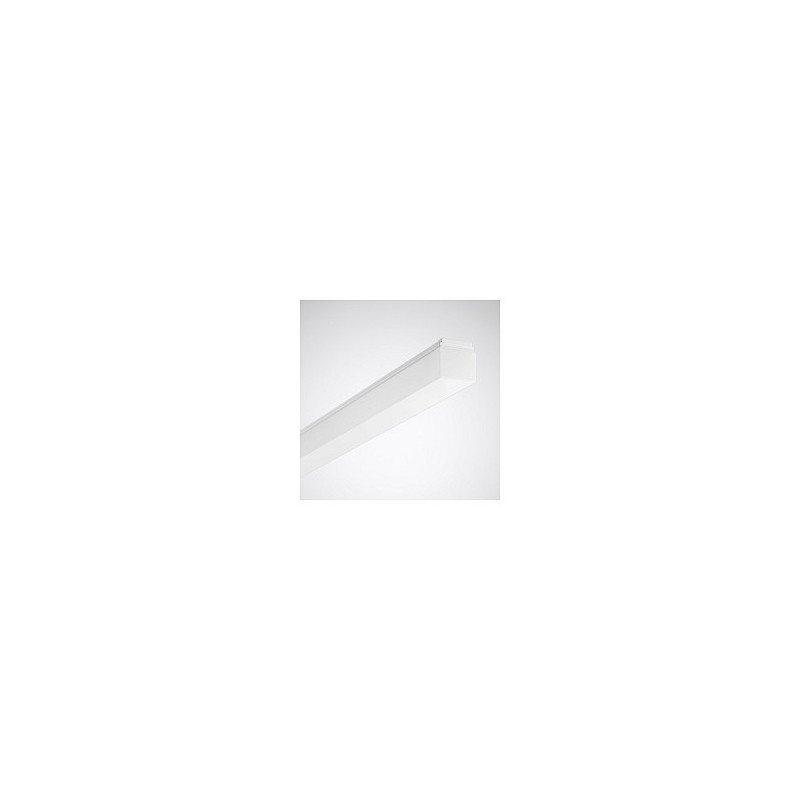

Trilux 6474140 ceiling lighting

Trilux 6474140. Product colour: White, Suitable location: Universal, Shape: Rectangle. Bulb type: LED, Total power: 26 W, Light colour: Neutral white. Power source type: AC, Input voltage: 230 - 240 V, AC input frequency: 50 - 60 Hz. Width: 1534 mm, Depth: 111 mm, Height: 101 mm. Operating temperature (T-T): -20 - 25 °C

Luminaire type
Surface-mounted LED luminaires for ceiling and wall mounting.

Applications
Sales rooms, Recreation rooms, Exhibition rooms, Corridors, Stairwells.

Optical system
With opal PMMA diffuser, finely structured. Glare evaluation (EN 12464-1) according to UGR < 25. Secure fixing of diffuser with inner spring-tensioned contact clips.

LED system
Luminaire luminous flux 3400 lm, connected load 26,00 W, luminous efficiency of luminaire 130 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, Colour locus tolerance (initial MacAdam) ≤ 3 SDCM, general colour rendering index (CRI) Ra > 80. Mean rated service life L80(tq 25 °C) = 35,000 h, mean rated service life L70(tq 25 °C) = 50,000 h.

Luminaire body
Luminaire body sheet steel. Surface coated white (RAL 9016). End caps of impact-resistant ABS. With integral cable channel on rear for cable routing with offset wall outlets. Side cable entry is in end cap. Dimensions (L x W) 1534 mm x 111 mm, luminaire height 101 mm. Permissible ambient temperature (ta): -20 °C - +25 °C.

Electrical version
With electronic transformer, switchable. The luminaire complies with fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.

Design

Feature: Suitable for indoor use
Suitable location: Universal
Shape: Rectangle
Mounting type: Surfaced
Feature: Wall mountable
Housing material: Steel
Product colour: White
International Protection (IP) code: IP40
Protection class: I
Mechanical impact protection code: IK02
Certification: CE

Lamps

Feature: Bulb(s) included
Bulb type: LED
Total power: 26 W
Light colour: Neutral white
Colour temperature: 4000 K
Luminous flux: 3400 lm
Color Rendering Index (CRI): 80
Luminous efficacy: 130 lm/W

Power

Power source type: AC
Input voltage: 230 - 240 V
AC input frequency: 50 - 60 Hz
AC input voltage: 230 - 240 V

Weight & dimensions

Width: 1534 mm
Depth: 111 mm
Height: 101 mm
Weight: 4.4 kg

Other features

Operating temperature (T-T): -20 - 25 °C
