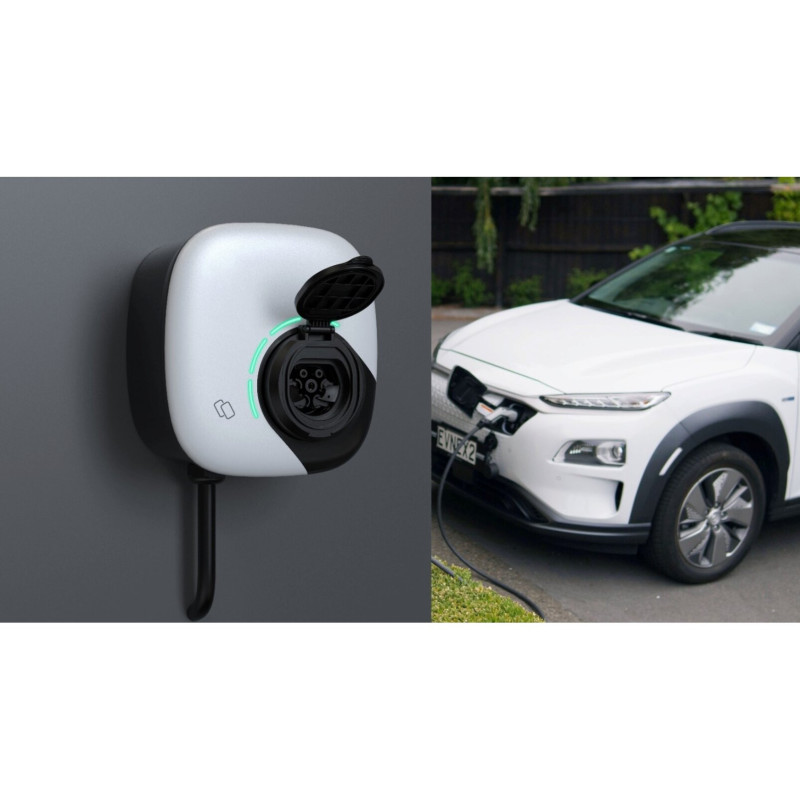

Yingrao charging station 11kW with type 2 plugs and app

Yingrao charging station 11 kW with type 2 plug and app

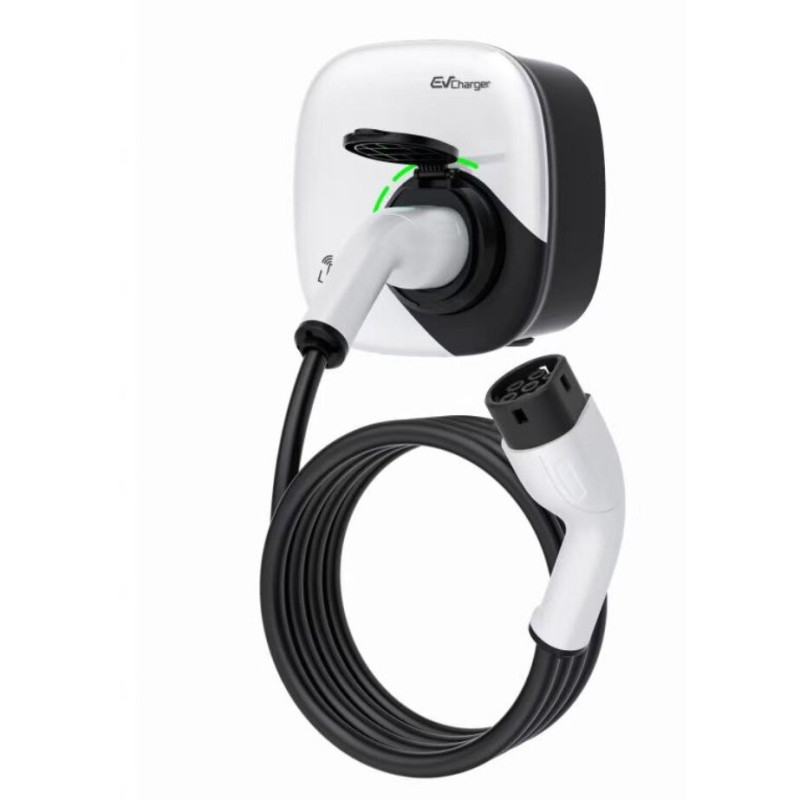

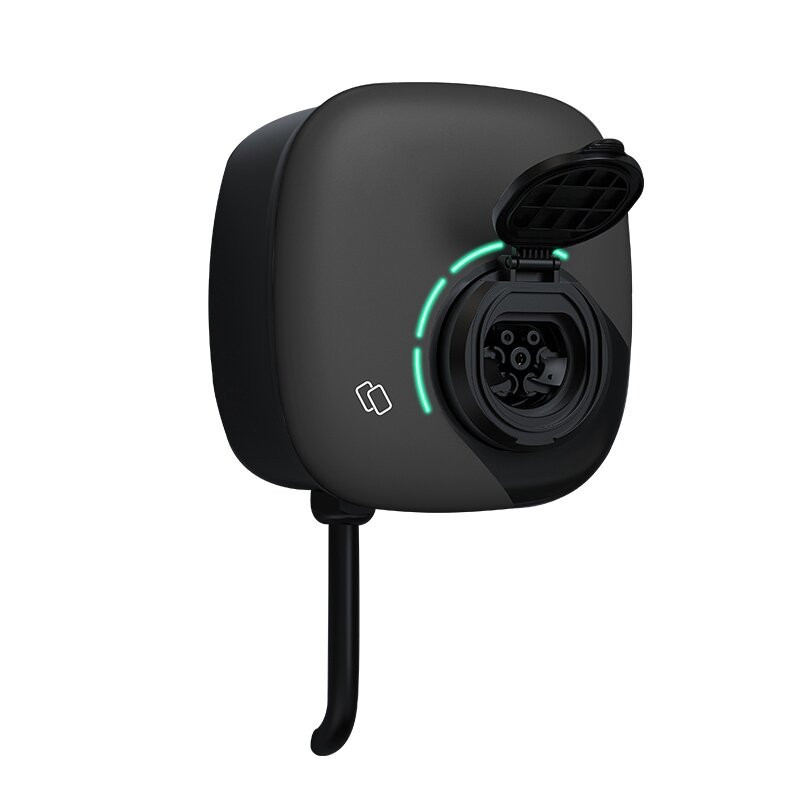

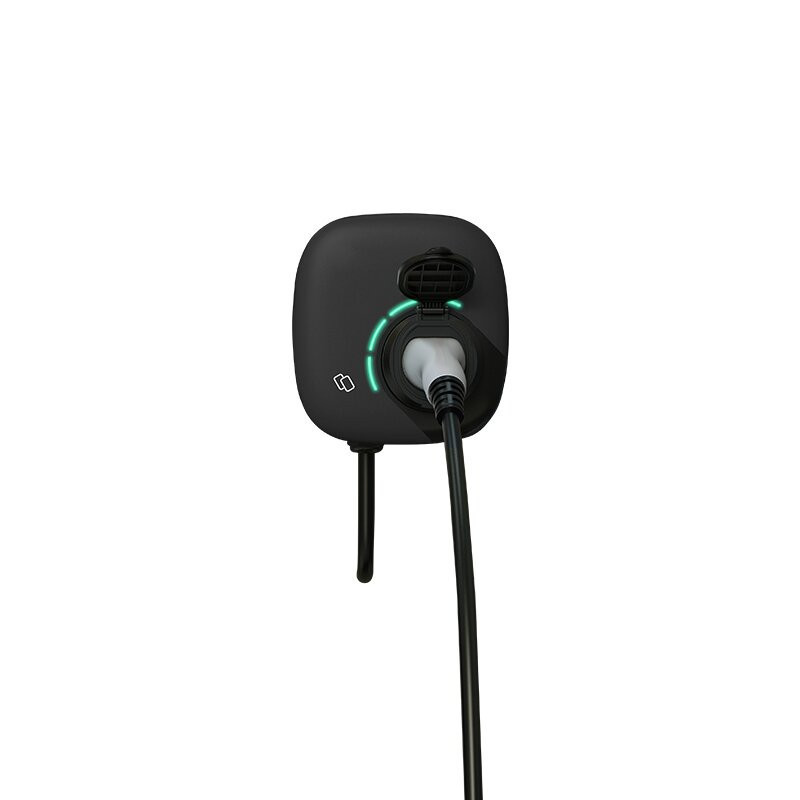

The stop can be chosen in black or white (can also be equipped with a cable)

Station control via app

Housing material: ABS+PC Plastic housing

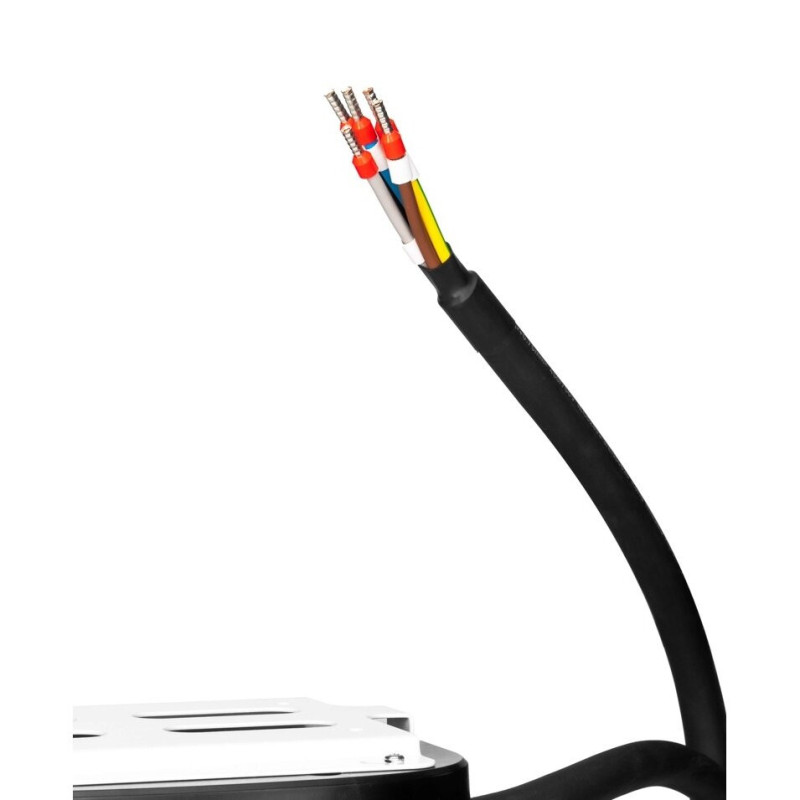

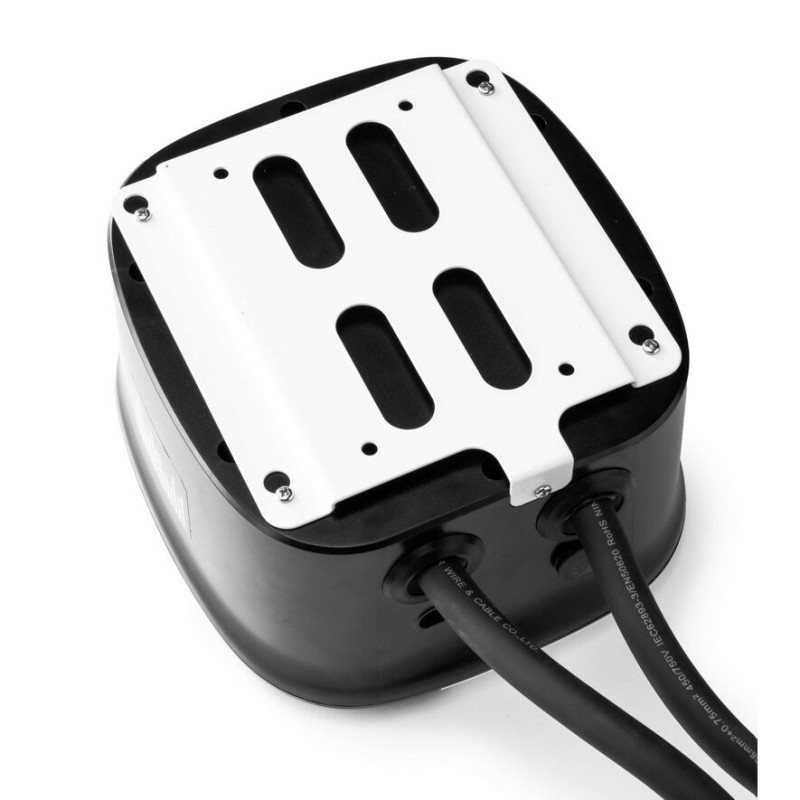

The power cord is connected from the bottom of the station

charging station dimensions 230*215*70mm

Weight 3kg

input voltage 230V/400V AC Three-phase five-wire system
(phase A, phase B, phase C, neutral, PE)

Input current 16A

Frequency 50Hz /60Hz

Maximum power 11 KW

Measurement function Yes

Measurement accuracy class 2

Output voltage 230V/400V alternating

Output current 16A

Standby power ≤10W

Standard EN 61851-1:2019

MTBF 100,000 hours

Operating temperature -40 ～+60

Operating humidity 5%～95%

Height ＜2000m

IP rating IP65

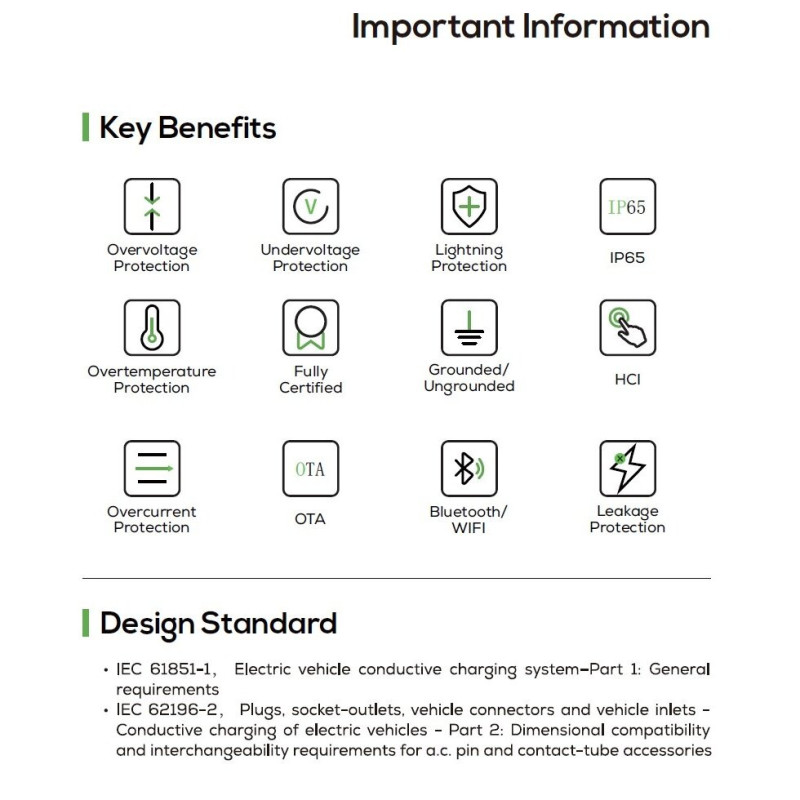

Security guards:

Surge protection Yes

Low voltage protection Yes

Overload protection Yes

Short circuit protection Yes

Leakage protection Yes

Ground fault protection Yes

Overheating protection Yes

Lightning protection Yes

Certificates: CE, OZEClist, UKCA, SASO

OUR PRACTICAL ADVICE

If you have a single-phase charging electric vehicle or a Plug-in hybrid vehicle ( who accept up to 7kW during phase 1), it is important to choose the right charging station to ensure the most efficient charging. EV Cables recommends choosing a 22 kW electric vehicle charging station.

Even when using single-phase charging, a 22 kW station will allow you to optimally use the available three-phase electrical input. In this case, if your electrical input is three-phase (22 kW) and the station is also 22 kW, you will be able to achieve approximately 7 kW charging power.

This is an efficient and productive solution for those seeking maximum charging power for their electric or hybrid car.
