Yingrao charging station 11kW with type 2 cable and app

Yingrao charging station 11kW with type 2 cable and app

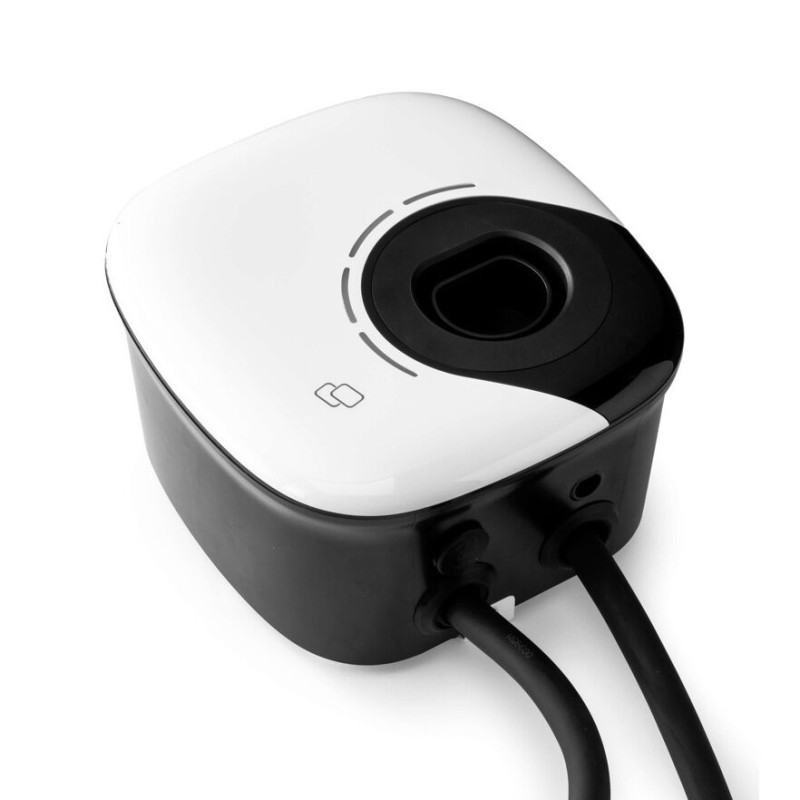

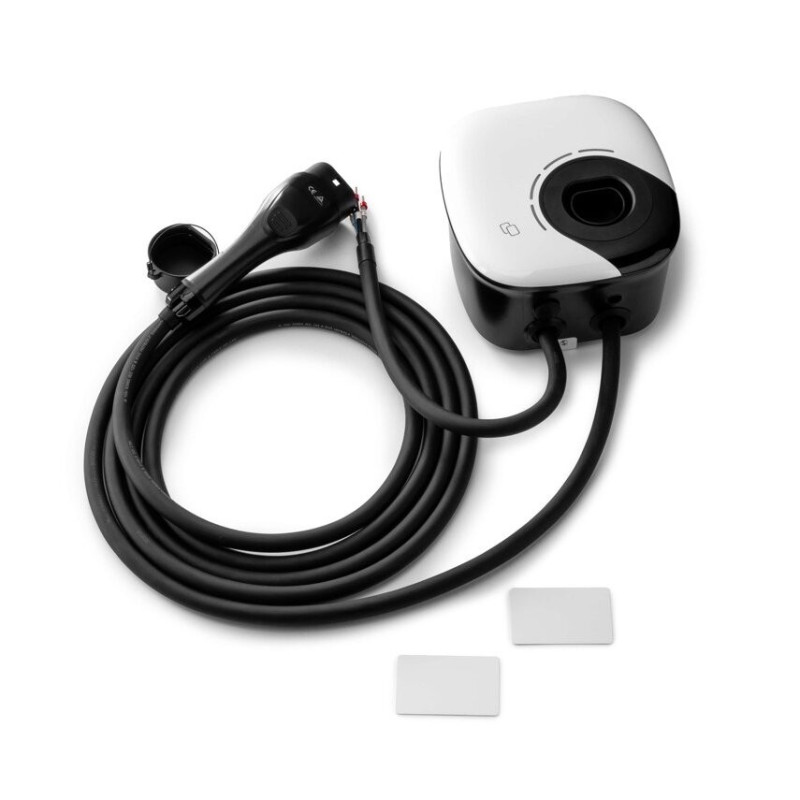

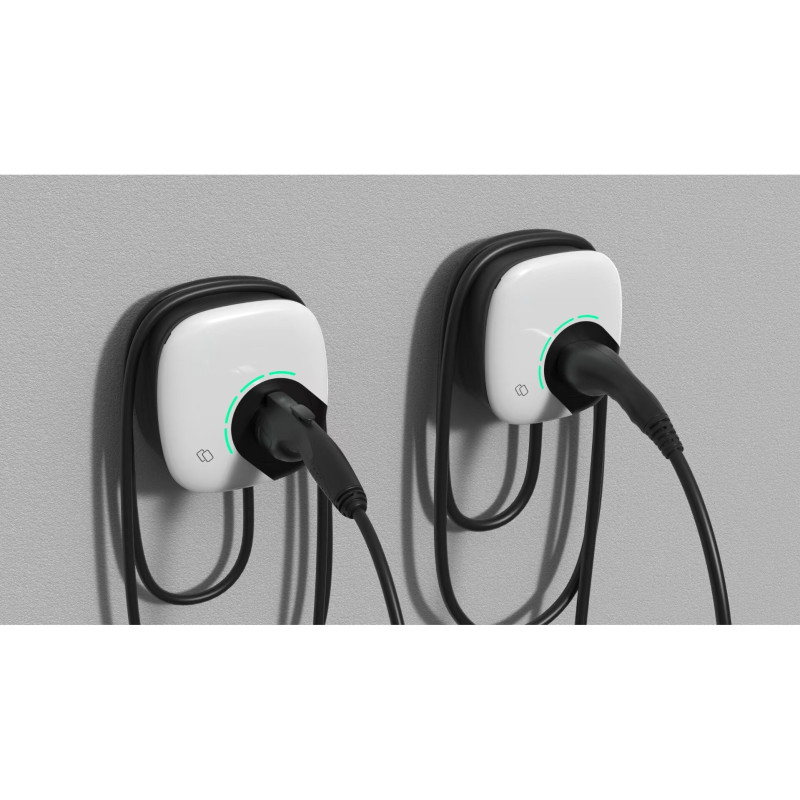

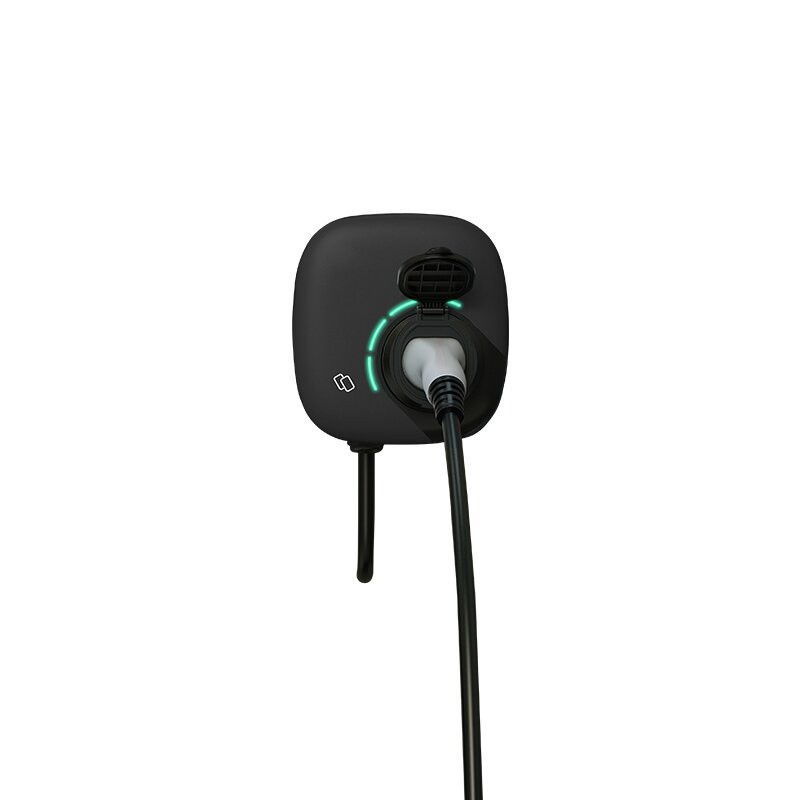

The station can be chosen in black or white (can be equipped with and without cable)

Station control via app

Housing material: ABS+PC Plastic housing

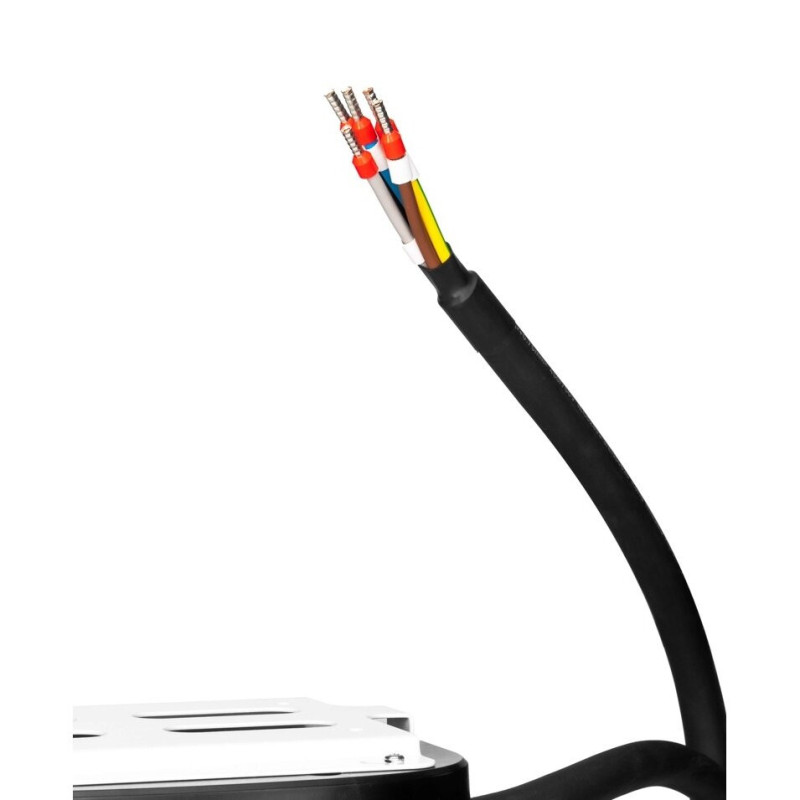

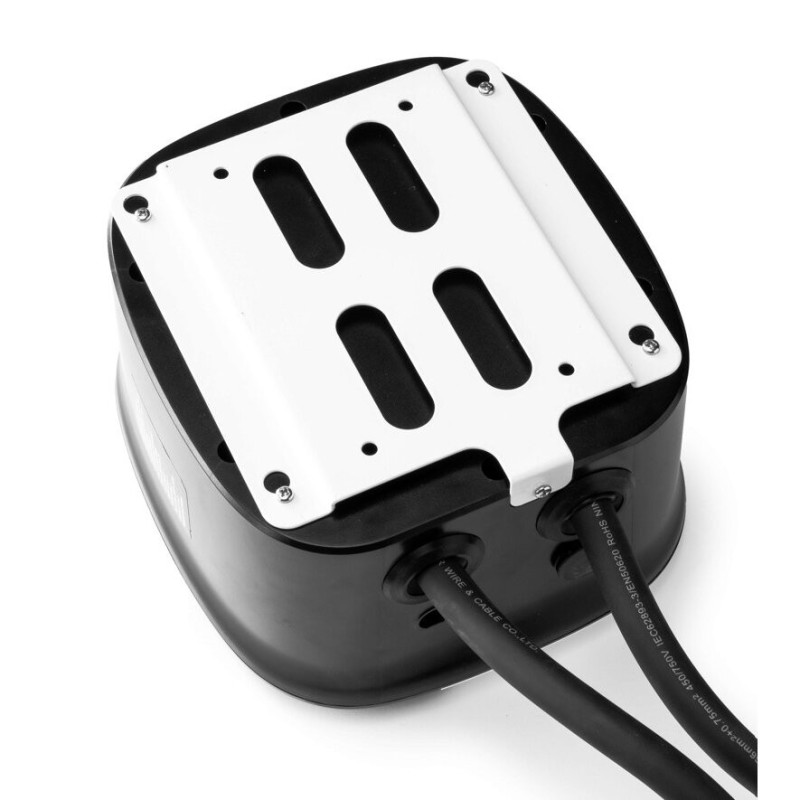

Power cable connected from the bottom of the station

charging station dimensions 230*215*70mm

Weight 3kg

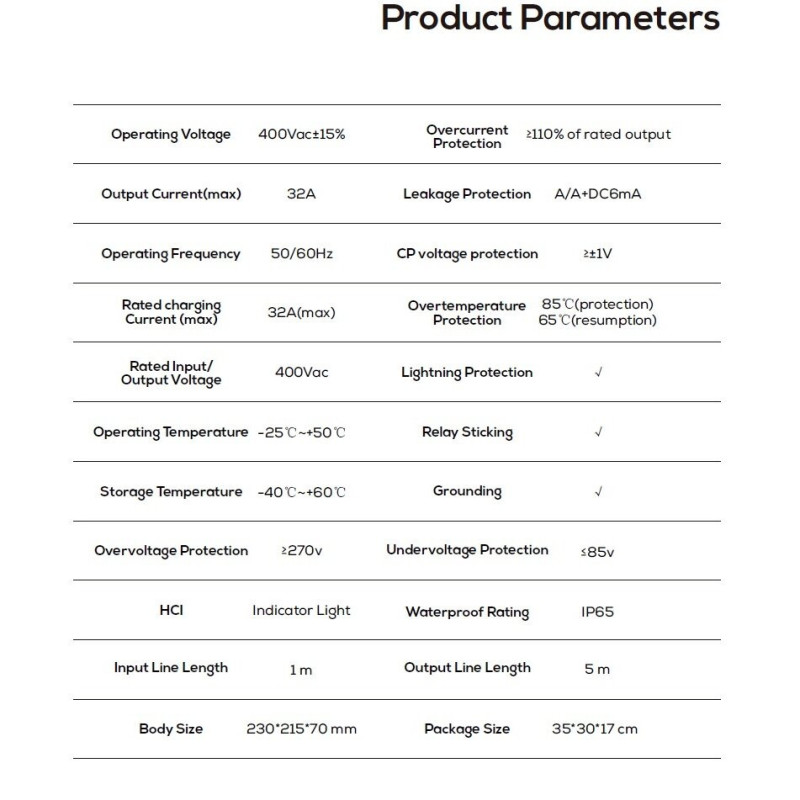

Input voltage 230V/400V AC Three-phase five-wire system
(Phase A, Phase B, Phase C, Neutral, PE)

Input current 16A

Frequency 50Hz /60Hz

Maximum power 11KW

Measurement function Yes

Measurement accuracy class 2

Output voltage 230V/400V AC

Output current 16A

Standby power ≤10W

Standard EN 61851-1:2019

MTBF 100,000 hours

Operating temperature -40 ～+60

Operating humidity 5%～95%

Altitude ＜2000m

IP rating IP65

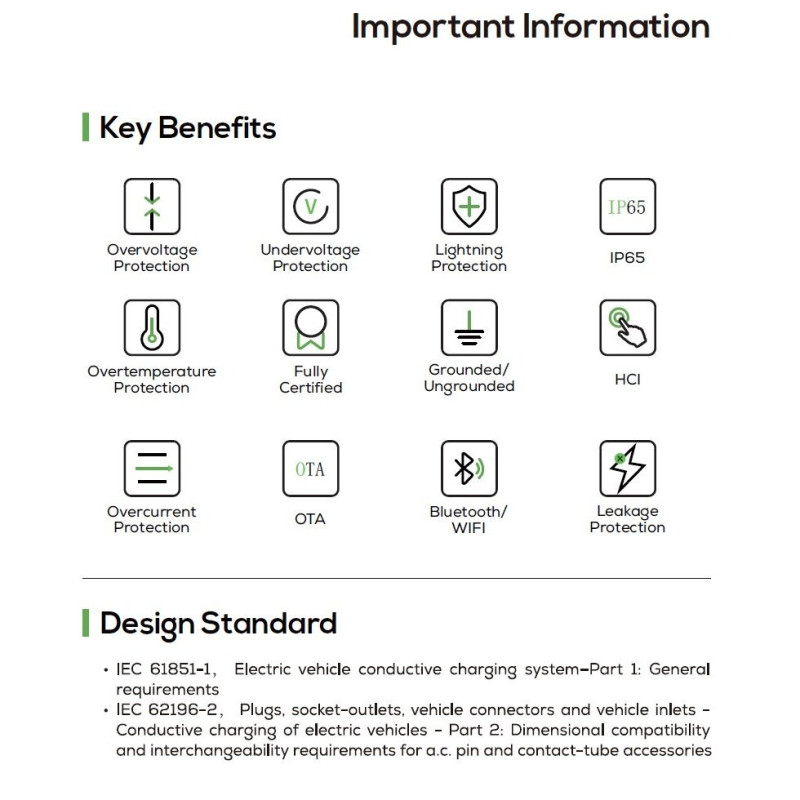

Safety protections:

Surge protection Yes

Low voltage protection Yes

Overload protection Yes

Short circuit protection Yes

Leakage protection Yes

Ground fault protection Yes

Overheat protection Yes

Lightning protection Yes

Certificates, certificates: CE, OZEClist, UKCA, SASO
