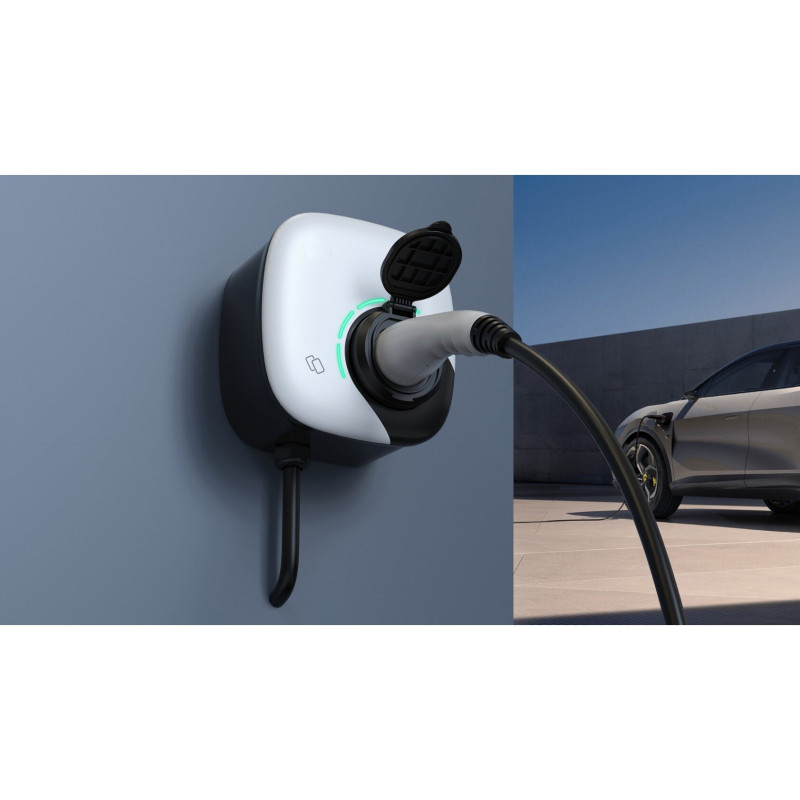

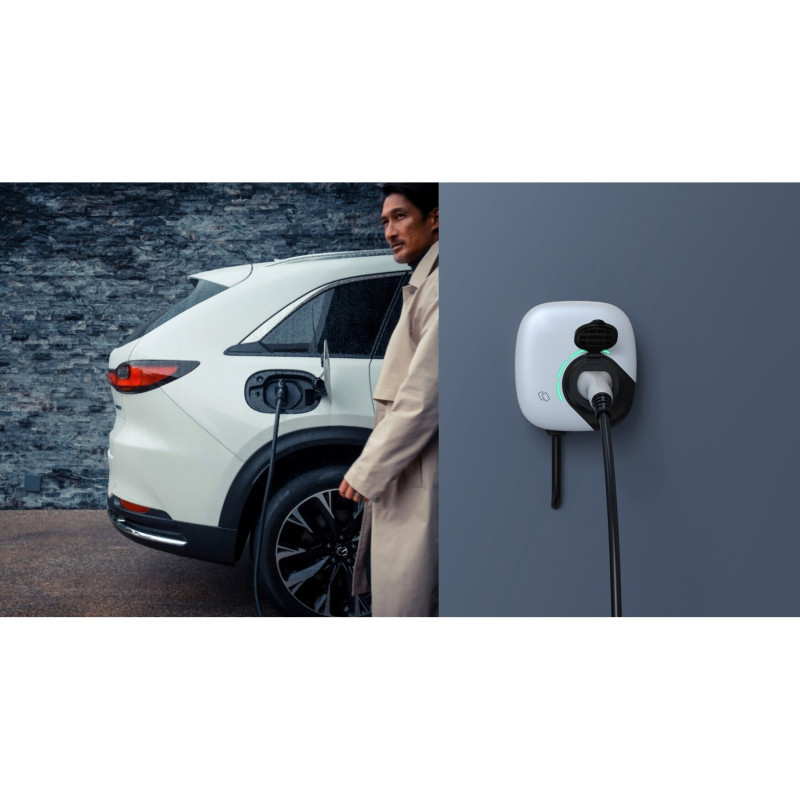

Yingrao charging station 11kW with type 2 cable and app

Yingrao charging station 11kW with type 2 cable and app

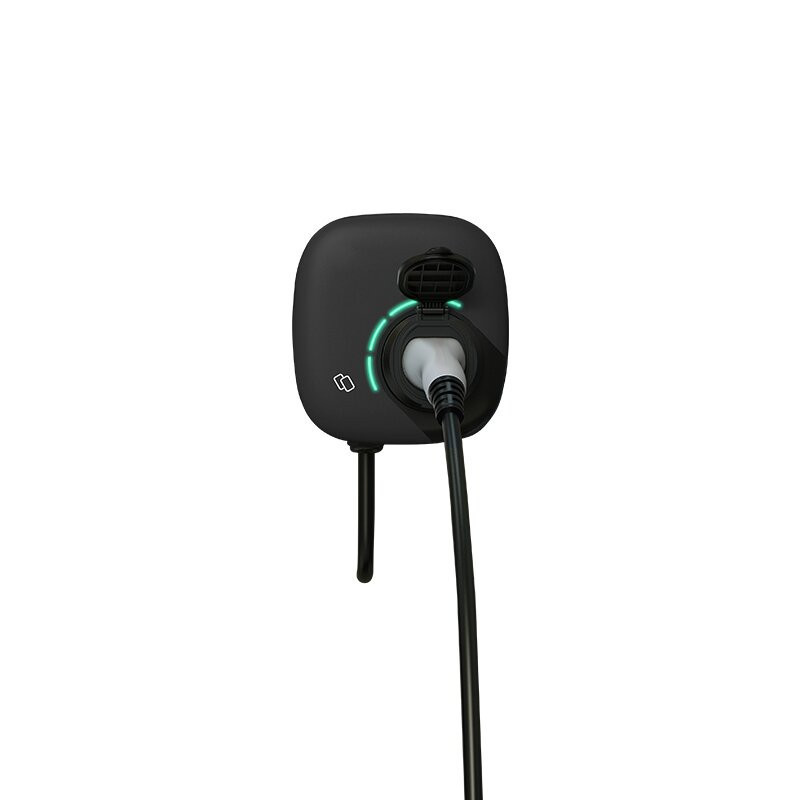

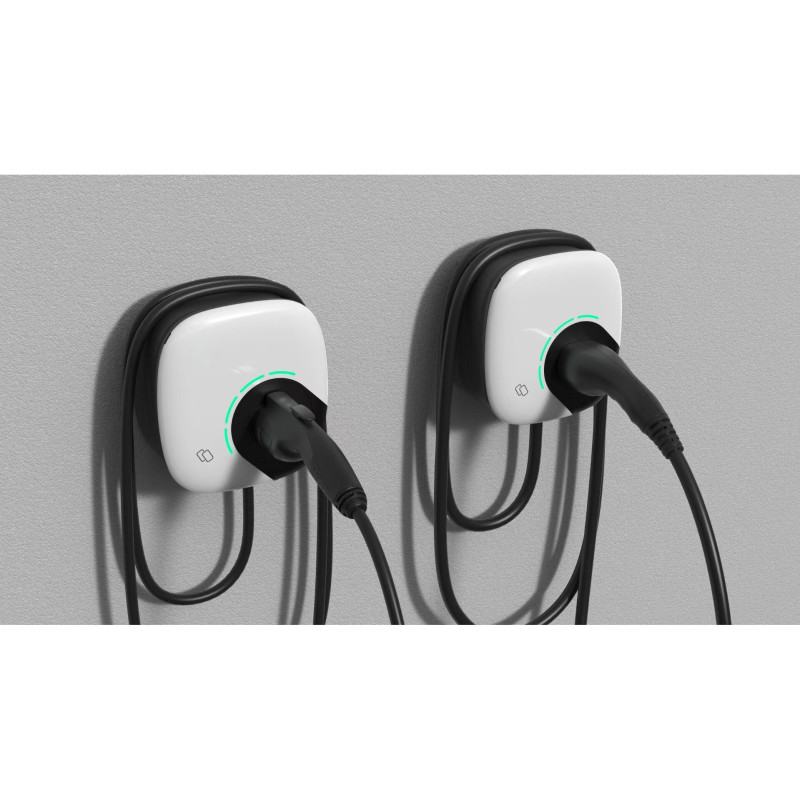

The stop can be chosen in black or white (can be equipped with or without a cable)

Station control via app

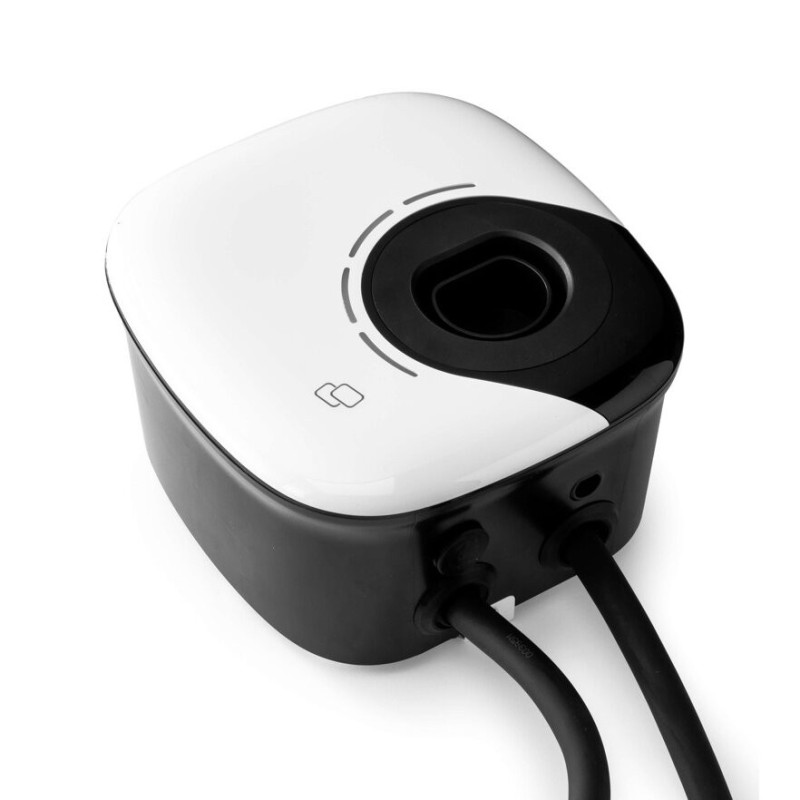

Housing material: ABS+PC Plastic housing

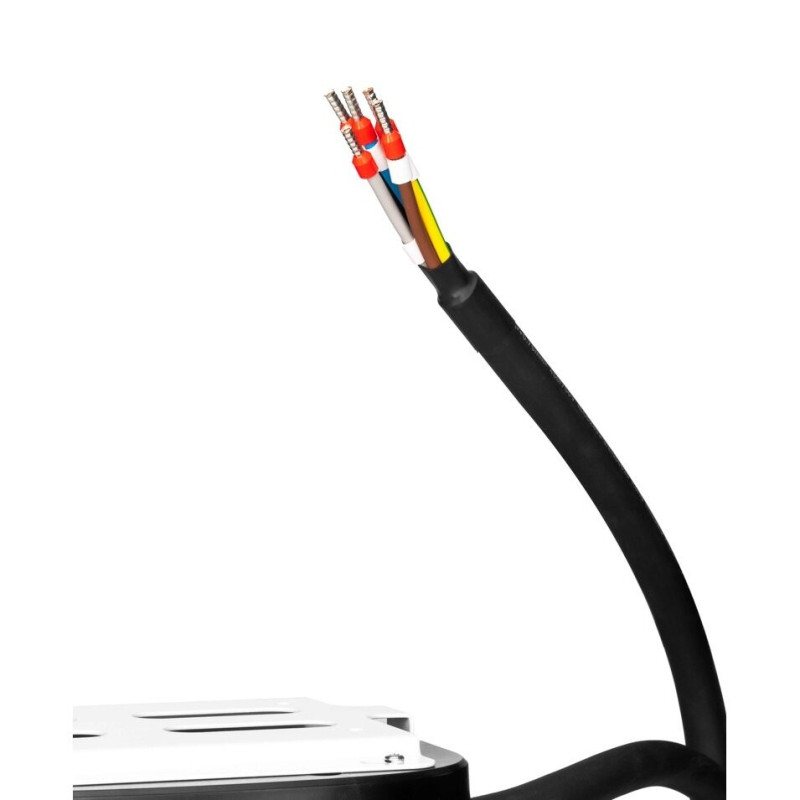

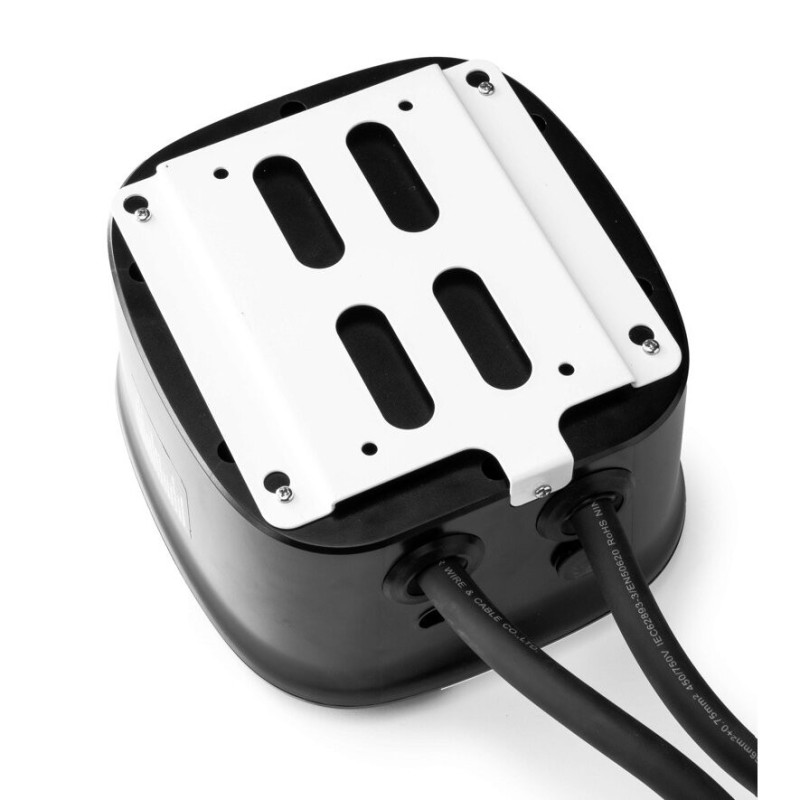

The power cord is connected from the bottom of the station

charging station dimensions 230*215*70mm

Weight 3kg

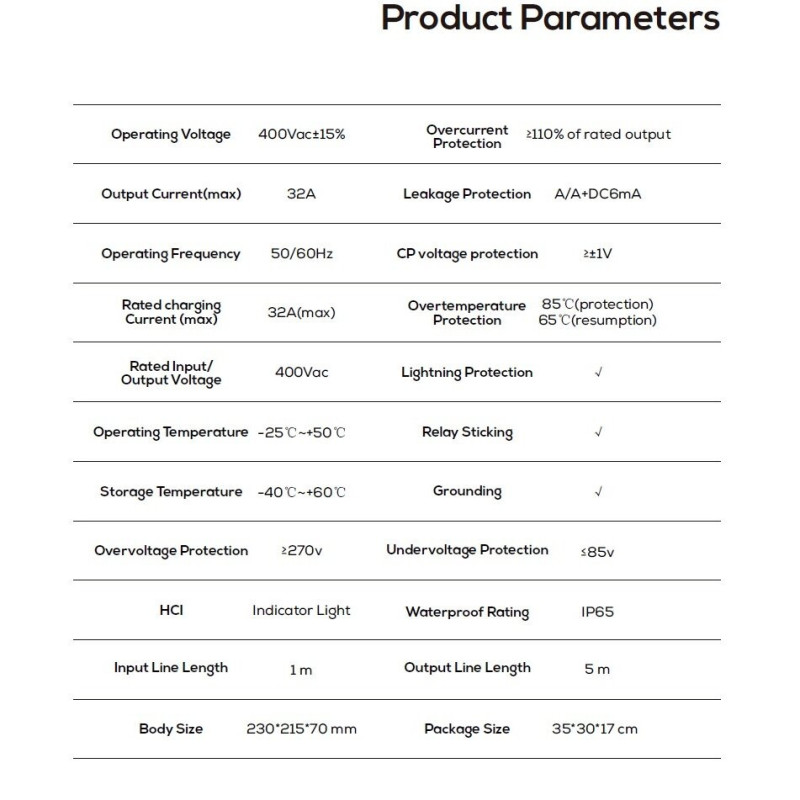

input voltage 230V/400V AC Three-phase five-wire system
(phase A, phase B, phase C, neutral, PE)

Input current 16A

Frequency 50Hz /60Hz

Maximum power 11KW

Measurement function Yes

Measurement accuracy class 2

Output voltage 230V/400V alternating

Output current 16A

Standby power ≤10W

Standard EN 61851-1:2019

MTBF 100,000 hours

Operating temperature -40 ～+60

Operating humidity 5%～95%

Height ＜2000m

IP rating IP65

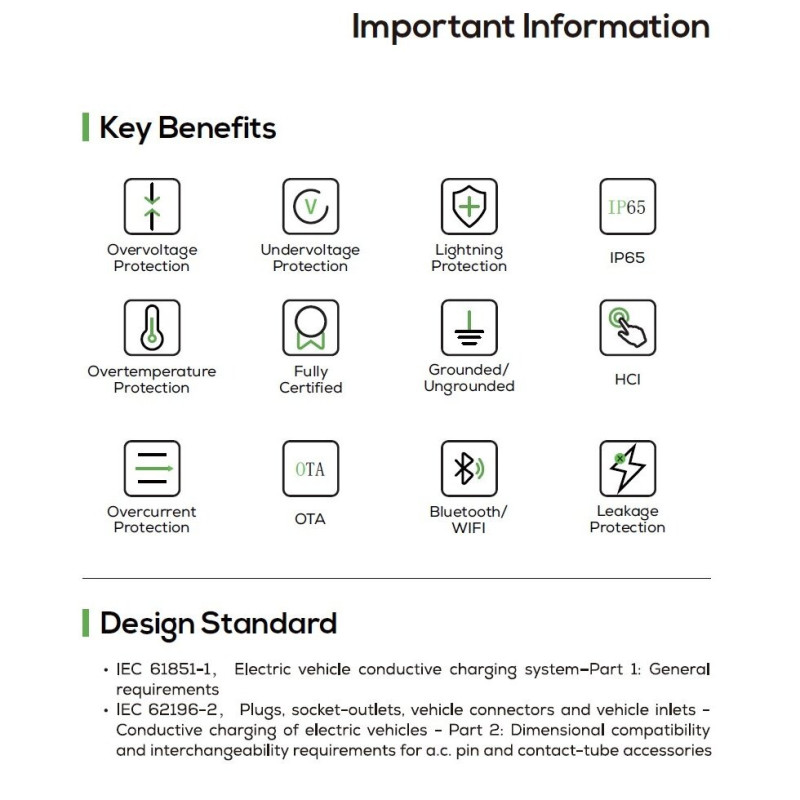

Security guards:

Surge protection Yes

Low voltage protection Yes

Overload protection Yes

Short circuit protection Yes

Leakage protection Yes

Ground fault protection Yes

Overheating protection Yes

Lightning protection Yes

Certificates: CE, OZEClist, UKCA, SASO
