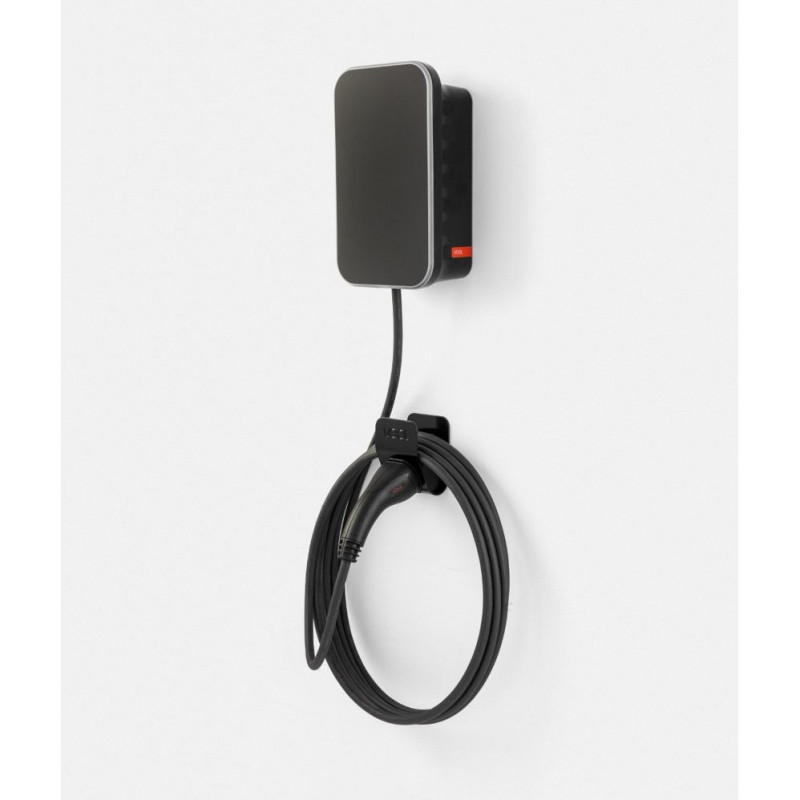

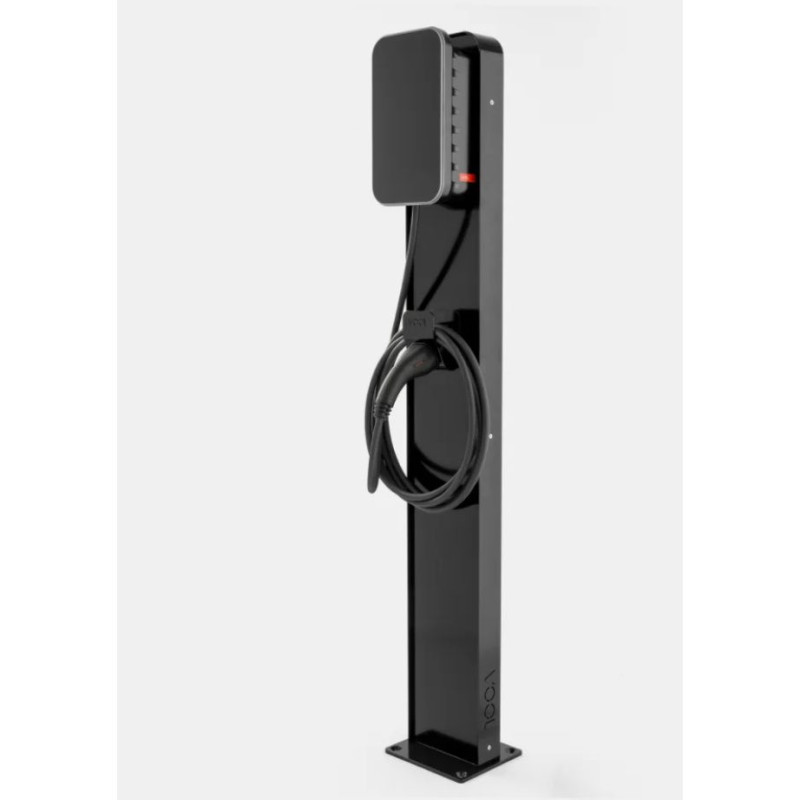

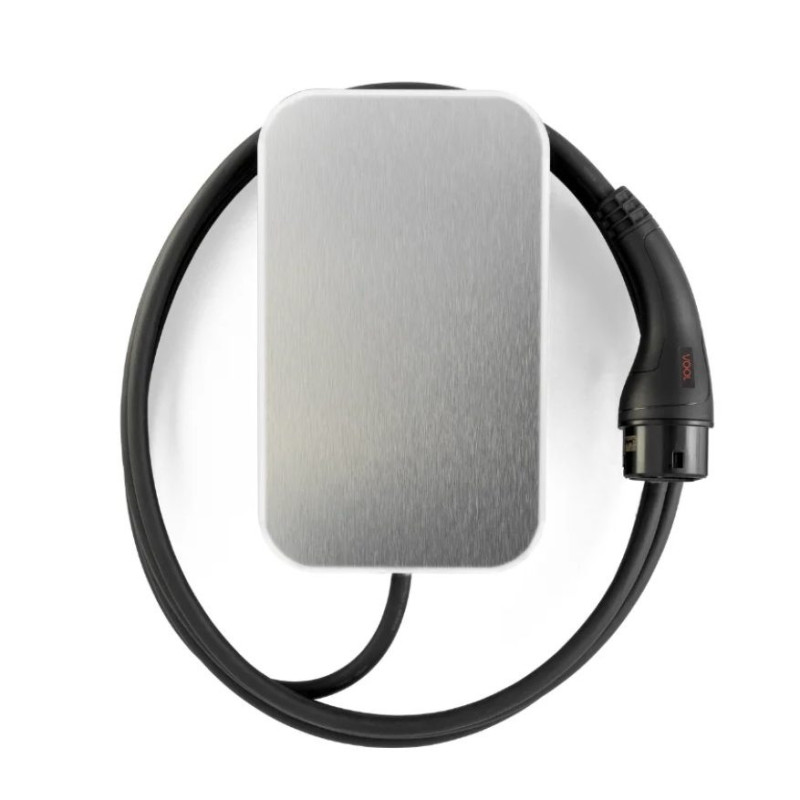

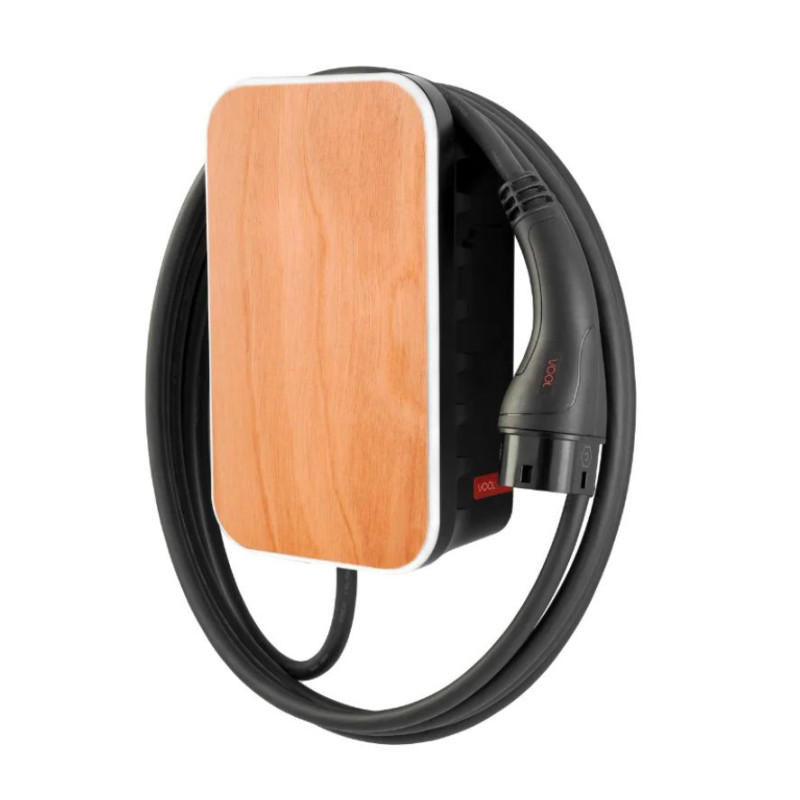

Vool - Charging station - Matt Black - 22kW - Max 32A with type 2 cable

The "VOOL" charging station is a high-quality, Estonian-made device designed to charge your electric car quickly and efficiently.

GENERAL SPECIFICATIONS

Dimensions (H x W x D) 335 x 198 x 112 mm

Weight 5.5 kg

Operating temperature -30...+50 C³

Environmental rating of the housing Outdoor / IP55

Impact resistance IK10

Standards EMCD 2014/30/EU, IEC 61851-1:2017, IEC 61851-21-2:2018, IEC 62955:2018

Warranty 5 years

Grid standards TN, IT

Grid voltage 230 VAC / 400 VAC (±10%)

Charging options 1 phase, 2 phases4, 3 phases

Rated power 22kW (32A)

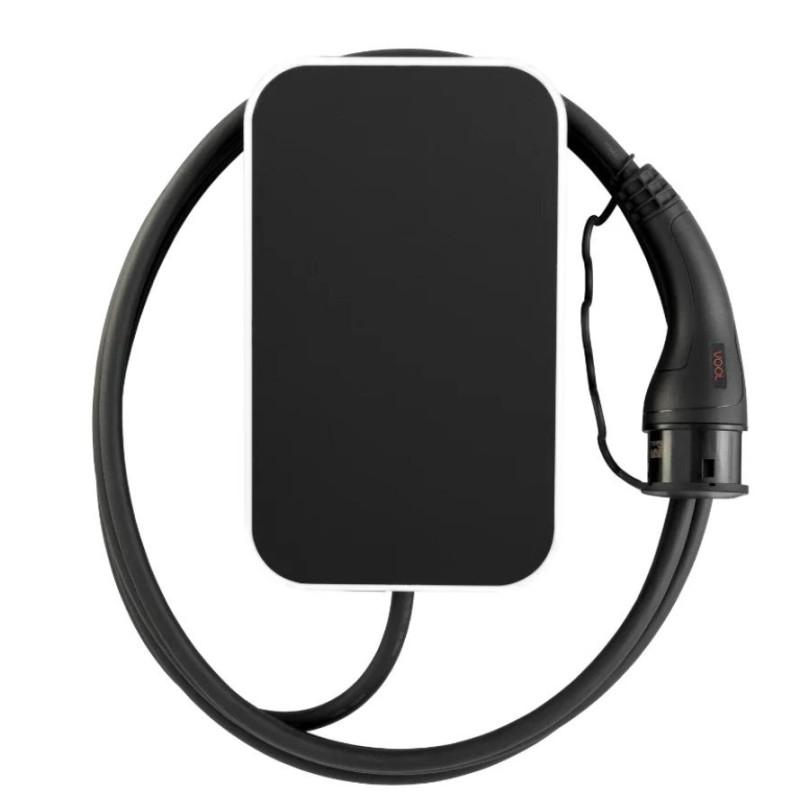

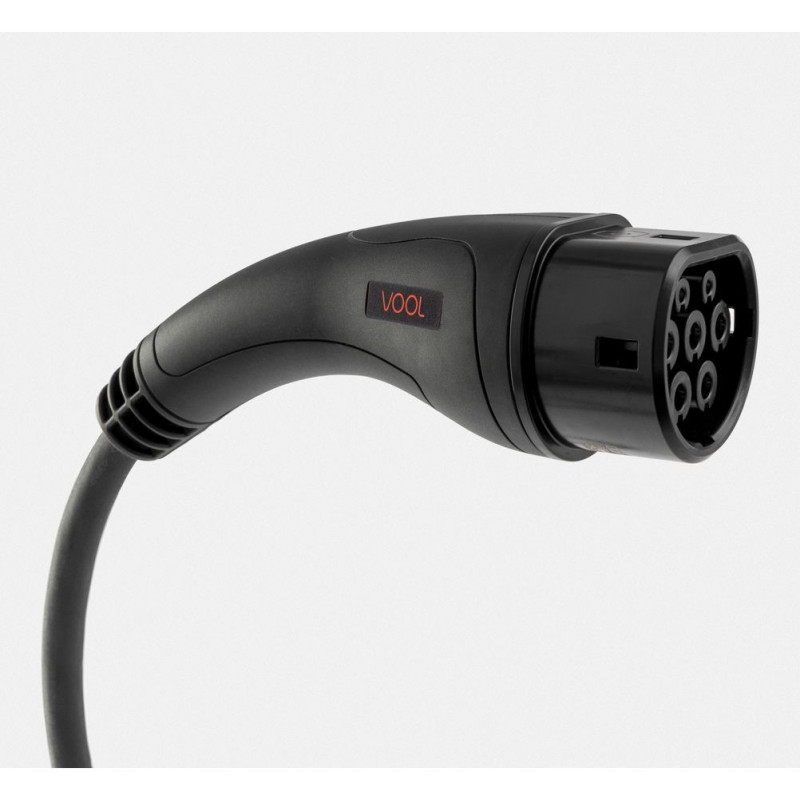

Electric vehicle connection Type 2 tethered cable (6.5 m)

4G, Wi-Fi (IEEE 802.11 b/g/n), Ethernet 10/100

Modbus RTU (RS485)

Dynamic Load Management (DLM) OCPP 1.6, OCPP 2.0²

The charging station works with an app, if necessary, the app can be used to charge the charging stations

This station has dynamic controller, which can transmit data via WIFI, so if the customer lost the power cable during construction, but forgot the LAN cable - it will be possible to easily avoid breaking walls and still have power balancing.

In underground parking lots where there is no connection, an internet connection must be brought in for the station to function properly
OUR PRACTICAL ADVICE

If you have a single-phase charging electric car or a Plug-in hybrid car (which accept up to 7kW per 1 phase) , it is important to choose the right charging station to ensure the most efficient charging. EVwaidai recommends choosing a 22 kW electric vehicle charging station.

Even when using single-phase charging, a 22 kW station will allow you to optimally use the available three-phase electrical input. In this case, if your electrical input is three-phase (22 kW) and the station is also 22 kW, you can achieve approximately 7 kW of charging power with one phase.

This is an efficient and effective solution for those seeking maximum charging power for their electric vehicle or hybrid.
