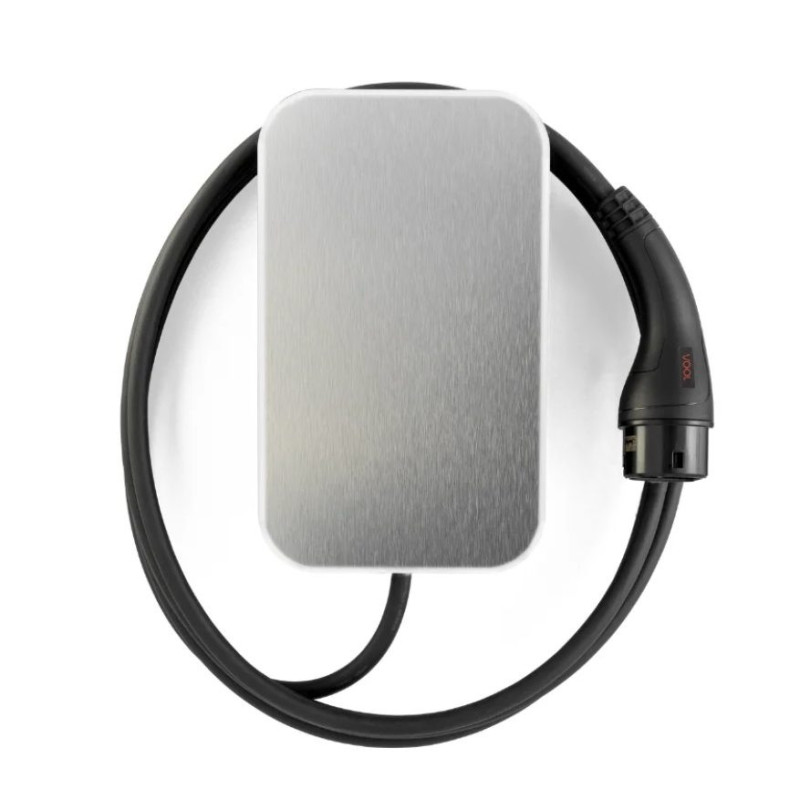

Vool - Charging station - Matt Black - 22kW - Max 32A with type 2 cable

The VOOL charging station is a high-quality, Estonian-made device designed to charge your electric car quickly and efficiently.

GENERAL SPECIFICATIONS

Dimensions (H x W x D) 335 x 198 x 112 mm

Weight 5.5 kg

Operating temperature -30...+50 C³

Environmental assessment of the housing In outdoor conditions / IP55

Impact resistance IK10

Standards EMCD 2014/30/EU, IEC 61851-1:2017, IEC 61851-21-2:2018, IEC 62955:2018

Warranty 5 years

Network standards TN, IT

Mains voltage 230VAC / 400VAC (±10%)

Charging options Phase 1, 2 fazės4, 3 phases

Rated power 22kW (32A)

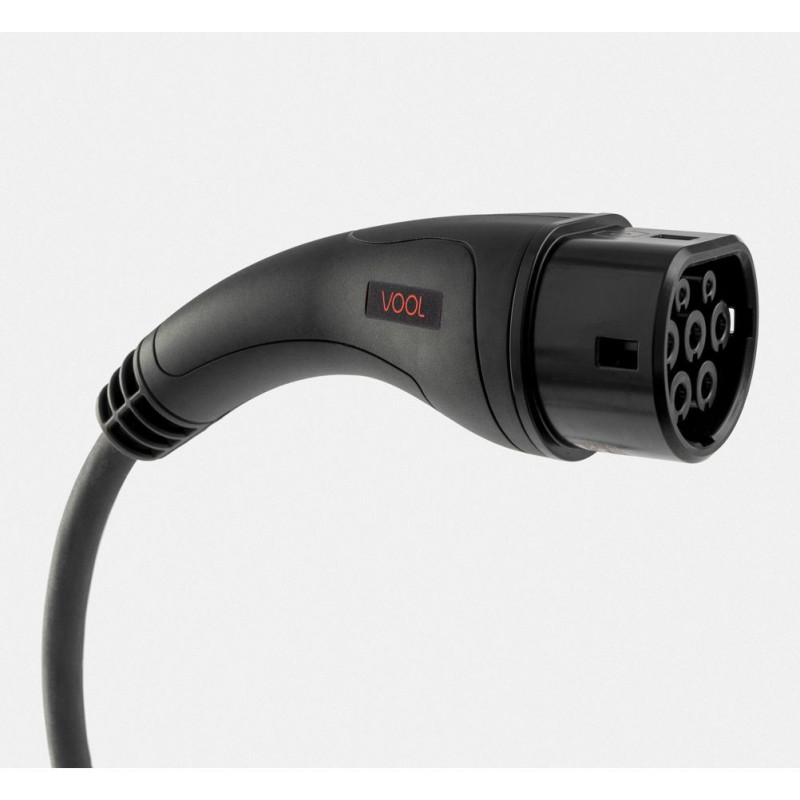

Connecting electric vehicles Type 2 tethered cable (6.5 m)

4G, Wi-Fi (IEEE 802.11 b/g/n), Ethernet 10/100

Modbus RTU (RS485)

Dynamic Load Management (DLM) OCPP 1.6, OCPP 2.0²

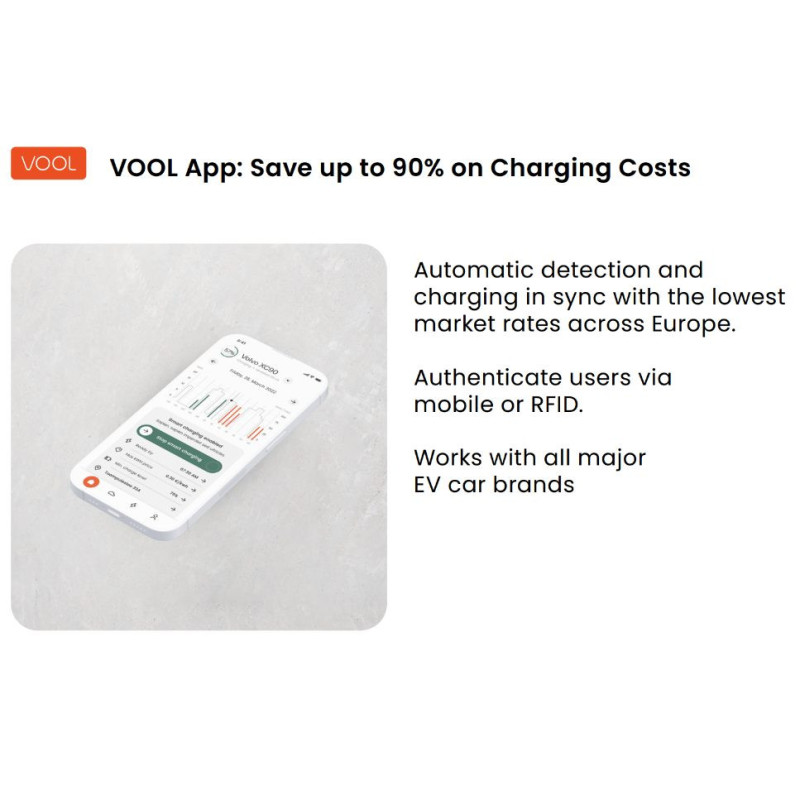

The charging station works with an app, if necessary, the app can be used to charge the charging stations.

This station has a dynamic controller that can transmit data via WIFI, so if the customer lost the power cable during construction but forgot the LAN cable, it will be possible to easily avoid breaking walls and still have power balancing.

In underground parking lots where there is no connection, an internet connection must be provided for the station to function properly
OUR PRACTICAL ADVICE

If you have a single-phase charging electric car or a plug-in hybrid car (which accepts up to 7kW during phase 1), it is important to choose the right charging station to ensure the most efficient charging. EVvaidai recommends choosing 22 kW electric car charging station.

Even when using single-phase charging, a 22 kW station will allow you to optimally use the available three-phase electrical input. In this case, if your electrical input is three-phase (22 kW) and the station is also 22 kW, you can achieve approximately 7 kW charging power.

This is an efficient and productive solution for those seeking maximum charging power for their electric or hybrid car.
