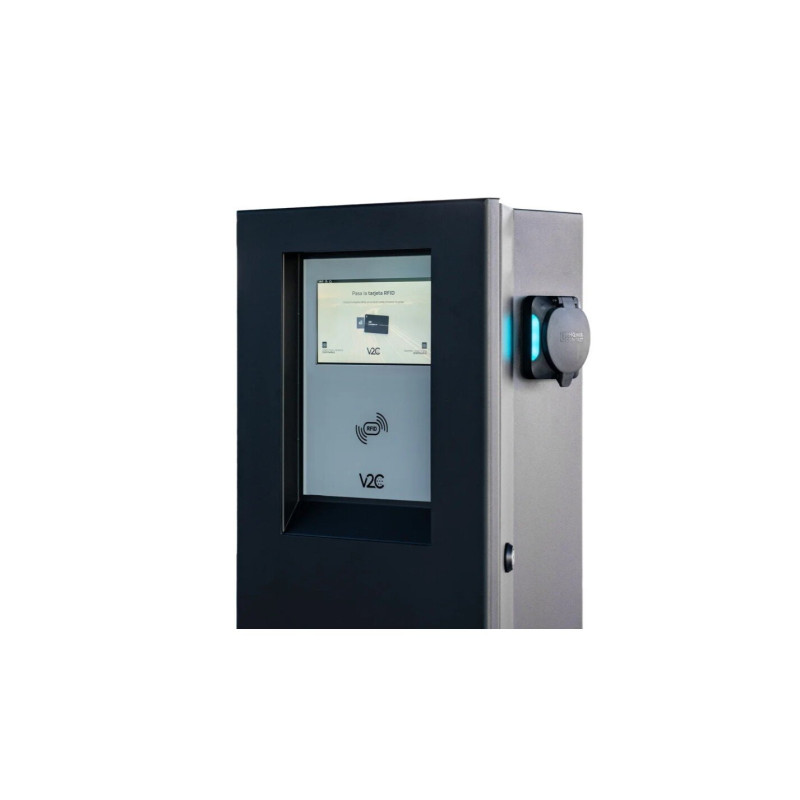

V2C POLE PRO charging station (2 × 22 kW)

The V2C POLE PRO charging station (2 x 22 kW) with an 8-inch and 2000 lumen display is designed for ground mounting and use in offices or public areas.

Highest industrial quality, great appearance thanks to the bright 8-inch display and effective protection against vandals.

The V2C pole charging station is classified as a fast 3-mode charging station, capable of delivering up to 44 kW of power using two Type 2 charging sockets.

V2C POLE PRO socket - 2 × 22 kW sockets, 8-inch display, 4G, LAN/Wi-Fi, RFID. Features:

8-inch display - 2000 lumens!

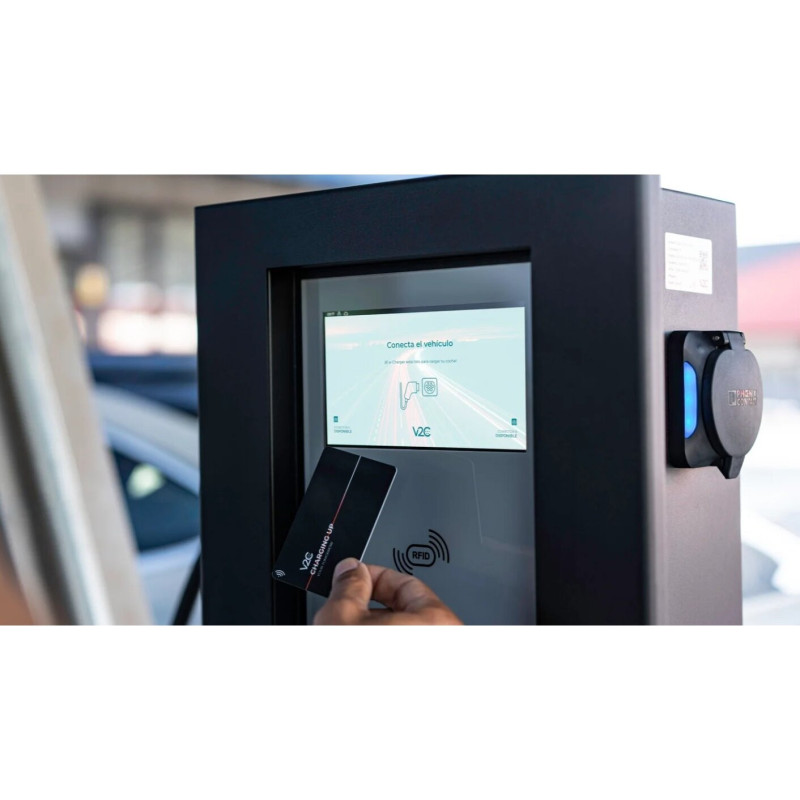

RFID authorization

OCPP communication system - compatible with CHRG network management system

Vandal-resistant steel

Up to 2 × 22 kW

MID meter

4G, Wi-Fi, LAN connection

V2C POLE PRO socket - an advanced yet cost-effective solution for MODE 3, up to 2 × 22 kW electric vehicle charging. It can be installed on the ground and used in garages, parking lots and other public places.

Electrical characteristics:

Connection type: Socket / Type 2

Mains type: 230 V / 400 V

Maximum charging intensity: 32 A (per phase)

Maximum charging power: 7.3 kW or 22 kW (per socket)

Configurable current: from 6 to 32 amperes

Nominal frequency: 50 Hz / 60 Hz

Protection index: IP54 / IK10

Residual current detection: AC 30 mA / DC 6 mA*2

Electrical protection for each socket: Type A differential and 40 A circuit breaker.

Operating temperature: -5º to 45º

Storage temperature: -40º to 70º
