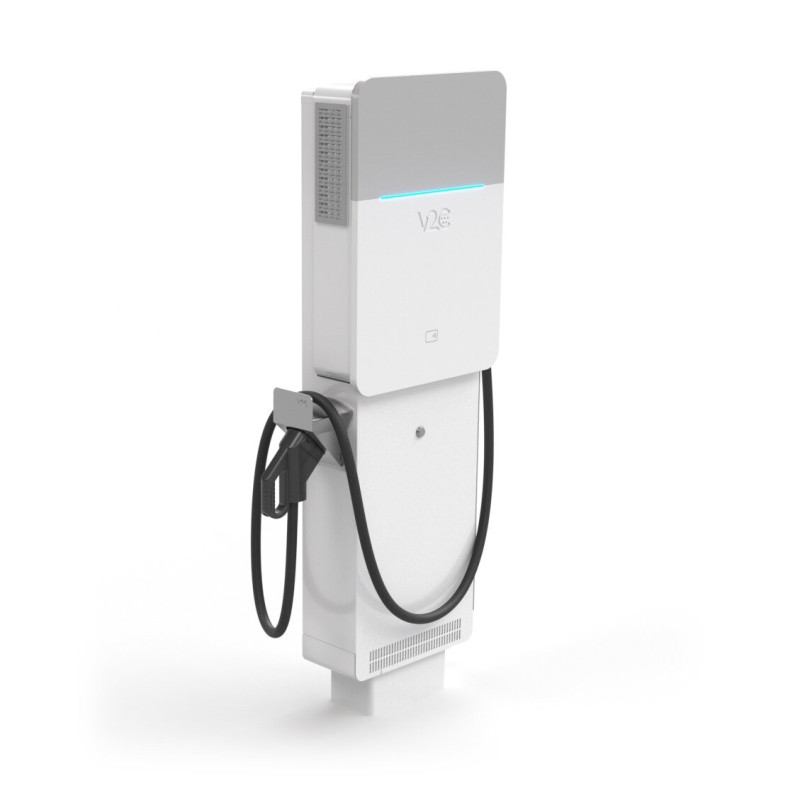

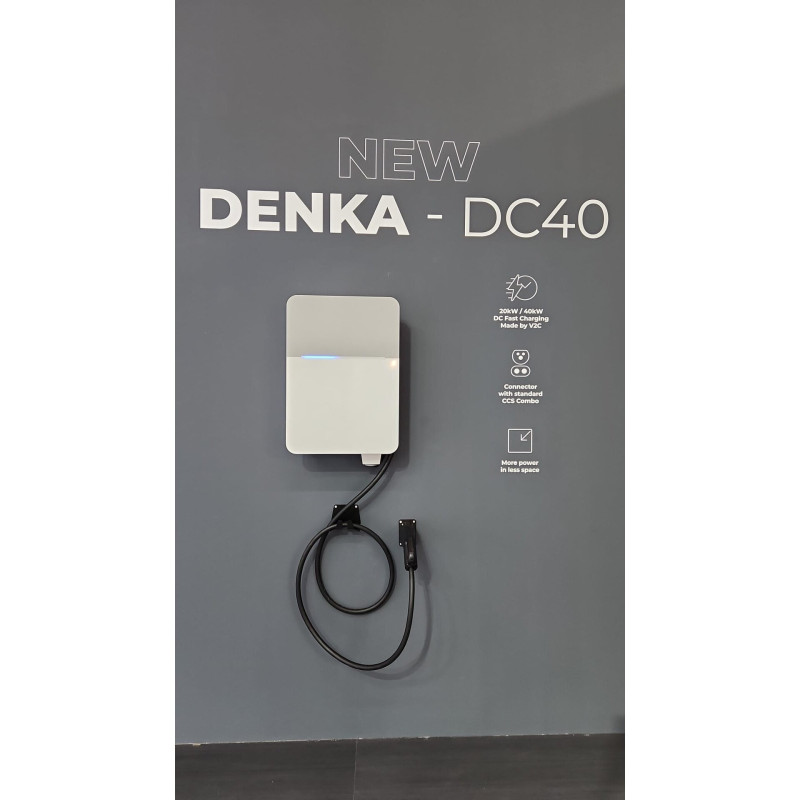

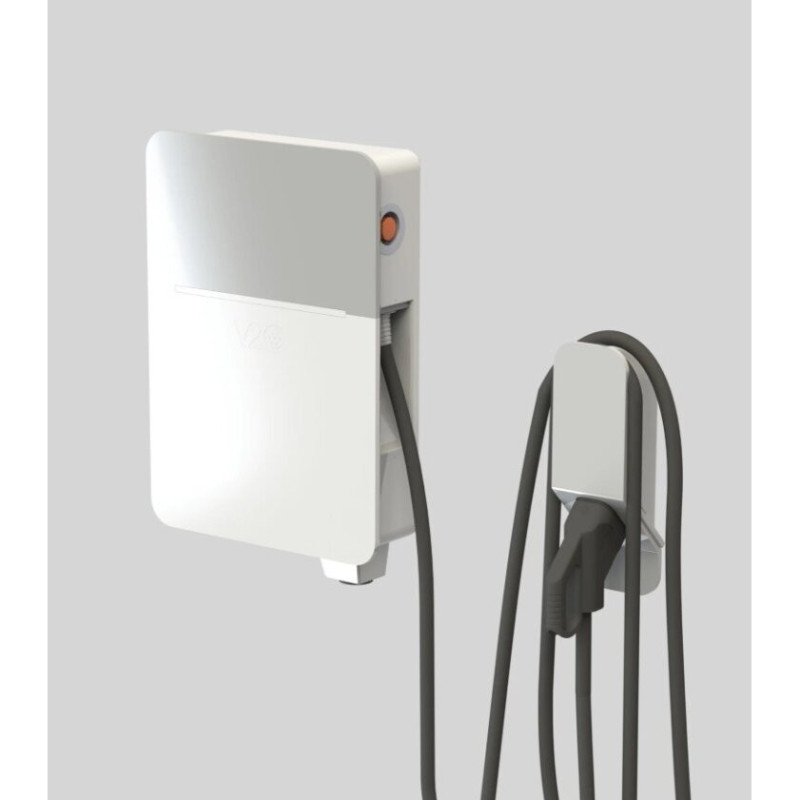

V2C DENKA DC fast charging station - 20 / 40kW

Denka can provide fast charging with 20 kW or 40 kW power, providing flexibility to suit the needs of each user.

The DC wall charger has a standard CCS Combo connector, compatible with EU standard electric vehicles. The 40 kW power will ensure faster and more efficient charging, as well as help increase vehicle turnover at charging stations, thus facilitating the transition to more sustainable mobility.

The all-new and advanced Autel Maxicharger DC Compact wall charger. Available in a 47 kW wall charger. The compact design reduces the footprint and allows for cost-effective installation.

Brand V2C

Connection Ethernet, mobile data (3G/4G)

Power (kW) 20/40

Phases 3-phase

Weight 6 kg

Dimensions (W x H x D) 1000 x 550 x 265 mm

Protection class IP54

Operating temperature -35°C to +55°C

Warranty 36 months

Semi-fast charging in DC, tertiary and commercial applications

Design

IP54 - IK10 protection class
Corrosion-resistant metal housing
Interactive lighting system with status LEDs
Forced ventilation
Features

Charging mode 4
DC charging 20 kW / 40 kWA
5 m CCS2 cable
DC output 150-1000 V DC
Efficiency ≥ 95 %
Connectivity and User Interface

WiFi/Ethernet/4G connectivity
User management via app
Local (RFID),
Plug & Charge
V2C Cloud Protocol, Cloud Rest API, OCPP 1.6J, Modbus TCP, RTU
ISO 15118
Compact yet powerful

- Fast and efficient
- Designed to increase charging efficiency ≥ 95%
- Single CCS port provides up to 40 kW of power
- 30 min. charging corresponds to a range of ~100 km
- Simple design will fit into any business or private interior environment

Cloud-based maintenance and monitoring:

Many problems can be solved by the manufacturer's remote connection before they occur to customers or the operator.
