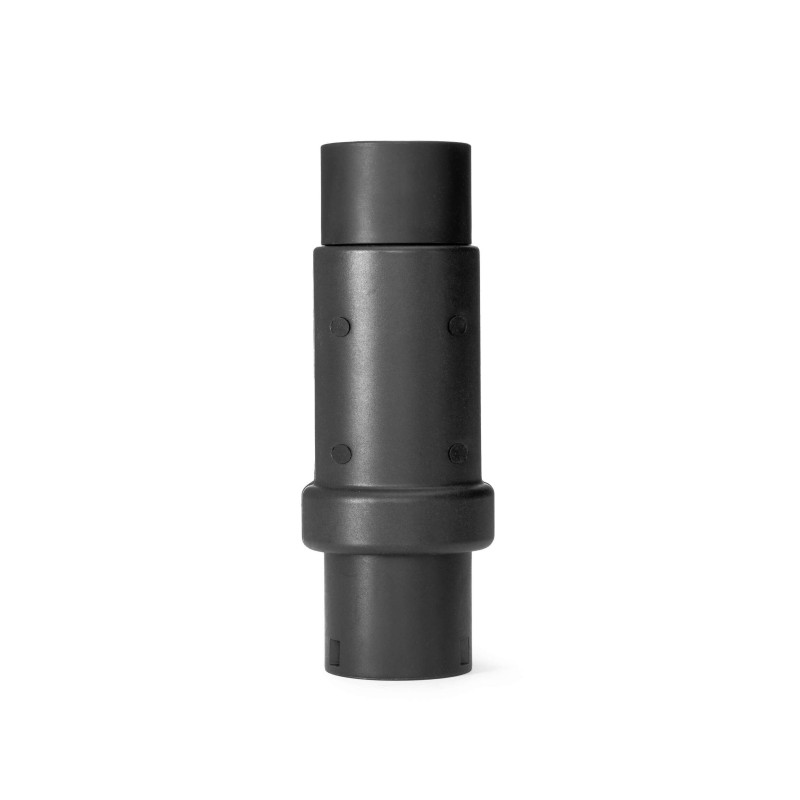

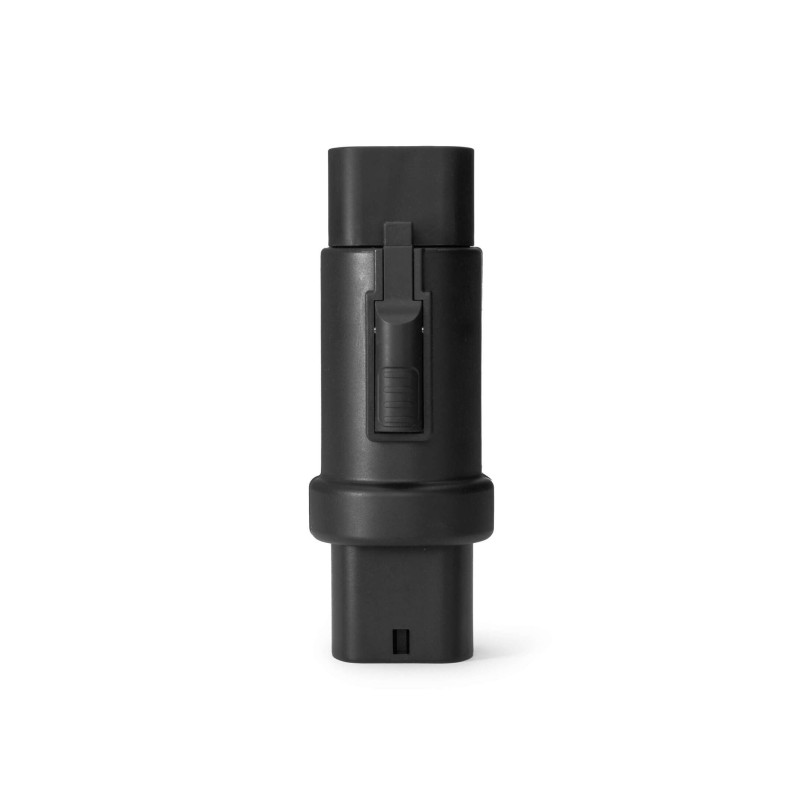

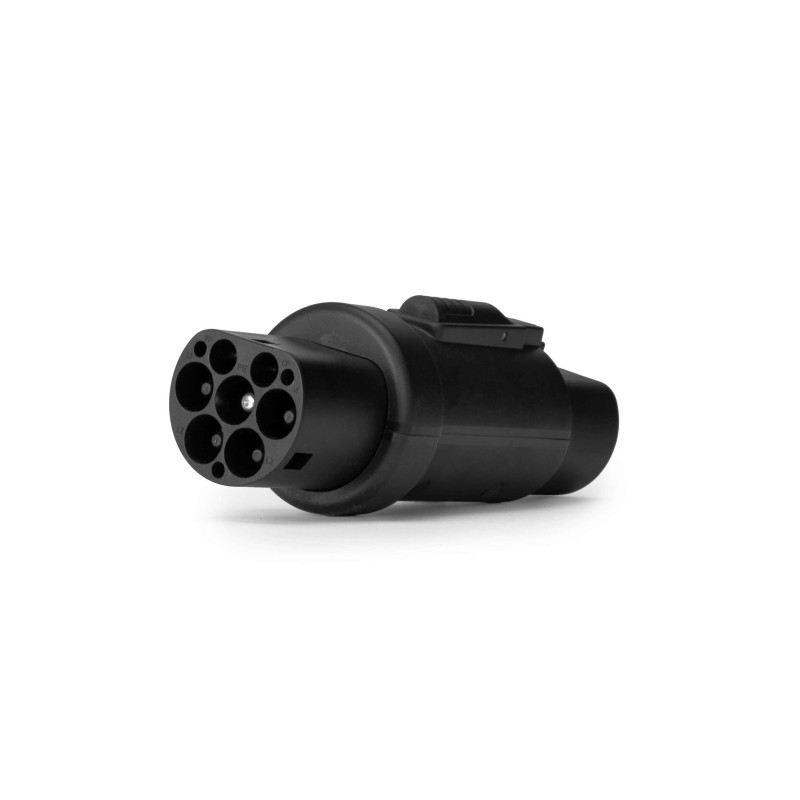

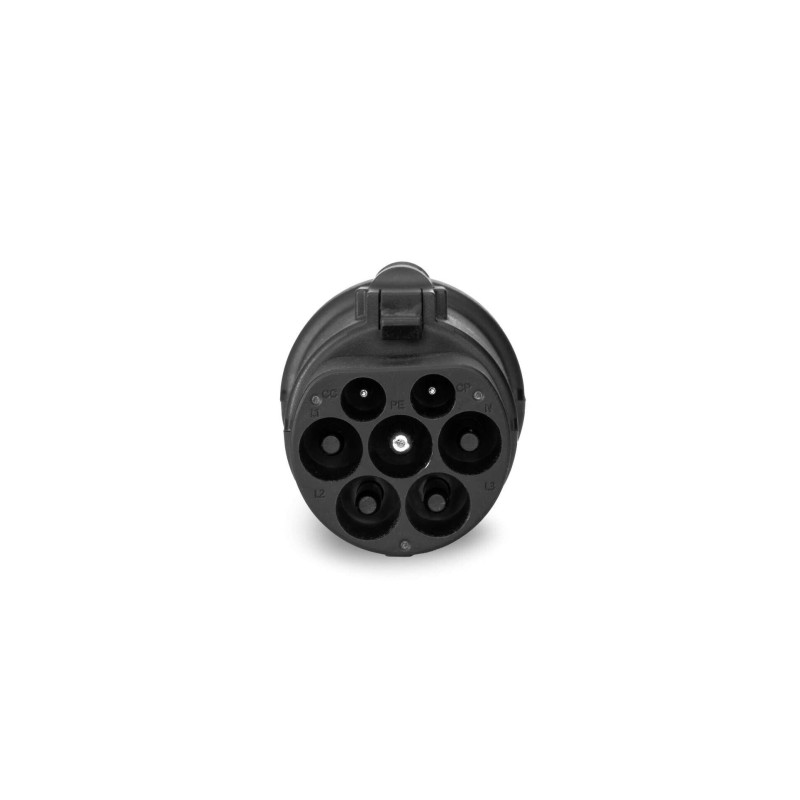

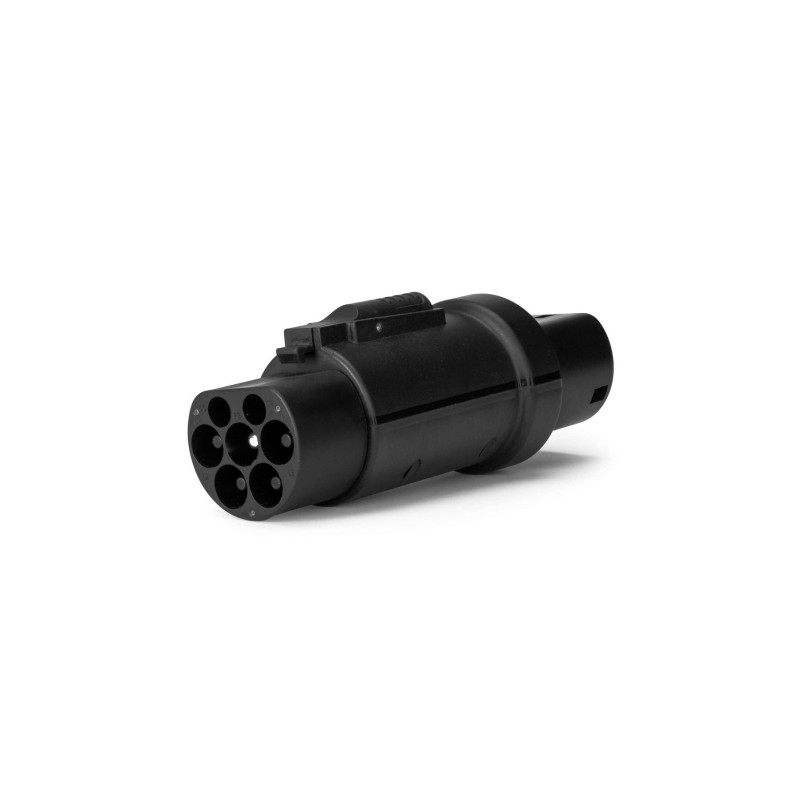

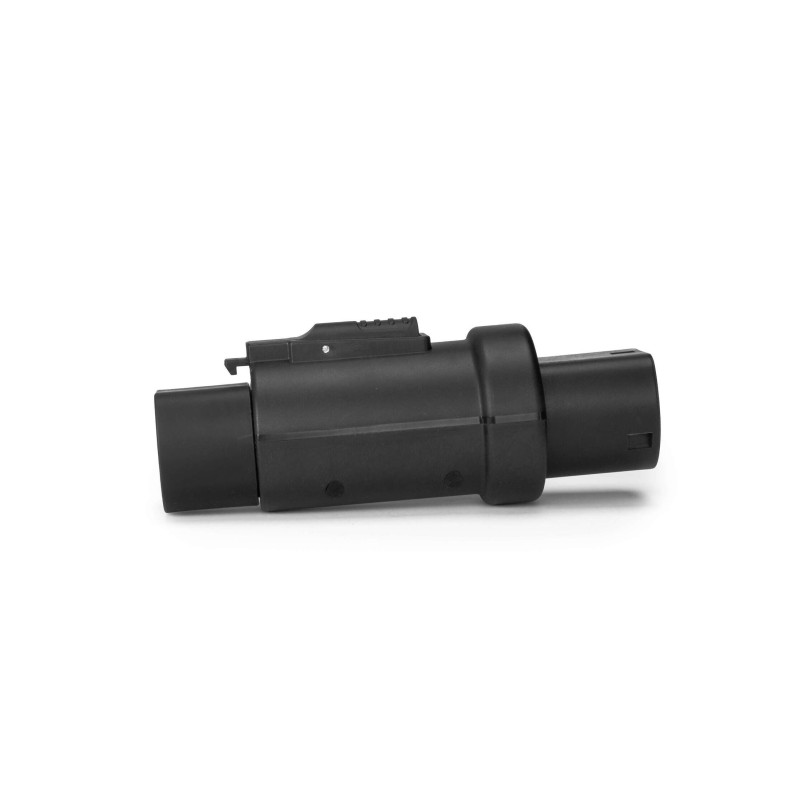

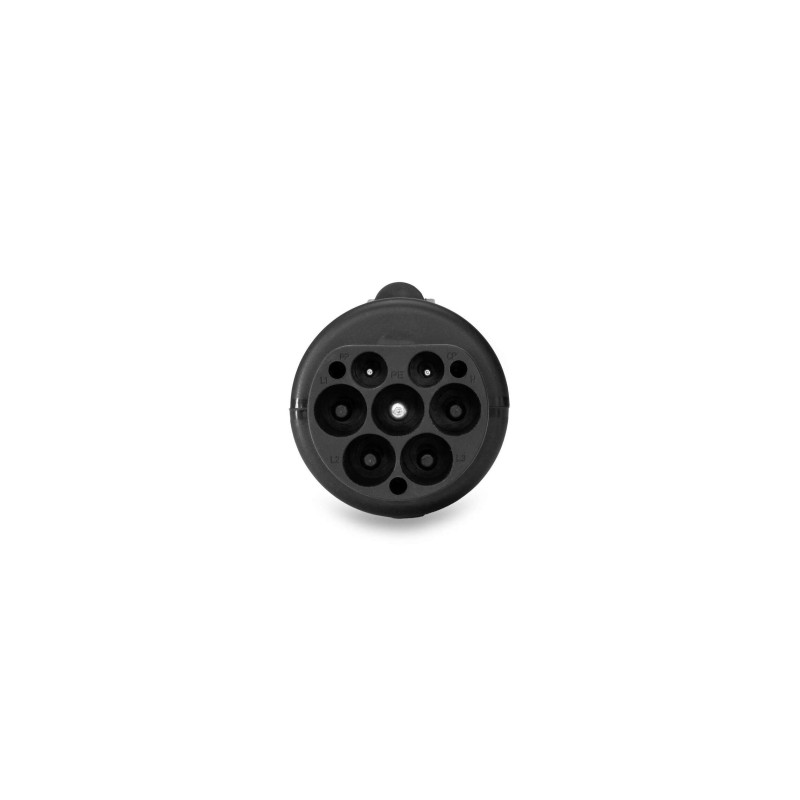

Type 2 - GBT adapter for electric vehicles (adapted for Chinese models)

The Type 2 to GBT adapter is a special connector that allows you to connect European electric vehicles with a Type 2 charging socket to Chinese charging stations using the GBT standard.

This adapter is useful for electric vehicle owners traveling to countries where GBT charging infrastructure is dominant, such as China.

What is a Type 2 to GBT adapter used for?

Allows you to charge an electric vehicle with a Type 2 socket from charging stations using the GBT standard.

Ensures compatibility between different charging standards.

Used for vehicles that are not factory-fitted with a GBT charging system but require the use of Chinese infrastructure.

Technical features:

Input: Type 2 (IEC 62196-2)

Output: GBT (GB/T 20234.2/20234.3)

Voltage: Typically supports 250V AC (single phase) or 400V AC (three phase)

Current: Depending on the model, can support from 16A to 63A

Protection functions:

Temperature control

Short circuit protection

Overload protection overload

Water and dust resistance (often IP54 or higher)

Materials: High-quality molded plastic and copper contacts ensure durability and good electrical conductivity.

Operating temperature: -30°C to +50°C

Certifications: May have CE, TUV or other certificates of conformity, depending on the manufacturer.

Protection class: IP55

Maximum charging power: 22KW
