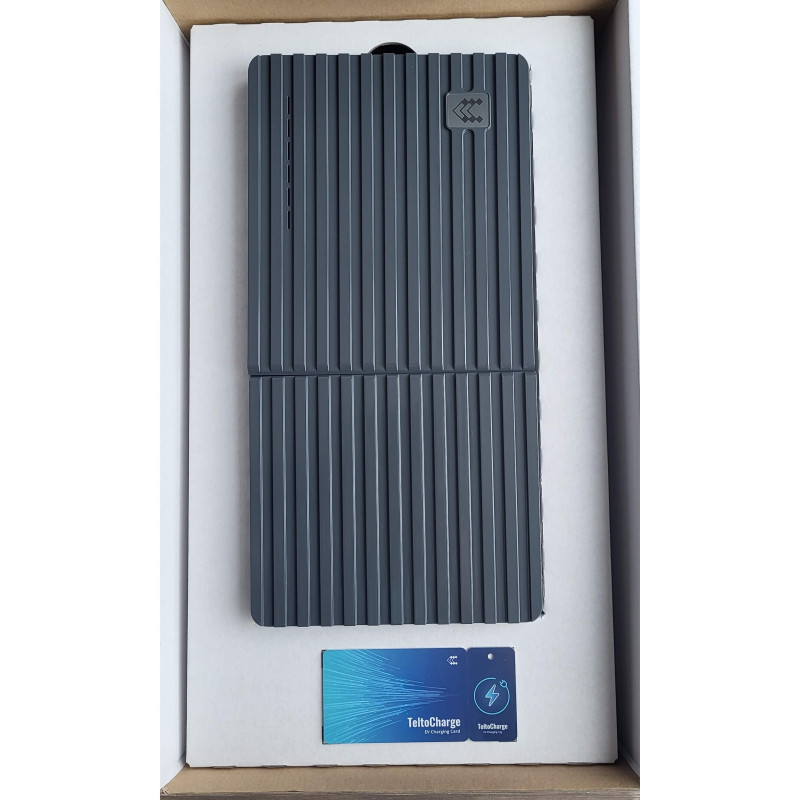

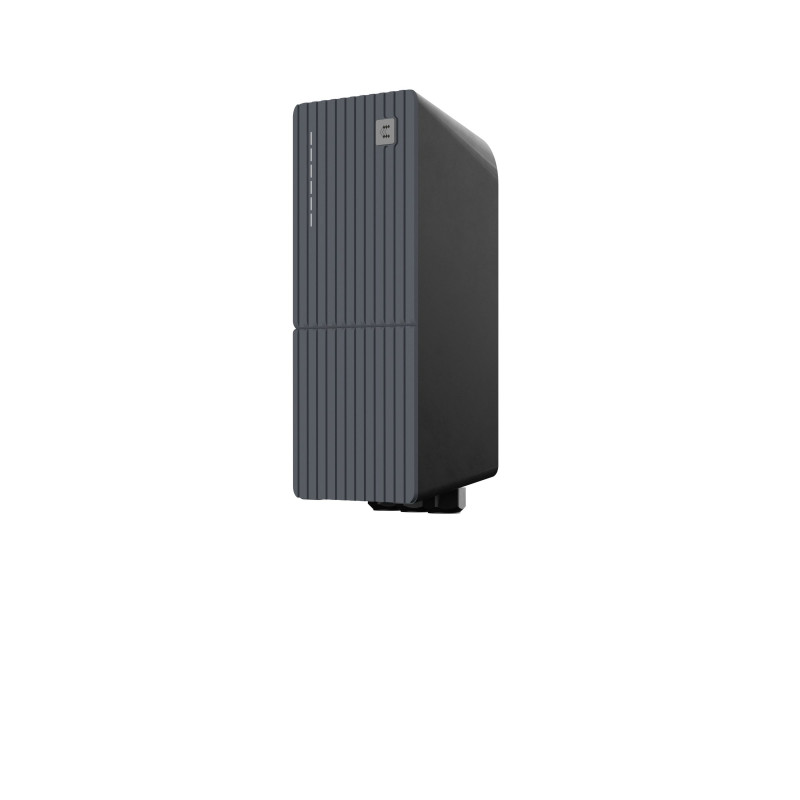

Teltonika charging station with Type 2 socket, 3F, 22kW

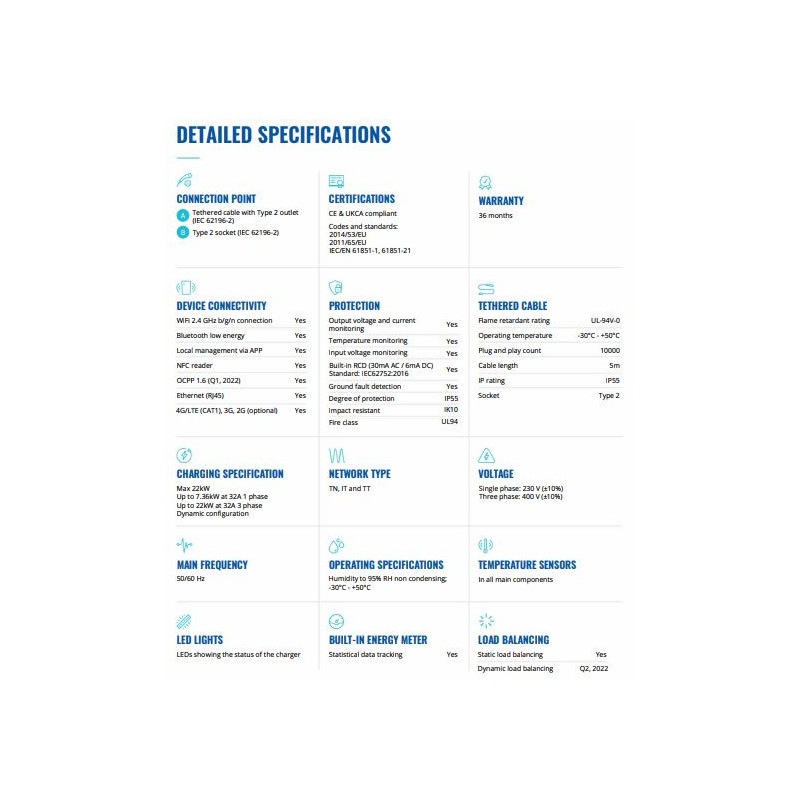

Specification ( charging station ):

The product comes with a 36-month warranty.

Dynamic power controller (which is necessary to install in order to receive the current state support) + 200 Eur
DEVICE CONNECTION CABLE
WiFi 2.4 GHz b/g/n connection

Flame retardant rating UL-94V-0
Bluetooth connection/control

Operating temperature -30°C - +S0°C
Local control via APP

NFC reader

Cable length 5m

Ethernet (RJ45)

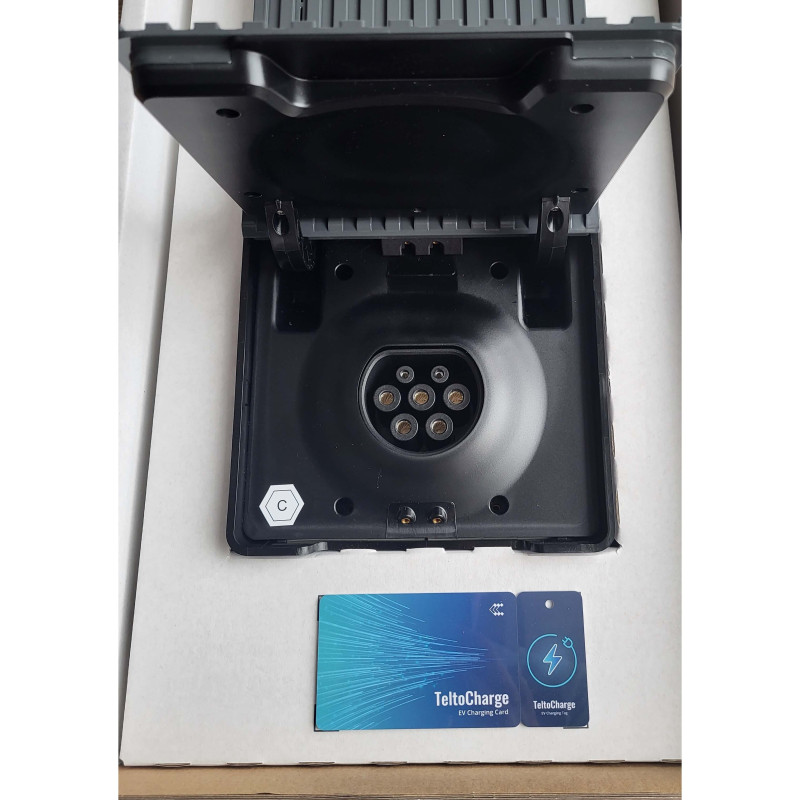

IPSS socket type 2

4G/LTE (CAT1), 3G, 2G (optional) Yes IK10
CHARGING SPECIFICATION VOLTAGE

Until 22kW at 32A phase 3

Dynamic configuration
certificates:

CE UKCA compliant

2014/53/EU

2011/65/EU
IEC/EN 61851-1, 61851-21
Protection:

Output voltage and current monitoring
Temperature monitoring
Input voltage monitoring
Integrated RCD (30 mA AC / 6 mA DC)
Standard: IEC62752:2016
Earth fault detection
Shock resistance
MAIN FREQUENCY OPERATING SPECIFICATIONS TEMPERATURES SENSORS
50/60 Hz Humidity up to 95% RH non-condensing; In all main components -30°C - +50°C

LEDs indicating charger status

Static load and dynamic load balancing
