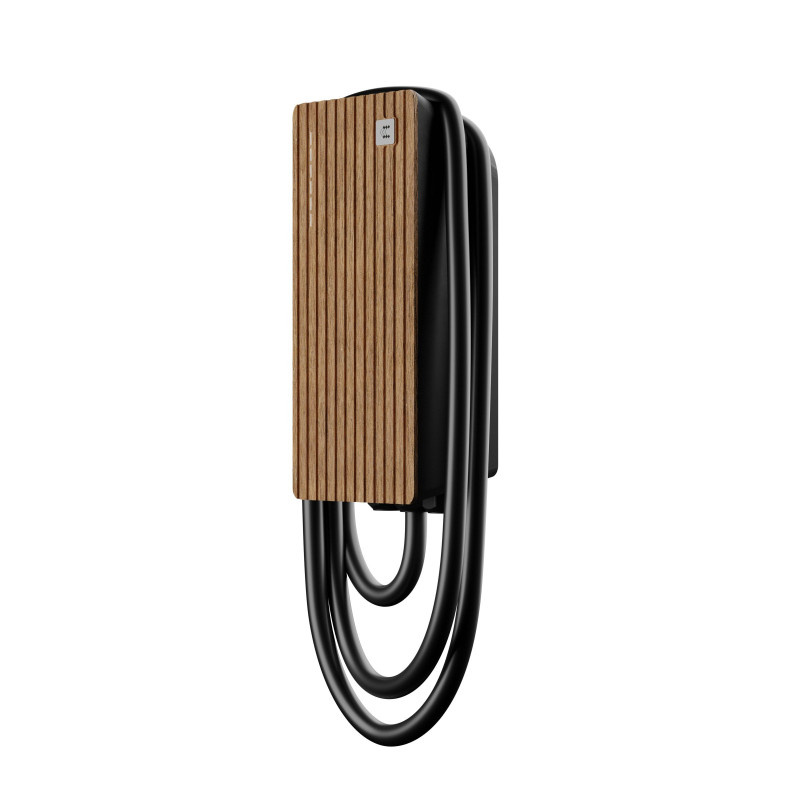

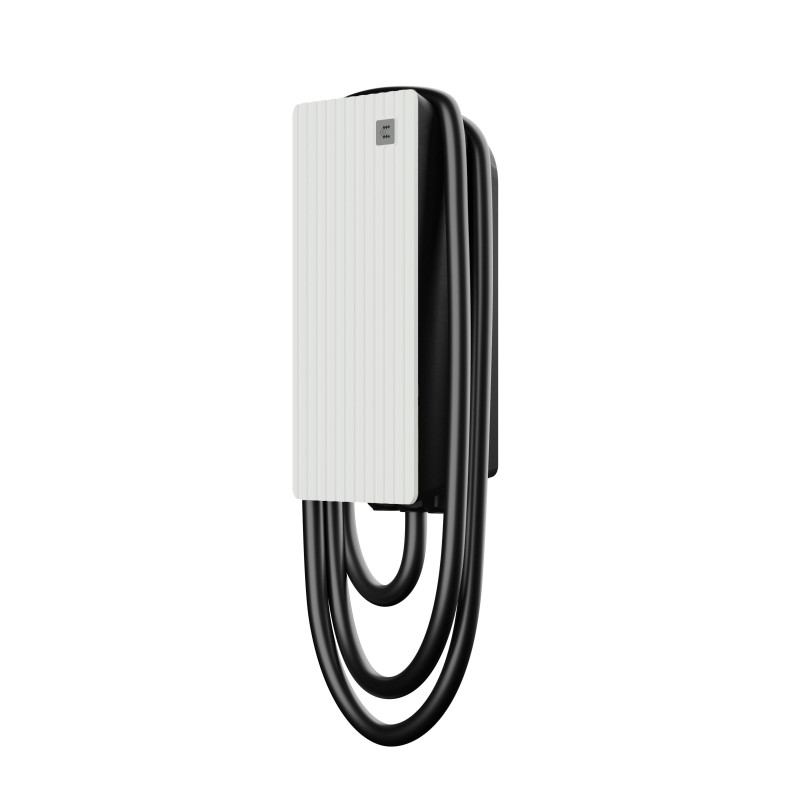

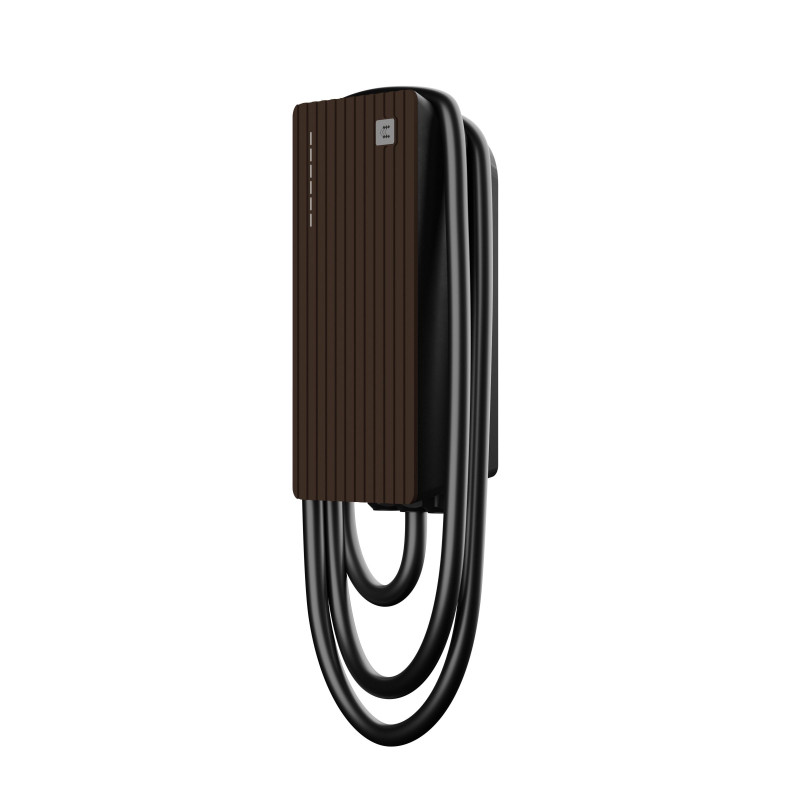

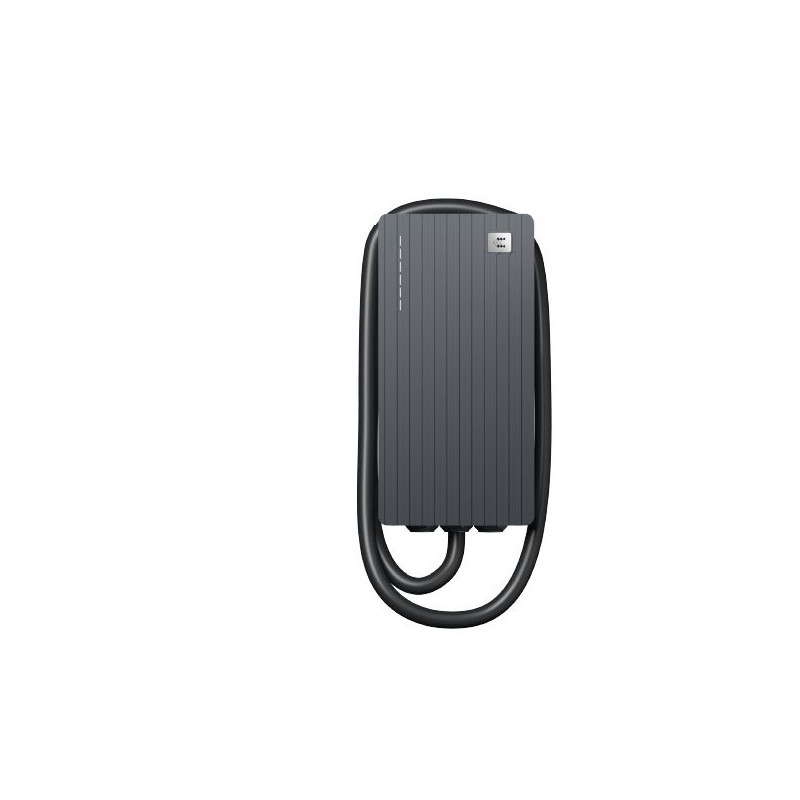

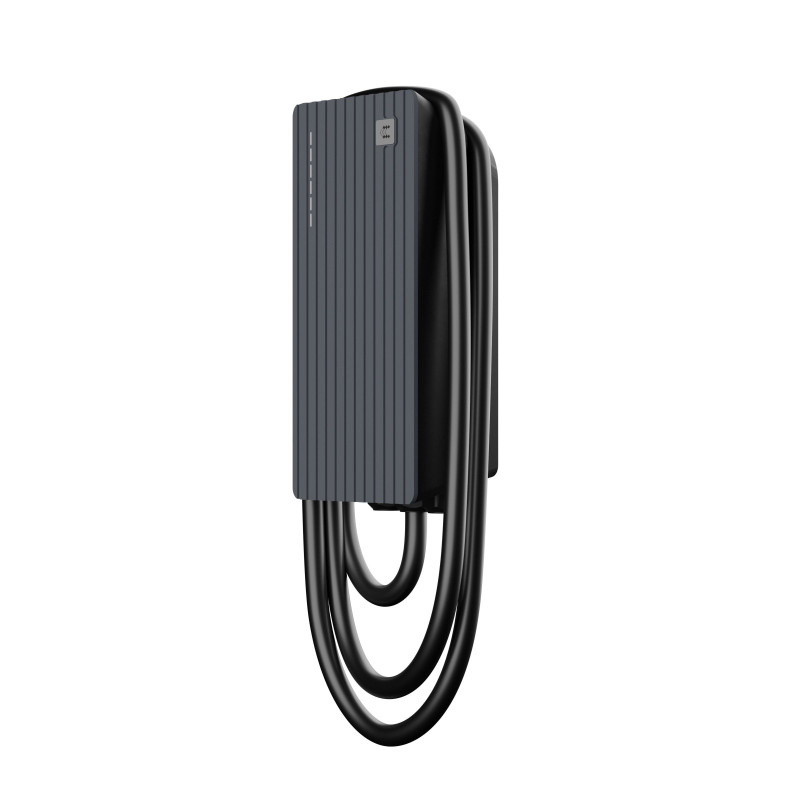

Teltonika charging station - 22kW, 3F with Type 2 cable

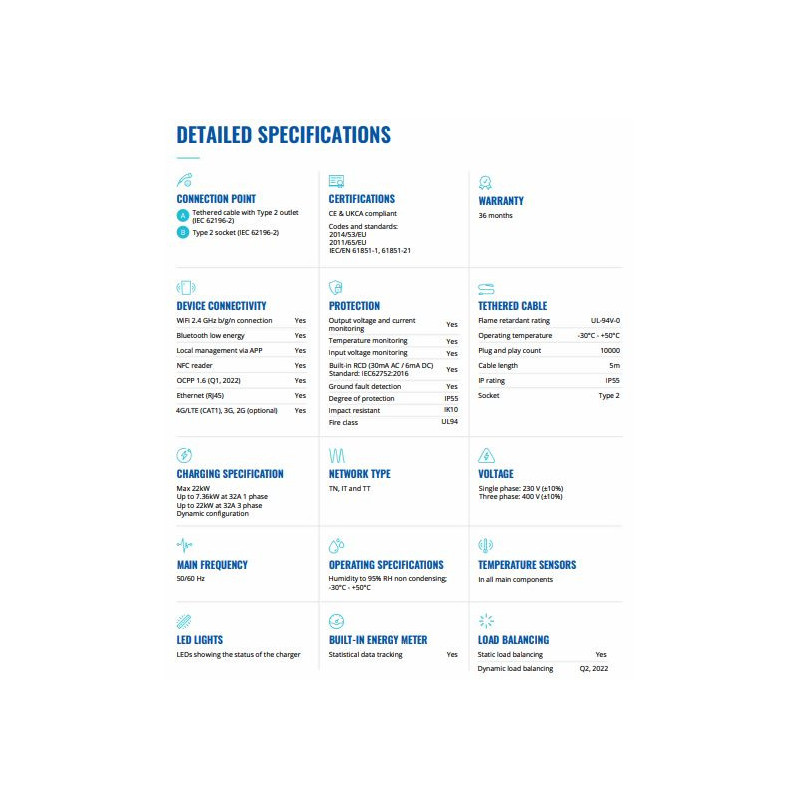

Specification:

The product is provided with a 36-month warranty

Dynamic power controller (which is necessary to install in order to receive the current state support) + 200 Eur
DEVICE CONNECTION CABLE
WiFi 2.4 GHz b/g/n connection

Flame retardant rating UL-94V-0
Bluetooth connection/control

Operating temperature -30°C - +S0°C

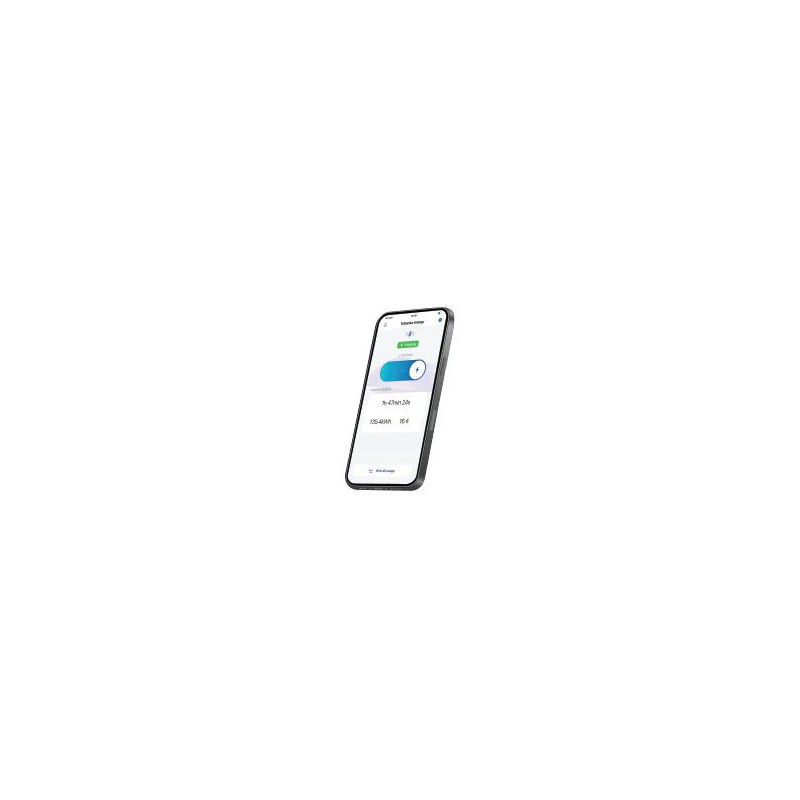

Local control via APP

NFC reader

Cable length 5m

Ethernet (RJ45)

IPSS socket type 2

4G/LTE (CAT1), 3G, 2G (optional) Yes IK10
CHARGING SPECIFICATIONS VOLTAGE

Up to 22kW at 32A 3-phase

Dynamic configuration
certificates:

CE & UKCA compliant

2014/53/EU

2011/65/EU
IEC/EN 61851-1, 61851-21

Protections:

Output voltage and current monitoring
Temperature monitoring
Input voltage monitoring
Integrated RCD (30 mA AC / 6 mA DC)
Standard: IEC62752:2016
Earth fault detection
Shock resistance
MAIN FREQUENCY OPERATING SPECIFICATIONS TEMPERATURE SENSORS
50/60 Hz Humidity up to 95% RH non-condensing; All main components -30°C - +50°C

LEDs indicating charger status

Static load and dynamic load balancing

OUR PRACTICAL TIP

If you have a single-phase charging electric vehicle or a Plug-in hybrid vehicle (which accept up to 7kW per 1 phase) , it is important to choose the right charging station to ensure the most efficient charging. EVvaidai recommends choosing a 22 kW electric vehicle charging station.

Even when using single-phase charging, a 22 kW charging station will make optimal use of the available three-phase electrical input. In this case, if your electrical input is three-phase (22 kW) and the charging station is also 22 kW, you can achieve approximately 7 kW of charging power with single phase.

This is an efficient and effective solution for those seeking maximum charging power for their electric or hybrid vehicle.
