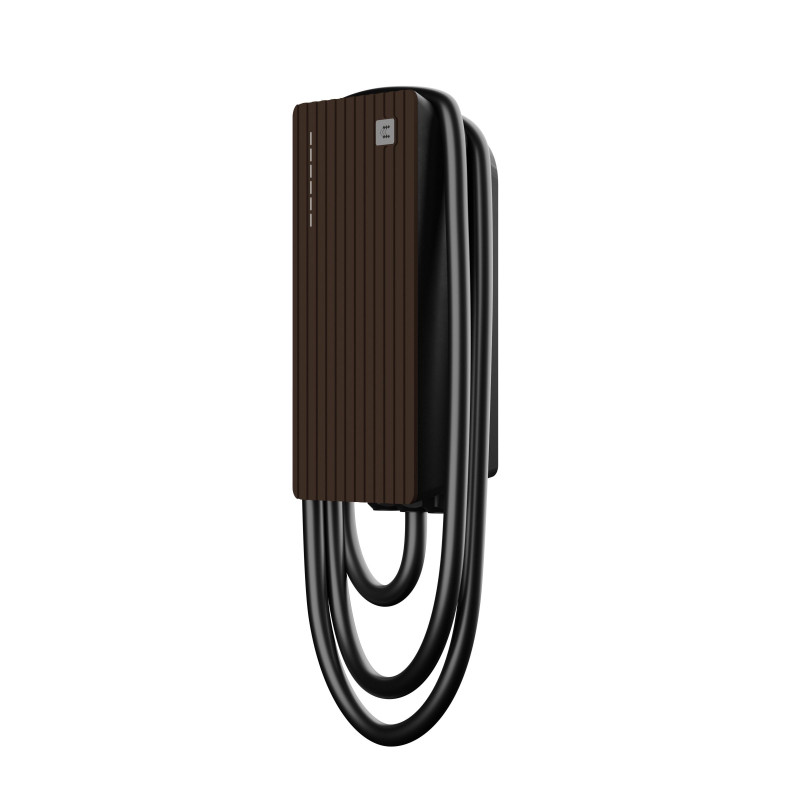

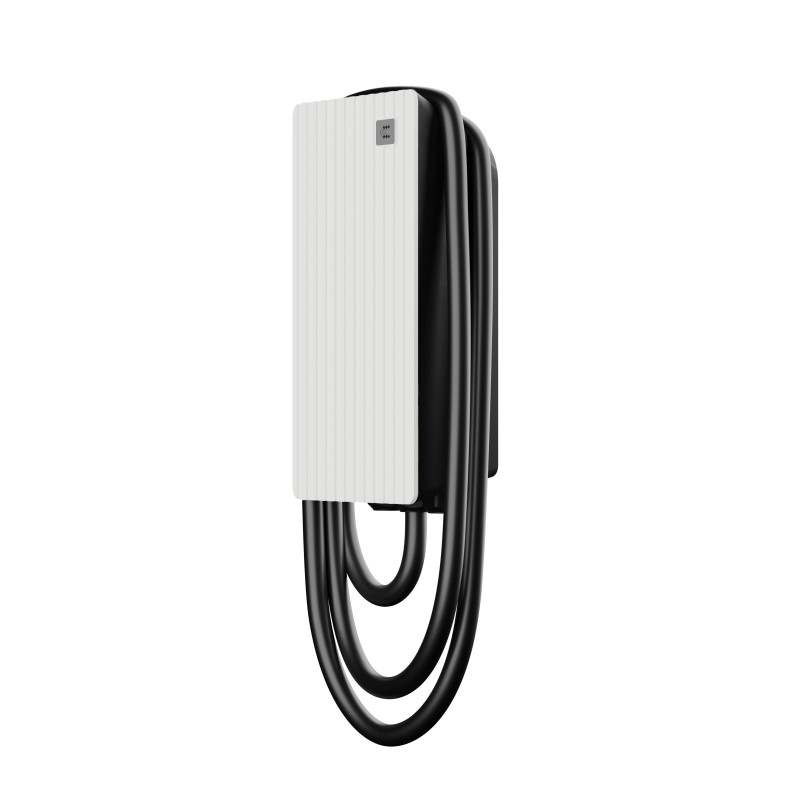

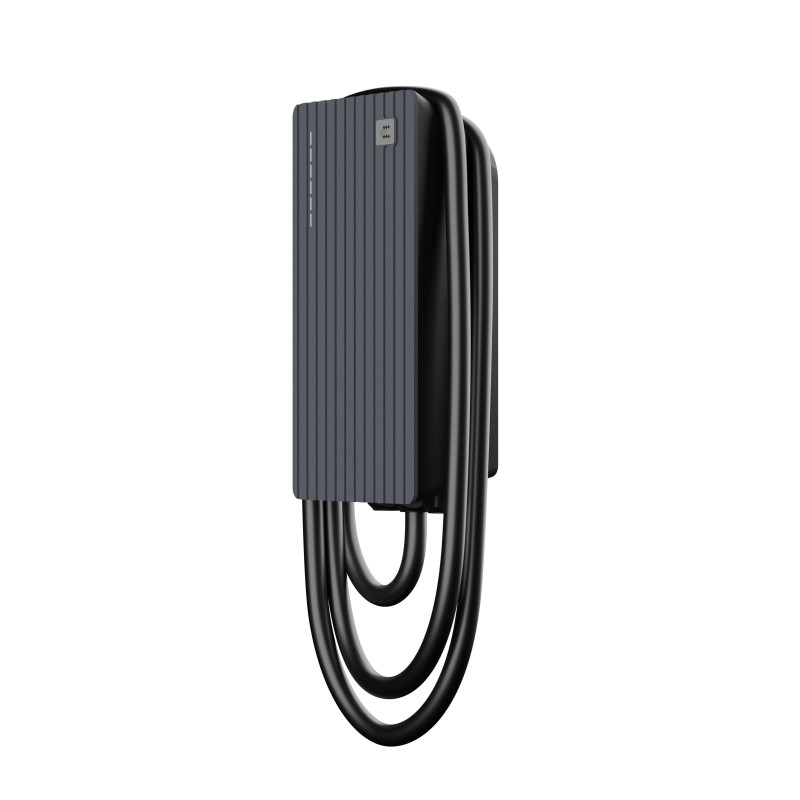

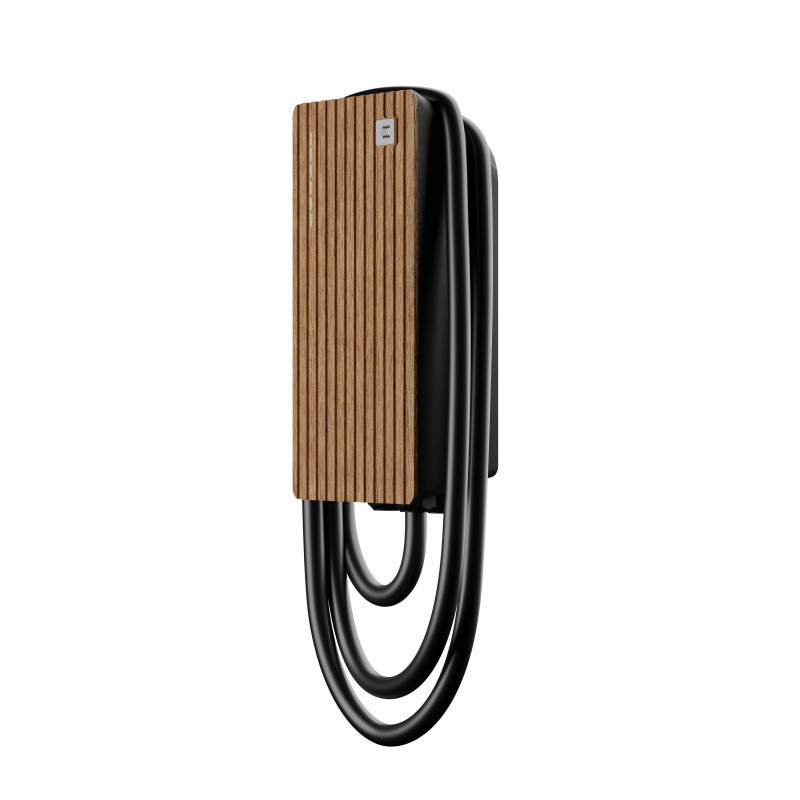

Teltonika charging station - 22kW, 3F with Type 2 cable

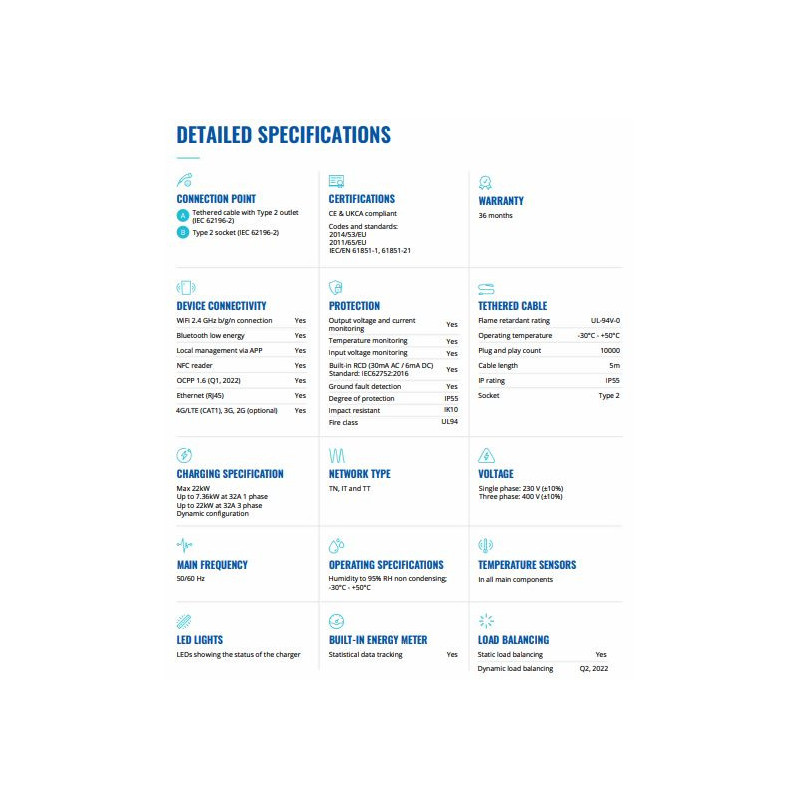

Specification:

The product comes with a 36-month warranty.

Dynamic power controller (which is necessary to install in order to receive the current state support) + 200 Eur
DEVICE CONNECTION CABLE
WiFi 2.4 GHz b/g/n connection

Flame retardant rating UL-94V-0
Bluetooth connection/control

Operating temperature -30°C - +S0°C

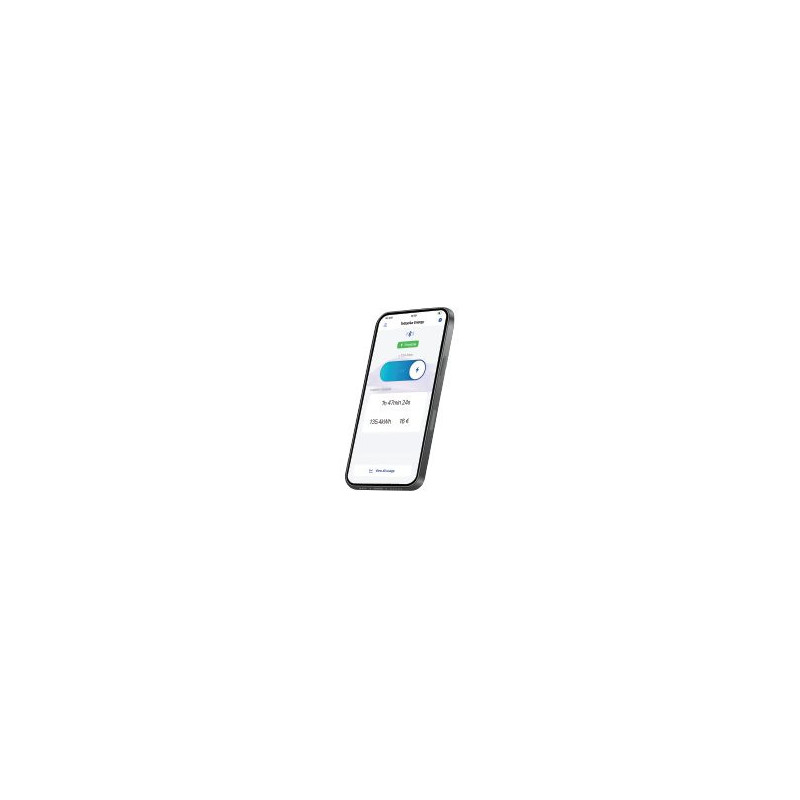

Local control via APP

NFC reader

Cable length 5m

Ethernet (RJ45)

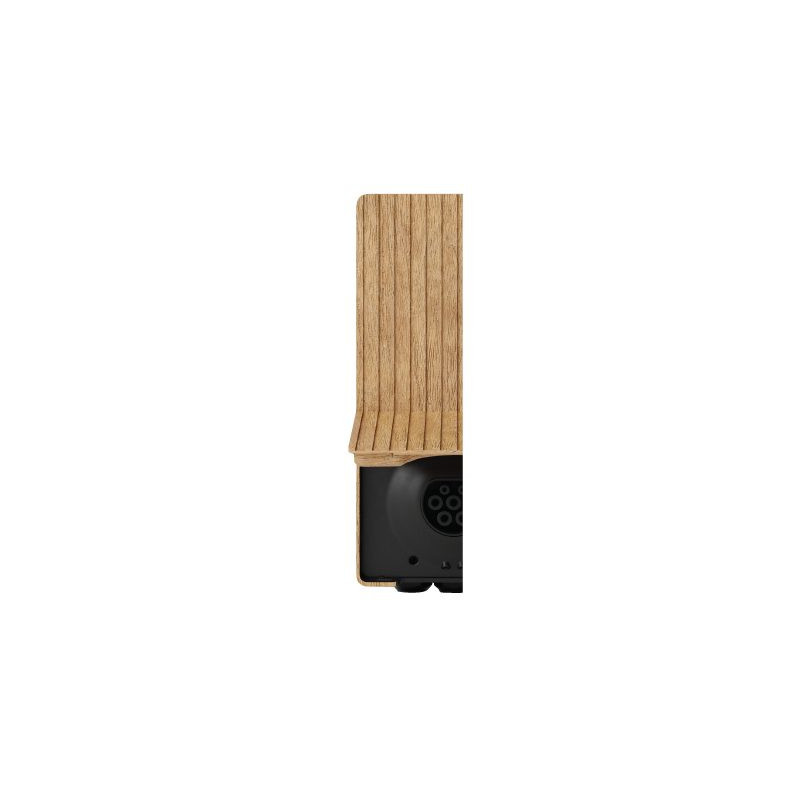

IPSS socket type 2

4G/LTE (CAT1), 3G, 2G (optional) Yes IK10
CHARGING SPECIFICATION VOLTAGE

Until 22kW at 32A phase 3

Dynamic configuration
certificates:

CE UKCA compliant

2014/53/EU

2011/65/EU
IEC/EN 61851-1, 61851-21

Protections:

Output voltage and current monitoring
Temperature monitoring
Input voltage monitoring
Integrated RCD (30 mA AC / 6 mA DC)
Standard: IEC62752:2016
Earth fault detection
Shock resistance
MAIN FREQUENCY OPERATING SPECIFICATIONS TEMPERATURES SENSORS
50/60 Hz Humidity up to 95% RH non-condensing; In all main components -30°C - +50°C

LEDs indicating charger status

Static load and dynamic load balancing

OUR PRACTICAL ADVICE

If you have a single-phase charging electric car or a plug-in hybrid car (which accept up to 7kW during phase 1), it is important to choose the right charging station to ensure the most efficient charging. EVvaidai recommends choosing 22 kW electric car charging station.

Even when using single-phase charging, a 22 kW station will allow you to optimally use the available three-phase electrical input. In this case, if your electrical input is three-phase (22 kW) and the station is also 22 kW, you can achieve approximately 7 kW charging power.

This is an efficient and productive solution for those seeking maximum charging power for their electric or hybrid vehicle.
