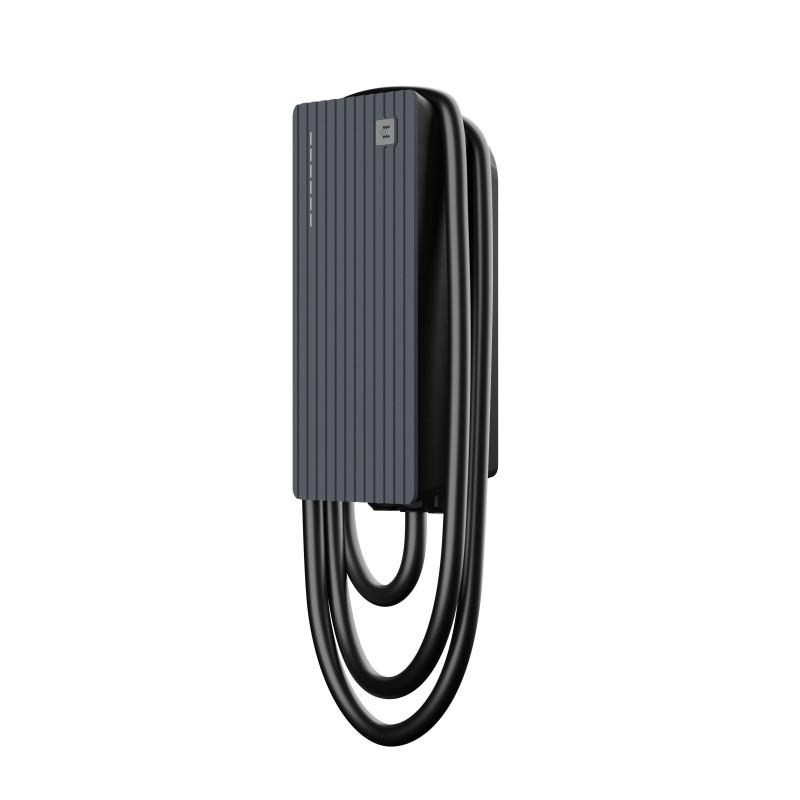

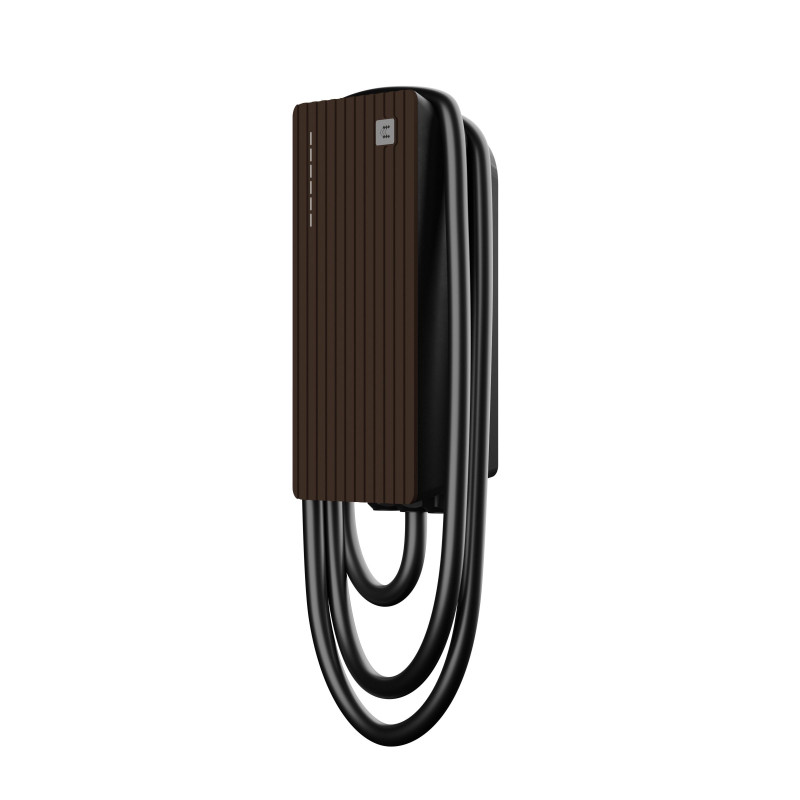

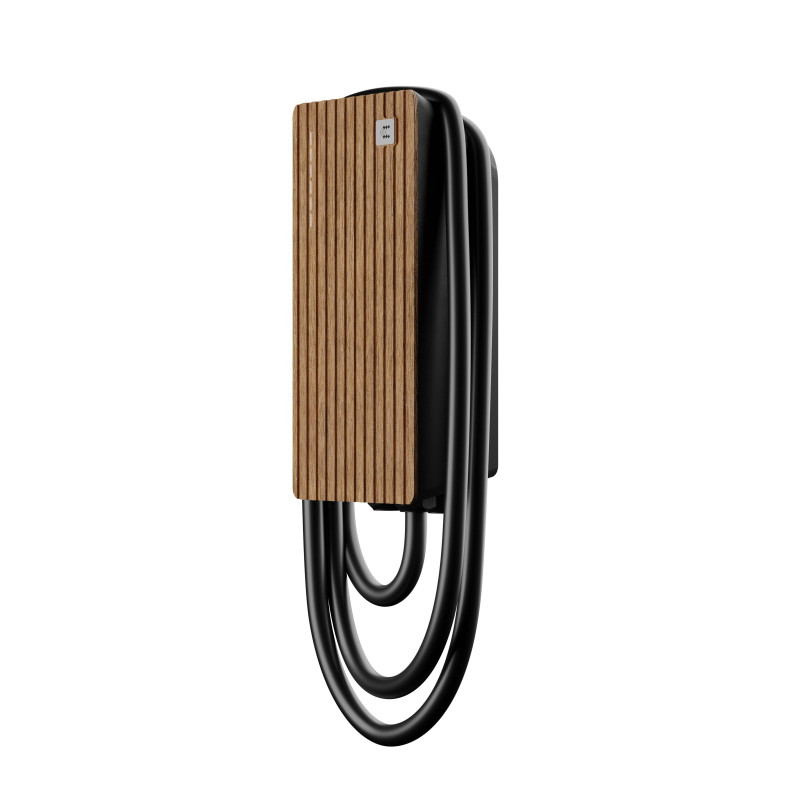

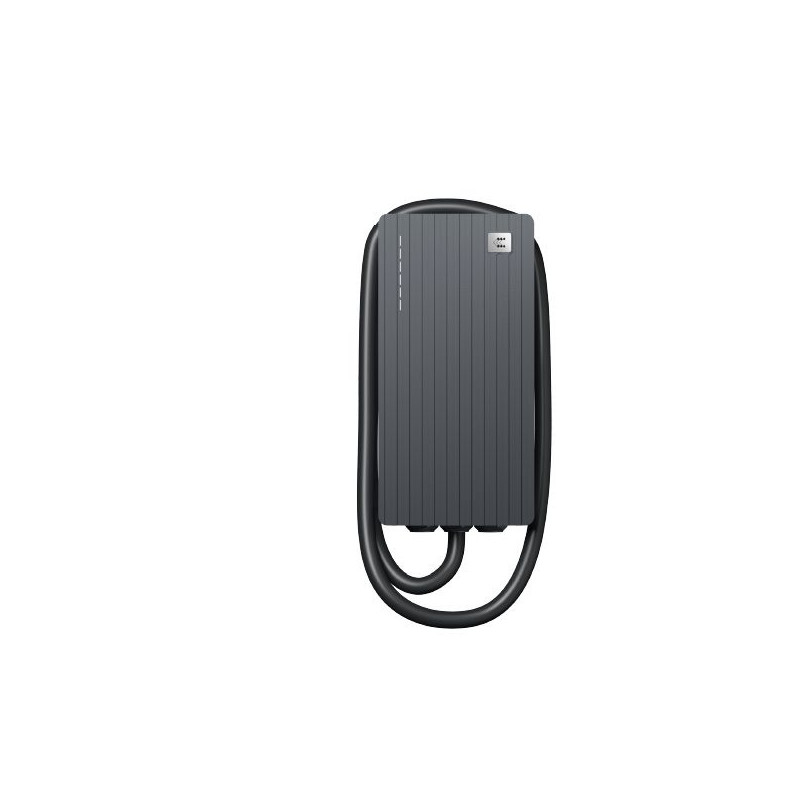

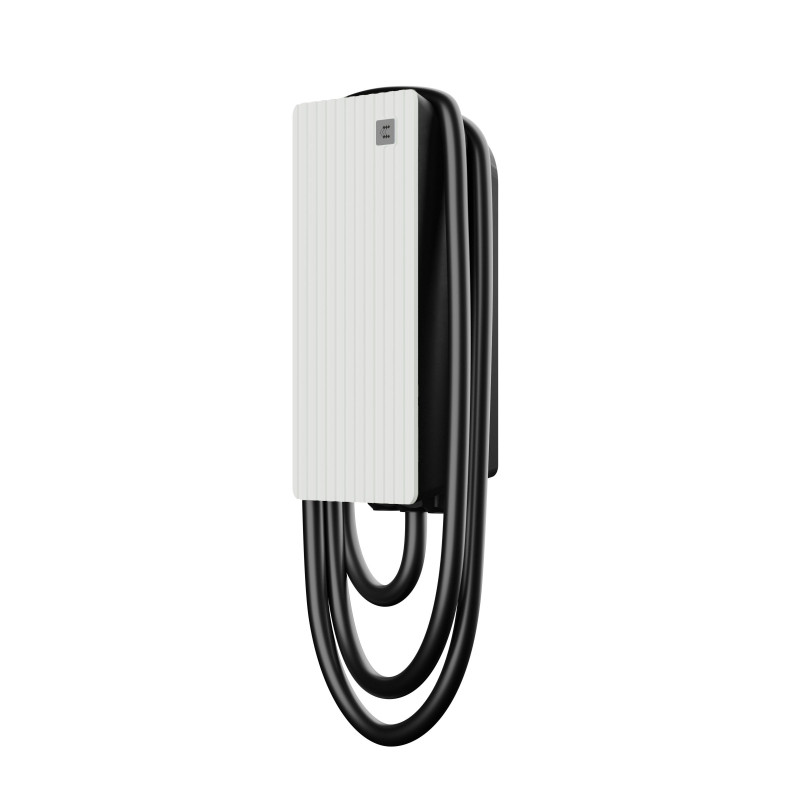

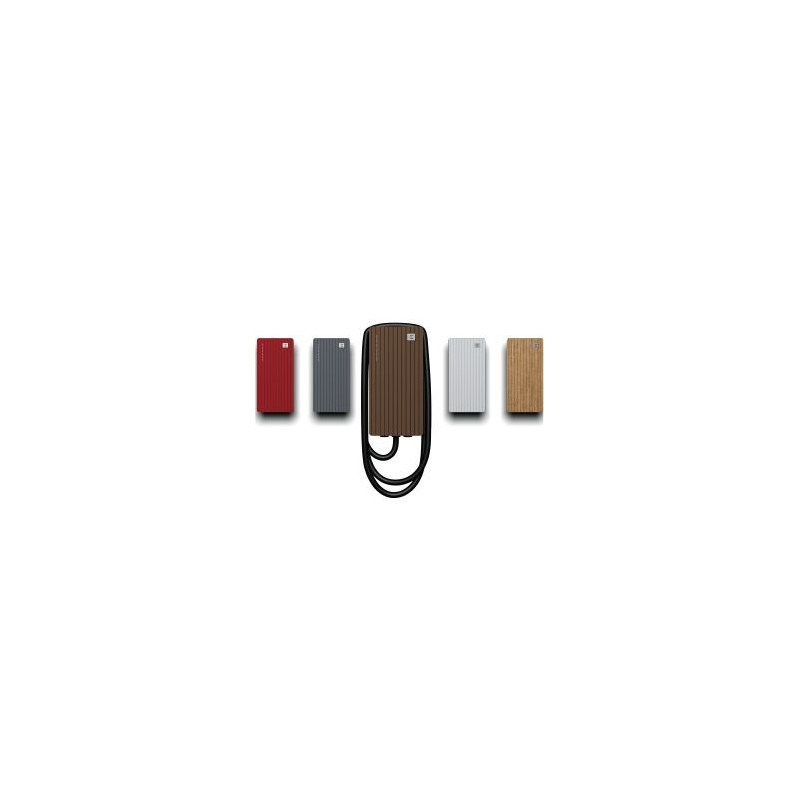

Teltonika charging station 11 kW (3 phases) with Type 2 cable
Product reference:
32-4772218000139
Delivery time 2 days
Teltonika charging station 11 kW (3 phases) with Type 2 cable
Product reference:
32-4772218000139
Delivery time 2 days
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 4
business days

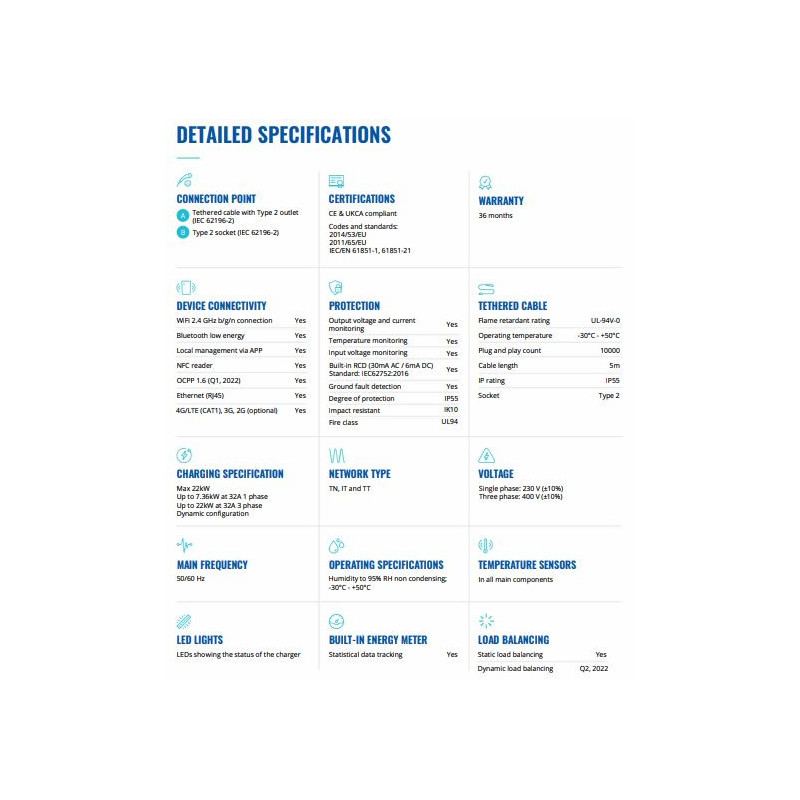

Specification:
The product is provided with a 36-month warranty
Dynamic power controller (which is necessary to install in order to receive the current state support) + 200 Eur
DEVICE CONNECTION CABLE
WiFi 2.4 GHz b/g/n connection
Flame retardant rating UL-94V-0
Bluetooth connection/control
Operating temperature -30°C - +50°C

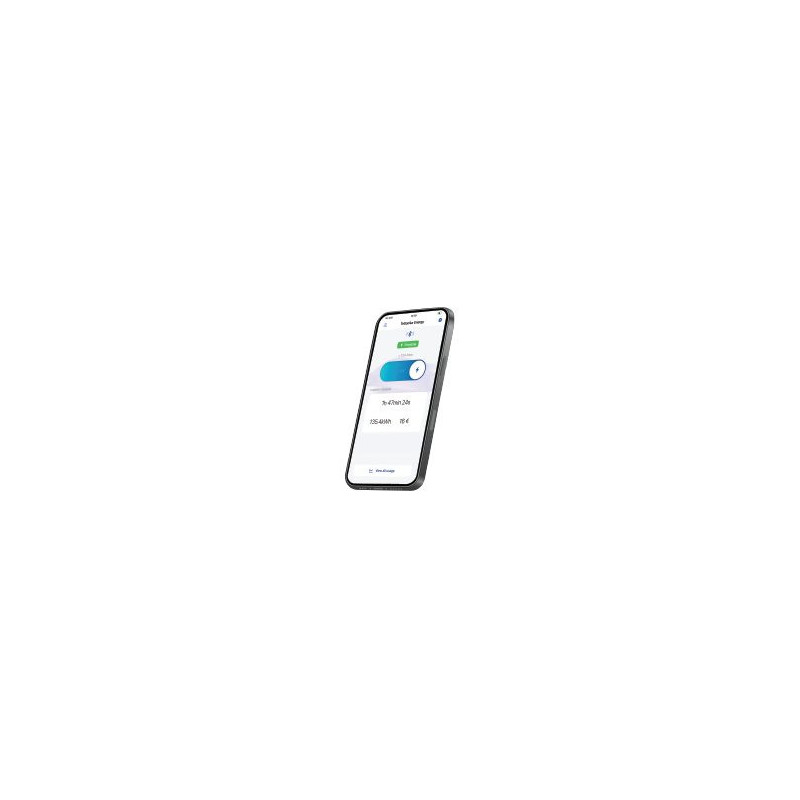

Local control via APP
NFC reader
Cable length 5m
Ethernet (RJ45)
IPSS socket type 2
4G/LTE (CAT1), 3G, 2G (optional) Yes IK10
CHARGING SPECIFICATIONS VOLTAGE
Maximum 11 kW
Dynamic configuration
certificates:
CE & UKCA compliant
2014/53/EU
2011/65/EU
IEC/EN 61851-1, 61851-21
Protections:
Output voltage and current monitoring
Temperature monitoring
Input voltage monitoring
Integrated RCD (30 mA AC / 6 mA DC)
Standard: IEC62752:2016
Earth fault detection
Shock resistance
MAIN FREQUENCY OPERATING SPECIFICATIONS TEMPERATURE SENSORS
50/60 Hz Humidity up to 95% RH non-condensing; All main components -30°C - +50°C
LEDs indicating charger status
Static load and dynamic load balancing

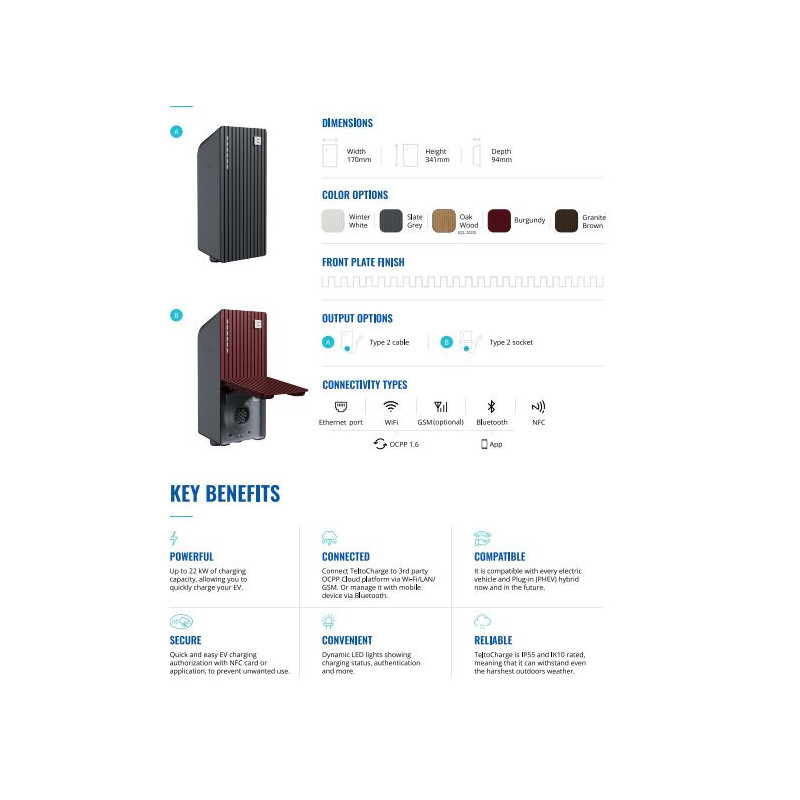

| Height | 341 mm |
| Power | 11 kW |
| Length | 94 mm |
| Cable shape | Straight |
| Cable length | 5 m |
| Cable type | type 2 |
| Width | 170 mm |
| With cable | Yes |
| Weight | 4500 g |
