Replacement electric vehicle charging station cable Type 2, 32A, 3 phases, 5m long
Product reference:
32-3547678658743
Replacement electric vehicle charging station cable Type 2, 32A, 3 phases, 5m long
Product reference:
32-3547678658743
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 4
business days

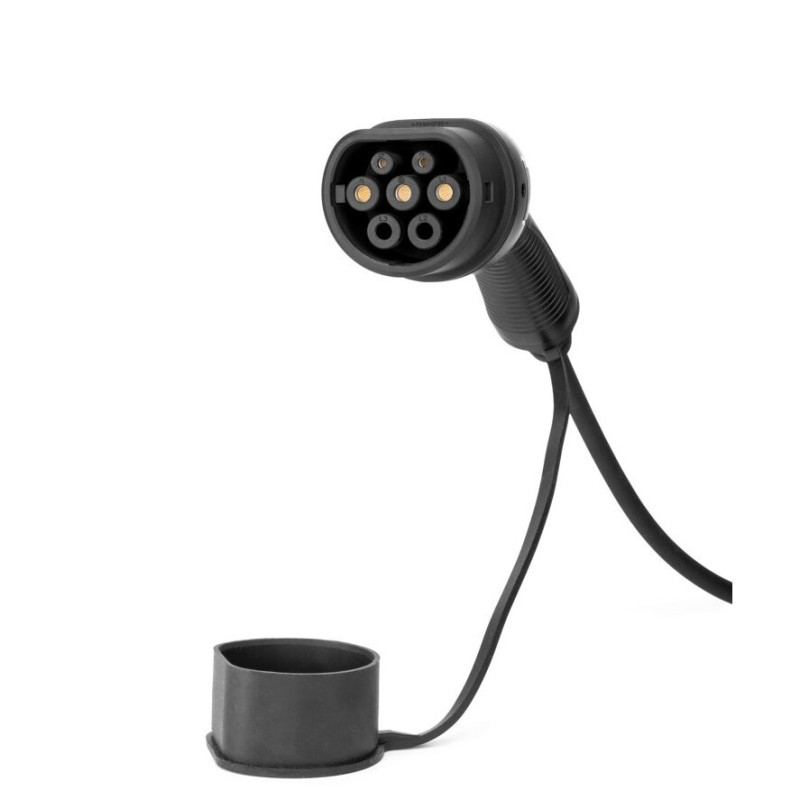

Replacement type 2 charging cable for electric vehicles, 5M length, maximum charging power 22KW 32A 3 phases. One end connects to the charging station, the other type 2 to the electric vehicle
the color of the cable may differ from the photos (the cable may be black, white)
The product comes with a 24-month warranty
Specification:
Phase: single phase or three phases.
Rated current: 32A or 16A AC
Cable length: 5 meters
Operating voltage: 1 phase 110-250V AC 3 phase 380-480V
Contact pin: copper alloy, silver plated
IP class: IP66
Fire: UL94 V-0
Certificates: CE, TUV approved

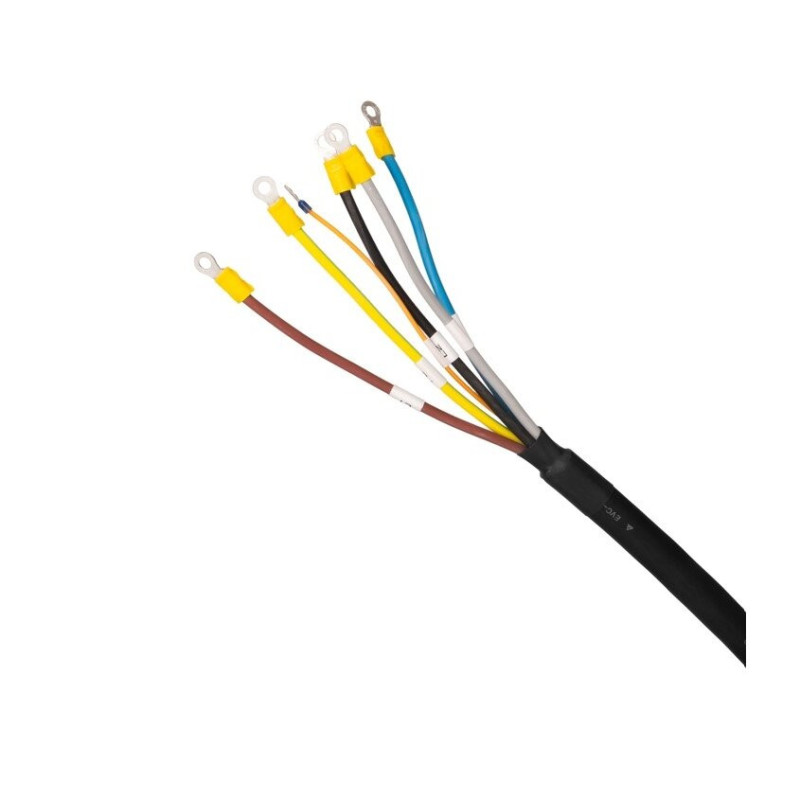

Cable specifications:
32A Single-phase: 3 * 6mm2 + 2 * 0.5mm2
32A Three-phase: 5 * 6mm2 + 2 * 0.5mm2

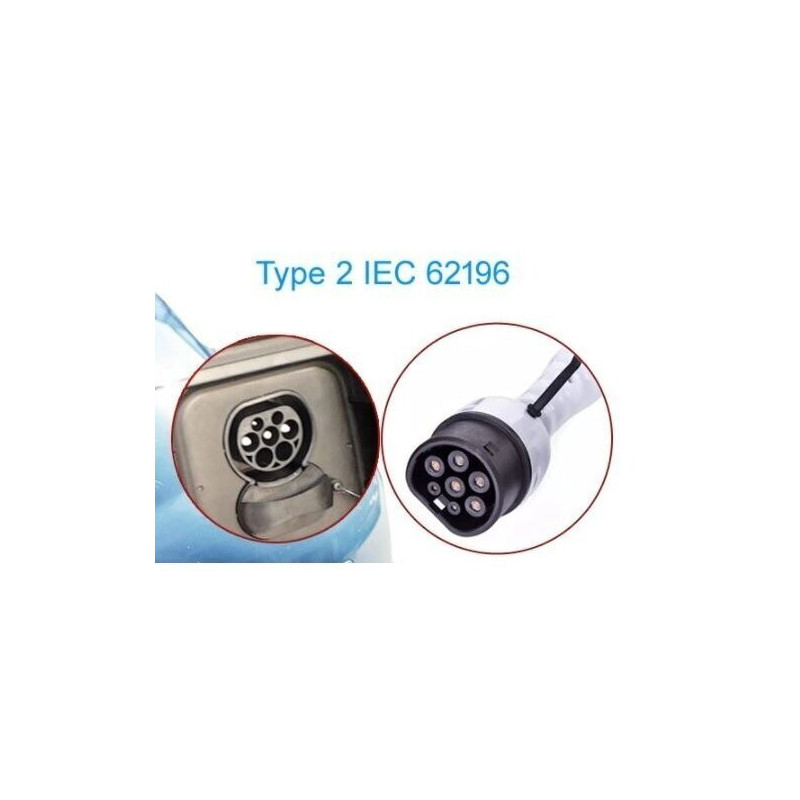

Type 2 - European standard used by electric cars manufactured in Europe, such as: Volkswagen e-Up!, Hyundai Ioniq, Renault ZOE, Nissan Leaf, and Volkswagen e-Golf for the European market or BMW i3 or others
| Height | 100mm |
| Power | 22 kW |
| Length | 140mm |
| Loading area | From city stops |
| Wire shape | Straight |
| Cable length | 5 years |
| Cable type | type 2 |
| Width | 100mm |
| Weight | 3000g |
