Replacement electric vehicle charging station cable Type 2, 16A, 3 phases, 5m long - 11kW
Product reference:
32-5648498125125
Replacement electric vehicle charging station cable Type 2, 16A, 3 phases, 5m long - 11kW
Product reference:
32-5648498125125
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 4
business days

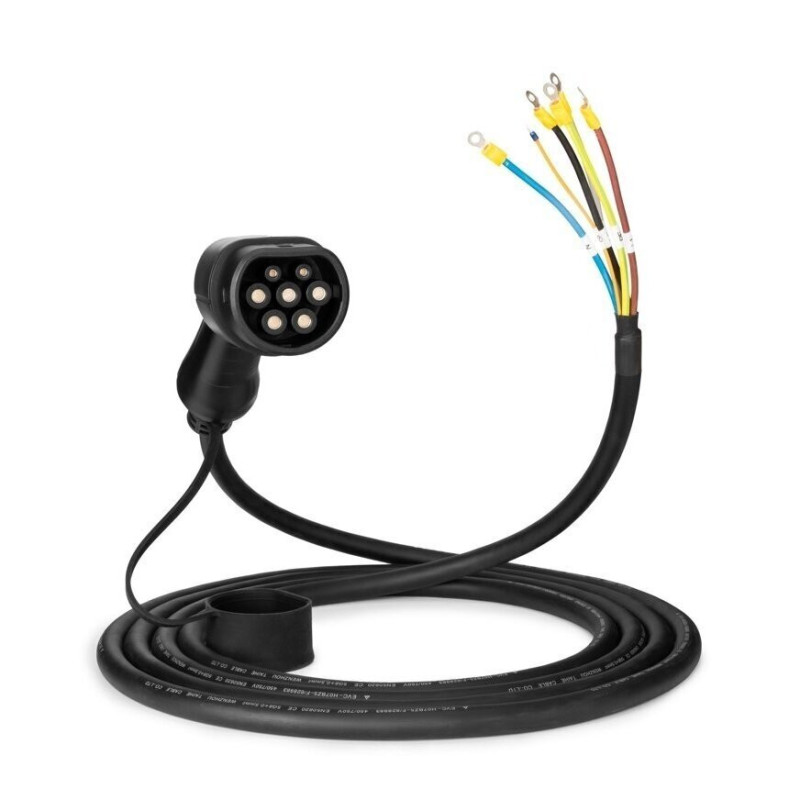

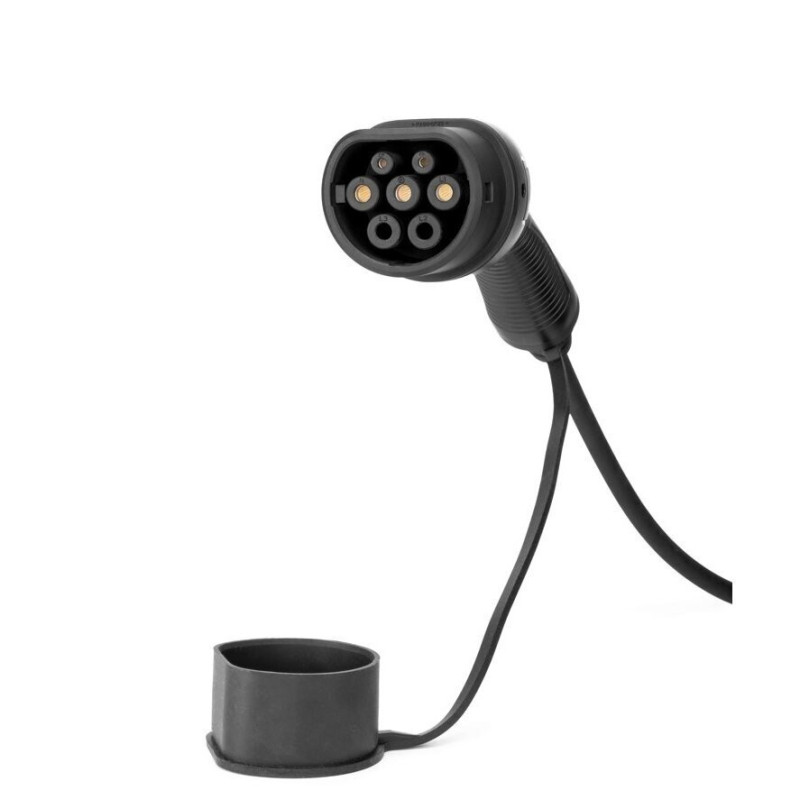

Replacement type 2 charging cable for electric vehicles, 5M long, maximum charging power 11 KW 16A 3 phases . One end connects to the charging station, the other type 2 to the electric car
the color of the cable may differ from the photos (the cable may be black, white)
The product is provided with a 24-month warranty
Specification:
Phase: single phase or three phases.
Rated current: 16A
Cable length: 5 meters
Working voltage: 1 phase 110-250V AC 3 phase 380-480V
Contact pin: copper alloy, silver plating
IP class: IP66
Fire: UL94 V-0
Certificates: CE, TUV approved

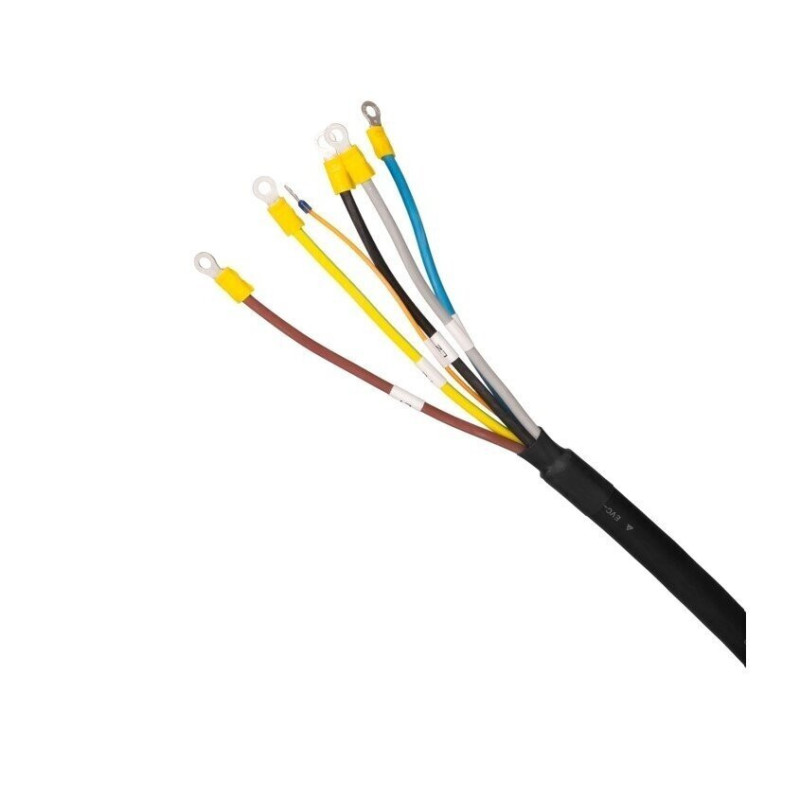

Cable specifications:
32A Single phase: 3*6mm2+2*0.5mm2
32A Three-phase: 5 * 6mm2 + 2 * 0.5mm2

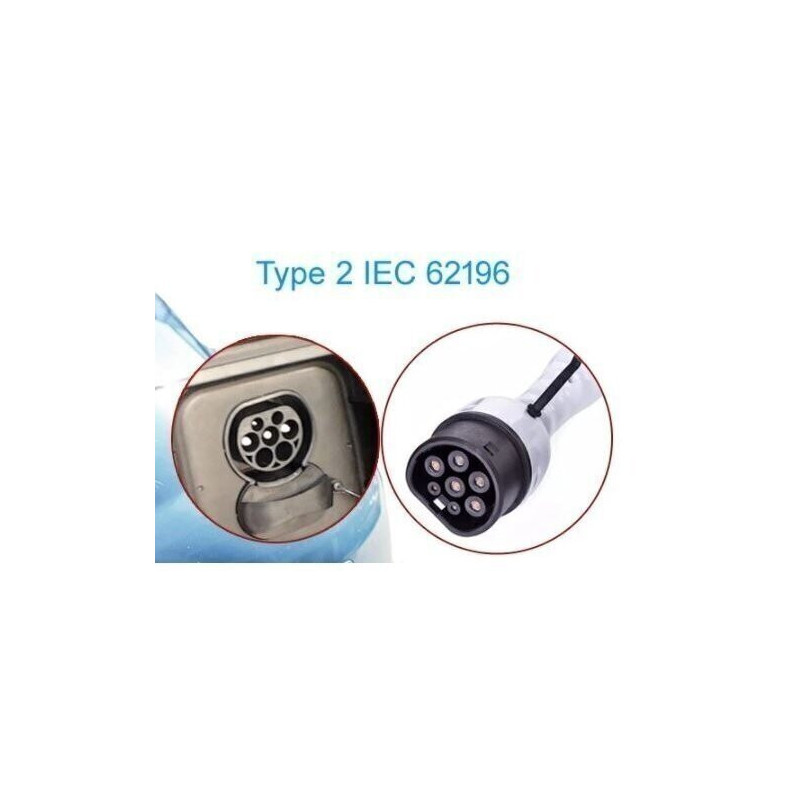

Type 2 - European standard used by European-made electric cars, such as: Volkswagen e-Up!, Hyundai Ioniq, Renault ZOE, Nissan Leaf, and European-market Volkswagen e-Golf or BMW i3 or others
| Height | 150 mm |
| Power | 11 kW |
| Length | 150 mm |
| Charging location | From city stations |
| Cable shape | Straight |
| Cable length | 5 m |
| Cable type | type 2 |
| Width | 200 mm |
| Weight | 3000 g |
