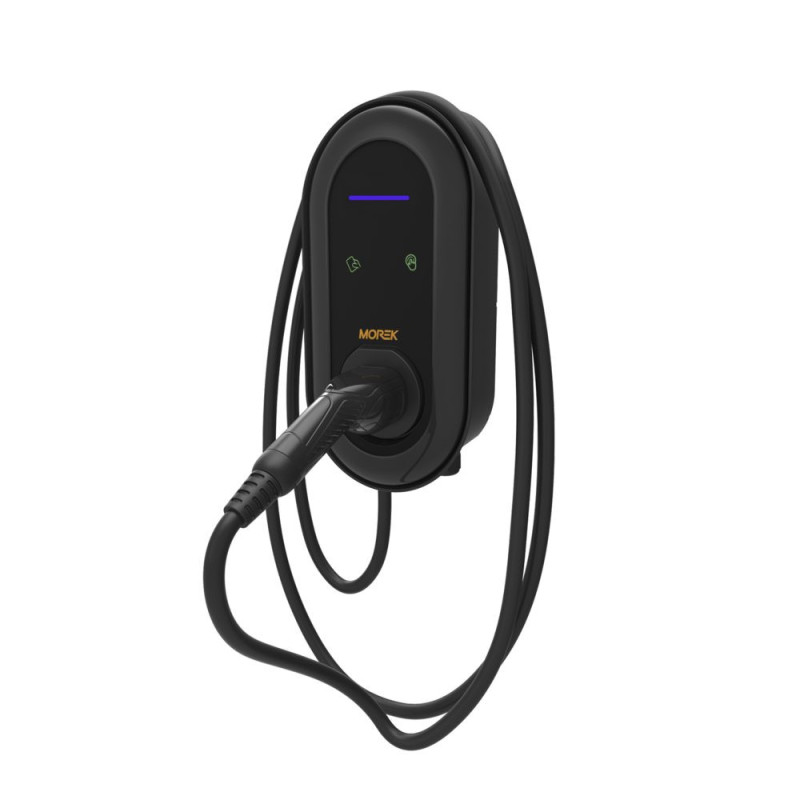

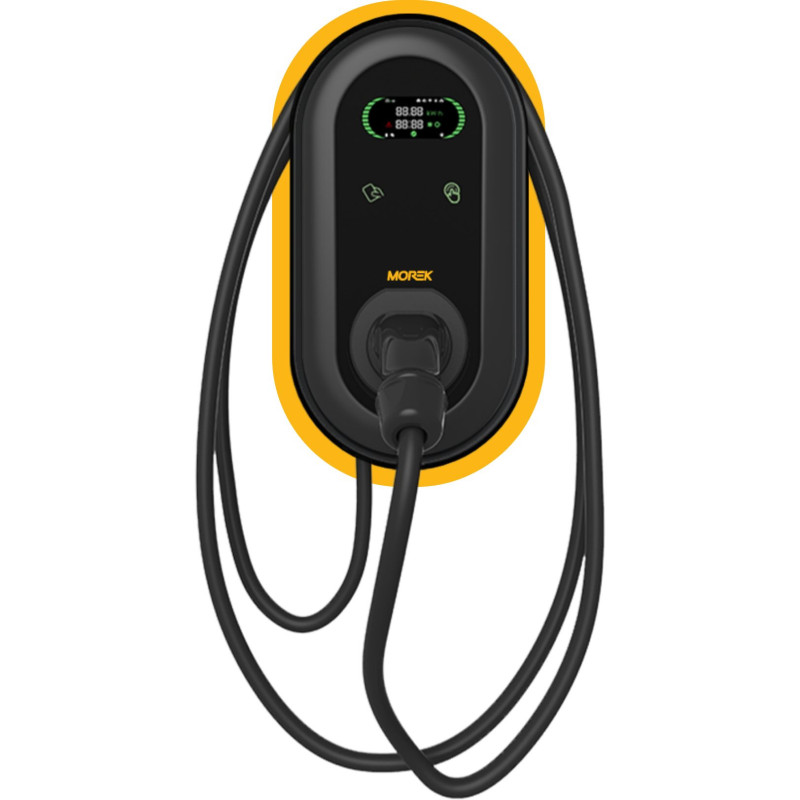

Morek charging station 22 kW with 5, cable and dynamic balancing

Product benefits

The Morek smart station optimizes electric vehicle charging according to Nord Pool prices, allowing users to save money. It has Wi-Fi and LAN connections, controlled via a mobile application, allowing convenient monitoring and control of charging remotely.

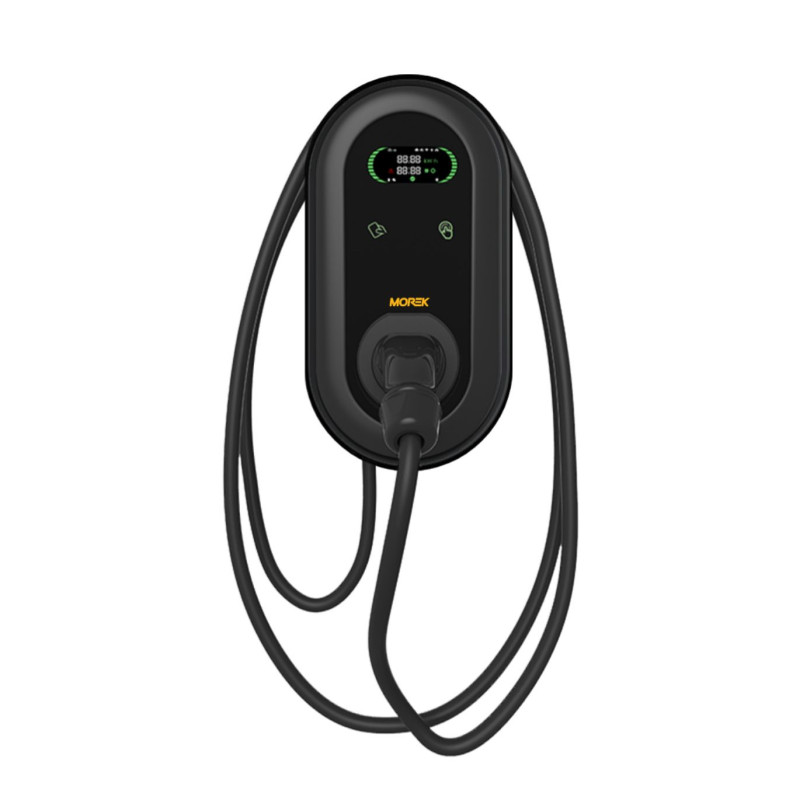

The display on the Morek station allows real-time viewing of the charging status, providing users with clear and quick information about the charging process.

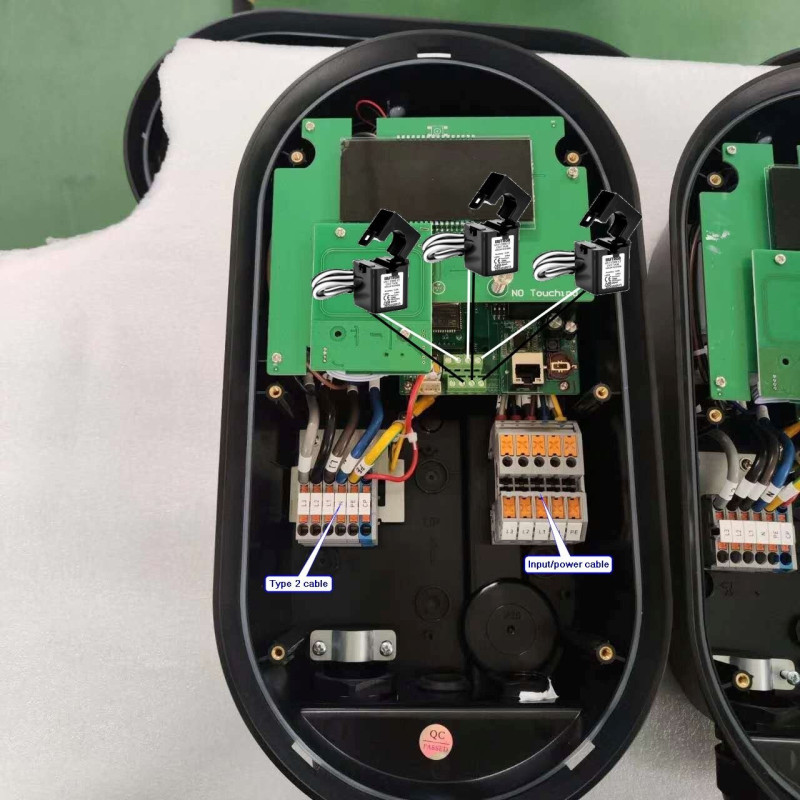

Possibility to implement dynamic power management without major redevelopment of the existing electrical panel, due to the use of CT current transformers.

Morek 22kW station without cable price - 600 Eur

The Morek station kit with cable and dynamic power management is offered at a competitive price, so consumers can purchase everything they need for efficient electric vehicle charging without overpaying.

•

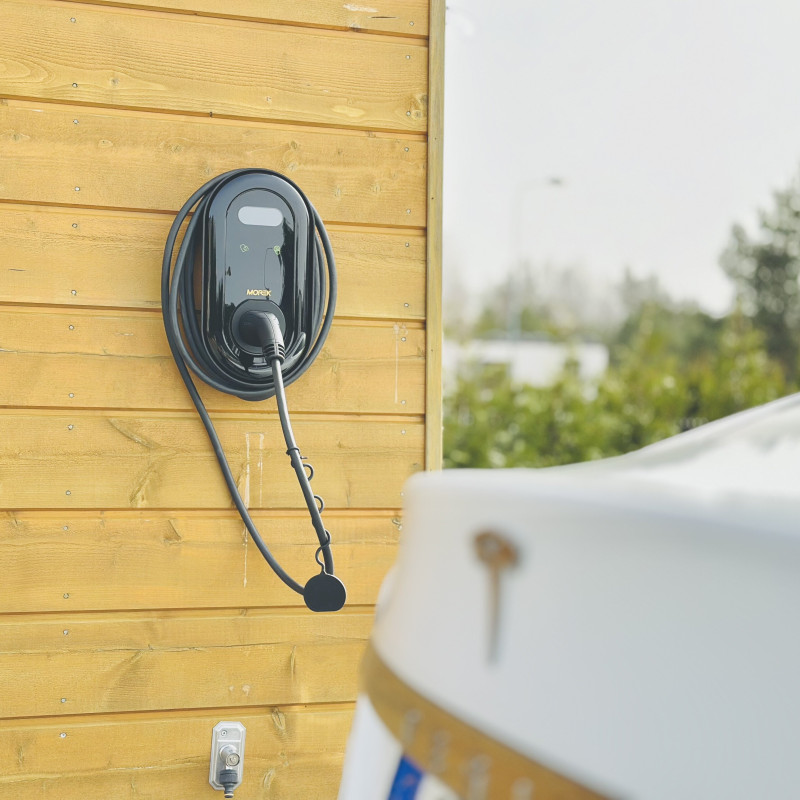

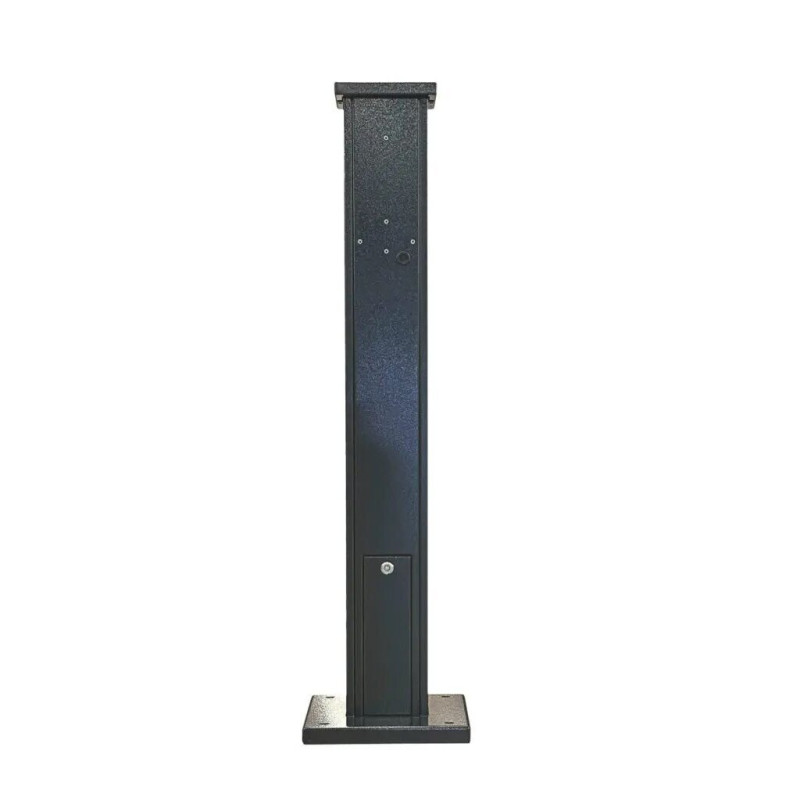

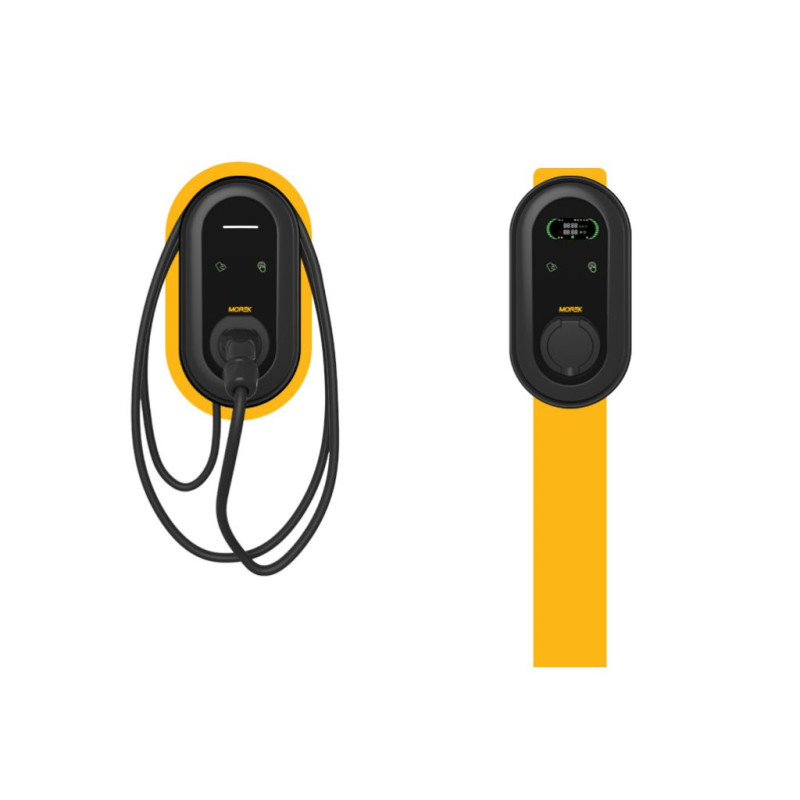

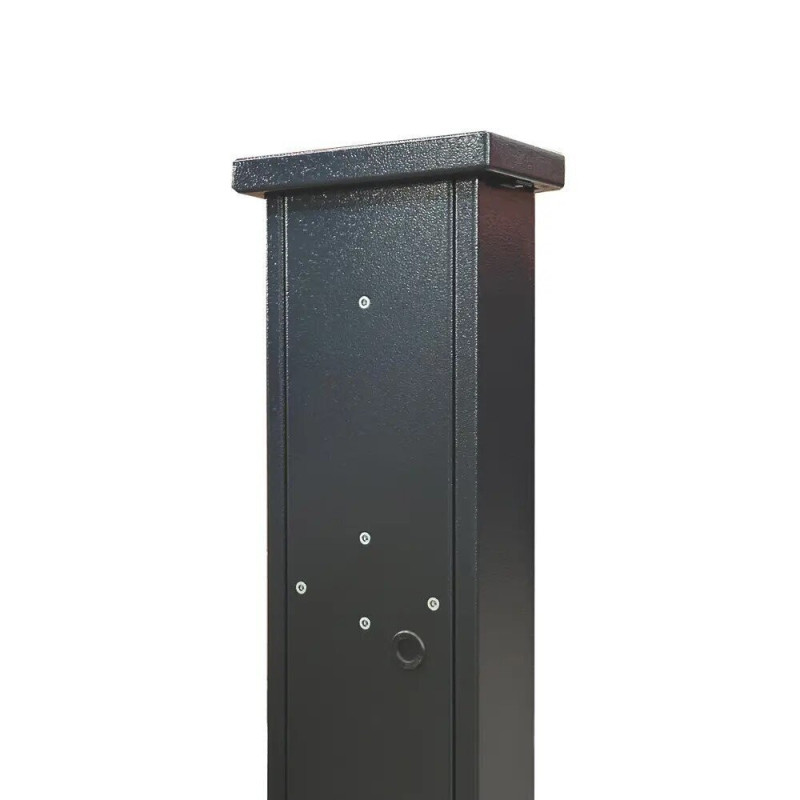

  Wall-mounted or on a special stand

•
  Easy installation

•
  Easy to use

•

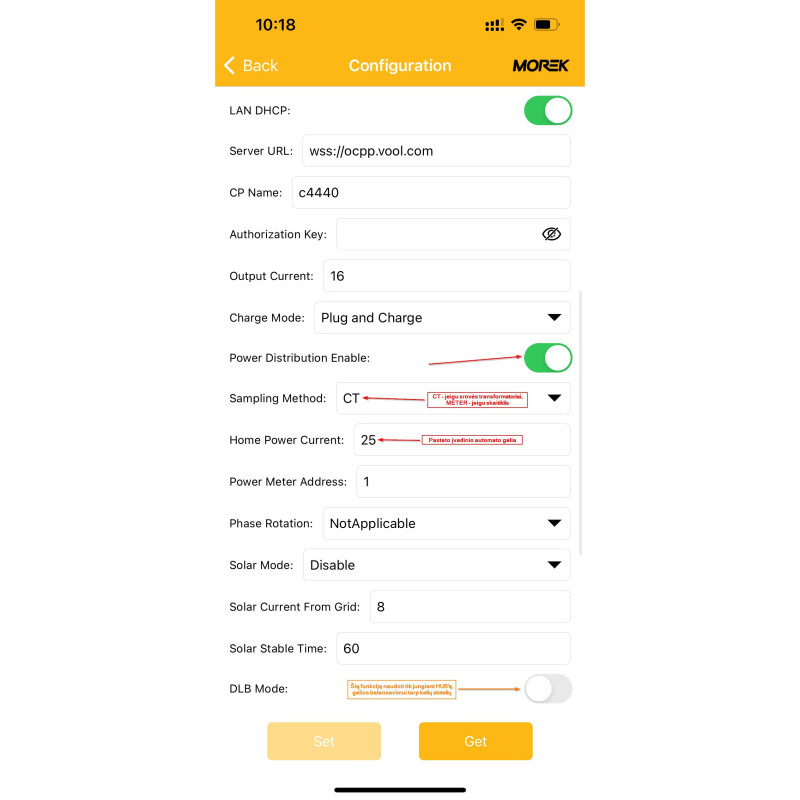

  Download the VOOL application and use the functions of the smart charging station

•
  Charging socket Type 2, compliant with IEC62196 (Mode 3), T2S Shutter Socket

•
  Input power 3-phase 400 V/AC 50 Hz, 16 A/32 A

•
  Output power up to 11kW / 22kW, 3-phase 400 V AC 16 A / 32 A

Safety:

•
  Charging cable lock; AC/DC current leakage protection.

•
  Integrated 6.5 meter charging cable

•
  Short circuit protection

•
  Surge protection

•
  Overheating protection

•
  Operating temperature -30 ºC to +55 ºC

•
  Ambient temperature -40 ºC to +75 ºC

•
  Protection class IP55

•
  Mechanical resistance IK08

•
  Certificate CE

•
  Plastic housing black or white (optional)

•
  Dimensions 455 x 260 x 150 mm

•
  LCD 3.8'' screen

•
  Power distribution-balancing system (additional current transformers required)

•
  Communication: Bluetooth / "WiFi" / LAN / OCPP 1.6

2 years warranty

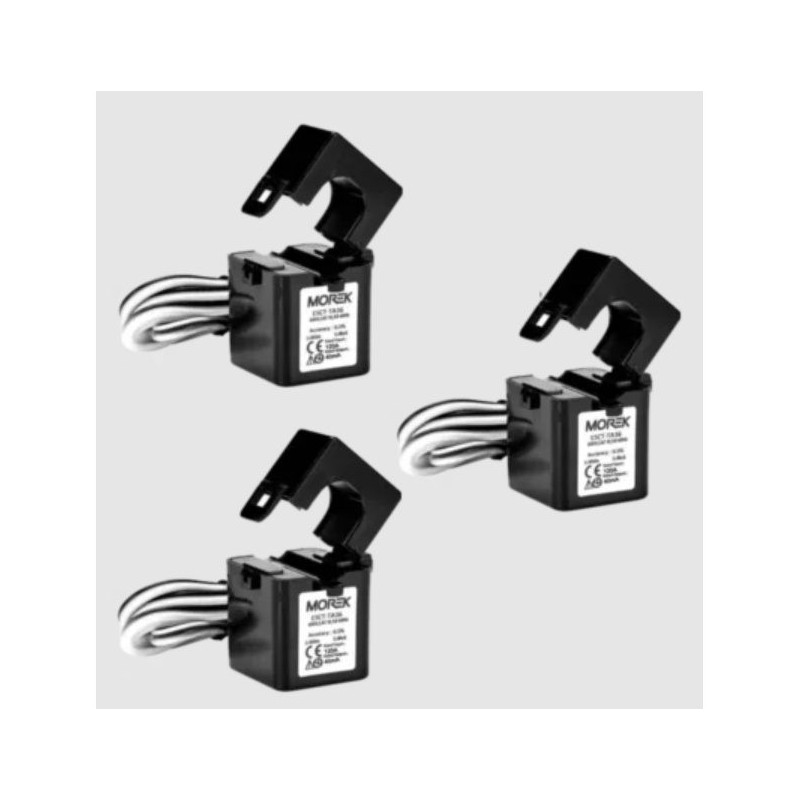

Current transformers (CT) for load balancing: 120A, (3 pcs set price + 80 Eur)

Our CT options, tailored to optimize energy management for various capacities, ensure compatibility with a variety of solutions - from residential to large commercial installations.

Optimized DLM: easy to use with DLM controllers.

Reliability: ensures smooth, simultaneous charging of multiple electric vehicles without overloading the network.

Cost-effectiveness: efficient use of existing infrastructure avoids costly upgrades.

Sustainability: Promotes green charging practices by combining them with renewable energy sources.
