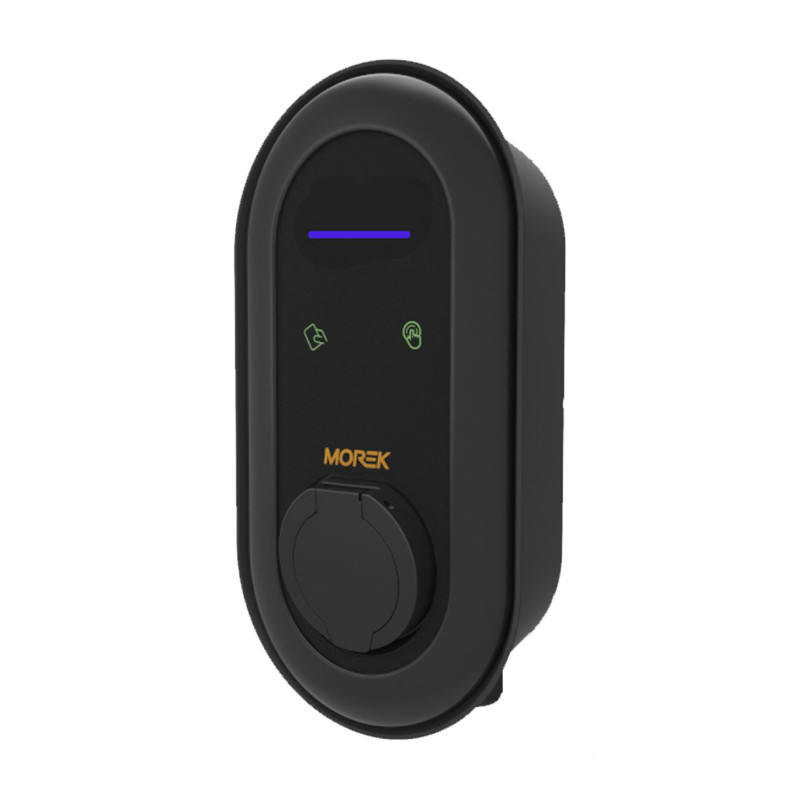

Morek charging station 11 kW Type 2 plug, dynamic balancing

Product advantages

The Morek smart station optimizes electric vehicle charging based on Nord Pool prices, allowing users to save money. It has Wi-Fi and LAN connections, and is controlled via a mobile application, allowing you to conveniently monitor and manage charging remotely.

The display at the Morek station allows you to see the charging status in real time, providing users with clear and quick information about the charging process.

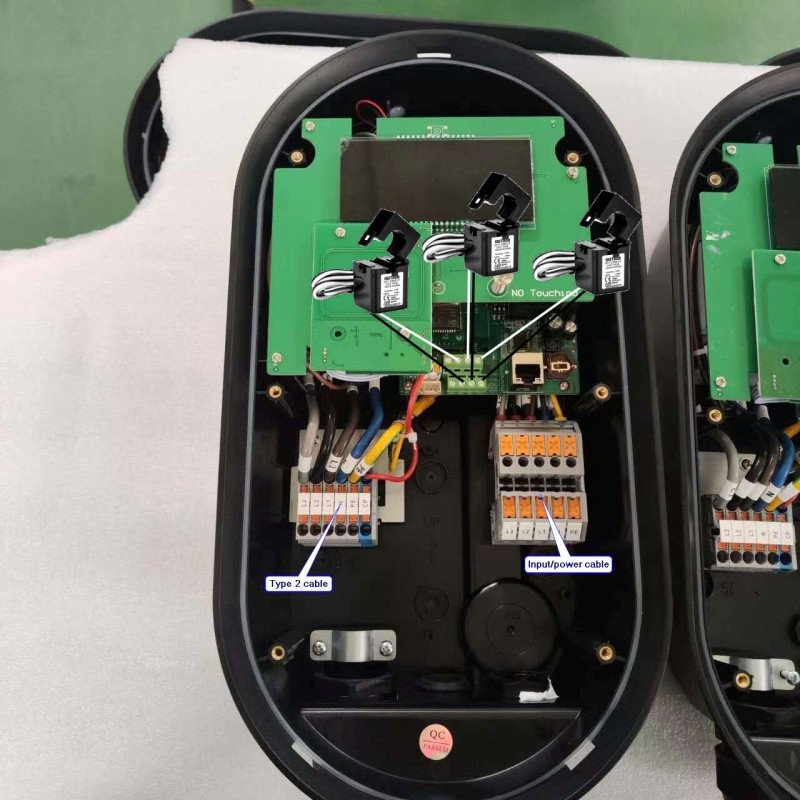

The ability to implement dynamic power management without major restructuring of the existing electrical panel, as CT current transformers are used.

Morek 11kW station with cable price - 650 Eur

The Morek station kit with cable and dynamic power management is offered at a competitive price, so consumers can purchase everything they need for efficient electric vehicle charging without overpaying.

•

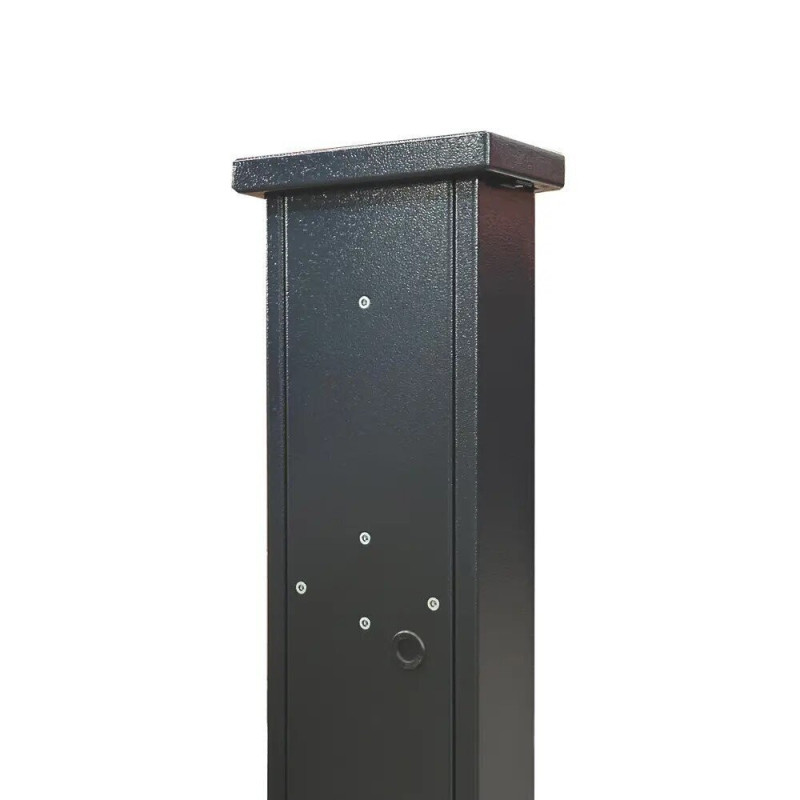

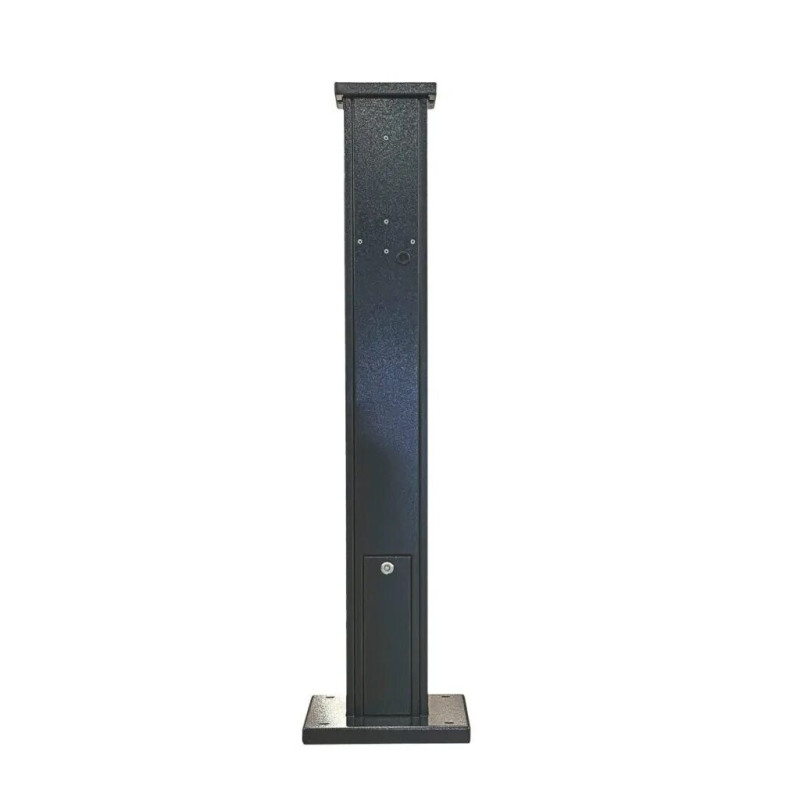

  Mounted on the wall or on a special stand

•
  Easy installation

•
  Easy to use

•

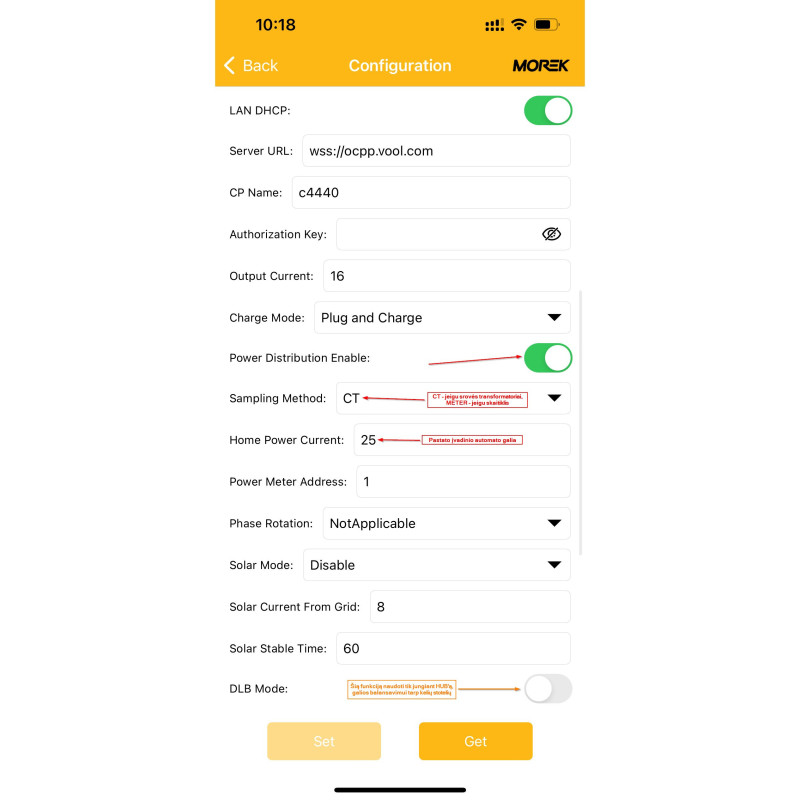

  Download the VOOL app and use the functions of the smart charging station

•
  Charging socket Type 2, compliant with IEC62196 (Mode 3), T2S Shutter Socket

•
  Input power 3-phase 400 V/AC 50 Hz, 16 A

•
  Output power up to 11kW 3-phase 400 V AC 16 A

Safety:

•
  Charging cable fixation; AC/DC current leakage protection.

•
  Integrated charging 6.5 meter cable

•
  Short circuit protection

•
  Surge protection

•
  Overheating protection

•
  Operating temperature -30 ºC to +55 ºC

•
  Ambient temperature -40 ºC to +75 ºC

•
  Protection class IP55

•
  Mechanical resistance IK08

•
  Certificate CE

•
  Plastic housing black or white (optional)

•
  Dimensions 455 x 260 x 150 mm

•
  LCD 3.8'' screen

•
  Power distribution-balancing system (additional current transformers required)

•
  Communication: Bluetooth / WiFi / LAN / OCPP 1.6

2 year warranty

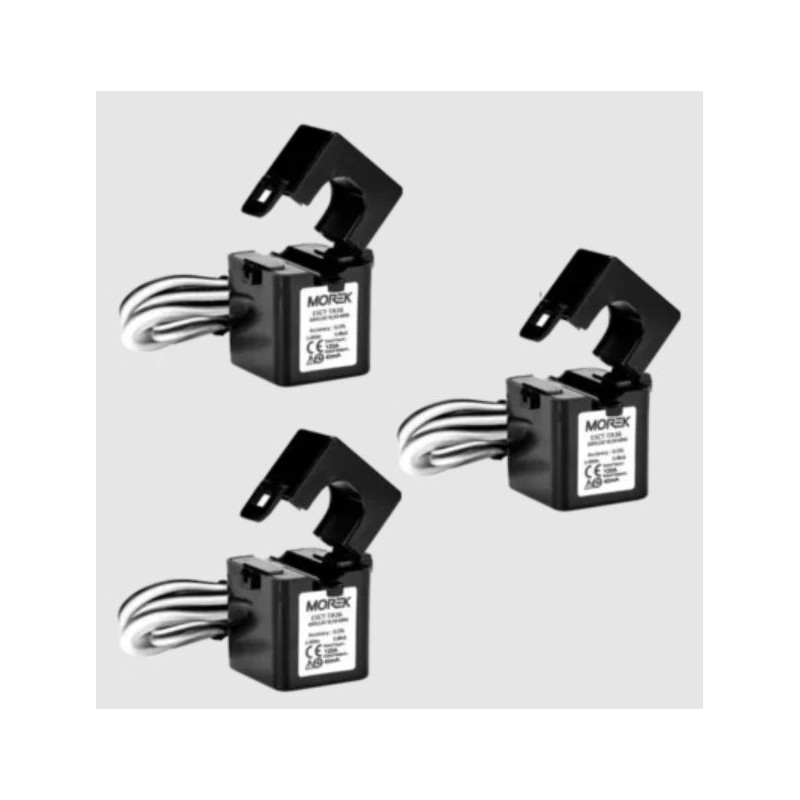

Current transformers (CT) for load balancing: 120A, (3 pcs set price + 80 Eur)

Our CT options, tailored to optimize energy management for a range of capacities, ensure compatibility with a wide range of solutions, from residential to large commercial installations.

Optimized for DLM: Easy to use with DLM controls.

Reliability: ensures smooth, simultaneous charging of multiple electric vehicles without overloading the network.

Cost-effectiveness: Efficient use of existing infrastructure avoids costly upgrades.

Sustainability: Promotes green charging practices by combining them with renewable energy sources.
