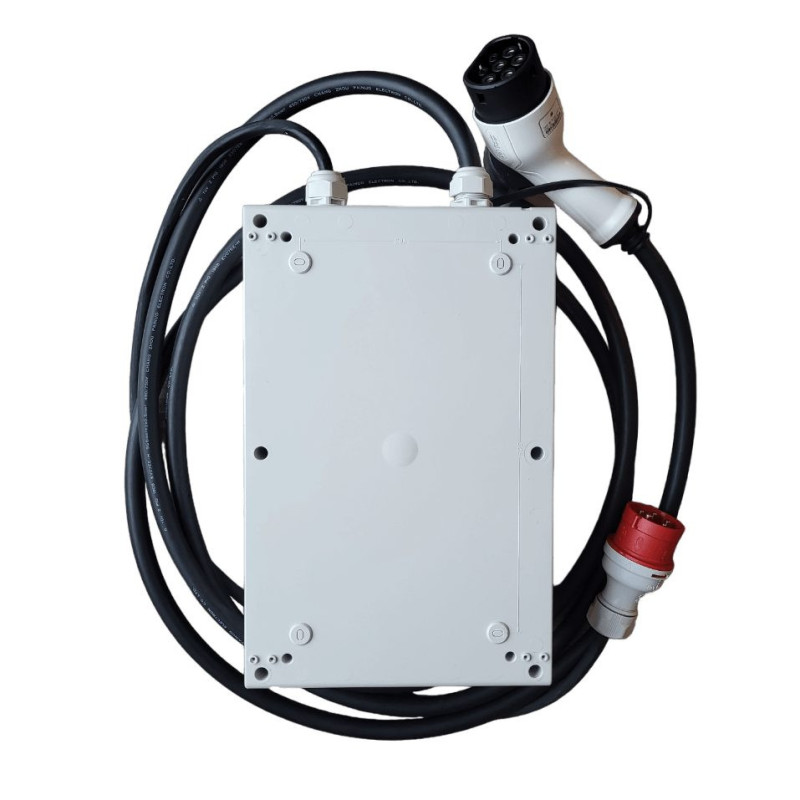

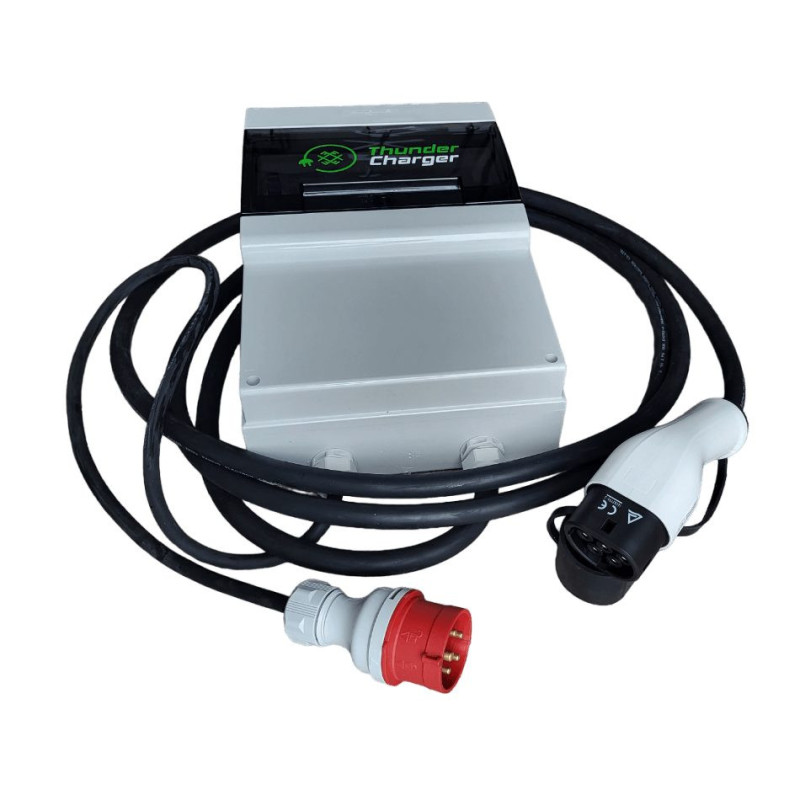

charging station with Type 2 cable 5m long, 11kW and three-phase plug

Electric vehicle charging station

This charging station is suitable for all electric cars and plug-in hybrid cars.

Charging station with Type 2 cable, 5 m, 11 kW - Three-phase station with adjustable current (6A-16A), suitable for all electric vehicles. A three-phase plug is included for quick connection. Protections include grounding check and voltage monitoring. Additional functions, such as Wi-Fi control, are available on request.

The station is equipped with ABB, Schneider, Hager components and a controller made in Lithuania based on OpenEVSE. All safety measures necessary for safe charging of electric vehicles have been implemented (grounding check, electric vehicle connection "diode" check, protection against stuck contacts).

Standard equipment:

- Adjustable charging current from 6A to 11A every 2A (3kW - 11 kW)

Charging socket - Type2

Charging current - 6A-16A (3kW-11kW);

Resistance standards - IP66 and IK07;

Dimensions - 400x255x145 mm;

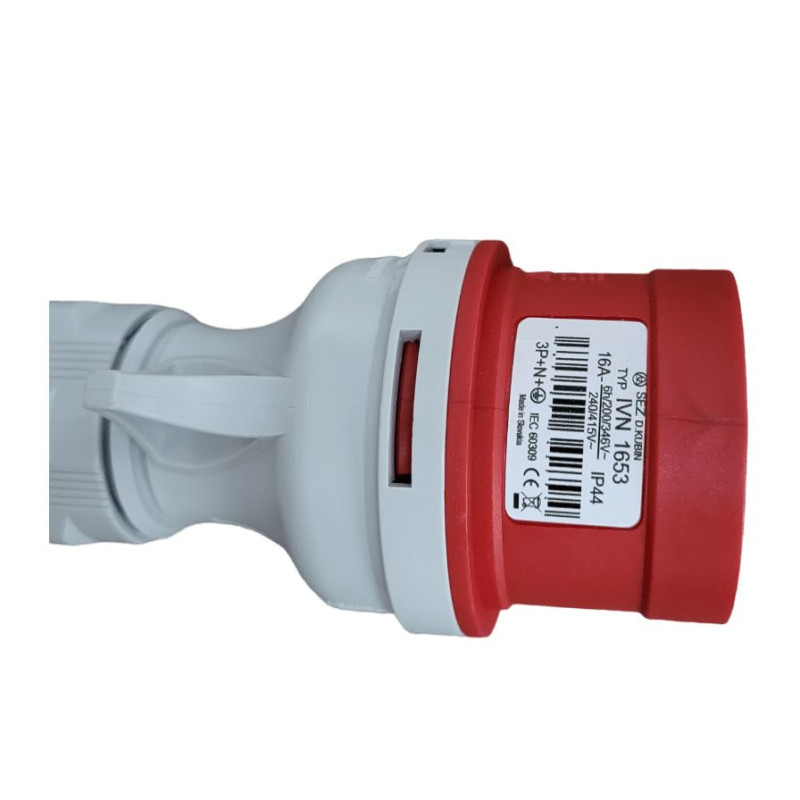

The station is equipped with a 0.5m long three-phase 16A (11kW) red plug, which will allow you to conveniently and quickly connect to the station itself.

Protection:

Output voltage and current monitoring
Temperature monitoring
Input voltage monitoring
Ground fault detection
AC leakage relay 40A 40mA
Operating temperature: -30 to +50
Storage temperature: -40 to +85

Additional functions are available if needed:

Type 2 rosette locking + 80 Eur

electricity consumption accounting module + 100 Eur

Charging activation Wi-Fi + 120 Eur

Charging activation RFID, PIN, RFID+PIN (up to 300 users); + 120 Eur

Additional 16A Schuko socket. + 60 Eur

Warranty 2 years.

Additional warranty extension possible +3m (additional 50 Eur)

There is an option to connect the entire charging station management via the app (which works via Wi-Fi). That is, with its help you will be able to see the entire accounting of the charging station, set the charging date and time (e.g. at night), provide opportunities for other users to connect to the charging station or block charging of the charging station. The price of this app is + 200 Eur.

Type 2 - European standard used by electric cars manufactured in Europe, such as: Volkswagen e-Up!, Hyundai Ioniq, Renault ZOE, Nissan Leaf, and Volkswagen e-Golf or BMW i3 or others intended for the European market
