charging station with Type 2 cable 4.8m long, 7kW

Our main and most popular charging stations are Wallbox type wall-mounted with Type 2 cable 5m long 1 phase, 7kW power

This charging station is suitable for all electric cars and plug-in hybrid cars.

The station is equipped with ABB, Schneider, Hager components and a controller made in Lithuania based on OpenEVSE. All safety measures necessary for safe charging of electric vehicles have been implemented (grounding check, electric vehicle connection "diode" check, protection against stuck contacts).

Standard equipment:

- Adjustable charging current from 6A to 32A in 2A steps (1.3kW - 7.2kW)

Charging socket - Type2;

Charging current - 10A-32A (1.3kW - 7.2kW)

Resistance standards - IP66 and IK07;

Dimensions - 400x255x145 mm;

Protection:

Output voltage and current monitoring
Temperature monitoring
Input voltage monitoring
Ground fault detection
AC leakage relay 40A 40mA
Operating temperature: -30 to +50
Storage temperature: -40 to +85

Additional functions are available if needed:

Type 2 rosette locking + 80 Eur

electricity consumption accounting module + 100 Eur

Charging activation Wi-Fi + 120 Eur

Charging activation RFID, PIN, RFID+PIN (up to 300 users); + 120 Eur

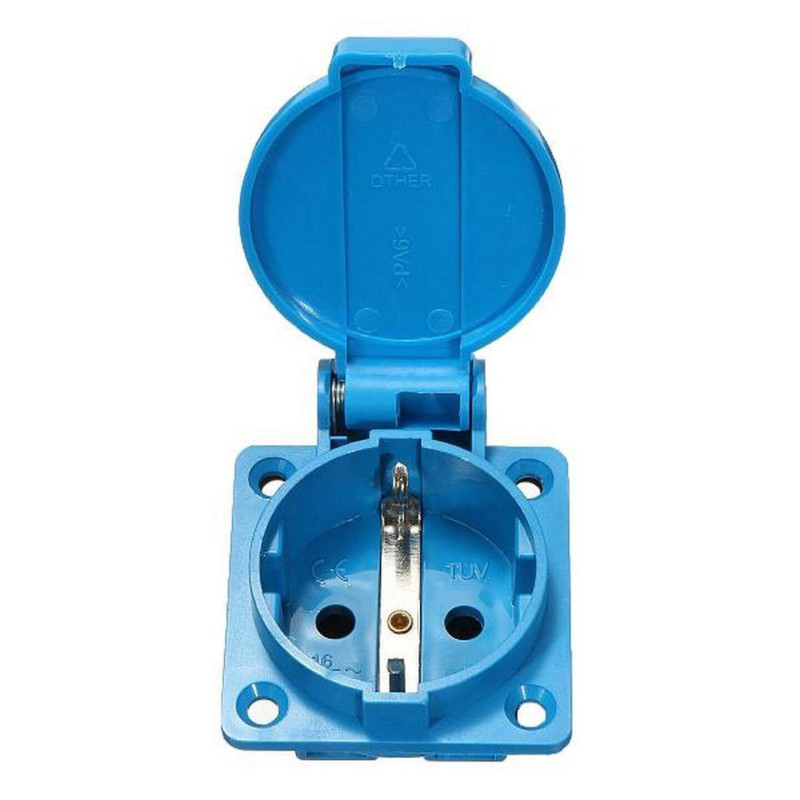

Additional 16A Schuko socket. + 60 Eur

Warranty 2 years.

Additional warranty extension possible +3m (additional 50 Eur)

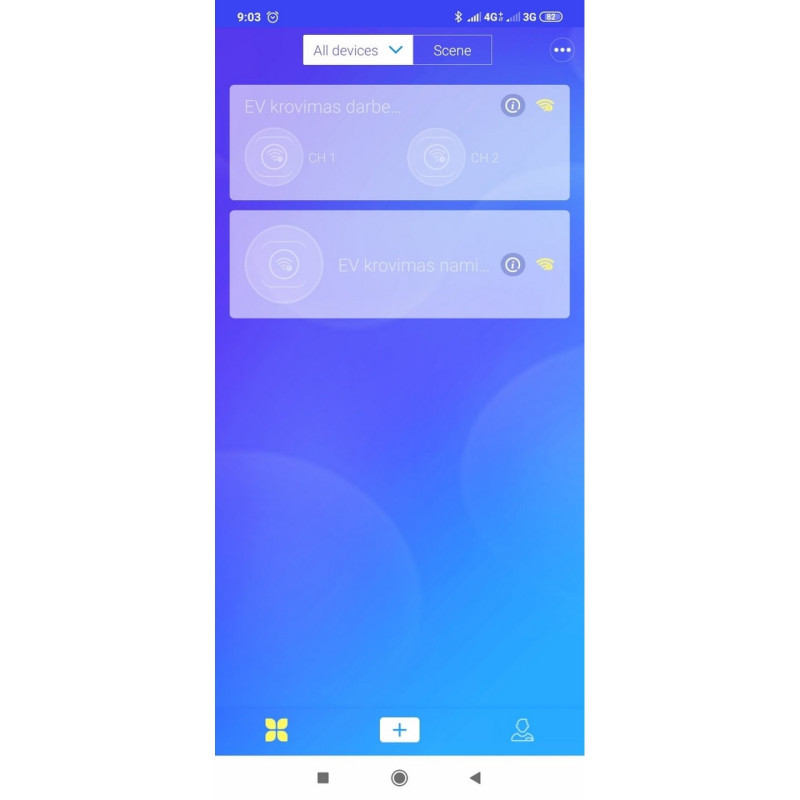

There is an option to connect the entire charging station management via the app (which works via Wi-Fi). That is, with its help you will be able to see the entire accounting of the charging station, set the charging date and time (e.g. at night), provide opportunities for other users to connect to the charging station or block charging of the charging station. The price of this app is + 200 Eur.

Type 2 - European standard used by Electric cars made in Europe , such as: Volkswagen e-Up!, Hyundai Ioniq, Renault ZOE, Nissan Leaf, and Volkswagen e-Golf or BMW i3 for the European market or others
