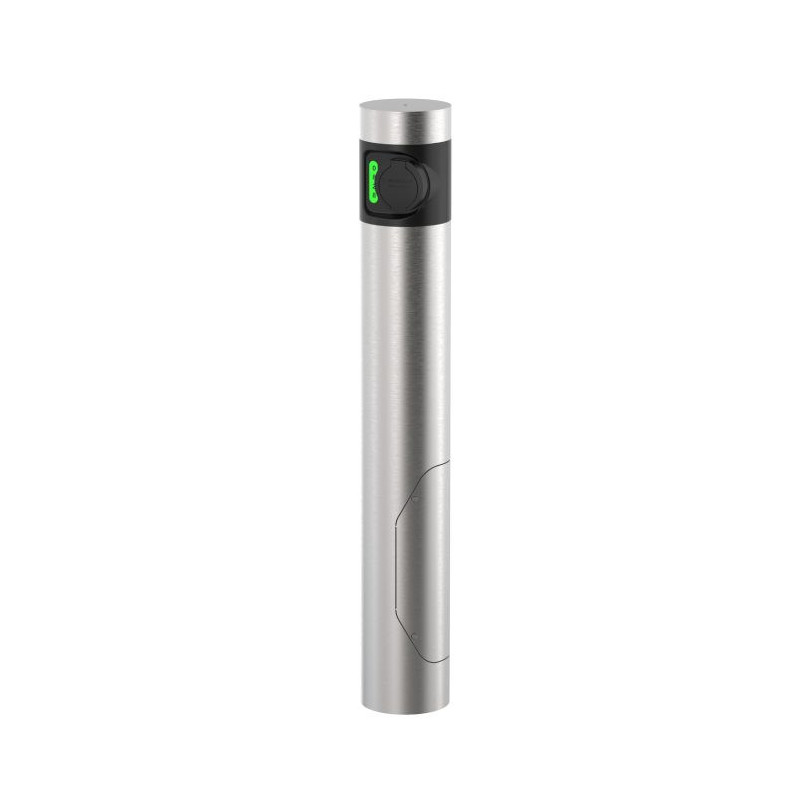

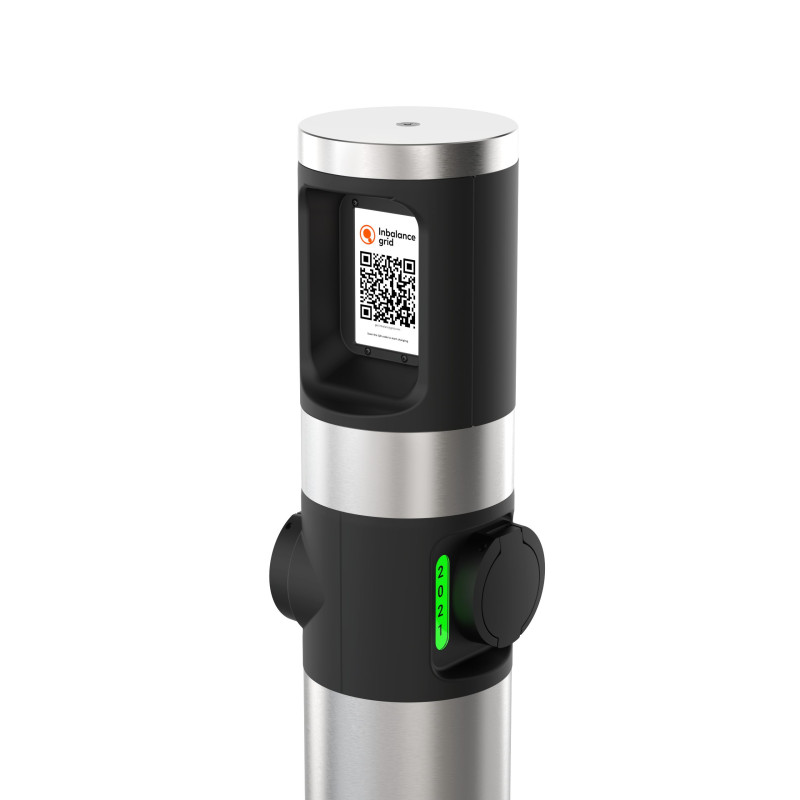

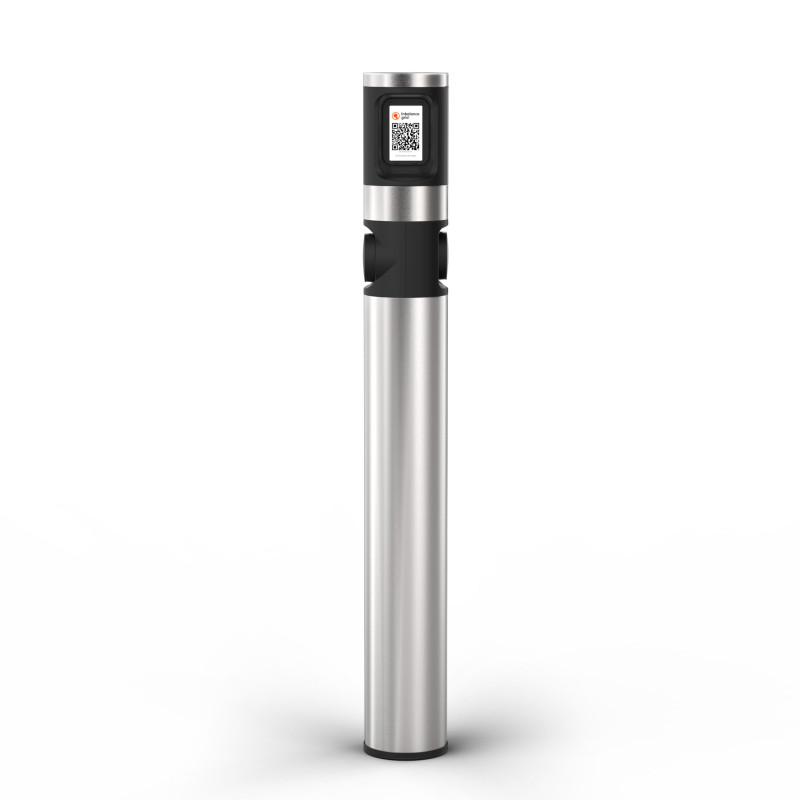

Inbalance charging station 2x22 kW

Flexible load balancing controlled by software supporting static, dynamic or BMS level load balancing.

Enhanced safety due to continuous output voltage monitoring (weld detection).

Technical specification

Maximum charging power: 2 x 22kW

Product warranty: 2 years

IP class: IP54

Connection: Ethernet, 4G (LTE)

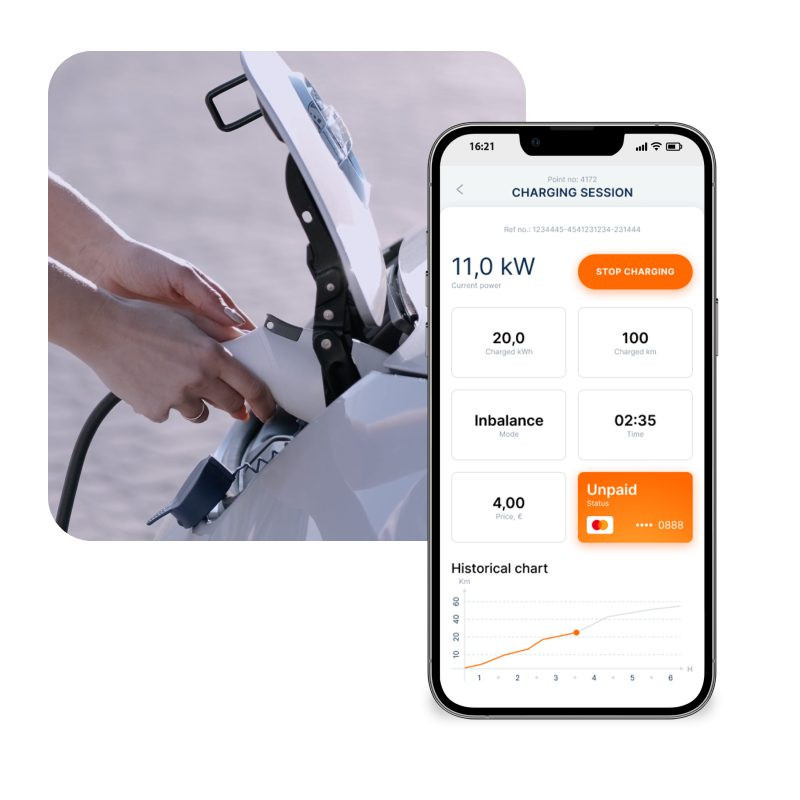

User identification: Via mobile application

Integrated energy measurement: Yes, MID

Dynamic power management:

RFID/NFC: Yes (optional)

Device housing: Stainless steel, UV resistant radiation and corrosion.

Communication: OCPP 1.6/ 2.0

Integrated MID certified energy meters.\

Integrated IEC62955 compliant residual current devices with 6 mA DC detection.
Advanced thermal management system provides protection against overheating and condensation.

Ethernet and optional 4G internet connectivity.

Quick installation with multiple grounding options.
Optional NFC and/or RFID reader available.

CHARGER CLASSIFICATION (IEC 61851)

Rated voltage: 230-400 V, 50 Hz

Overvoltage category: Category III (maximum 4 kV)

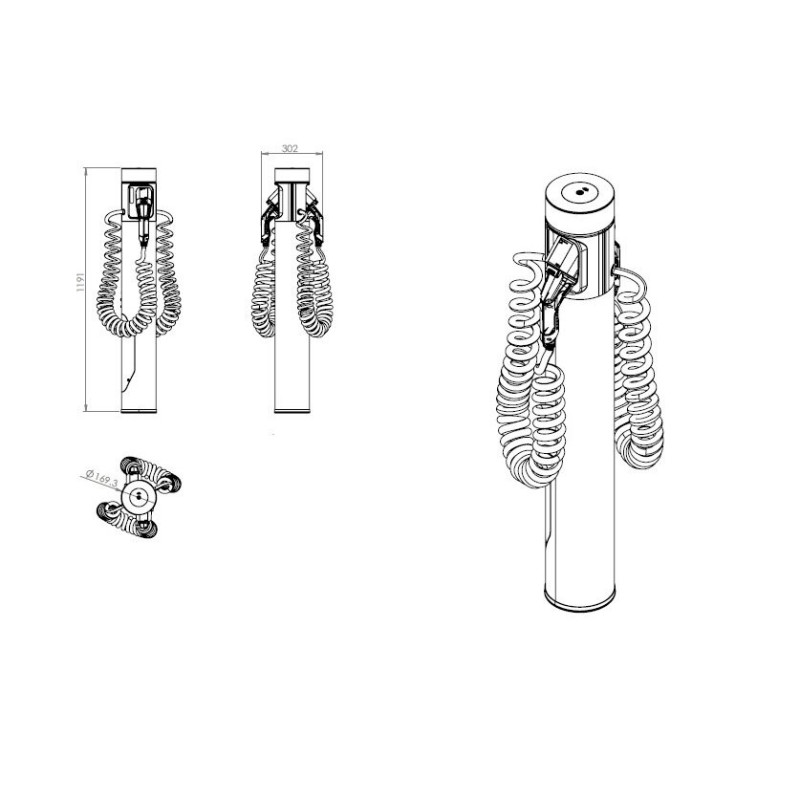

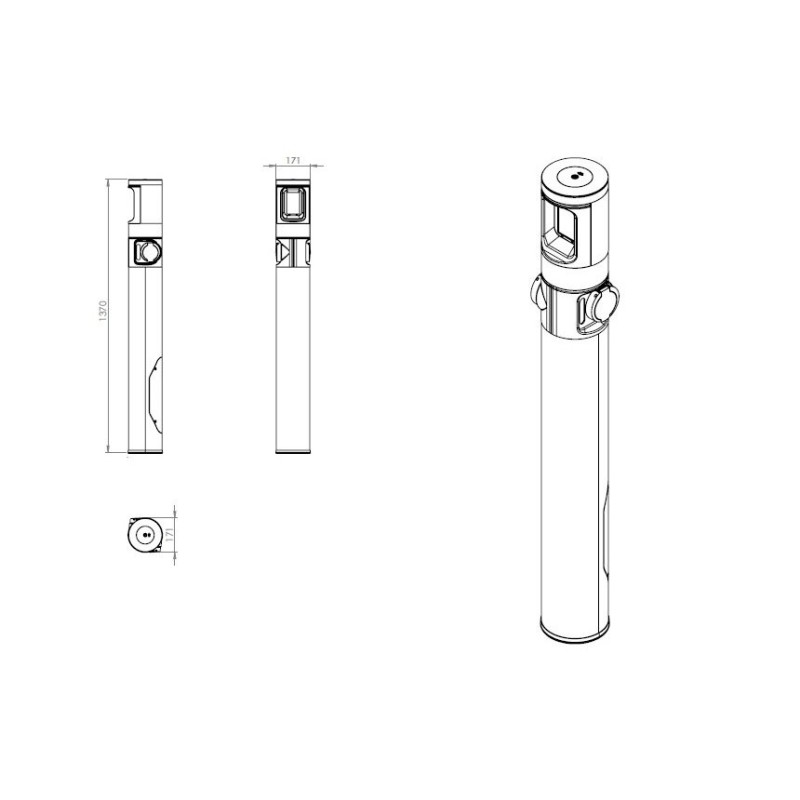

MECHANICAL SPECIFICATIONS

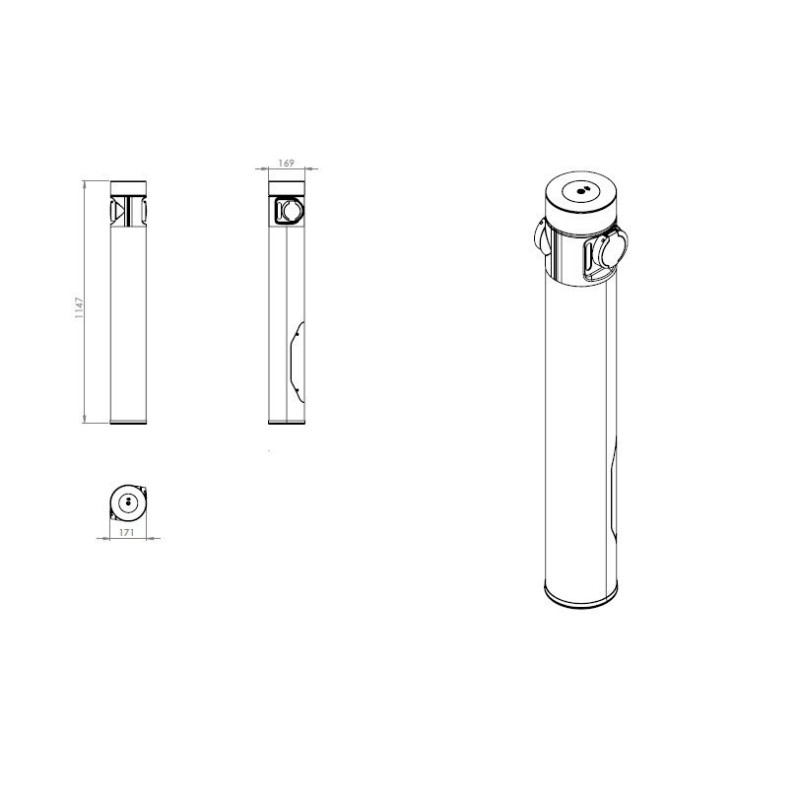

Dimensions: 1137 mm x 170 mm x 170

IK class: IK10

IP class: IP54 (outdoor)

Weight: 20 kg

ENVIRONMENTAL SPECIFICATIONS

Ambient operating temperature range -30 to +50 °C (outdoor conditions)

Storage ambient temperature range -30 to +60 °C

Overheating protection Linear charging power reduction in the upper range

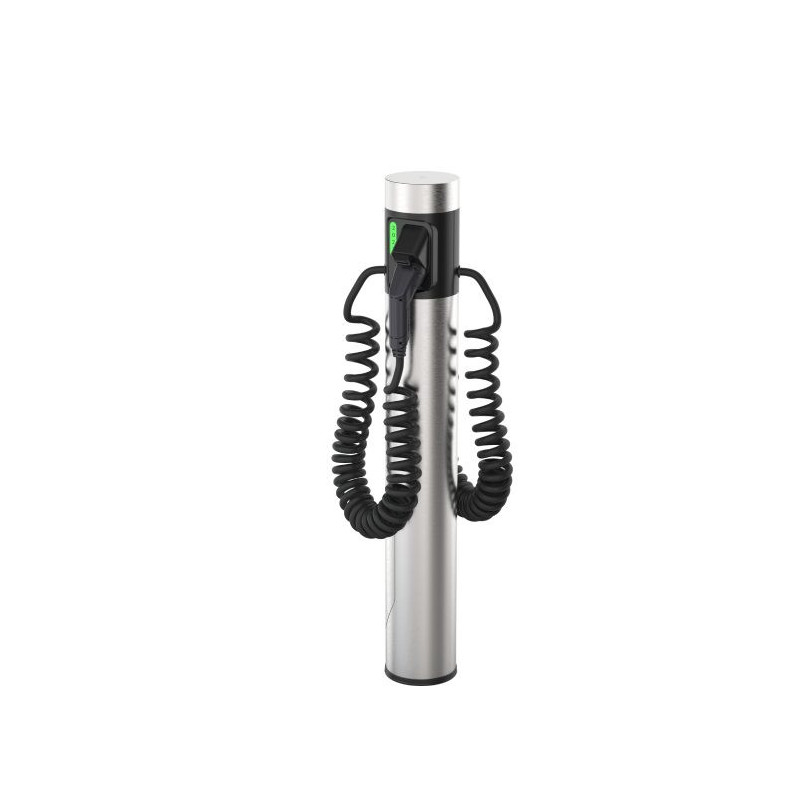

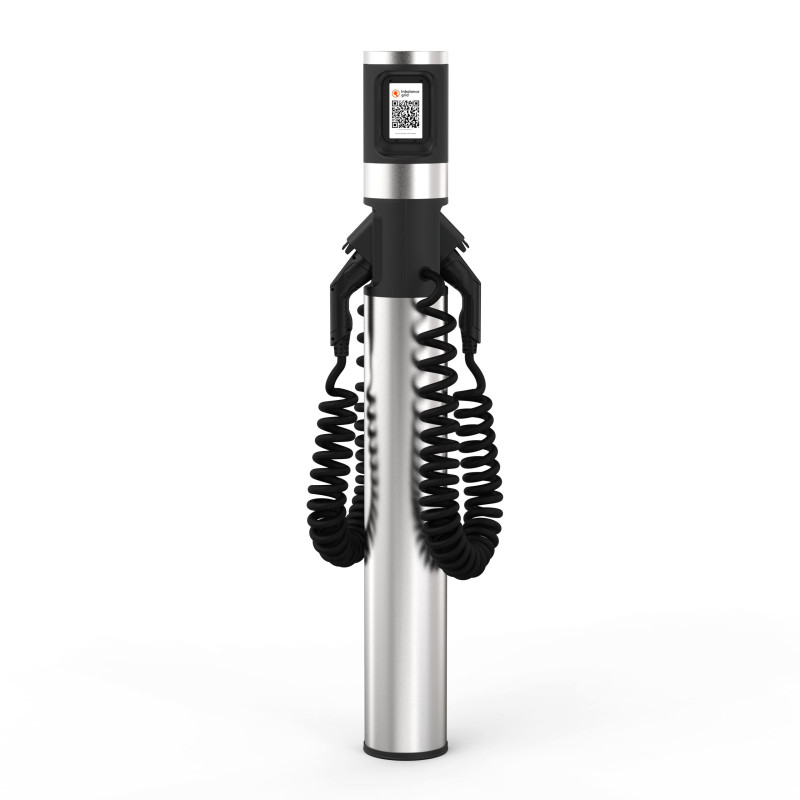

Integrated cables €330

FC/RFID €70

crane €330

Payment terminals €440
