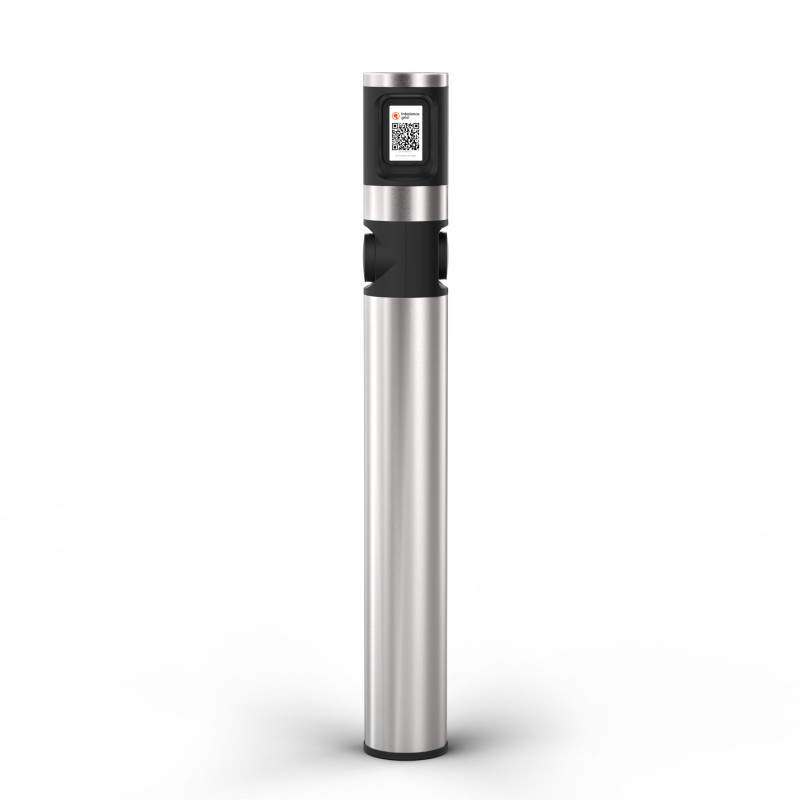

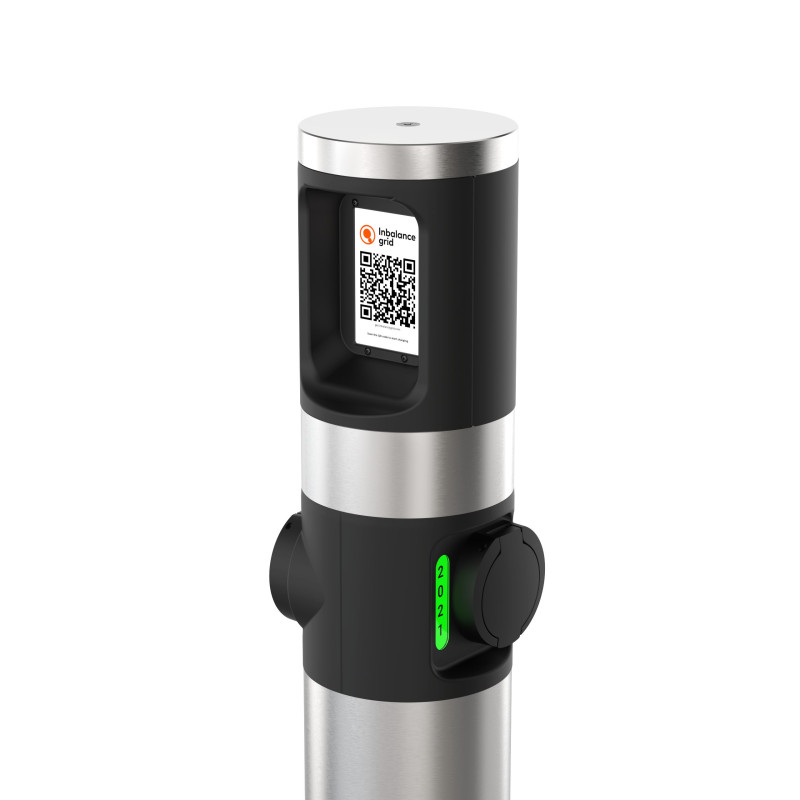

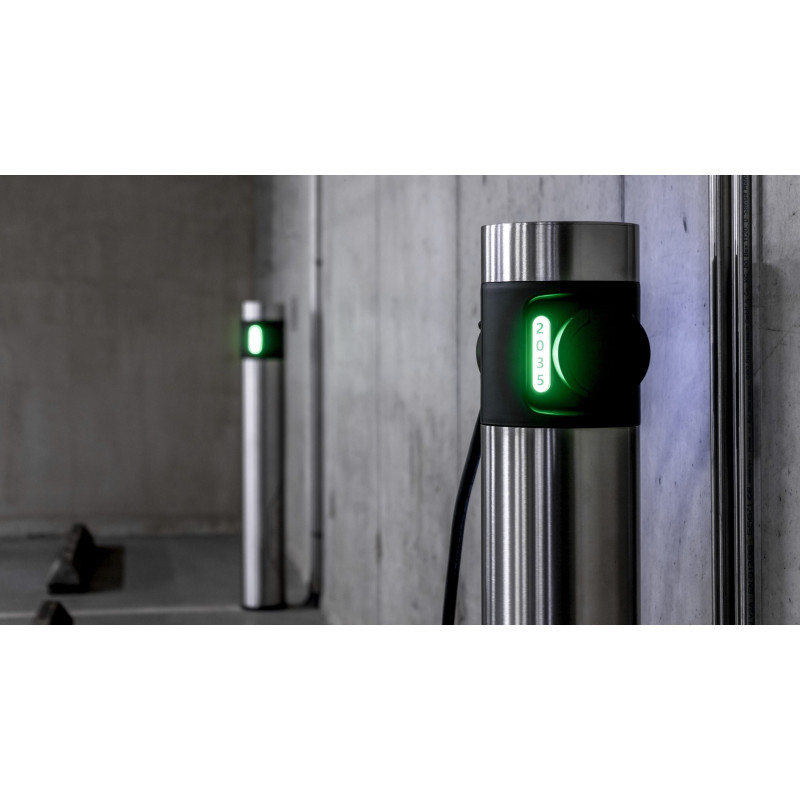

Inbalance charging station 2x22 kW

Flexible load balancing controlled by software that supports static, dynamic or BMS-level load balancing.

Enhanced safety due to continuous output voltage monitoring (butt welding detected).

Technical specification

Maximum charging power: 2 x 22kW

Product warranty: 2 years

IP class: IP54

Connection: Ethernet, 4G (LTE)

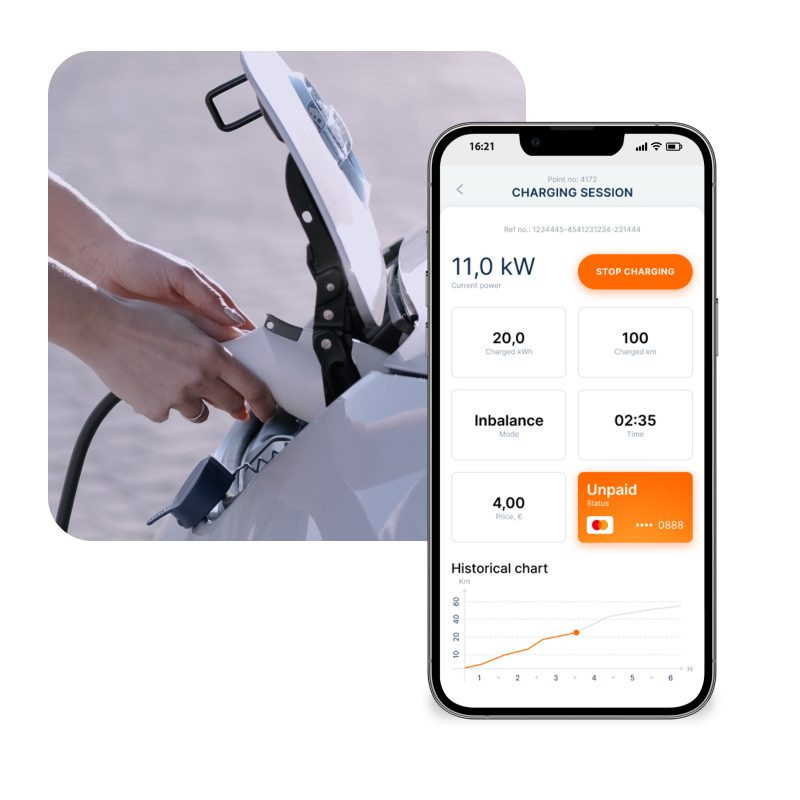

User identification: Via mobile application

Integrated energy measurement: Yes, MID

Dynamic power management:

RFID/NFC: Yes (optional)

Device housing: Stainless steel, resistant to UV rays and corrosion.

Communication: OCPP 1.6/ 2.0

Integrated MID certified energy meters.\

Integrated residual current devices complying with the requirements of the IEC62955 standard with a 6 mA direct current detection function.
Using an advanced thermal control system, protection against overheating and condensation prevention is ensured.

Ethernet and additional 4G internet connection.

Quick installation with multiple grounding device options.
Optional NFC and/or RFID reader.

CHARGER CLASSIFICATION (IEC 61851)

Rated voltage: 230-400 V, 50 Hz

Overvoltage category: Category III (no more than 4 kV)

MECHANICAL SPECIFICATIONS

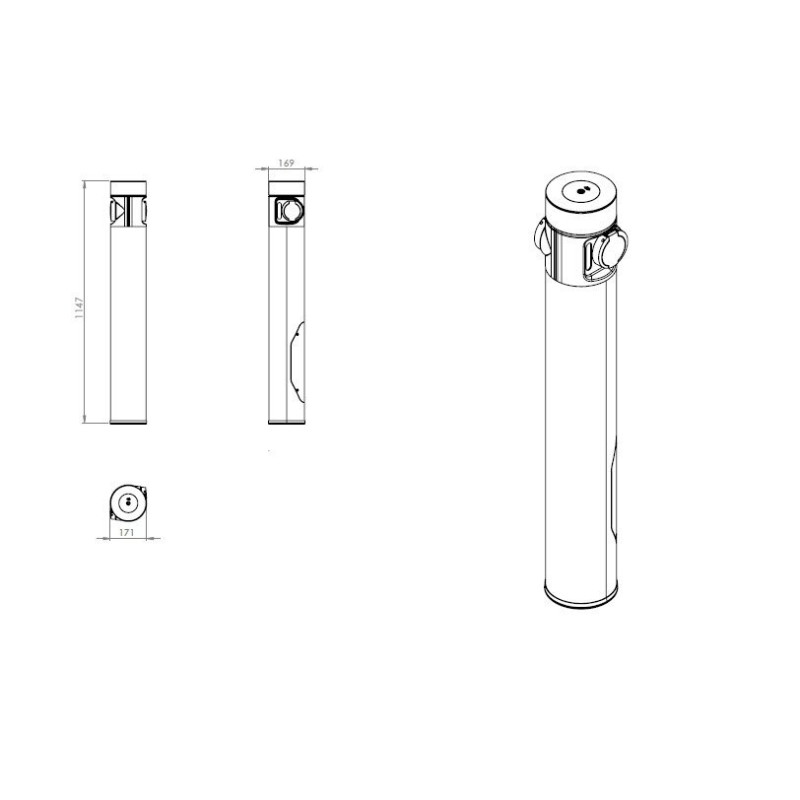

Dimensions: 1137mm x 170mm x 170

Class IK: IK10

IP class: IP54 (outdoor conditions)

Weight: 20 kg

ENVIRONMENTAL SPECIFICATIONS

Ambient operating temperature range -30 to +50 °C (outdoor conditions)

Storage ambient temperature range -30 to +60 °C

Overheating protection Linear charging power reduction in the upper range

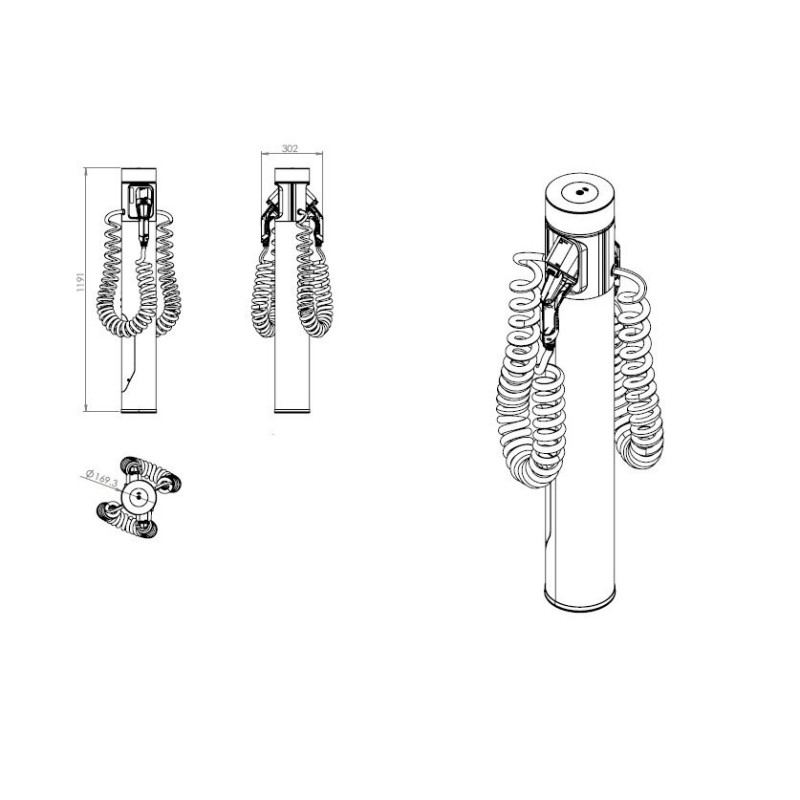

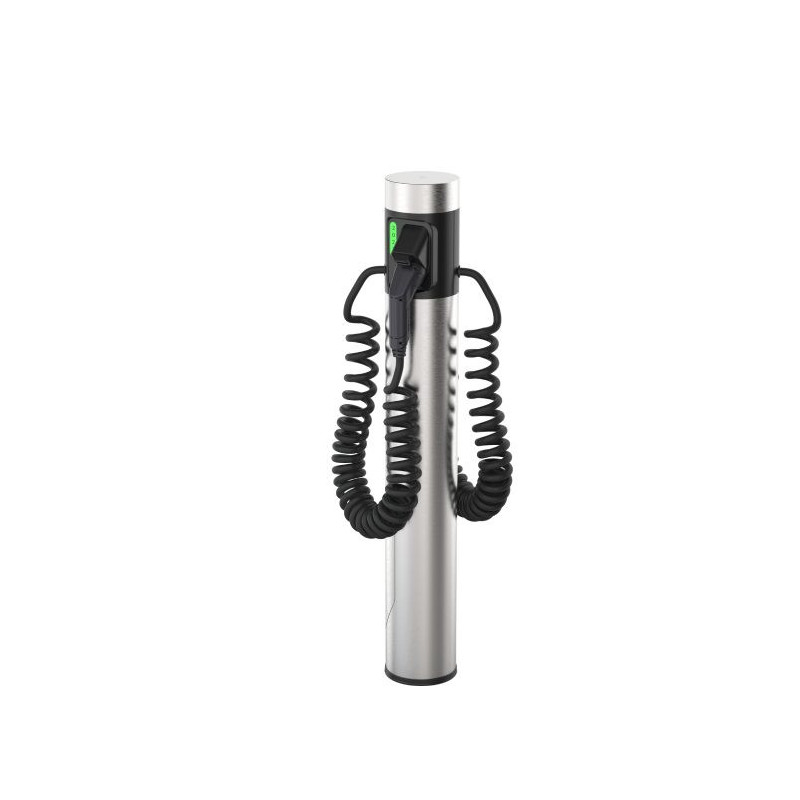

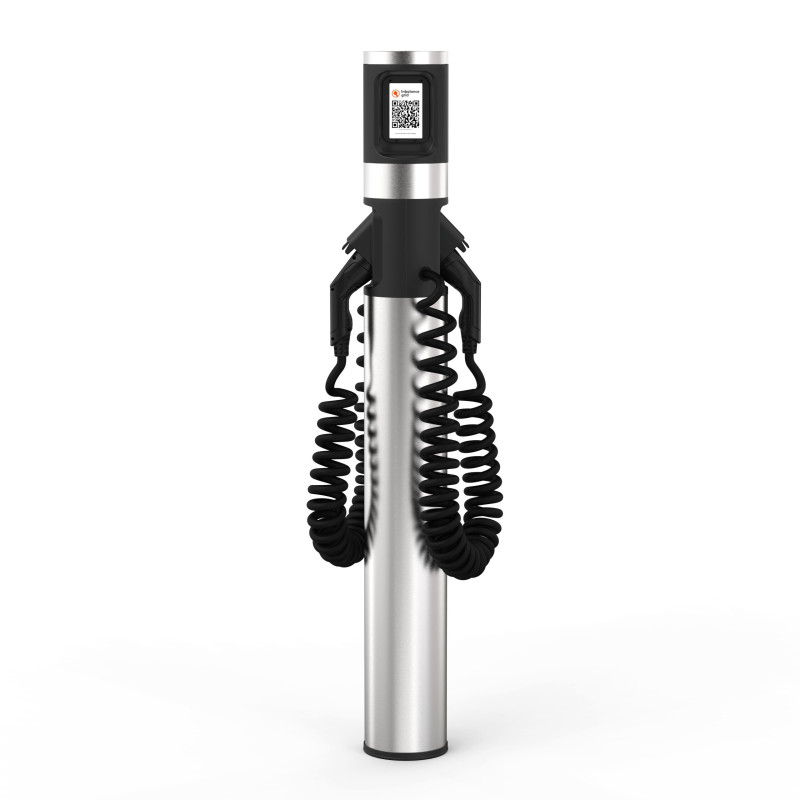

Integrated cables €330

FC/RFID €70

crane €330

Payment terminals €440
