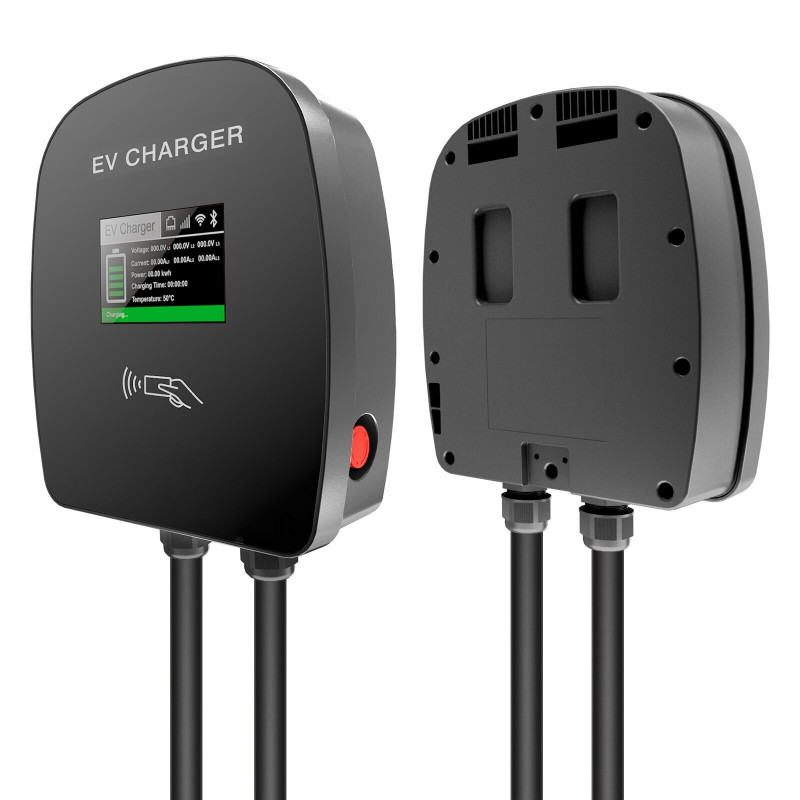

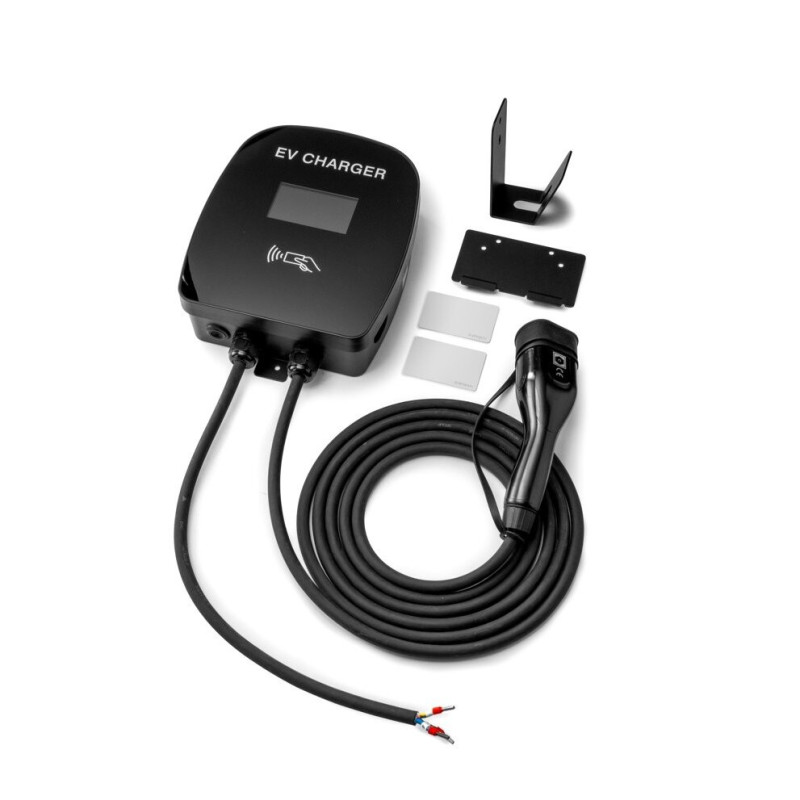

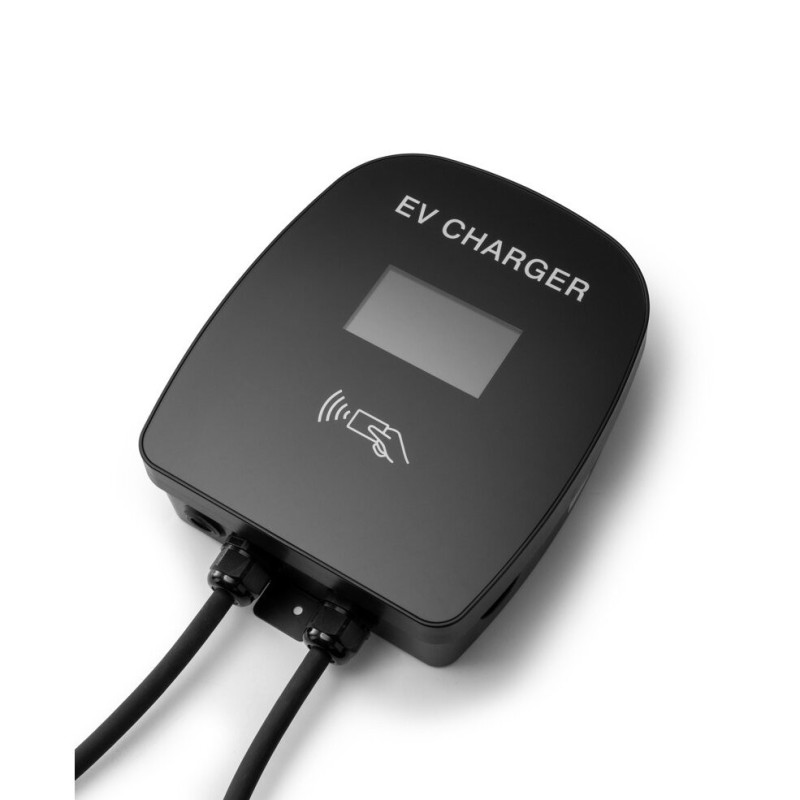

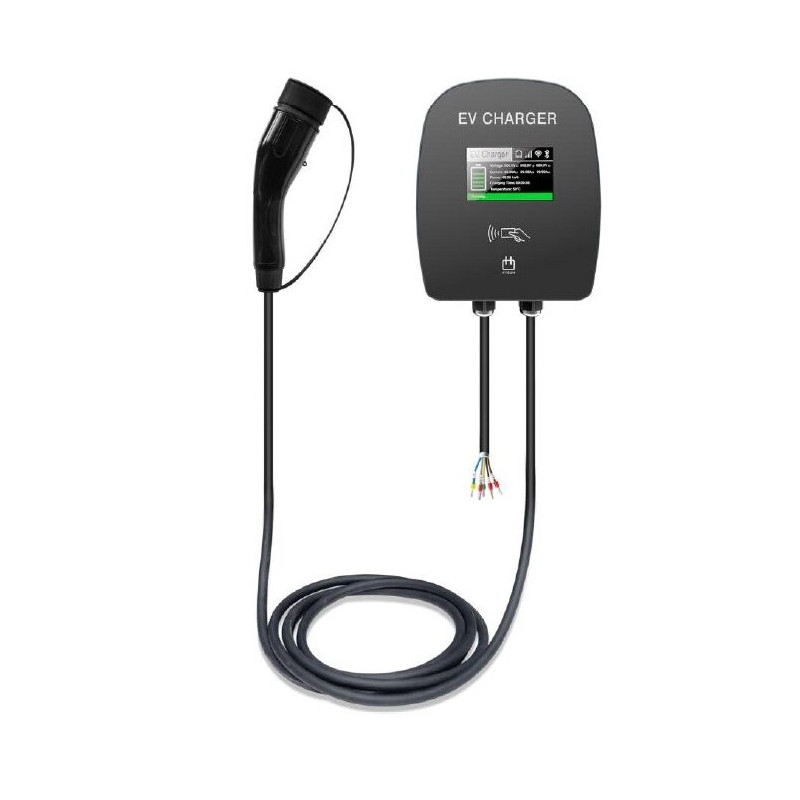

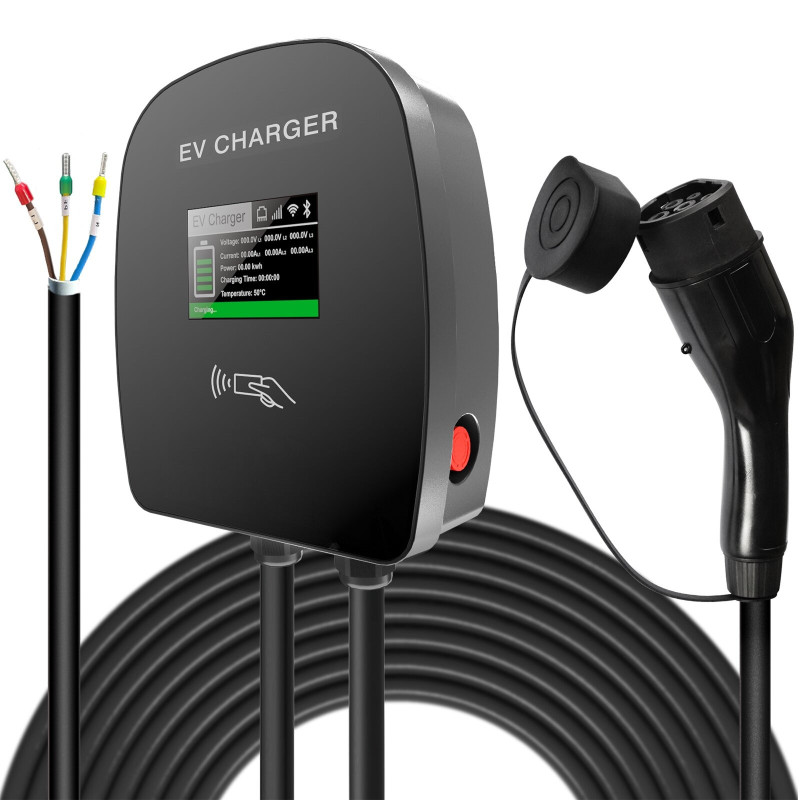

HYSUN charging station Wallbox 22kW with type 2 cable, 5m long, OCPP protocol,

Rated current: 8/10/13/16/32A Adjustable

Rated voltage: 380V±10%

Power supply: 3-phase

Rated power: 22KW

Charging plug: Type 2

LCD screen: 4.3 inch

Power plug: cord

Cable length: 0.45M + 4.5M

Charging cable: 5x6.0MM2+ 2x0.5MM2

Cable material: pure copper core with TPU cable sheath

Connection: Bluetooth; WIRELESS INTERNET; Ethernet; OCPP1.6J; 4G

Start mode: RFID card swipe / APP

RCD protection: Type B (30mA AC + 6mA DC)

IP factor: IP65

Optional:

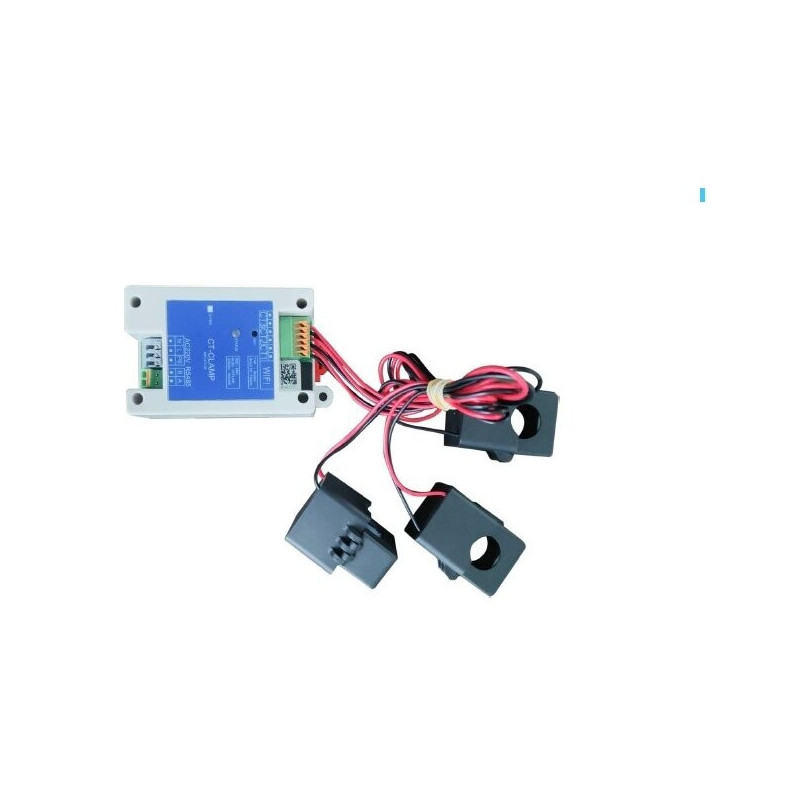

Dynamic load balancing controller - 100 Eur

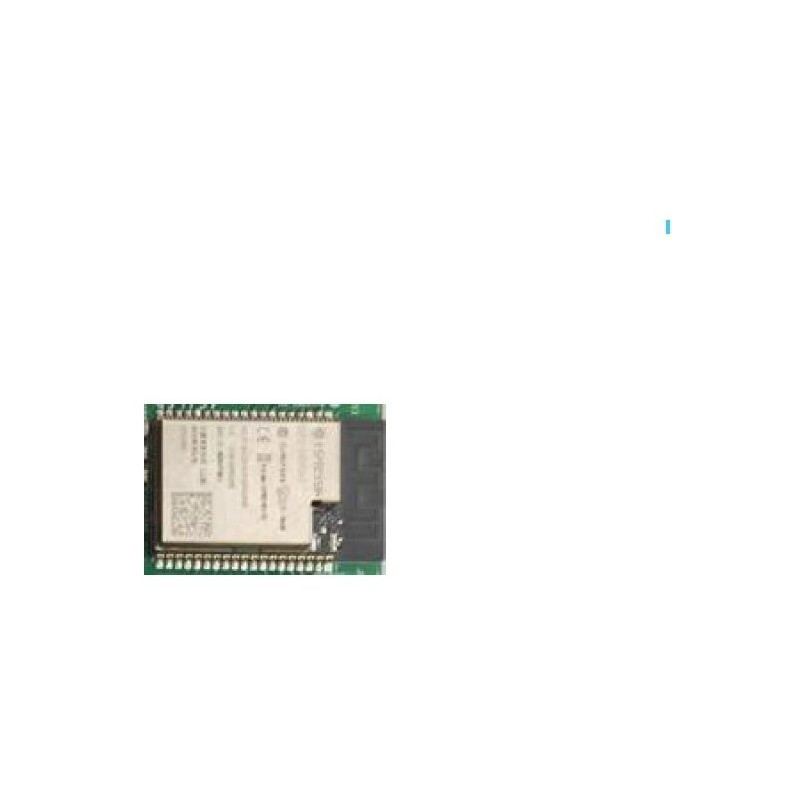

4G module for OCPP 1.6J connection - 100 Eur

OUR PRACTICAL ADVICE

If you have a single-phase electric vehicle or a Plug-in hybrid vehicle ( which accepts up to 7kW per phase) , it is important to choose the right charging station to ensure the most efficient charging. EVvaidai recommends choosing a 22 kW electric vehicle charging station.

Even when using single-phase charging, a 22 kW station will allow you to optimally use the available three-phase electrical input. In this case, if your electrical input is three-phase (22 kW) and the station is also 22 kW in power, you can achieve approximately 7 kW of charging power with a single phase.

This is an efficient and effective solution for those seeking maximum charging power for their electric or hybrid vehicle.
