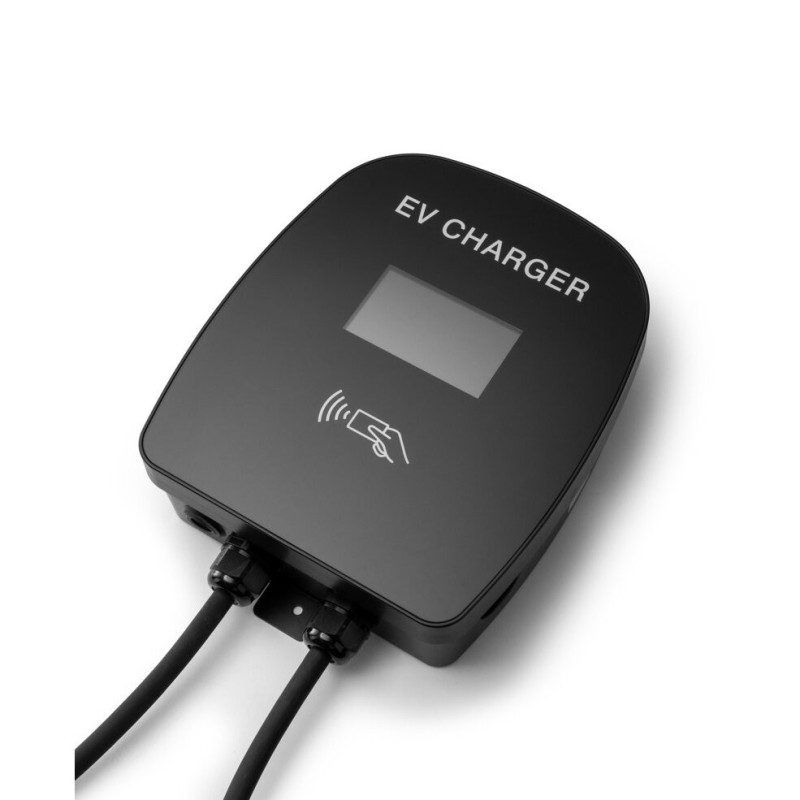

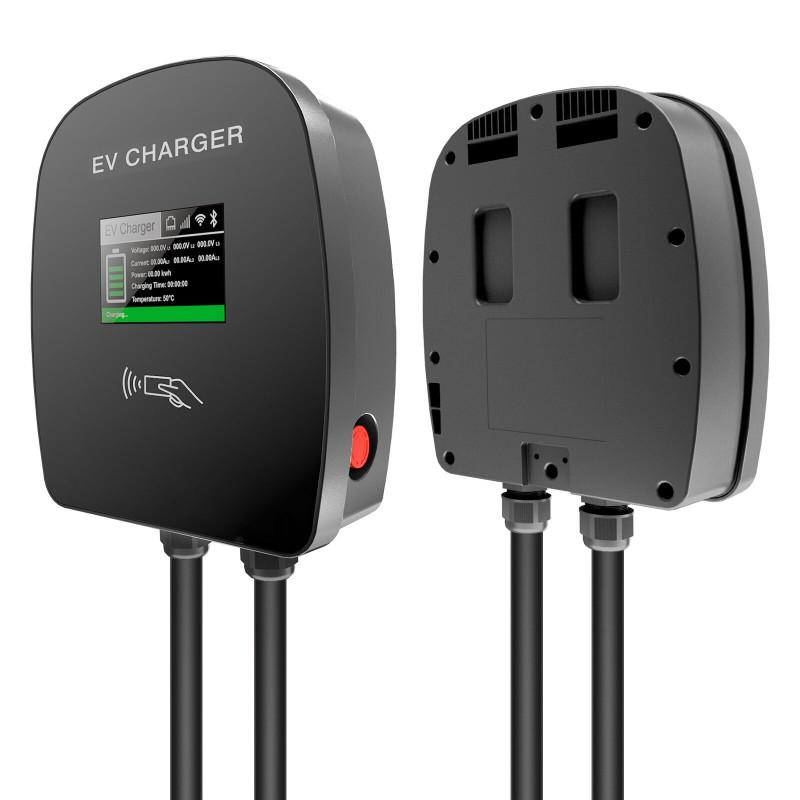

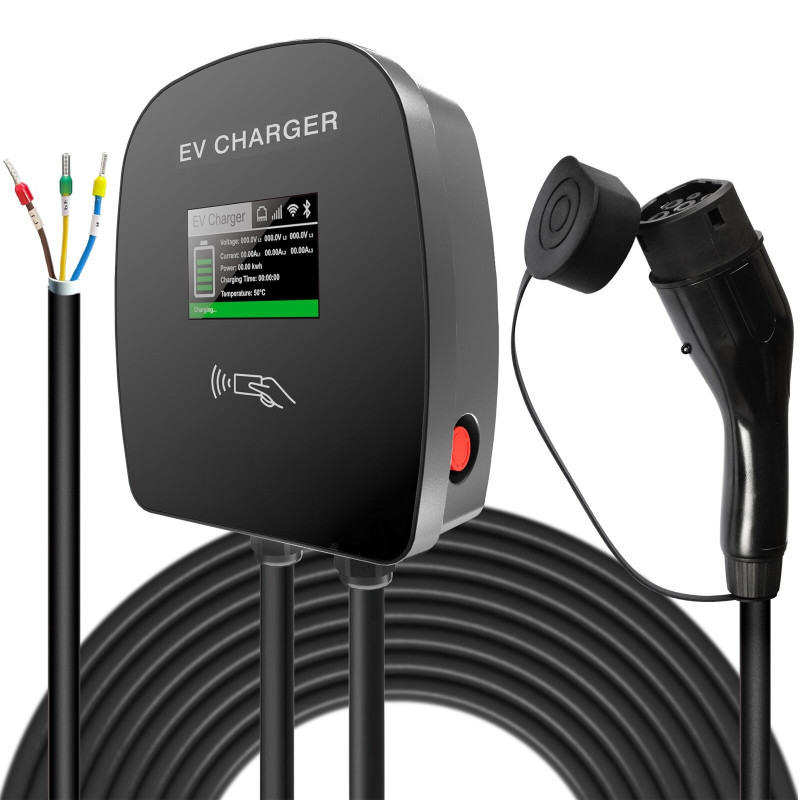

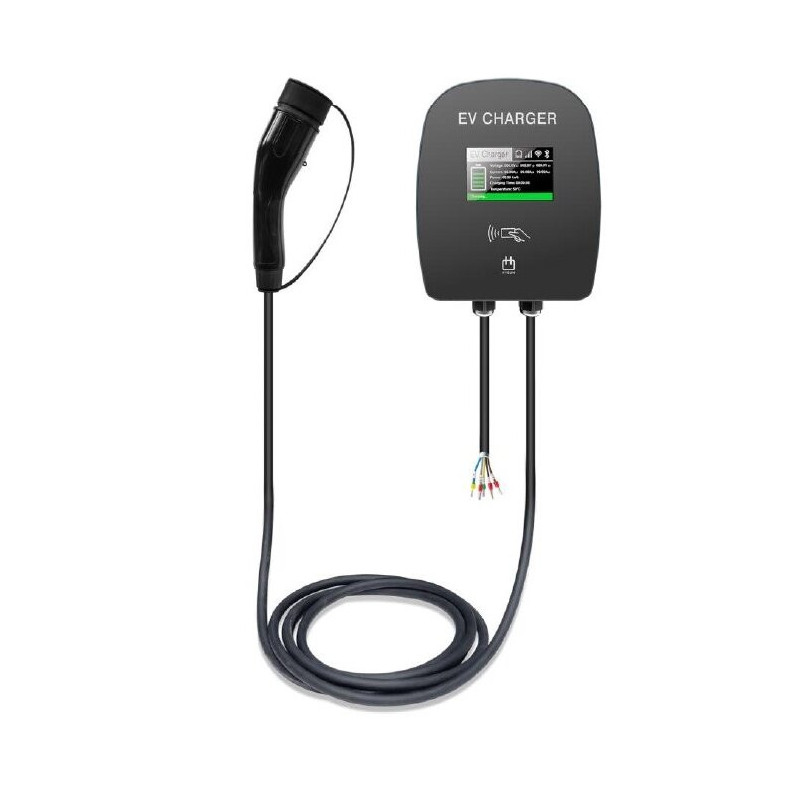

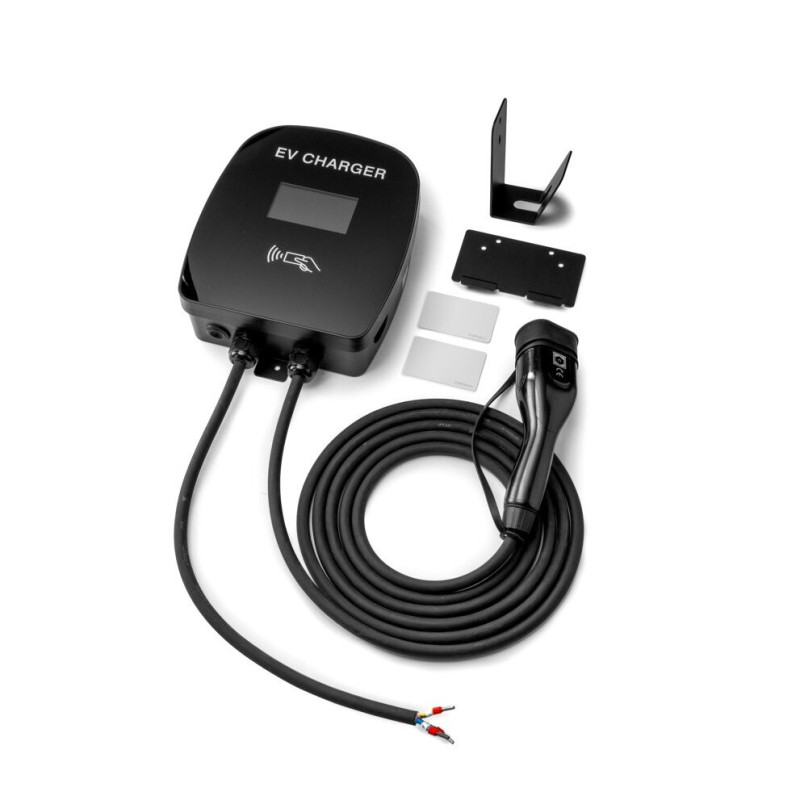

HYSUN charging station Wallbox 11kW with type 2 cable, 5m long, OCPP protocol
Product reference:
32-6498402024555
Technical information - click on the pdf logo
HYSUN charging station Wallbox 11kW with type 2 cable, 5m long, OCPP protocol
Product reference:
32-6498402024555
Technical information - click on the pdf logo
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 4
business days
Rated current: 8/10/13/16/ Adjustable
Rated voltage: 380V±10%
Power supply: 3-phase
Rated power: 11KW
Charging plug: Type 2
LCD screen: 4.3 inches
Power plug: cord
Cable length: 0.45M + 4.5M
Charging cable: 5x6.0MM2+ 2x0.5MM2
Cable material: pure copper core with TPU cable sheath
Connection: Bluetooth; WIRELESS INTERNET; Ethernet; OCPP1.6J; 4G
Start mode: RFID card swipe / APP
RCD protection: Type B (30mA AC + 6mA DC)
IP factor: IP65
Optionally available:

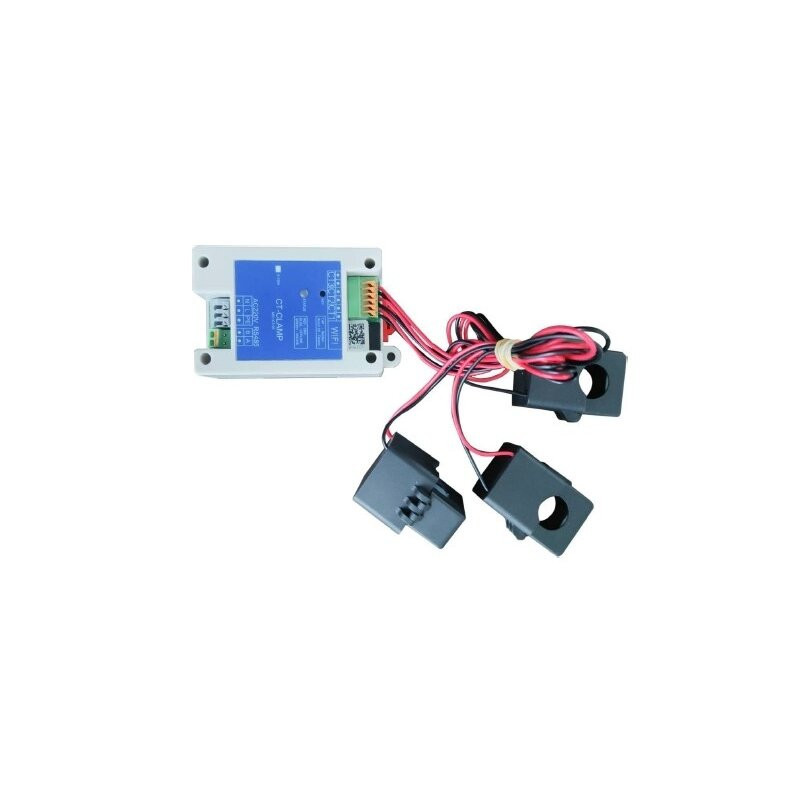

Dynamic load balancing controller - 100 Eur

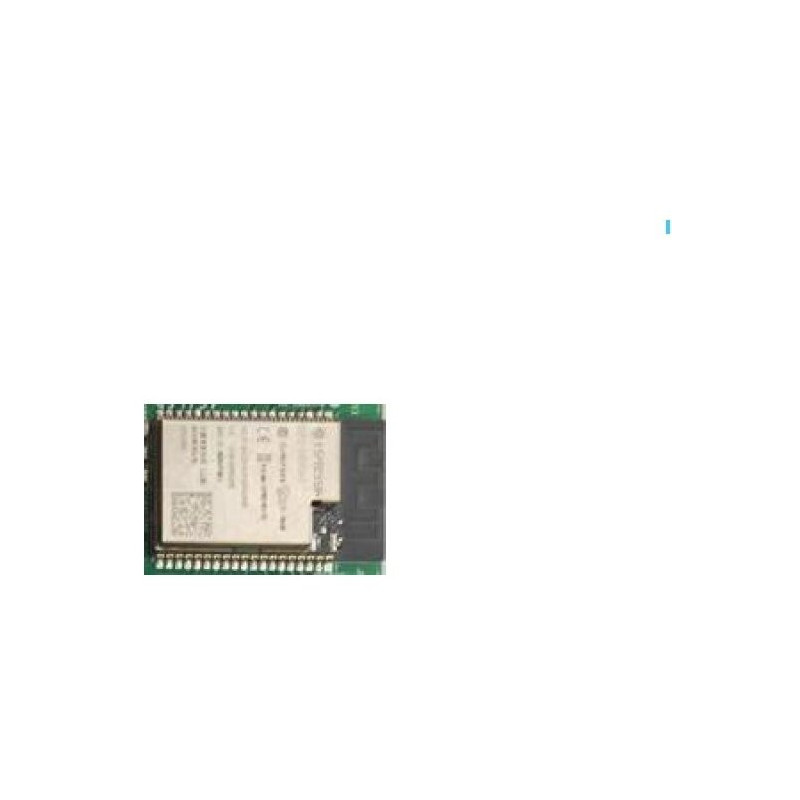

4G module for OCPP 1.6J connection - 100 Eur
| Height | 700 mm |
| Power | 11 kW |
| Length | 180 mm |
| Cable shape | Straight |
| Cable length | 5 m |
| Cable type | type 2 |
| Width | 200 mm |
| With cable | Yes |
| Weight | 5000 g |
