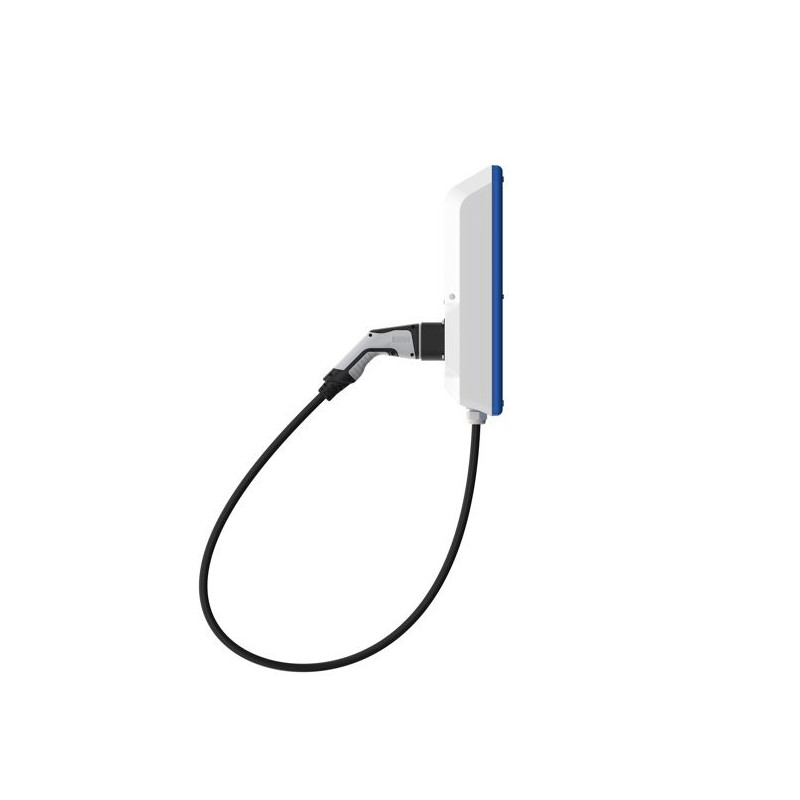

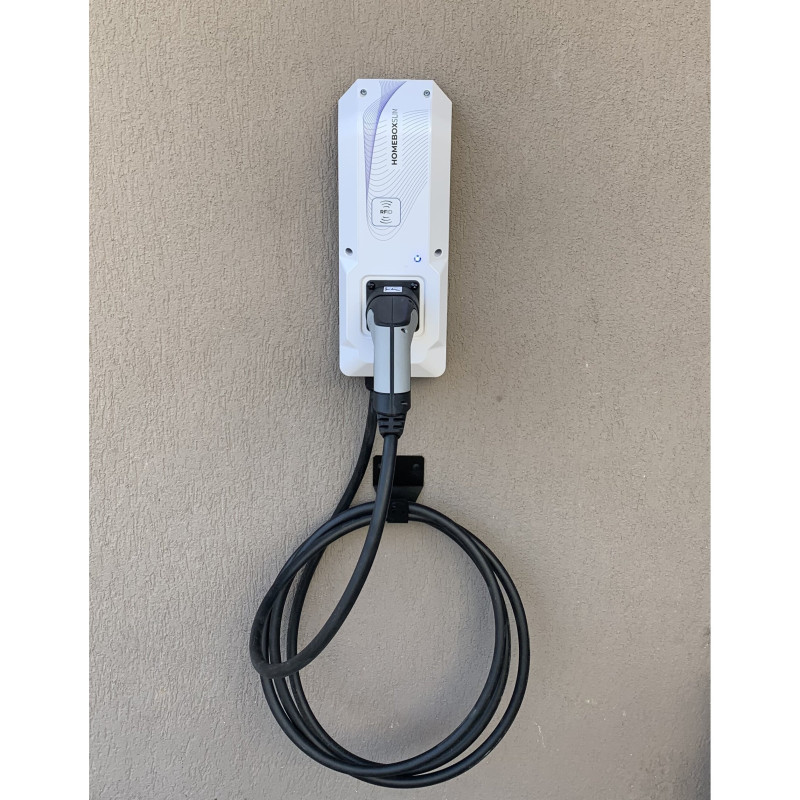

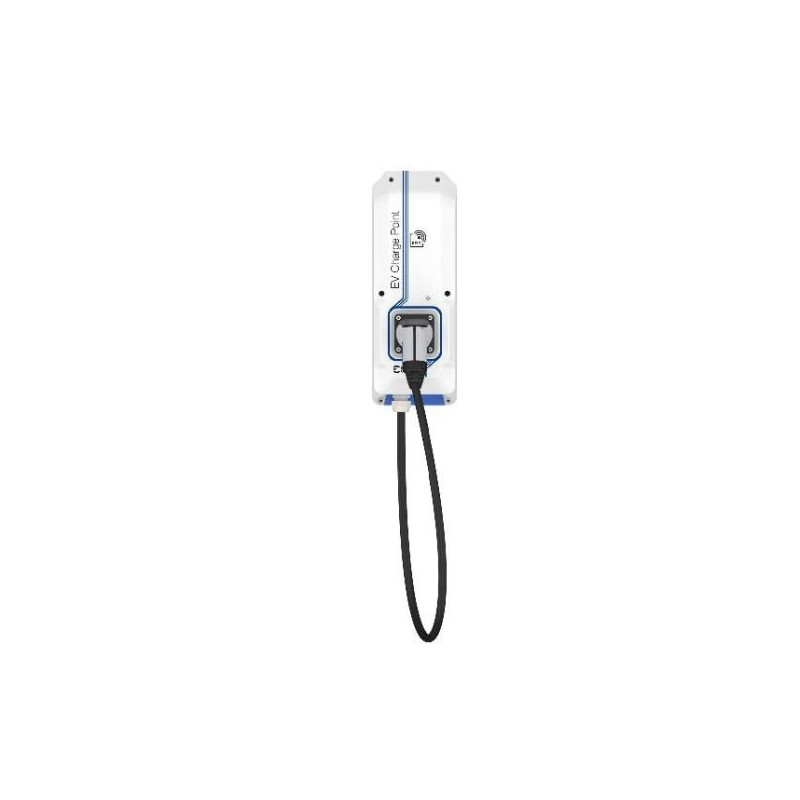

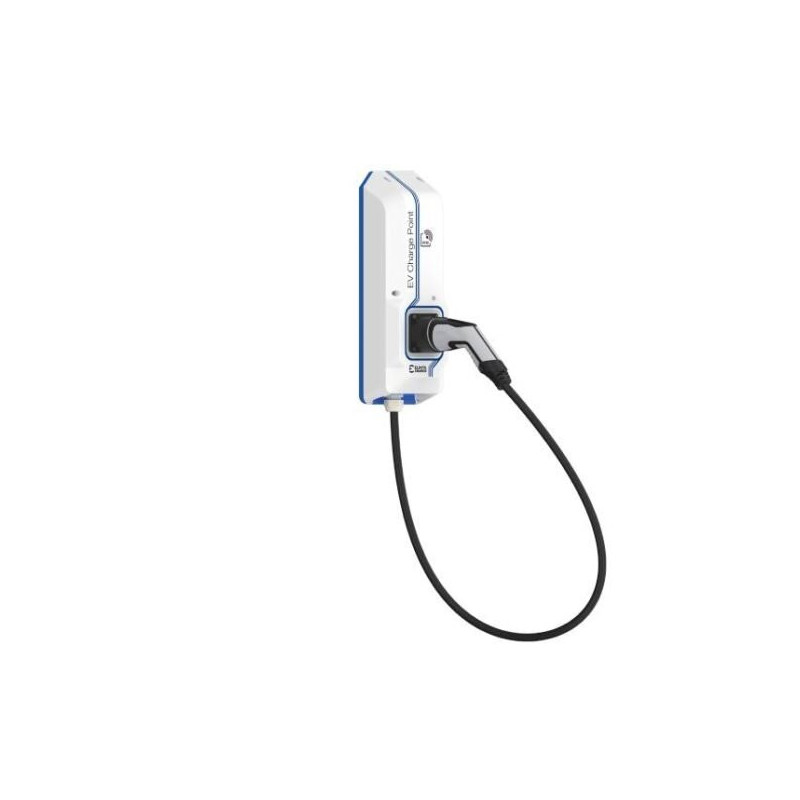

HomeBox Lite Plus 22kW with integrated 4.5m cable + WiFi / LAN / Bluetooth + RCM + RFID

HomeBox Lite PLUS 22kW WiFi/LAN/Bluetooth + RCM + RFID - charging power up to 22 kW

Weight: 5.5 kg

Dimensions: 440 x 160 x 130 mm

Number of phases: 1 or 3

Operating voltage: 230 / 400 V/AC

Maximum power: 22 kW

Impact resistance class: IK08

IP protection class: IP54

Operating temperature: -30 °C to +50 °

LED charging indicator: YES

Smart electricity meter: Yes, MID

RFID user authorization: Yes

Internet connection available: Yes

Communication type: GSM/LAN/WiFi

Smart Power Balancing: Optional*

DC leakage detection: Optional*

Type B leakage relay: Optional*

Bank card reader: Optional*

Mobile application for station management: Yes

UV resistance: Yes

CE certificate: Yes

Stop Administration System:

Yes Elios.Cloud

Additional options at the stop:

Integrated smart energy metering (MID) - only for Home Box Lite Plus - 120 Eur

4G modem + SIM card - 160 Eur

Power balancing system with smart meter - 130 Eur

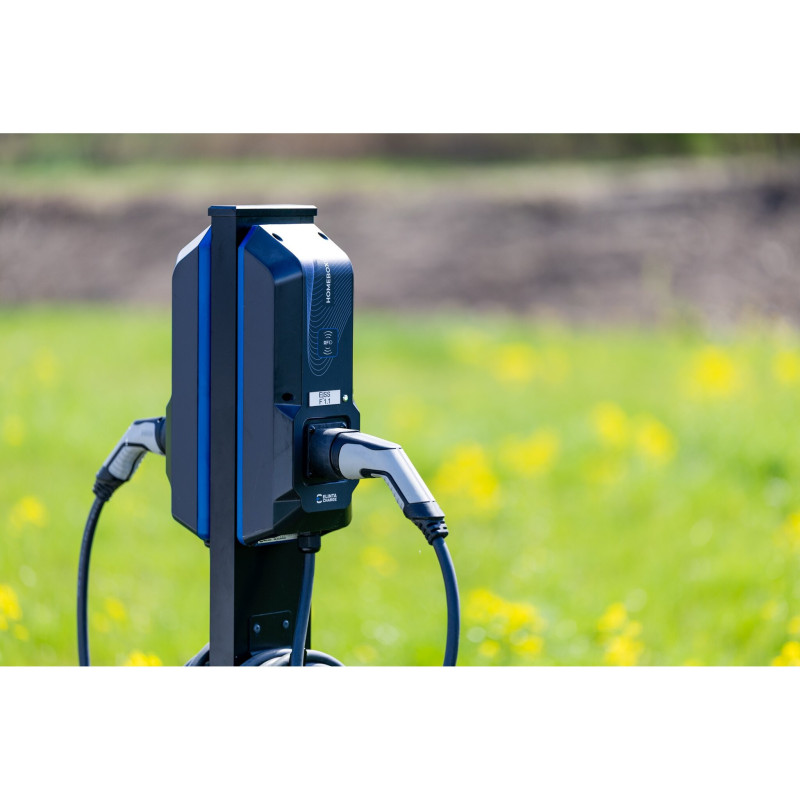

Aluminum black stand - 270 Eur

up to 10 m charging cable extension - 100 Eur

RCCB Type B (Siemens) - for one socket - 230 Eur

SIM card after the warranty period (price for 12 months) - 36 Eur

Warranty extension for one year - 5%

Co-Branding (40% discount when purchasing at least 20 units) - 30 Eur
