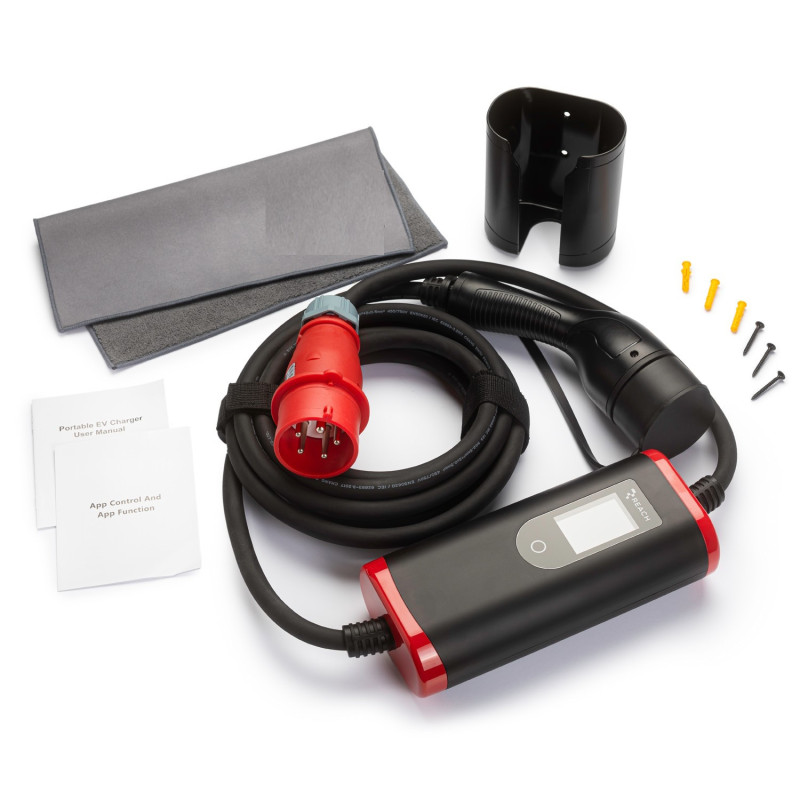

EV charger PEVC4 3 phases Type2 16A 11kW 10.0m

Specifications:

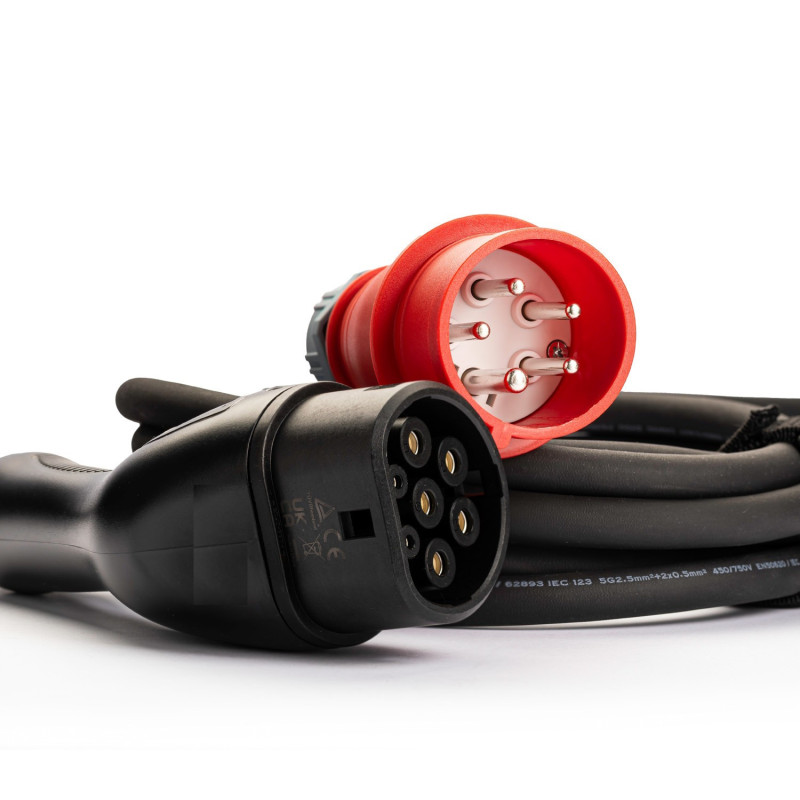

Connector type: Type 2 and CEE red plug
Charging current: 6-16 A (3 phase, adjustable)
Maximum charging power: 11 kW
Cable length: 10m
Protection class: IP65
Operating voltage: AC 400-440V
Block size: 220 x 100 x 60 mm
Safety class: IP65
Operating temperature: -35°C ~ +50°C
Operating humidity: 5% ~ 95% RH
Protection against: overheating, overvoltage, overload, voltage fluctuations, short circuit, overcurrent, leakage; grounding.
Warranty: 24 months.

Real-time Charging Control
The integrated LED display provides detailed information about the charging process in real-time, letting you monitor and control charging parameters.

The following parameters are displayed:

Maximum current: the highest current the charging station can use.
Accumulated energy: total energy accumulated during the charging session.
Charging duration: how long the charging is in progress.
Charging block temperature: the current temperature of the charging block.
Grid voltage: the current grid voltage.
Instantaneous charging power: the real power supplied to the car at the moment.
Instantaneous charging current: the current charging current.
Charging status: waiting, charging, finished.

Screen Control Menu Options:

Current change: ability to change the charging current from 6 A to 16 A.
Charging start time setting: ability to set the charging start time up to 12 hours in advance.
Grounding modes control: enable/disable grounding modes, depending on usage circumstances.
Control via mobile app, and via Bluetooth when no network is available
The device has an integrated smart control system that you can access via a mobile app or Bluetooth.

The app lets you:

Start charging
View charging history
Set charging time
Adjust charging power
