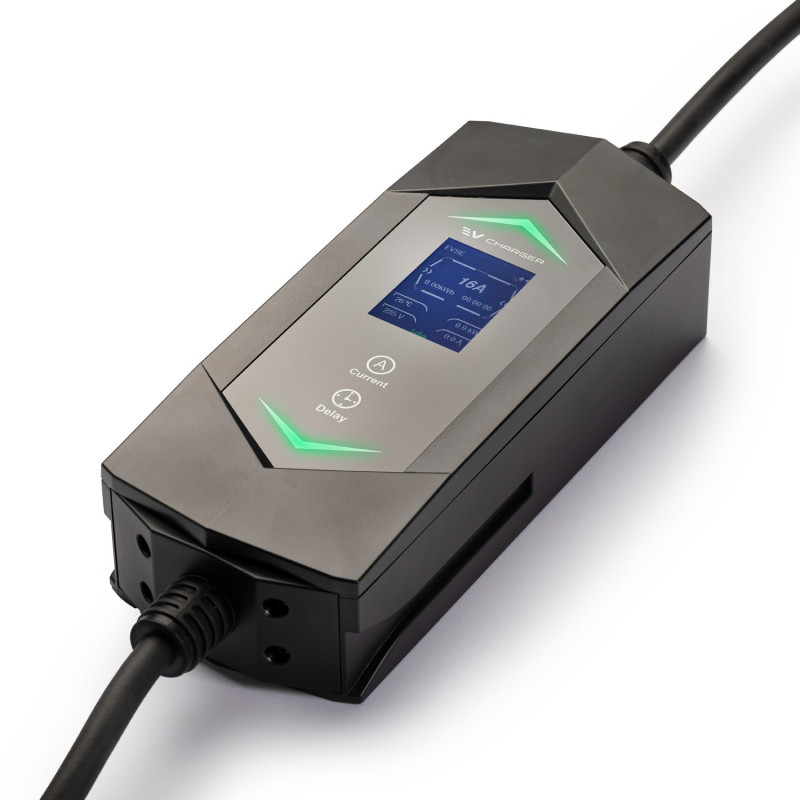

EV charger PEVC2 220V Type2 16A 3.5kW 5.0m

Specifications:

Connector Type: Type 2 and Schuko plug

Charging Current: 6-16 A (1 phase, adjustable)

Maximum Charging Power: 3.5 kW

Cable Length: 5 m

Protection Class: IP65

Operating Voltage: AC 200-250V

Block Size: 230 x 95 x 55 mm

Safety Class: IP65

Operating Temperature: -35°C ~ +50°C

Operating Humidity: 5% ~ 95% RH

Protection against: Overheating, overvoltage, overload, voltage fluctuations, short circuit, overcurrent, leakage; grounding.

Warranty: 24 months.

Set includes: Charging station, power cable, wall mount with mounting screws, cloth.

Real-time Charging Control

The integrated LED display provides detailed information about the charging process in real-time, allowing you to monitor and control charging parameters.

The following parameters are displayed:

Maximum current: The highest current the charging station can use.

Accumulated energy: Total energy accumulated during the charging session.

Charging duration: How long the charging is in progress.

Charging block temperature: The current temperature of the charging block.

Grid voltage: The current grid voltage.

Instantaneous charging power: The real power supplied to the car at the moment.

Instantaneous charging current: The current charging current.

Charging status: Waiting, charging, finished.

Screen Control Menu Options

Current change: Ability to change the charging current from 6 A to 16 A.

Charging start time setting: Ability to set the charging start time up to 12 hours in advance.

Grounding modes control: Enable/disable grounding modes, depending on usage circumstances.

Control via Mobile App, and via Bluetooth when no Network is Available

The device has an integrated smart control system that you can access via a mobile app or Bluetooth.

The app allows you to:

Start charging

View charging history

Set charging time.
