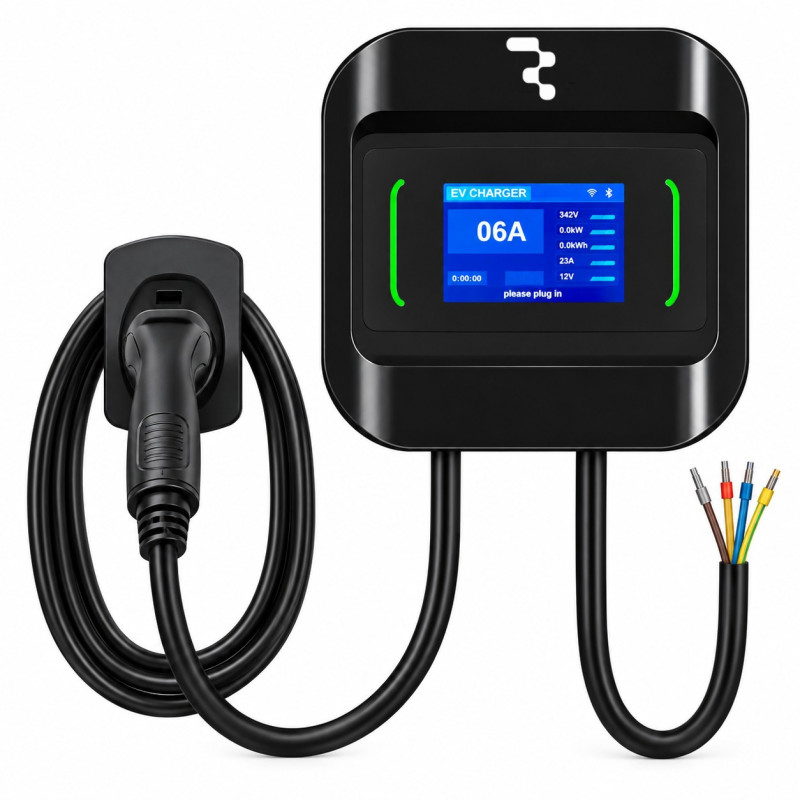

Electric vehicle charging station Reach CS41-11 Type2 16A 11kW 5.0m

Reach CS41-11 - wall-mounted electric car charging station with Type 2 connector for up to 11 kW for charging. The station has an integrated 4.3" screen, charging current and delayed charging control buttons and an LED status indicator.

Specification:
Connector type: Type 2
Charging current: up to 16 A
Maximum charging power: 11 kW
Cable length: 5 m
Protection class: IP65
Operating voltage: AC 380-480 V
Block size: 250 × 260 × 90 mm
Operating temperature: -30 °C ~ +50 °C
Warranty: 24 months.

Protection against electric leakage, overcurrent, short circuit, earth fault, overvoltage, undervoltage, voltage surges, over- and underfrequency and overheating. Protection against electric leakage: Type B RCD (30 mA AC + 6 mA DC).

The set includes: charging station with Type 2 charging cable, wall mount for the station with mounting screws, charging cable holder with mounting screws.

Charging control
The charging station has integrated control buttons that allow you to change the charging current and set a delayed start of charging. The start of charging can be delayed up to 12 hours.

Real-time charging monitoring
Integrated 4.3" digital display provides information about the charging process in real time, so the main charging parameters can be conveniently monitored on the station screen.

The following parameters are displayed:
Charging current: current charging current.
Charging time: How long it takes to charge.
Mains voltage: current mains voltage.
Charging power: current charging power.
Delayed charging time: Set the time until charging starts.
Accumulated energy: The amount of energy transferred during charging.
Signal voltage: displayed on the station display.
Temperature: displayed on the station screen.

LED status indicator
The station has an integrated LED indicator that uses different colors to inform about the device and charging status. Green, blue and red The indicator is used to show operating, charging and possible fault statuses.
