Electric vehicle charger Reach PEVC1 220V Type1 16A 3.5kW 10.0m

Specification:

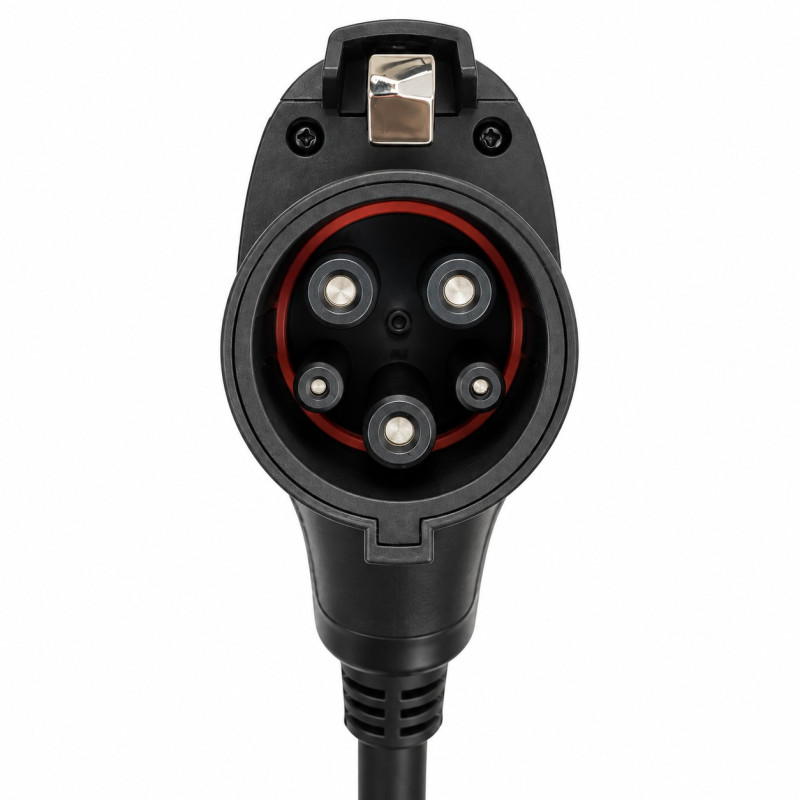

Connector type: Type 1 and Schuko plug
Charging current: 6-16 A (1 phase, adjustable)
Maximum charging power: 3.5 kW
Cable length: 10 m
Protection class: IP65
Operating voltage: AC 200-250 V
Block size: 210 × 86 × 50 mm
Protection class: IP65
Operating temperature: -30 °C ~ +50 °C
Operating humidity: 5% ~ 95% RH
Protection against electrical leakage, overvoltage, undervoltage, overcurrent and overheating; grounding.
Warranty: 24 months.

The set includes: charging station, power cord, wall mount with mounting screws, cleaning cloth.

Real-time charging management
The integrated LED display provides detailed information about the charging process in real time, allowing you to monitor and control charging parameters.

The following parameters are displayed:
Maximum current: The maximum current that the charging station can use.
Accumulated energy: Total energy accumulated during the charging session.
Charging time: How long it takes to charge.
Charging unit temperature: The current temperature of the charging unit.
Mains voltage: current mains voltage.
Instantaneous charging power: the actual power supplied to the car at this moment.
Instantaneous charging current: current charging current.

On-screen control menu options:
Current change: ability to select charging current - 6 A / 8 A / 10 A / 13 A / 16 A.
Setting the charging start time: Ability to set the charging start time to 12 hours in advance, at 1 hour intervals.
Grounding mode control: ability to select charging mode with or without grounding, depending on the circumstances of use.
Stopping charging: The charging process can be stopped using the buttons on the control unit.

Control via mobile app, and when there is no network, via Bluetooth
The device has a built-in smart control system that can be accessed via a mobile app or Bluetooth. During the first connection, the phone and charger are paired using Wi-Fi and Bluetooth connection. If there is no Wi-Fi network, you can use your phone's mobile hotspot. After the first successful connection, the device can also be controlled via Bluetooth.

The app allows you to:

• Start charging


• Stop charging


• Select charging mode


• View charging history


• Set charging time


• Adjust charging current


• Change grounding and other system settings


• Share device control with another app user
