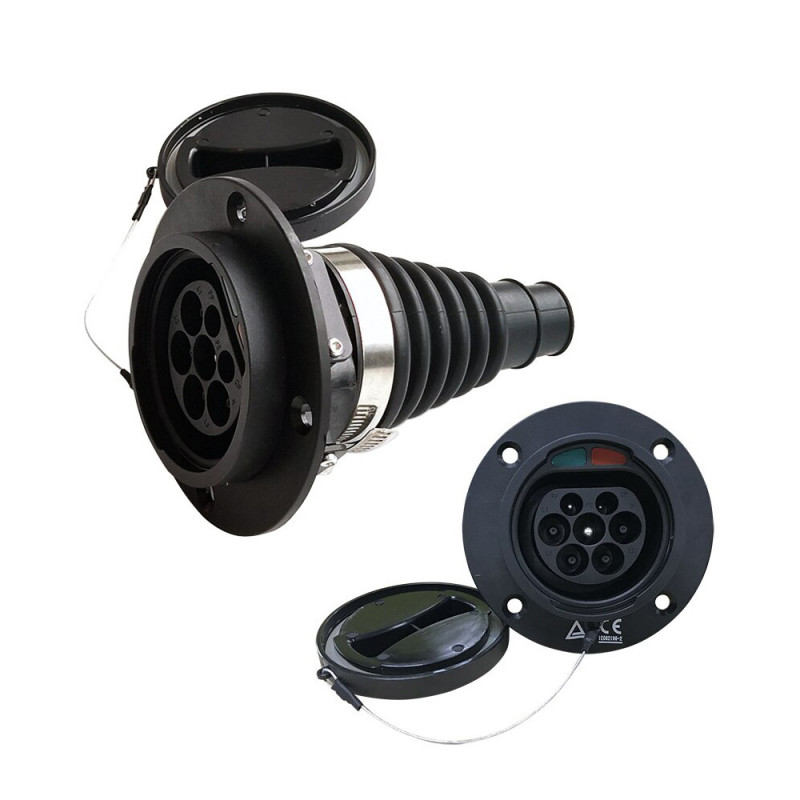

Electric vehicle socket Type 2 (Male), 32A, 3-phase

Electric vehicle socket Type 2 (Male), 32A, 3-phase. Made with high-quality insulating thermoplastic coating, which provides IP54 level protection against dust and water ingress from all sides, and has a water drain hole. The socket is prepared for 4-point mounting, and the screw end is of the wire type.
The socket has resistance sensors that measure temperature very accurately and automatically reduce charging power or turn off charging completely when it rises above a safe limit.
The charging socket meets all safety requirements, is resistant to vibrations, moisture and dust. It is equipped with a flame retardant approved by UL94 V-0 certification, which stops the spread of fire within 10 seconds.
Features:
The socket has resistance sensors that automatically turn off when the temperature rises above a safe limit.
Mounted on the side of the vehicle.
Excellent protection properties, protection class IP44, resistance to vibrations, moisture, dust.
Mechanical life: no-load on/off cycles > 10,000 times.
Technical data:
EV connector type: Type 2 (European), Male, IEC 62196-2.
Number of contacts 7.
Rated current: 32A.
Operating voltage: 415V.
Operating temperature: -30°C to +50°C.
Insulation resistance: > 1000MΩ(DC500V).
Voltage resistance: 2000V.
Contact resistance: 0.5m? Max.
Connectors: copper alloy, silver + thermoplastic coating.
Certificates: CE, TUV.
Color: black.
Warranty: 24 months
