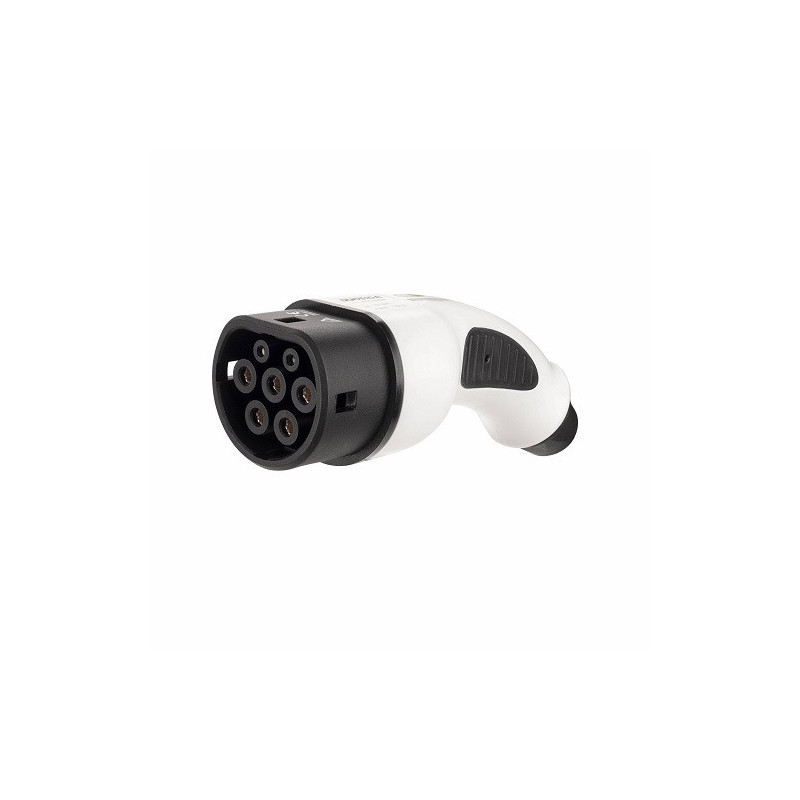

Electric vehicle plug Duosida Type 2 (Female), 32A, 3-phase
Product reference: 14-9990000200191
EV connector type: IEC 62196, Type2 (European), Mennekes, 7 pins. Rated current: 32A. Operating voltage: 415V AC. Maximum charging power: 22kW (3-phase). Material: thermoplastic, fire resistance UL94 V-0. Cable contacts: copper alloy, silver plated. Applicable cable dimensions: 5x6mm²+ 1x0.75mm² (3-phase). Number of contacts 7. Protection class: IP44. Operating temperature: -30°C~+50°C. Certificates: CE, TUV. Color: black / white.
Electric vehicle plug Duosida Type 2 (Female), 32A, 3-phase
Electric vehicle plug Duosida Type 2 (Female), 32A, 3-phase
Electric vehicle plug Duosida Type 2 (Female), 32A, 3-phase

Electric vehicle plug Duosida Type 2 (Female), 32A, 3-phase

Product reference: 14-9990000200191
EV connector type: IEC 62196, Type2 (European), Mennekes, 7 pins. Rated current: 32A. Operating voltage: 415V AC. Maximum charging power: 22kW (3-phase). Material: thermoplastic, fire resistance UL94 V-0. Cable contacts: copper alloy, silver plated. Applicable cable dimensions: 5x6mm²+ 1x0.75mm² (3-phase). Number of contacts 7. Protection class: IP44. Operating temperature: -30°C~+50°C. Certificates: CE, TUV. Color: black / white.
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
89,71 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
4 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

Plug for electric vehicles Type2 female (from the electric vehicle side), 32A, three-phase, without cable, designed to create your own charger by choosing the desired cable length and connectors.
Technical data:



  • EV connector type: IEC 62196, Type2 (European), Mennekes, 7 pins.

  • Rated current: 32A.

  • Operating voltage: 415V AC.

  • Maximum charging power: 22kW (3-fazė).

  • Material: thermoplastic, fire resistance UL94 V-0.

  • Cable contacts: copper alloy, silver plating.

  • Dimensions of the applicable cable: 5x6mm²+ 1x0.75mm² (3-fazė).

  • Number of contacts 7.

  • Safety class: IP44.

  • Operating temperature: -30°C~+50°C.

  • Certificates: CE, TUV.

  • Color: black / white.


Height200mm
Length300mm
Weight1600g
Width200mm
