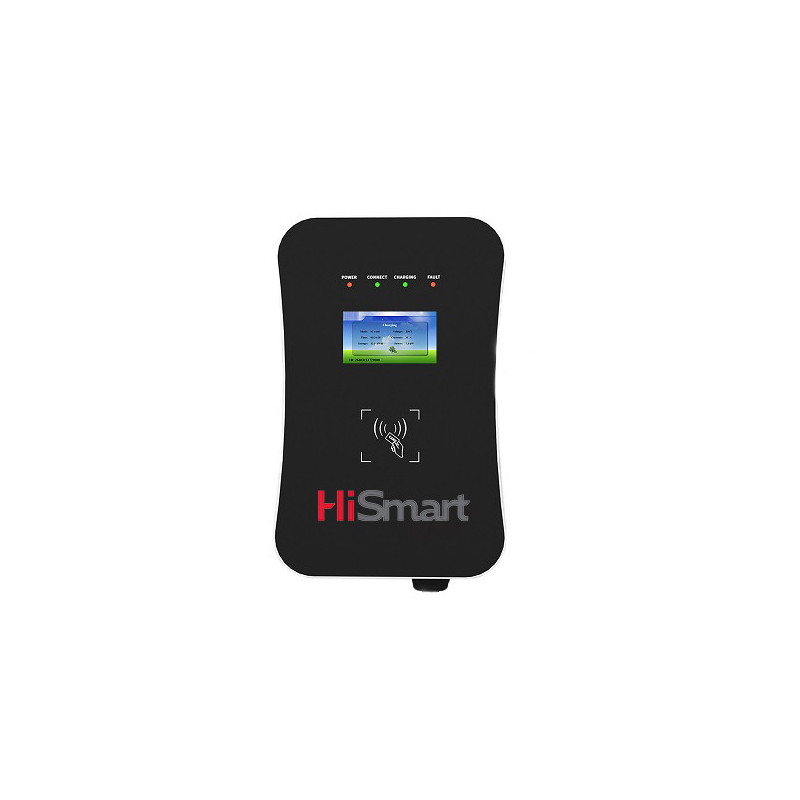

Electric vehicle charging station, Type 2, 22kW, 32A, 3-phase

Electric vehicle charging station, Type 2, 22kW, 32A, 3-phase

Charging station for electric vehicles Mode3, 22kW, 32A, 3-phase, with Type 2 socket, without charging cable, wall-mounted, RCD, IP65 suitable for indoor and outdoor conditions, IK08 impact resistant, PlugPlay / RFID cards.
Features:

• The charging station allows charging with up to 22kW of power.


• The station has a Type2 socket, standard throughout Europe. It can be connected to an appropriate cable or adapter, the connector of which is compatible with the vehicle (Type 1 Yazaki, Type 2 Mennekes, Tesla, Chademo, CCS combo, etc.).

Technical data:

• Max charging current: 32A (3-phase).


• Max. charging power: 22kW (3-phase).


• Input: 380V +/- 20V AC (3-phase), 32A (max.), 50/60Hz.


• Output: IEC 62196, Type2 (European), Mennekes, 7 pins.


• Charging control: PlugPlay / RFID card.


• Display: 4.3 inch LCD screen.


• 4 LED indicators: voltage/connection/charging/error.


• Body material: metal plate.


• Front panel: tempered glass.


• Screen color: black.


• Operating temperature: -30°C-55°C.


• Operating humidity: <95% RH.


• Storage temperature: from -40°C to +75°C.


• Safety class: IP65 (suitable for indoor and outdoor use), IK08 (impact resistant).


• Protection: RCD (residual current device).


• Protection against: overheating, overvoltage, overload, voltage fluctuations, short circuit, leakage; grounding.


• Cooling: natural.


• Size: 410 x 260 x 164 mm.


• Weight: <12 kg.
