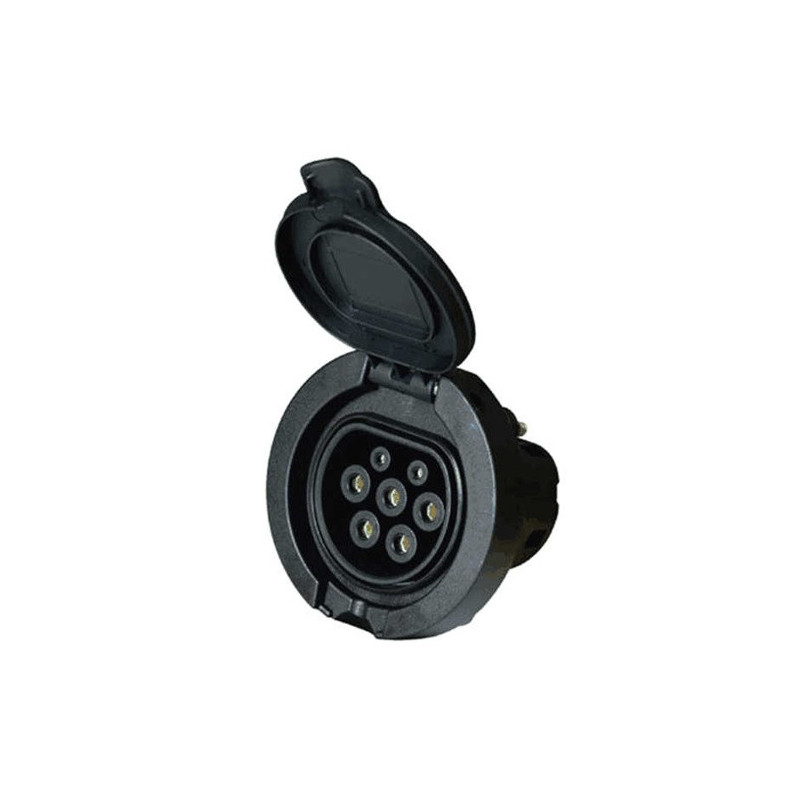

Electric vehicle charging station socket Duosida, Type 2 (Female), 32A, 3-phase
Product reference:
14-9990000200238
Electric vehicle charging socket Type 2 (62196-2). The socket has a protective cover, is compact and easily fixed with 4 screws. Resistant to flame, pressure, abrasion or impact. The socket charging power is up to 22 kW. Operating temperature -30° to +50°C. Current 32A/415V. Cable contacts - copper alloy, silver plated.
Electric vehicle charging station socket Duosida, Type 2 (Female), 32A, 3-phase
Product reference:
14-9990000200238
Electric vehicle charging socket Type 2 (62196-2). The socket has a protective cover, is compact and easily fixed with 4 screws. Resistant to flame, pressure, abrasion or impact. The socket charging power is up to 22 kW. Operating temperature -30° to +50°C. Current 32A/415V. Cable contacts - copper alloy, silver plated.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
Electric vehicle charging station socket (on the charger side), Type 2 (Female), 32A, 3-phase, without cable.
Features:
- Electric vehicle charging socket Type 2 (62196-2).
- The socket has a protective cover, is compact and easily fixed with 4 screws.
- Resistant to flame, pressure, abrasion or impact.
- Socket charging power up to 22 kW. Operating temperature -30° to +50°C. Current 32A/415V.
- Cable contacts - copper alloy, silver plating.
Technical data:
- Connector type: IEC 62196, Type 2 (European), Mennekes, 7 pins.
- Rated current: 32A.
- Voltage: 415V AC.
- Cable dimensions: 3x6mm²+2x0.75mm² (for single phase); 5x6mm²+ 2x0.75mm² (for three phase).
- Operating temperature: from -30°C to +50°C.
- Material: thermoplastic, fire resistance UL94 V-0.
- Certificates: CE, TUV.
- Color: black.
