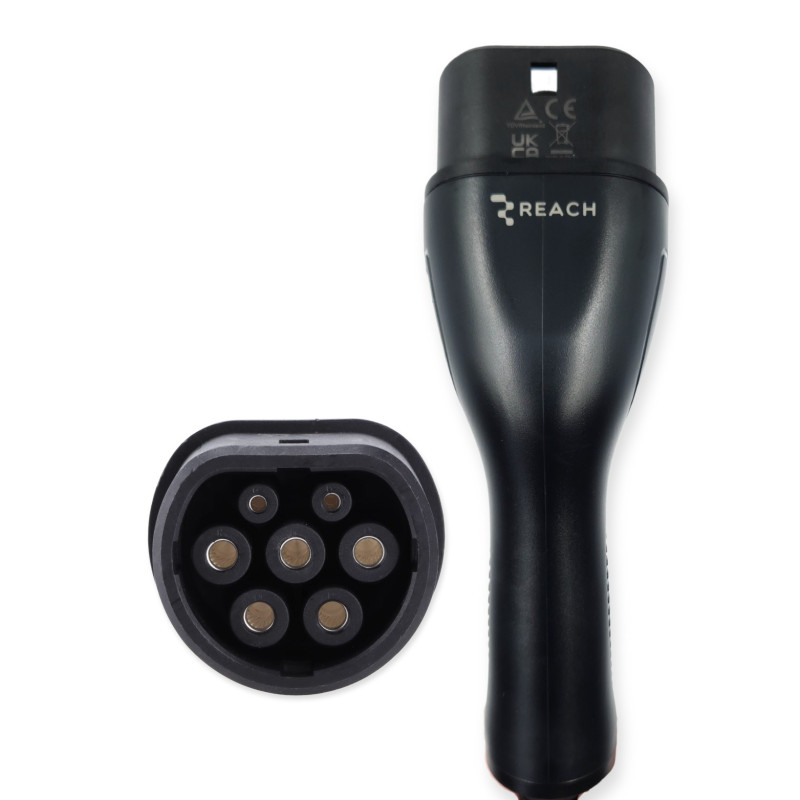

Electric vehicle charging station Reach EVCS13 Type2 16A 11kW 5.0m

Specification:Connector type: Type 2 Charging current: 6-16 A (3 phase, adjustable) Maximum charging power: 11 kW Cable length: 5 m Protection class: IP65 Operating voltage: AC 380-440 V Block size: 310 x 160 x 90 mm Protection class: IP65 Operating temperature: -35°C ~ +50°C Operating humidity: 5% ~ 95% HR RCD: Type A 30mA AC Warranty: 24 months

Protection against overheating, overvoltage, overload, voltage fluctuations, short circuit, surges, leakage; grounding.

The set includes: charging station, power cable, wall cable holder with mounting screws, wall charging station holder with mounting screws, 2 pcs. RFID cards.

Real-time charging managementThe integrated LED display provides detailed information about the charging process in real time, allowing you to monitor and control charging parameters.

The following parameters are displayed:Charging current: The maximum current that the charging station can use. Accumulated energy: The total energy accumulated during the charging session. Charging duration: How long the charging process has been in progress. Charging unit temperature: The current temperature of the charging unit. Grid voltage: The current grid voltage. Current charging power: The actual power currently being supplied to the vehicle. Current charging current: The current charging current. Charging status (charging started, stopped, delayed)On-screen control menu options:Current change: Ability to change the charging current from 6 A to 16 A. Charging start time setting: Ability to set the charging start time up to 10 hours in advance. Grounding mode control: Enable/disable grounding modes depending on the usage circumstances.

Control via mobile app, and when there is no network, via BluetoothThe device has an integrated smart control system, which you can access via a mobile app or Bluetooth.RFID Card FunctionThis electric vehicle charging station’s RFID function with two cards allows for convenient and secure initiation and management of charging sessions. The cards act as an authentication key, ensuring that only authorized users can start and end vehicle charging. This is particularly convenient and secure in public or semi-public areas, allowing for efficient tracking and control of the charging process.The app allows you to:

• Start charging


• View charging history


• Set charging time


• Adjust charging power
